Professional Sugar Pulverizer Grinding Machine Icing Sugar Mill Price

Share on (60764800254):


Price:$2,500.00

Quantity:


Product Overview

Description



Product Description


Professional Sugar Pulverizer Grinding Machine/Icing Sugar Mill Price

 Main Usage:

It is widely applied in the medical, chemical,pesticide,food and provision industries.

Specialty:
It makes use of the high-speed relative movement of the movable fluted disc and the fixed fluted disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials. Since it features a simple structure, firm and stable operation and good crushing effect, the crushed materials can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures. Besides, the whole machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.

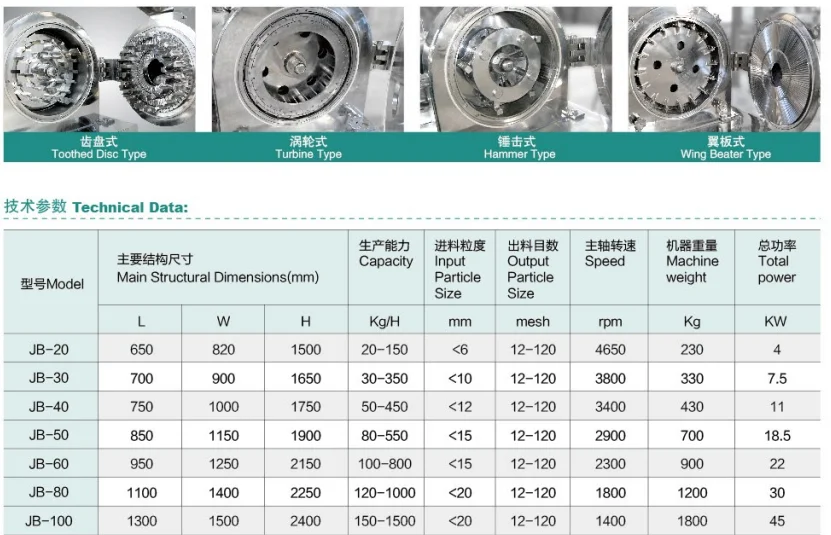

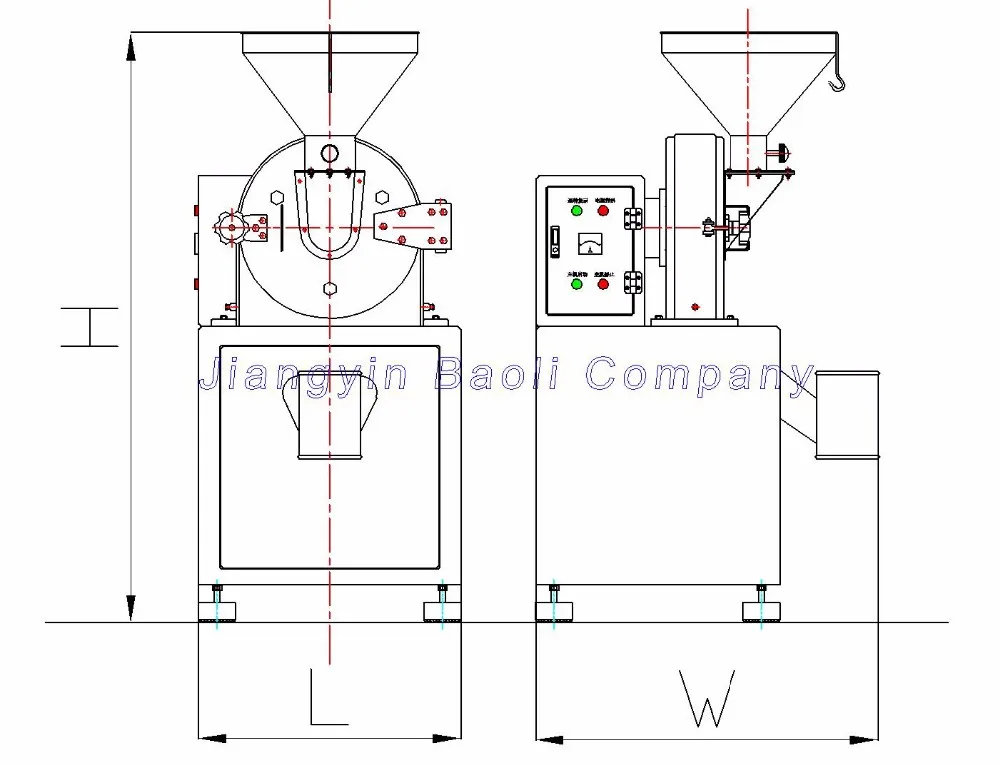

Technical Data

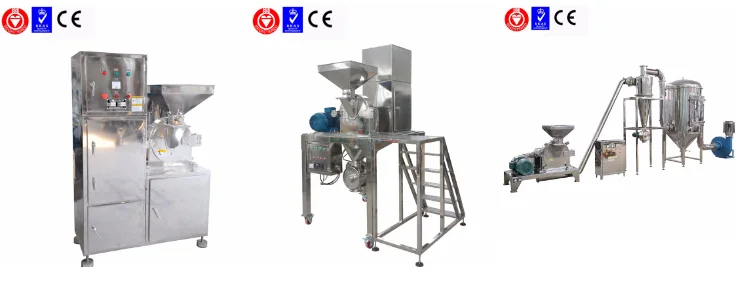

Other type machine for sugar





Detailed Images

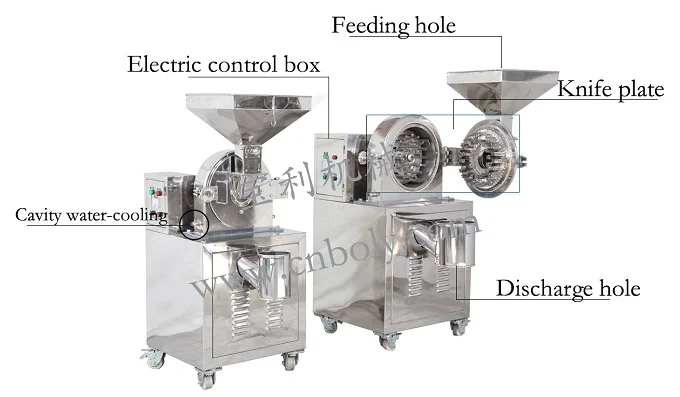

Grinding Parts

(1) The left motor is grinding motor;
(2) The circular one is grinding chamber



Inside mill chamber

This is toothed disc Type.

Also we could change turbo, hammer or any other type.




Cyclone part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel and to clean it and dismantle is convinient.



Pulse Dust Collecting box
The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.






Related Products


Fine powder making machine
Powder granules Hammer mill
Universal crusher


If you want to send inquriy about our powder grinding machine , could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Transaction History




Certifications




Packing & Delivery


Packaging
Size
Depends
Weight
Depends



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Packaging
Size
20 ft container; 40 ft container
Weight
Depends



Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.

Machine won't move inside the container.


Our Service


Pre-Sales Service

* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.



Our Company




Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history
 since 2009
    And our factory's history is from 2004
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,
for example: FIC, CPHI, API...etc
