Three drum dryer for quartz sand
- Category: Drum Drying Equipment >>>
- Supplier: Henan Bailing Machinery Co. Ltd.
Share on (60764939106):
Product Overview
Description

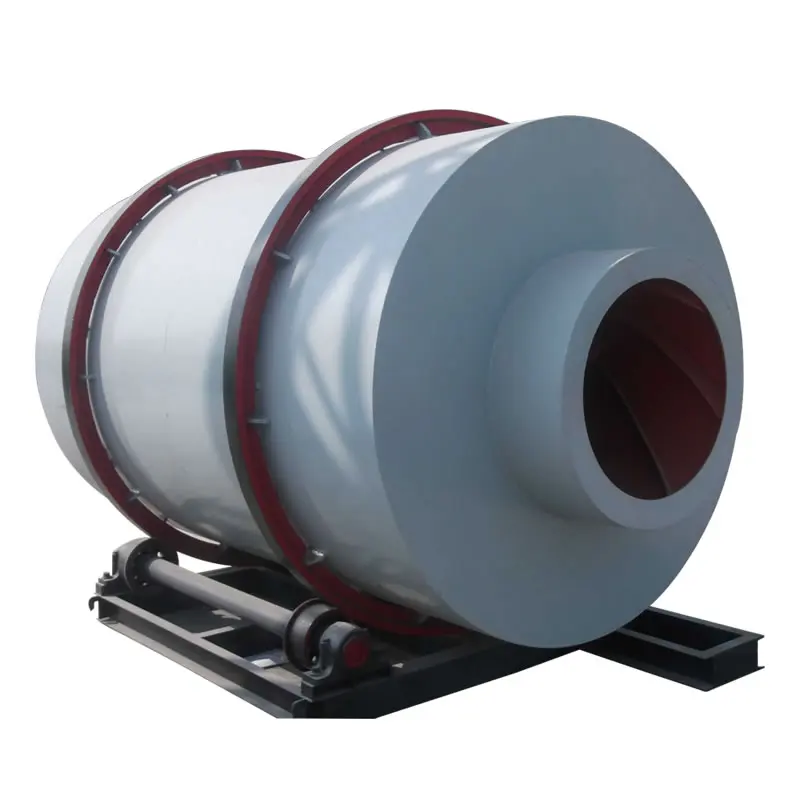

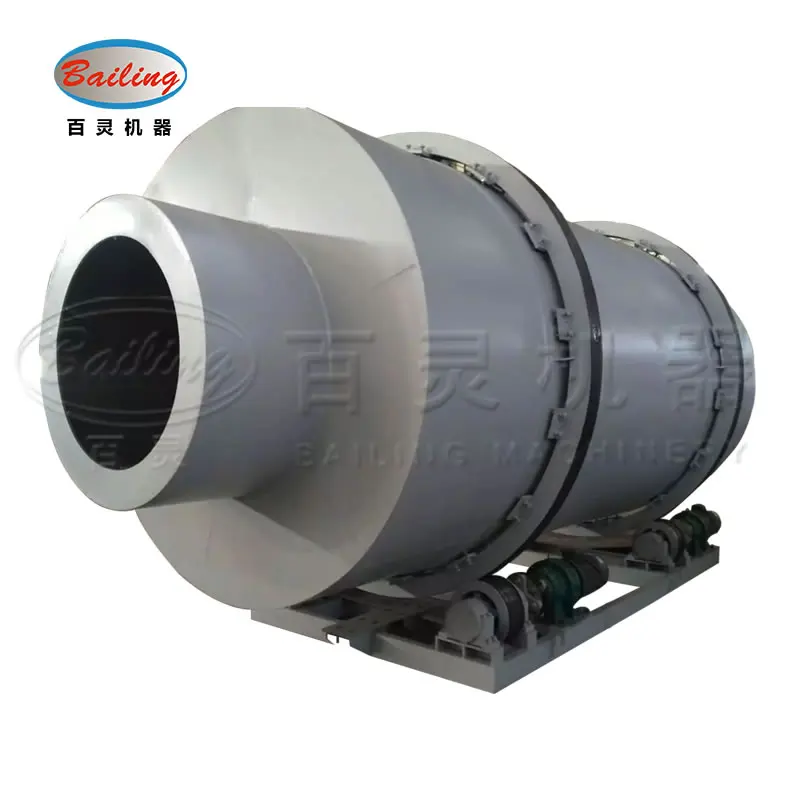

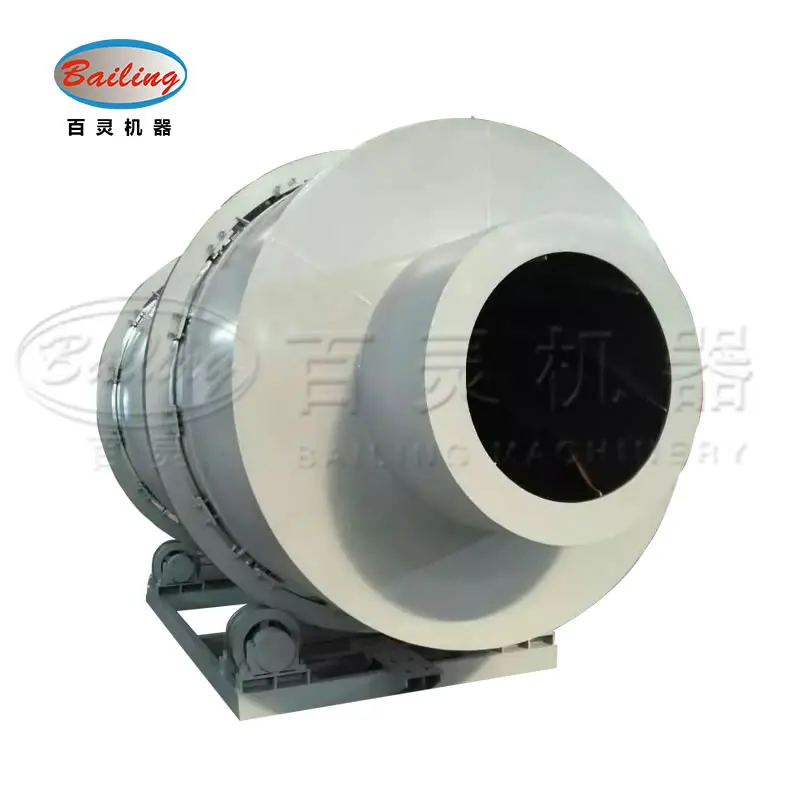

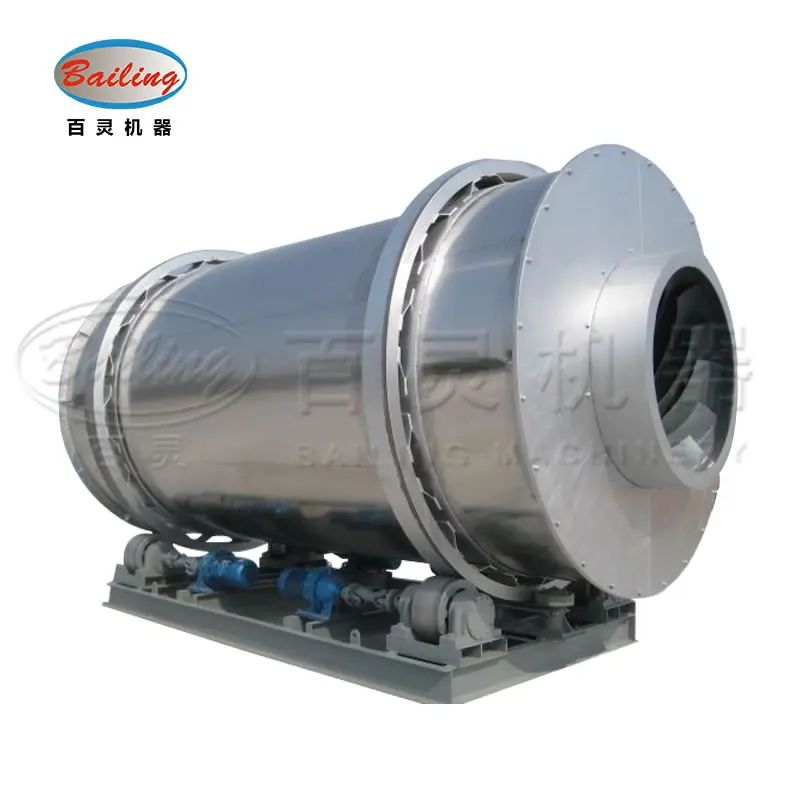

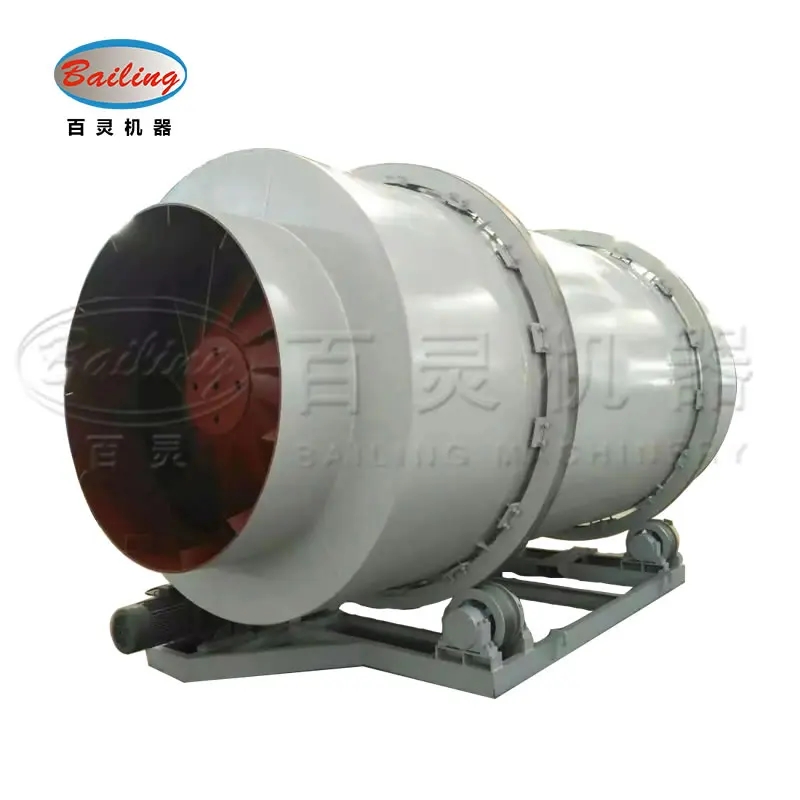

Three-drum dryer for quartz sand
Bailing quartz sand dryers materials using 304 stainless steel material, wear-resisting, corrosion resistance, high temperature resistant, won't produce secondary pollution for the material, large capacity, low energy consumption, low maintenance, It can dry blocks, granules and powdery materials below 20-40mm, an can dry 15% of the raw material to less than 0.5-1% of the final water.Quartz sand dryer main drying materials: quartz sand and corrosive materials.Widely used in building materials, glass, metallurgy, chemical industry, cement industry
Quartz sand dryer principle:
The quartz sand enters the inner layer of the rotary drum of the three-cylinder dryer through the feeding device to achieve downstream drying. The materials are continuously picked up and scattered under the copying board in the inner layer and spirally conveyed to achieve heat exchange. The material is moved to the inner layer. The other end enters the middle layer and is countercurrently dried. Quartz sand is repeatedly raised in the middle layer, and it is a two-step backward travel mode. In the middle layer, quartz sand fully absorbs the heat emitted by the inner drum and absorbs the middle drum. The heat, at the same time, prolongs the drying time, and the quartz sand achieves the best dry state here.
Detailed Images

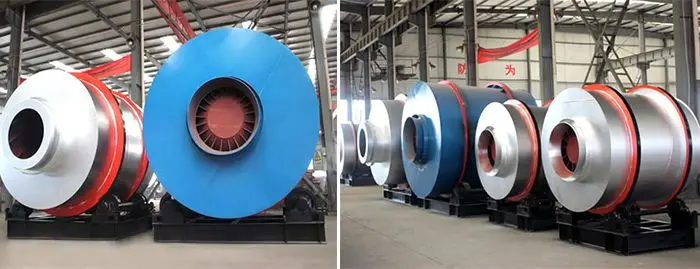

Drying machine being processed in production workshop

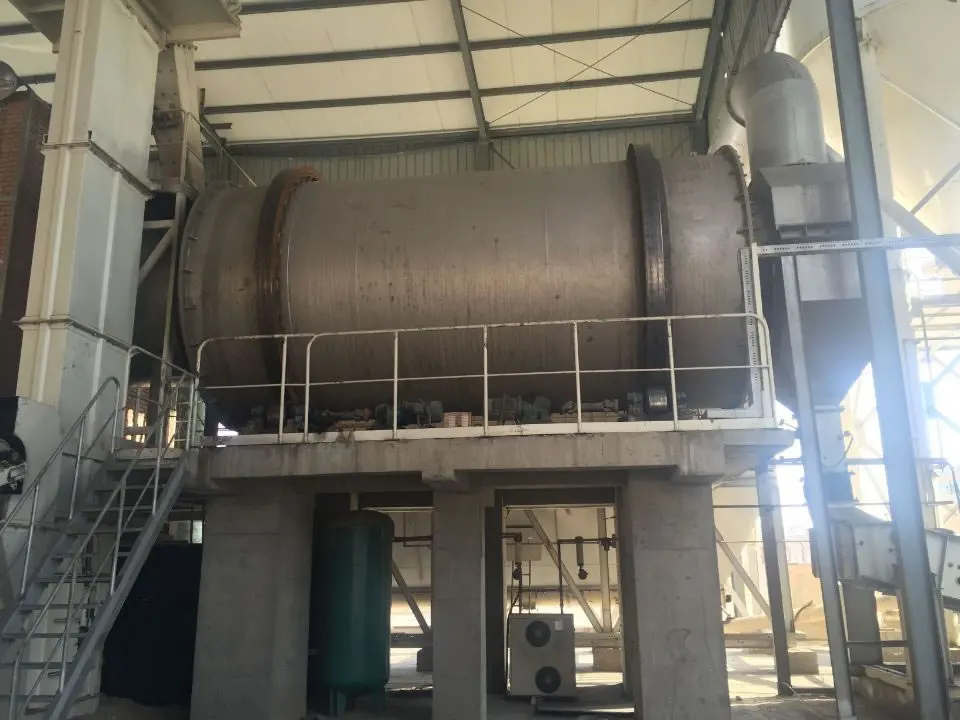

Quartz sand dryer in use
Quartz sand drying effect
Technical Parameters:
| Model(m) | Φ1.5×3.0 | Φ2.0×4.0 | Φ2.5×5.0 | Φ2.8×6.0 | Φ3.2×8.0 | Φ3.6×10.0 |
| The diameter(m) | 1.5 | 2.0 | 2.5 | 2.8 | 3.2 | 3.6 |
| The length(m) | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 |
| Volume(m³) | 5.3 | 12.6 | 24.5 | 36.9 | 64.3 | 81.4 |
| Speed(r/min) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Motor Power (kw) | 3x2 | 5.5x2 | 7.5x2 | 7.5x4 | 15x4 | 22x4 |
| Equipment Weight (t) | 6.0 | 7.4 | 15.3 | 32 | 43 | 48 |
| Highest inlet air temperature( ℃) | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 |
| Quartz sand input Moisture (%) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Quartz sand output moisture (%) | 2 | 2 | 2 | 2 | 2 | 2 |
| Capacity(t/h) | 3-5 | 8-13 | 15-25 | 25-35 | 40-60 | 50-80 |
