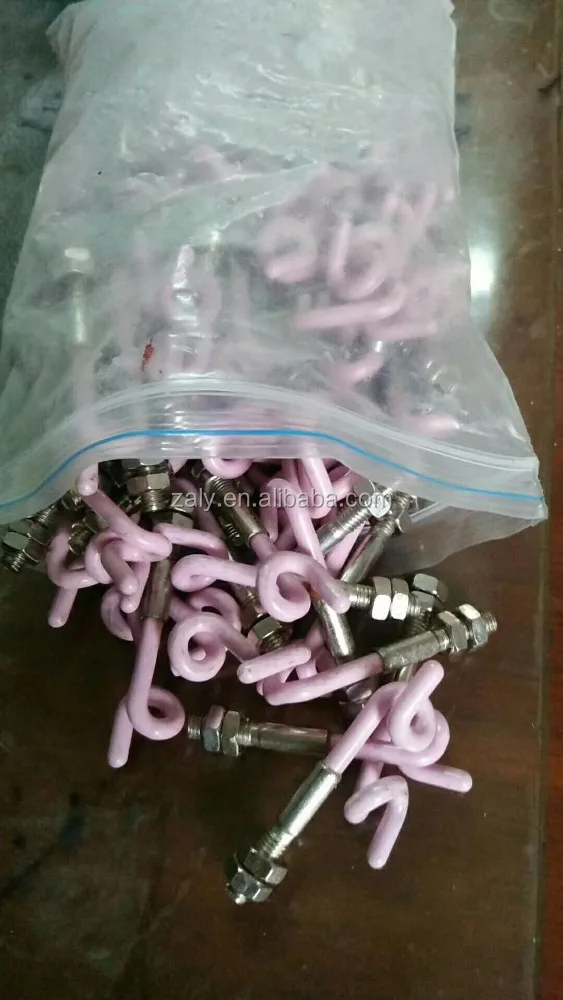

High quality textile ceramic spinning yarn guide eyelet

Product Overview

Description

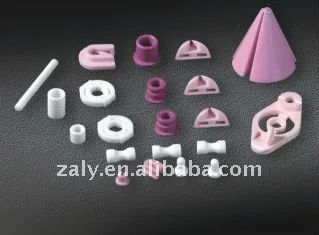

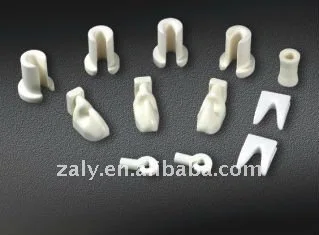

Wire And Textile Industry 99%/95% Alumina Ceramic Eyelet/Yarn Guide/Thread Guide



Technical Parameter



95 Porcelain

Al₂O₃  Content   ≥95%

Volume Density(g/cm³) ≥3.6

Hardness(HRA)   ≥85

Flexural Strength(MPa)≥220

Surface Roughness Ra(μm)≤0.8

Breakdown Strength(KV/mm)15~20

Normal Temperature(°C)≤1550

Refractoriness(°C)≥1800

  99 Porcelain

Al₂O₃ Content   ≥99%

Volume Density (g/cm³) ≥3.8

Hardness(HRA)≥88

Flexural Strength(MPa)≥300

Surface Roughness Ra(μm)≤0.8

Breakdown Strength(KV/mm)15~20

Normal Temperature(°C)≤1700

Refractoriness(°C)≥1900

Product Performance

 High strength, wear resistance, long life, and so on.

Application:

Suitable for textile machinery manufacturers. According to customer needs, providing customers with special specifications



Notes: we also can produce products according to customer drawings.
