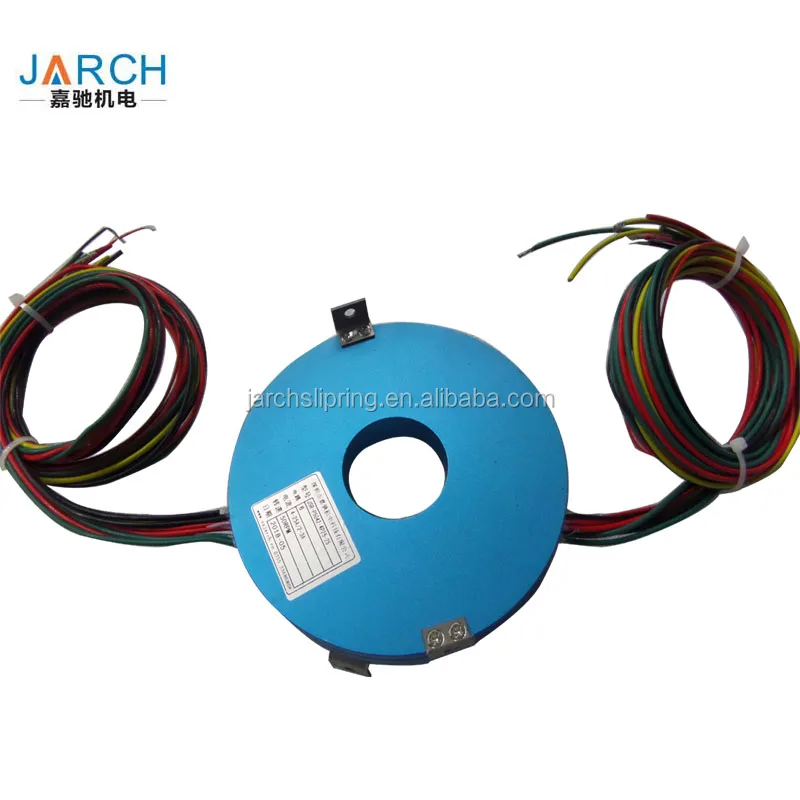

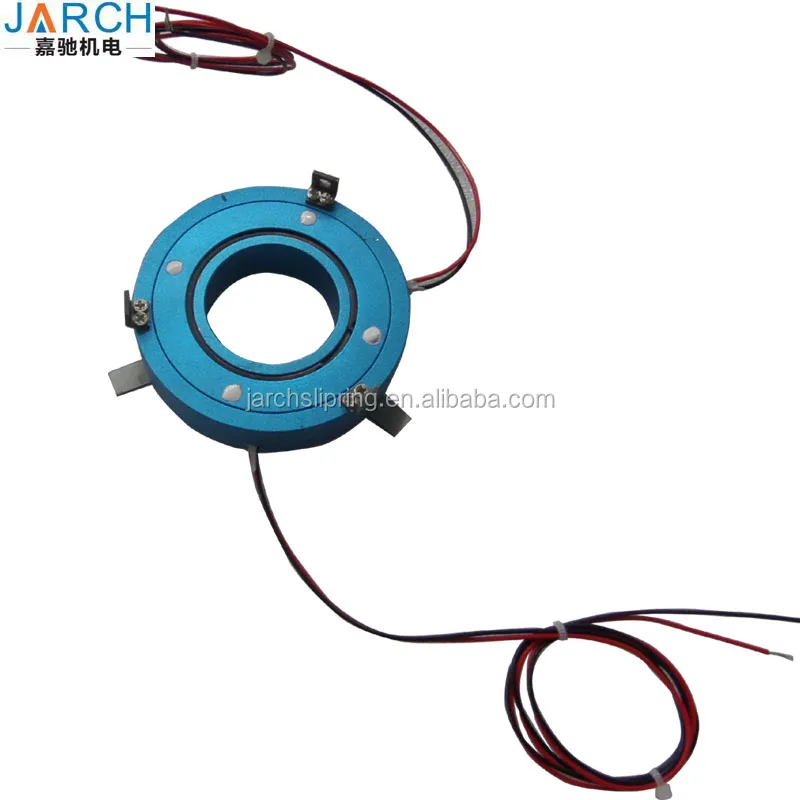

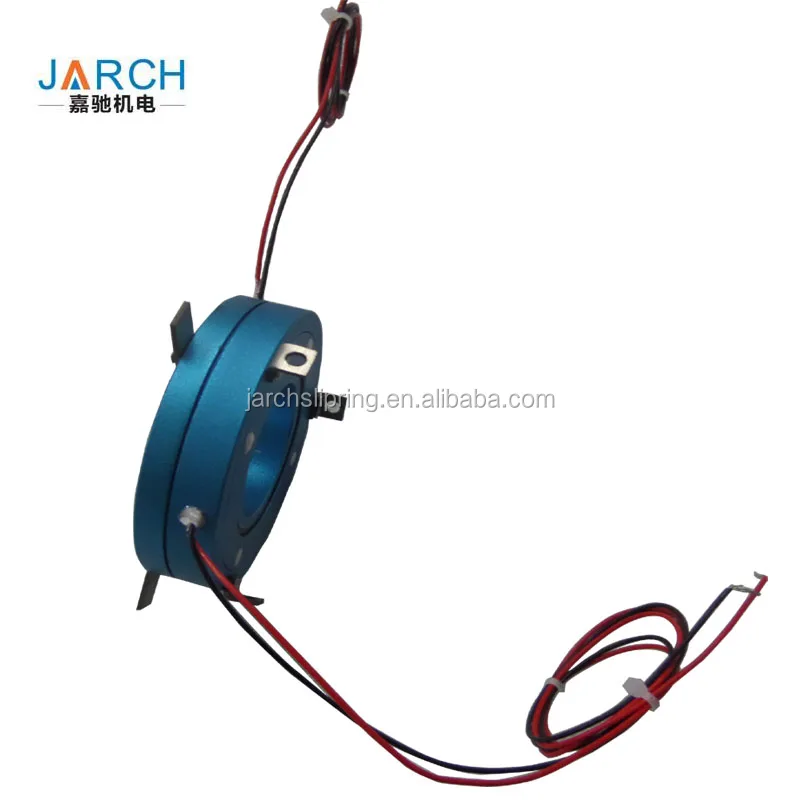

PCB type panshi pancake slipring with through bore slip ring size 38mm 10 circuits
- Category: Electrical Contacts and Contact Materials >>>
- Supplier: Shenzhen Jarch Electromechanical Technology Co. Ltd.
Share on (60765335017):
Product Overview
Description

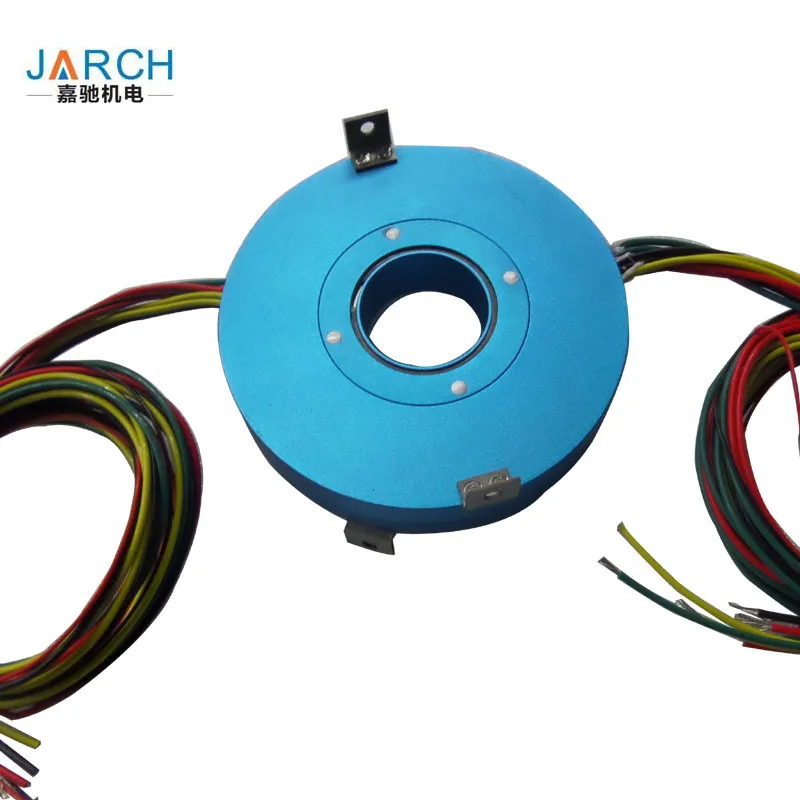

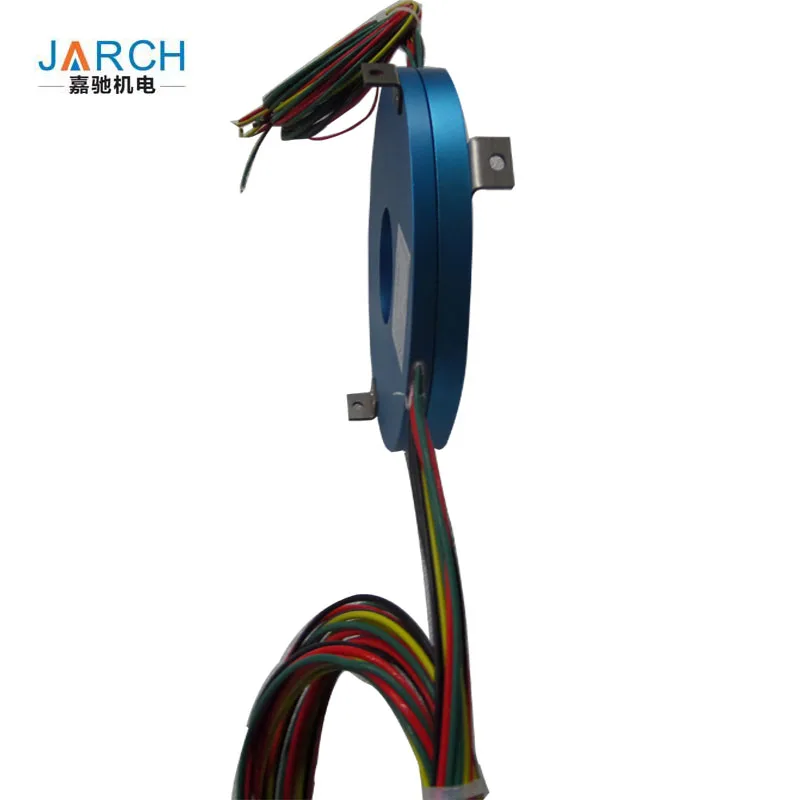

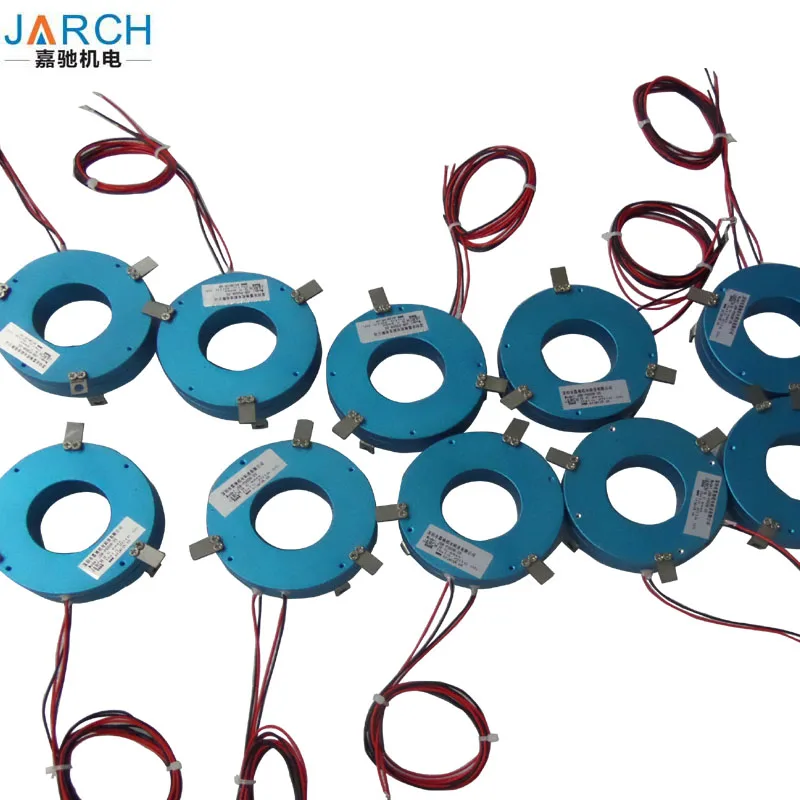

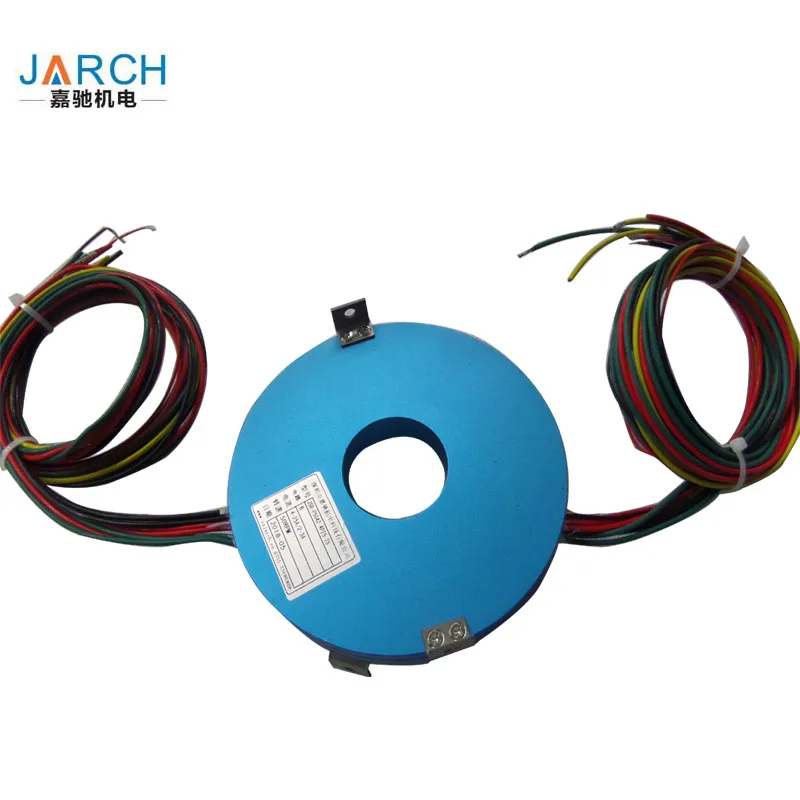

PCB Type Pancake Slipring From JARCH with through bore size 38mm 10 cicuit
Product Description
Slipring Features:
1. PCB / Flat / Pancake Slipring
2. Ultra thin, thickness can reach 6mm, solve the ilmit height space rotation transmission signal current
3. Disk slipring with shrapnel precious metal contacts, contact more stable
Speciafications
| Operating Speed | 0-200 rpm |
| Number of Circuits | 2 ~ 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Company Information
JARCH is a professional manufacturer of sliprings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have slipring, fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
