CNC Engraving machine DIY mini milling machine 300W DC spindle working area 20*30cm20*30cm

Product Overview

Description

Engraving machine DIY CNC mini

CNC Router /Engraving Drilling and Milling Machine

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

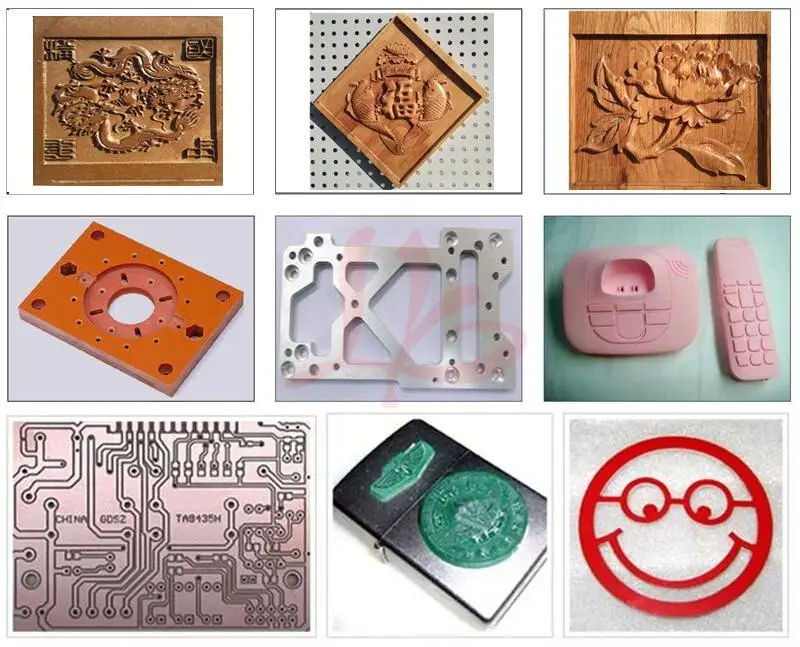

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty



Model and Technical Parameters

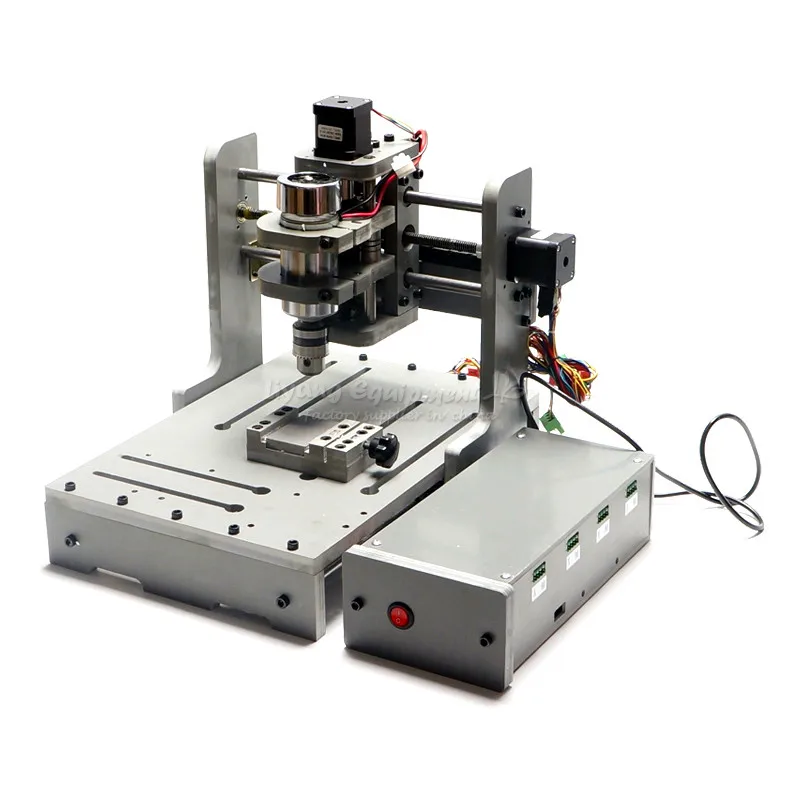

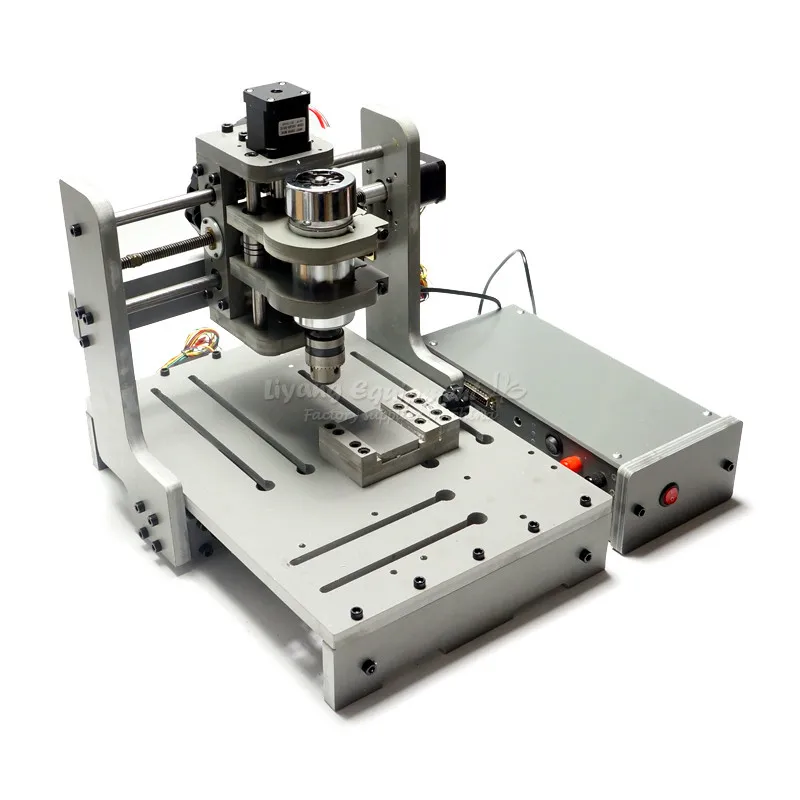

MODEL	CNC mini
Attribute	3axis LPT		4axis LPT
Axis	3axis		4axis
Interface	LPT Port		LPT Port
Spindle Motor:	300W		300W
Weigh	17		21
Max. working stroke	XYZ=200*300*80mm
Acceptable material thickness	≤80mm
Rail type	12 mm optical axis, 10 mm trapezoidal screw

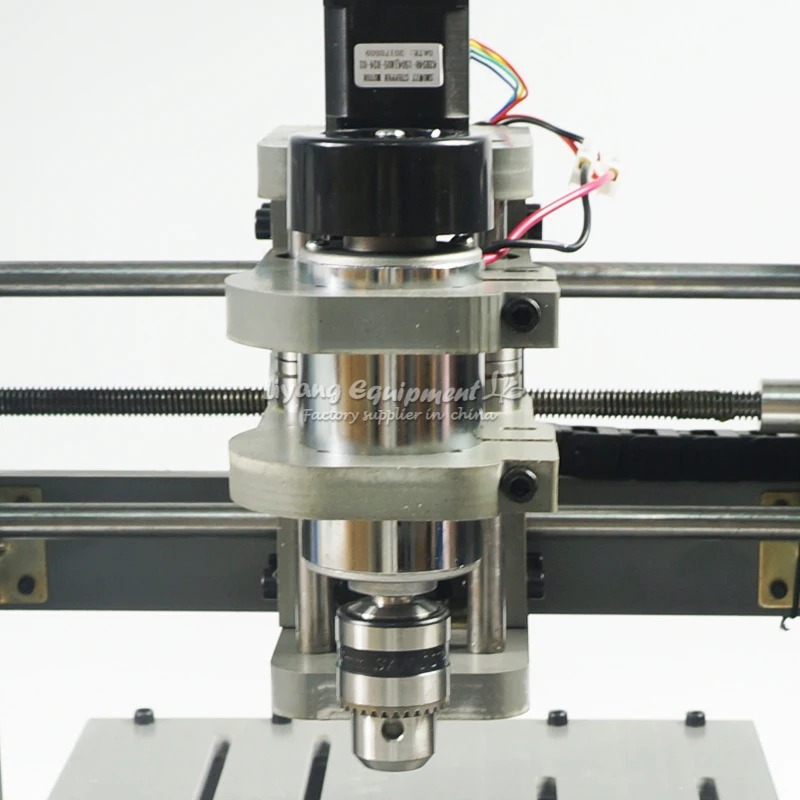

Spindle motor	300W  DC spindle , 0-11000r/min
Collet type	ER11,1/8"(3.175mm) Collet
Stepper motor and drive	42HS48
Maximum operating speed	2500mm/min (Engraving speed : 300-2500mm/min)
Repeat positioning Accuracy	0.03mm
Communication interface	LPT port
System requirements	Win-XP / Win 7 32 bit or 64 bit operating system
Software Co patability	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code	G code/.nc/.ncc/.tab/.txt
Machine weight	17kg

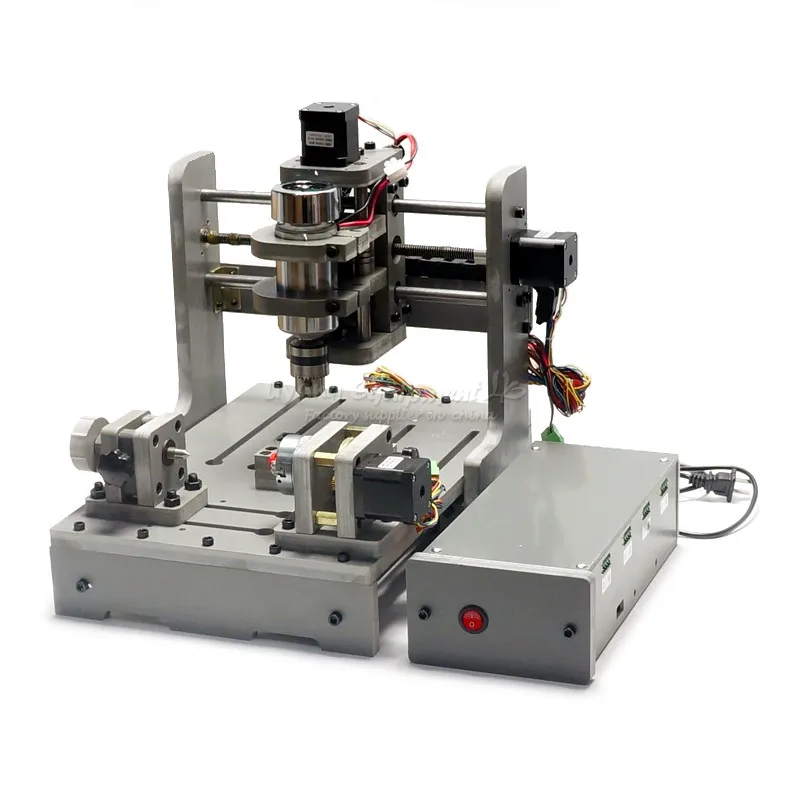

Rotation Axis (4th Axis)	Weight: 3kg
