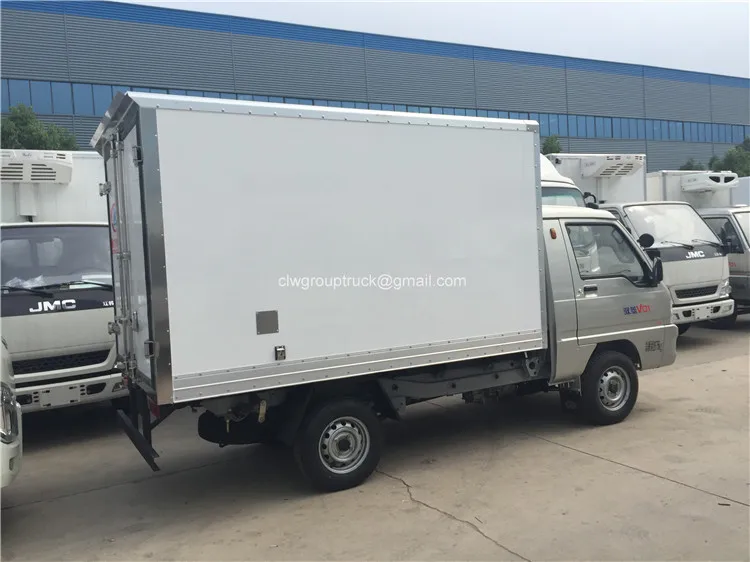

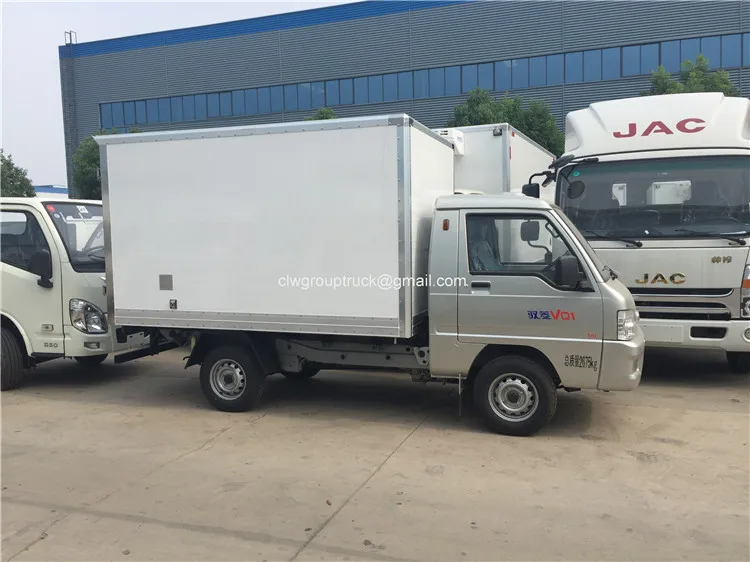

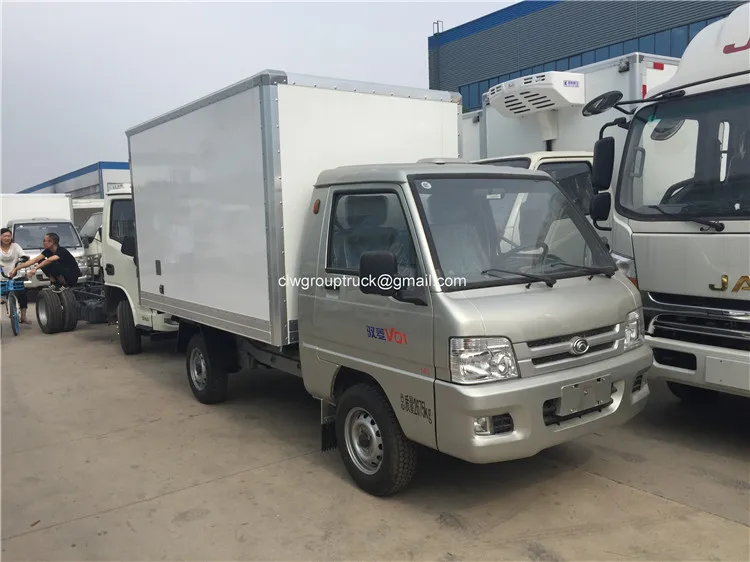

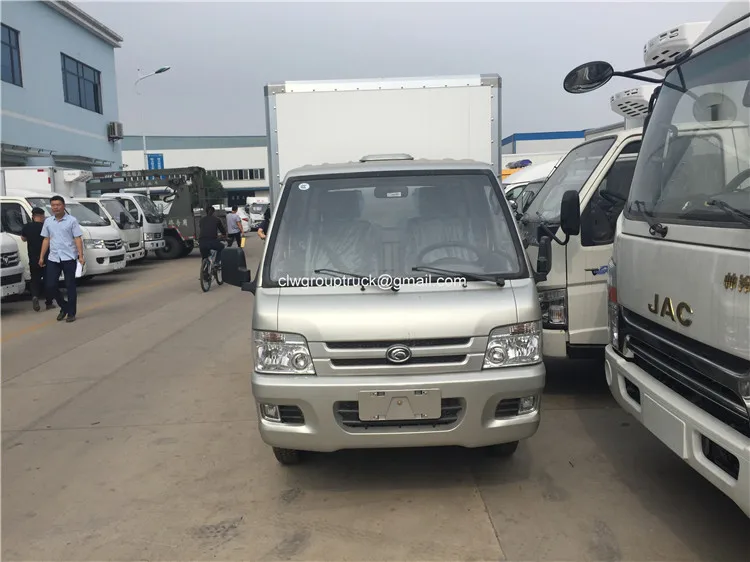

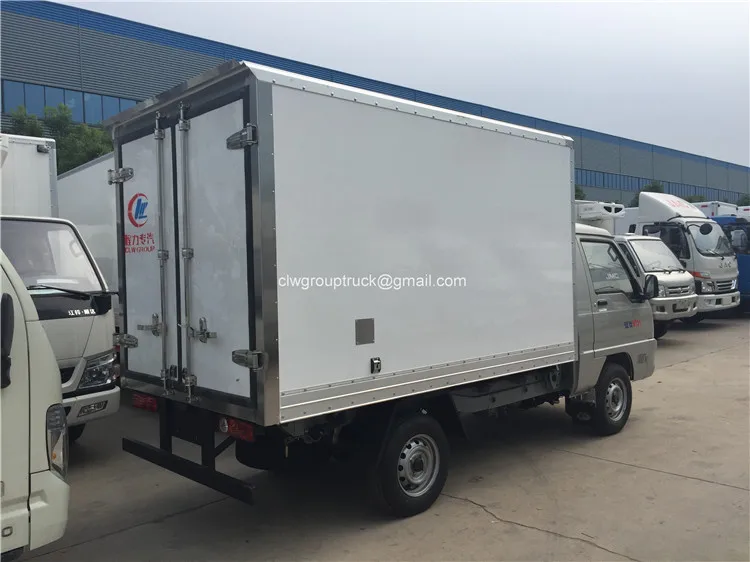

Небольшой грузовик для холодильника и морозильной камеры, 2,7 м

 [Main technical parameters]
The total mass (Kg) 2150
Rated load quality (Kg)540
Service quality (Kg) 1480
Dimensions (mm)4710x1660x2440
Carriage size (mm) 2680x1500x1550
Number of riders in the cab (person) 2
Load quality utilization factor 0.45
Approach angle / departure angle (°) 34/22
Front suspension/rear suspension (mm) 560/1250
Number of axes 2
Wheelbase (mm) 2900
Axial load (Kg)750/1400
The maximum speed (Km/h) 120
Others: The top of the compartment is closed and cannot be opened; there is an optional side door.

[chassis technical parameters]
Chassis Name: Truck Chassis (Category 2)
Dimensions (mm)4475,4275×1620×1870,1890
Number of tires 4
Approach angle / departure angle (°) 34/35, 34/37
Tire specification: 175/70R14LT
Number of leaf springs - /6
Front track (mm) 1360
Rear track (mm) 1360
Fuel Type: Gasoline
Emission standard: euro V
Engine Model: JL473Q
Engine manufacturer: Chongqing Changan Automobile Co., Ltd.
Displacement (ml): 1243
Power (Kw): 72
