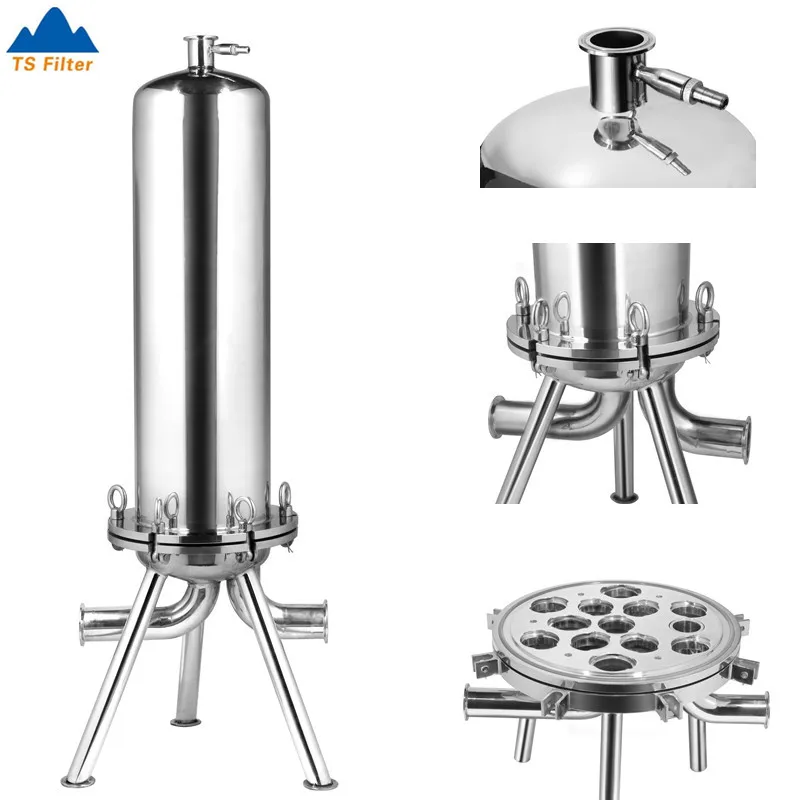

SS316L Stainless Steel Sanitary Beer Filter Housing
- Category: Filter >>>
- Supplier: Hangzhou Tianshan Precision Filter Material Co. Ltd. [Zhejiang China]Hangzhou
Share on (60767311105):
Product Overview
Description
SS316L Stainless Steel Sanitary Beer Filter Housing
Product Description
These filter housings are sanitary designed according to the GMP requirements, manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,7, 8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge.
Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).
Features and Benefits
1. Mirror Surface Finish Complete Stainless Steel Construction;
2. Easy To Install Design With Sanitary Connections, Easy to Clean;
3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;
4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design;
Specifications
| Material: | Housing | Stainless Steel 304 and 316L for Choice | |||
| O-Ring | Silicone, Viton, EPDM, etc | ||||
| Surface Finish: | Interior/Exterior | Electro polished, Ra≤0.2um | |||
| Connections: | Inlet/Outlet | Tri Clamp | 1” to 10” Or as your request |
||
| Flange | |||||
| Thread | |||||
| DIN 11851 | |||||
| Vent | ¼" female | ||||
| Drain | 1" male or as your request | ||||
| Lid/Cover Type: | Swing Bolts or Tri Clamp(only for single round) | ||||
| Length: | 5, 10, 20, 30 40 inch | ||||
| Operating Pressure: | Max. 6 bar(87 psi) | ||||
| Temperature: | Max. 95 ℃ (sterilization 150 ℃) | ||||
| Cartridge Adapter: | 220(DOE), 222, 226, etc | ||||
| Cartridge Capacity: | 1, 3, 5, 7, 8, 9, 10, 12, 15, 20, 24, 30, 36, 45, etc | ||||
Applications
| ·Water Treatment, RO system; |
| ·Pharmaceuticals, API, Biologics; |
| ·Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment; |
| ·Paints, Inks Plating Solutions; |
| ·Process Chemicals and Electronics Industry ; |
Company Information
| Company Name: | Hangzhou TianShan (TS Filter) Precision Filter Material Co.,Ltd. |
| Founded: | 2001 (Year) |
| Main Products: | PP, GF, PES, PTFE, PVDF, Nylon Membrane Filter Cartridges |
| Stainless Steel Cartridge Filter Housings, Bag Filter Housings | |
| Capsule Filters, Filter Membranes, Filter Bags, etc |
