Nail Making Machine / automatic roofing nail making machine
- Category: Nail Making Machines >>>
- Supplier: Anping Baochuan Wire Mesh Products Co. Ltd.
Share on (60767420716):
Product Overview
Description

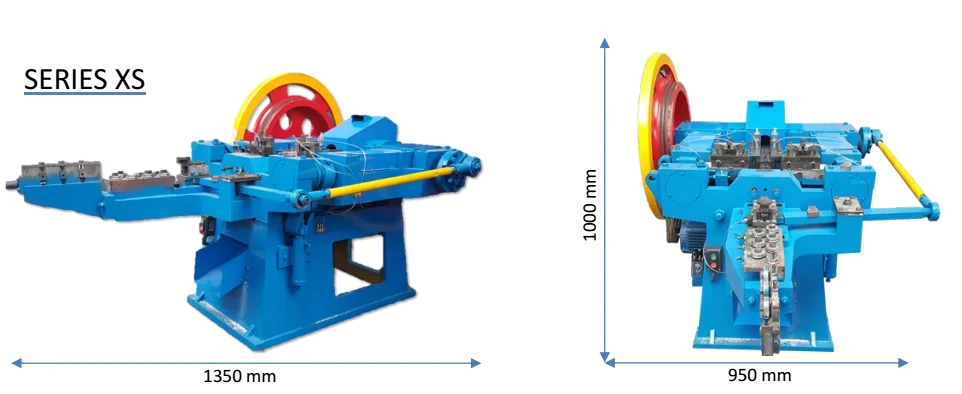

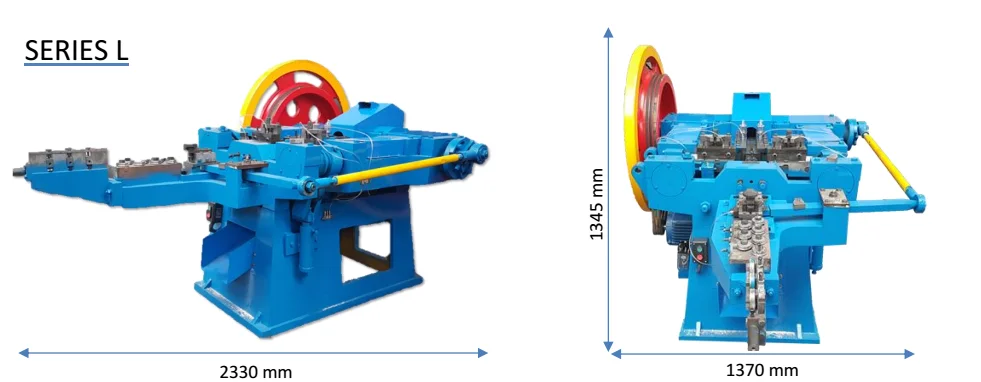

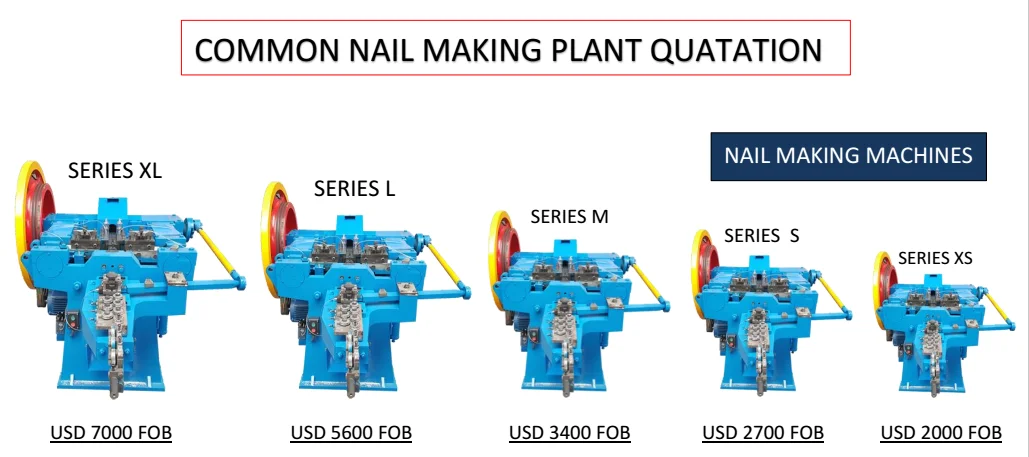

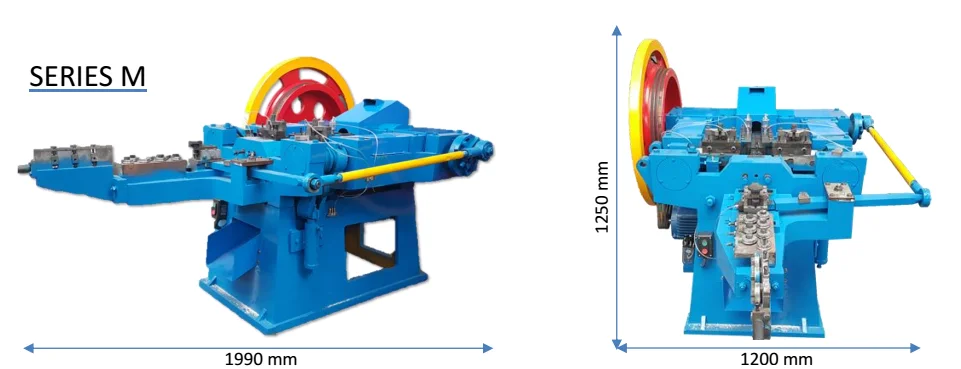

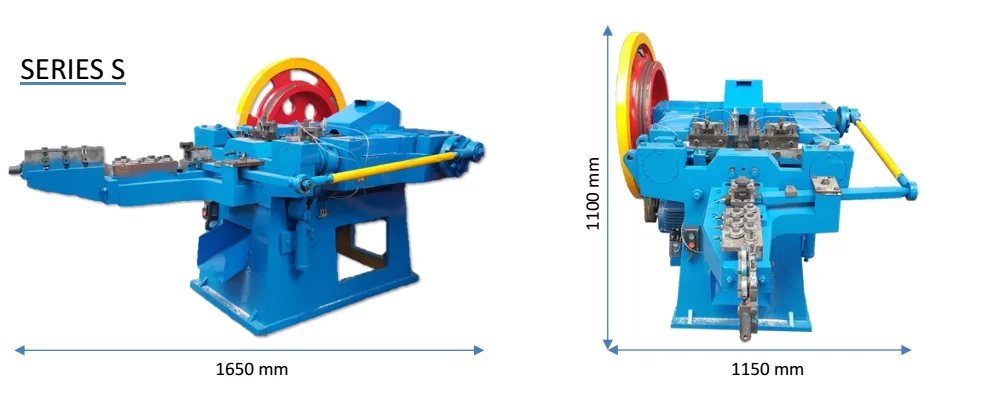

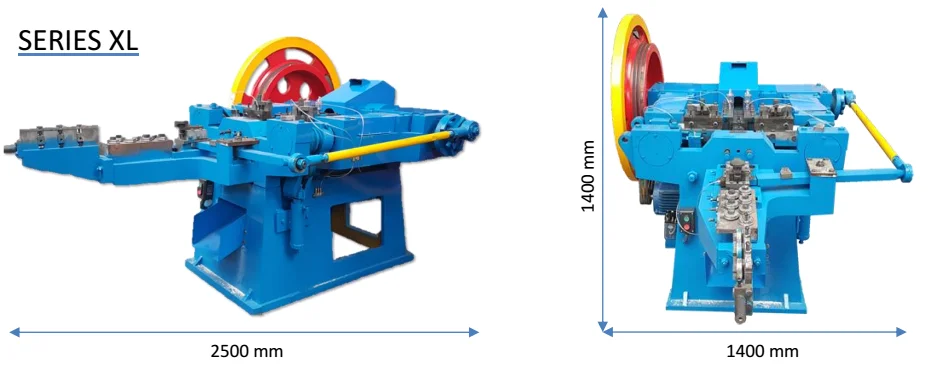

The nail machine you could choose different size:
Product Description
Features of common wire nail making machine:
Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Both scrap and new wire steel can be used as material for common wire nail making machine.
Technical parameter of common wire nail making machine:
Model | Z94-1C
| Z94-2C
| Z94-3C
| Z94-4C
| Z94-5.5C
|
Max. dia. of nail | 1.6mm | 2.8mm | 3.5mm | 4.5mm | 5.5mm |
Min. dia. of nail | 0.9mm | 1.2mm | 1.8mm | 2.8mm | 3.8mm |
Max. Length of nail | 25mm | 50mm | 75mm | 100mm | 150mm |
Min. length of nail | 9mm | 16mm | 30mm | 50mm | 80mm |
Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw |
Nail making speed | 450pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min |
L*W*H | 1.5*1.3*1.2m | 1.7*1.3*1.4m | 2.0*1.4*1.4m | 2.2*1.6*1.65m | 2.5*1.6*1.5m |
Weight | 1.2tons | 1.45tons | 1.8tons | 2tons | 2.3tons |

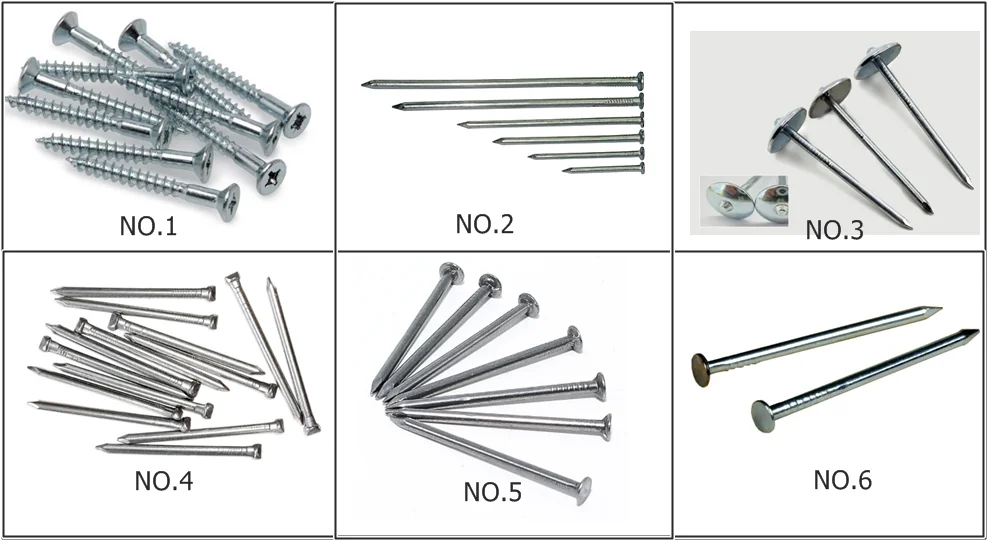

All the nail, our machine all could produte:

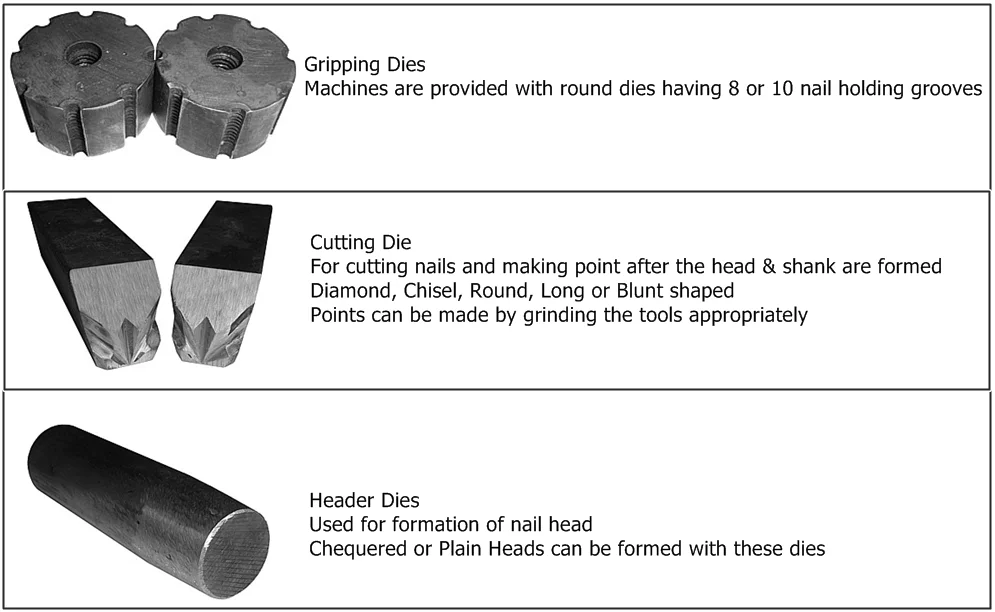

We will choose the best parts for the machine:
Process line to produce nails:
1. Wire drawing machine -- to form the exact wire diameter to make nails as required
2. Automatic nail cold heading machine -- to make nails
3. Automatic naile thread rolling machine-- for special nails

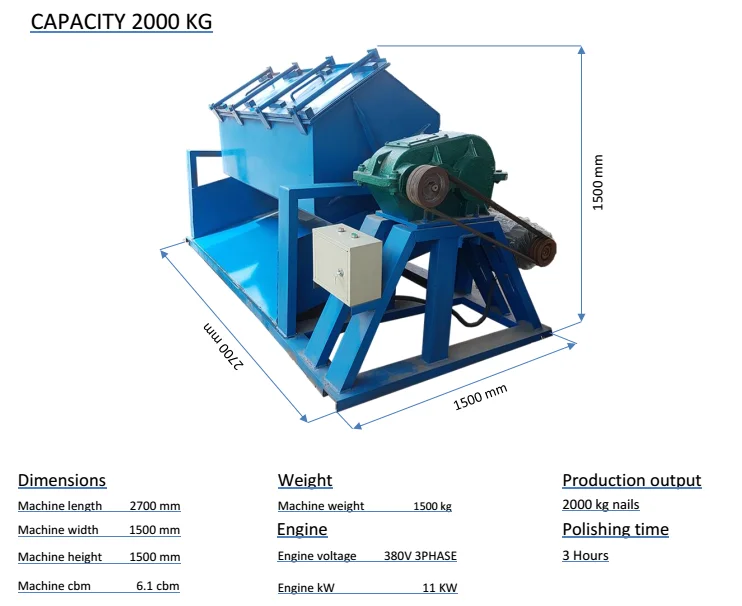

4. Polishing machine -- to polish finished nails
Machine production time
1.20 Days from date of advanced payment confirmation
2.Supply media of machine production
Our client:
If you need the best quote and specification, only tell us, then you will get the best reply ASAP
