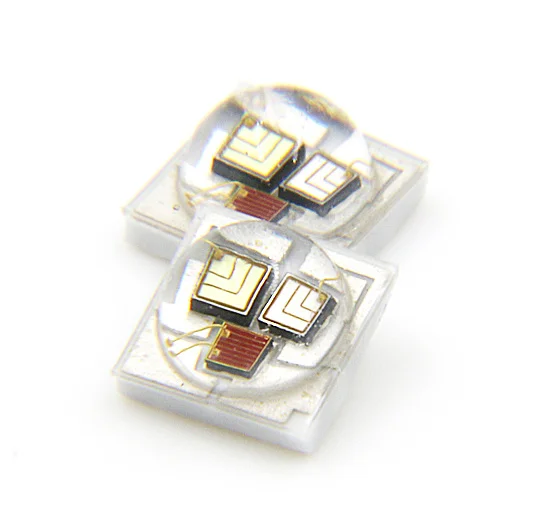

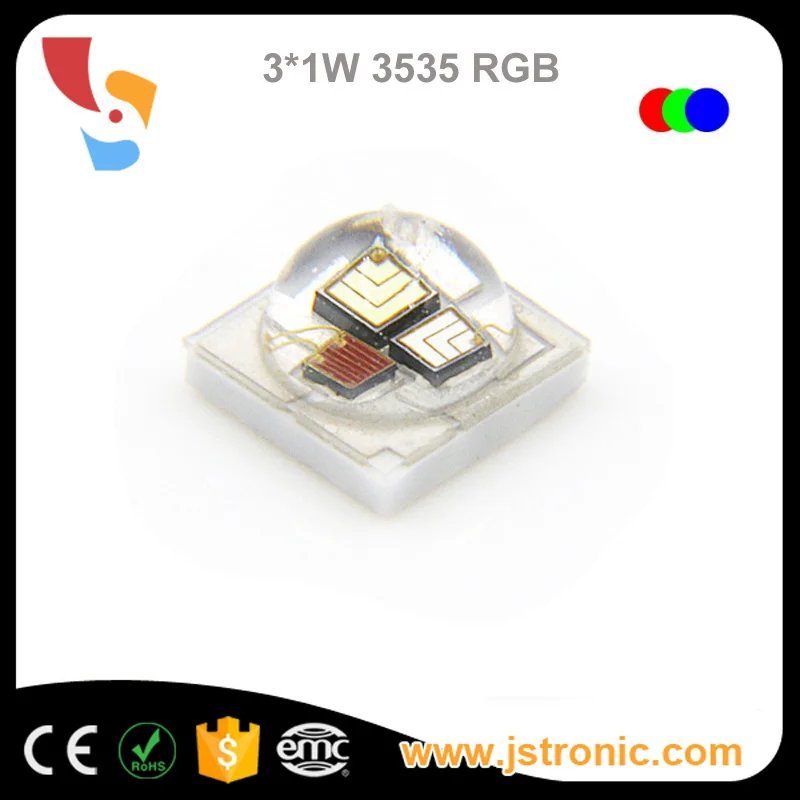

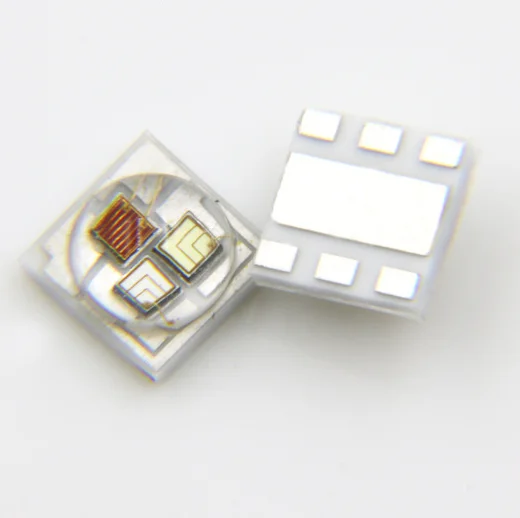

3x1W 3535 3W rgb high power led smd type
- Category: High Power LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60767757397):
Product Overview
Description
3x1W 3535 3W rgb high power led smd type
Product Description
Highest Flux RGB
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE
3x1W 3535 3W rgb high power led smd type
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | R | G | B | Unit | |||
Min | Max | Min | Max | Min | Max | ||||
Forward Voltage
| VF | IF = 350mA | 2.0 | 2.4 | 3.0 | 3.4 | 3.0 | 3.4 | V |
Luminous Flux
| Φv | IF = 350mA | 40 | 60 | 70 | 90 | 15 | 30 | lm |
Dominate Wavelength
| λd | IF = 350mA | 620 | 630 | 520 | 530 | 455 | 465 | nm |
Reverse Current | IR | VR=5V | 10 | μ A | |||||
Viewing Angle
| 2θ1/2 | IF = 350mA | 140 | Deg | |||||

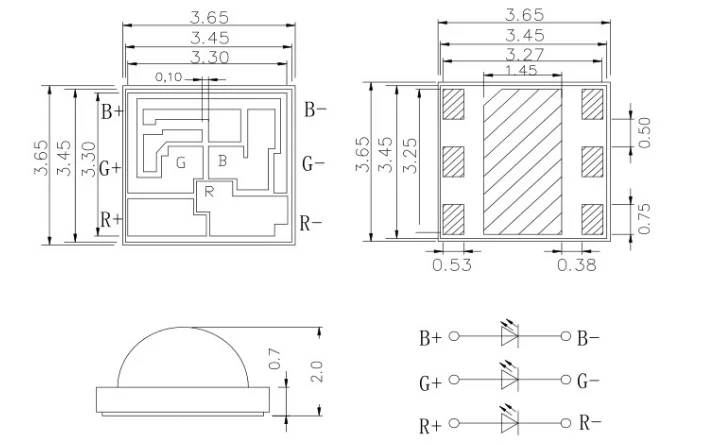

3X1W 3535 3W rgb high power led smd type dimension

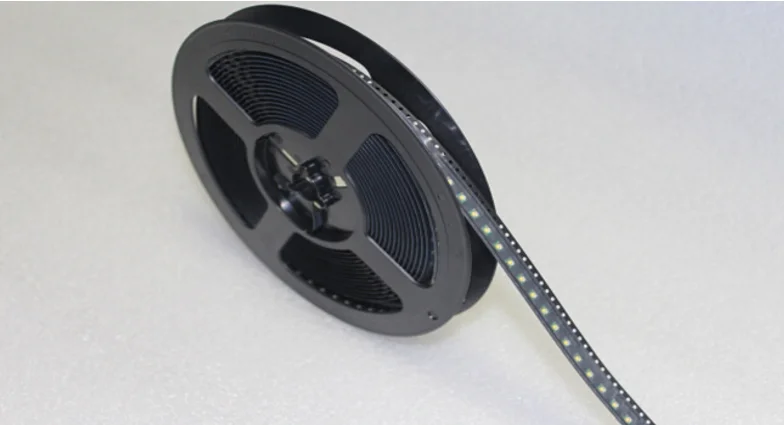

Product Packing
