TESmart высококачественный HDMI HDCP 2 порта usb kvm переключатель 2x1 4K для домашней системы
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (60767886176):
Product Overview
Description
Product Description
2x1 HDMI KVM Switch #HKS0201A1U
This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
HKS0201A1U | 2x1 HDMI KVM Switch |
Auto Scan | Yes |
Resolution | Up to 3840x2160@60Hz 4:4:4 |
Data rate | 18 Gbps |
Auto scan interval | 1~250 Seconds |
Beep Sound | On/Off |
Chasing material | Aluminum Alloy |
Dimensions | 198 (L) x 82 (W) x 26 (H) mm |
Features
1. Using only 1 set of keyboard, mouse and monitor to control 2 computer devices
2. Support auto switching to monitor computers in a specified time interval.
3. Support hot key commands and mouse gesture to switch inputs
4. Available to use keyboard without any delay after switch input sources.
5. Support resolution up to 3840*2160@60Hz 4:4:4.
6. Compliant with HDMI and HDCP
7. Support USB 2.0 for printers, USB drives etc.
8. With EDID emulators in every input ports, keep PCs always have correct display information.
9. Support front panel buttons, IR signals, keyboard hot keys to control KVM switch.
11. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
12. Support analog L/R audio output.

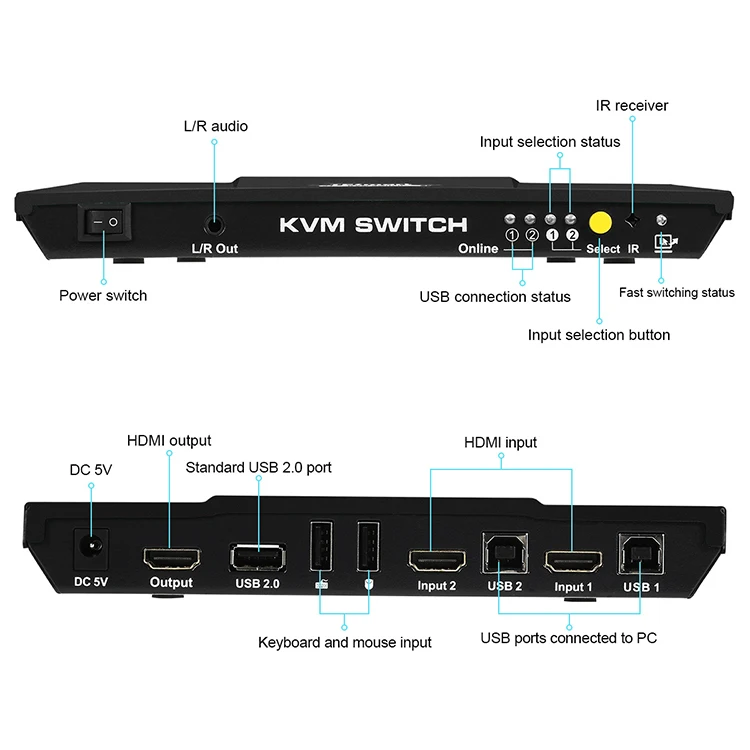

Panel Description

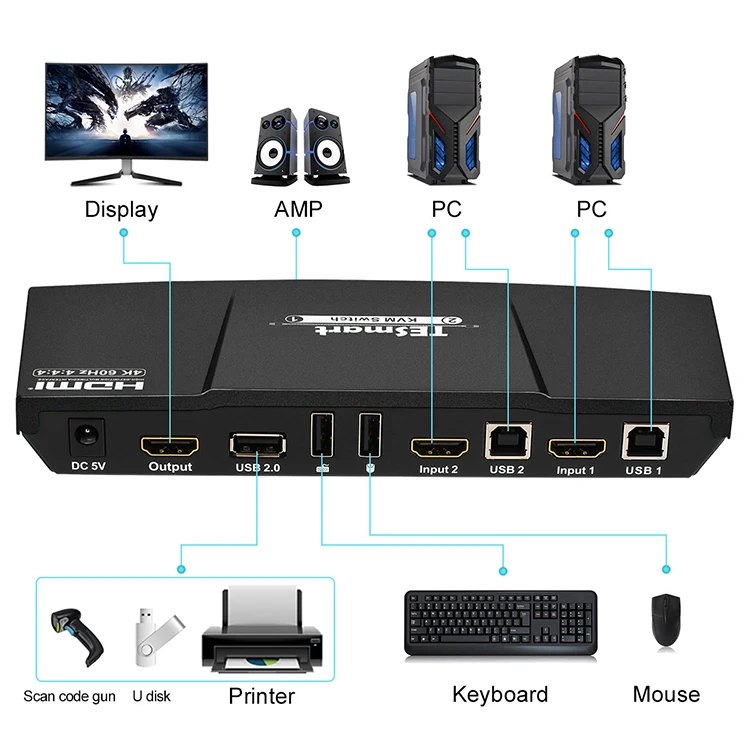

Connection Diagram
Specification
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Mouse gesture | Yes | |||
Console commands | No | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
RS232 | NA | |||
LAN | NA | |||
System ports | USB Data | 2 * USB Type B | ||
Video / Audio | 2 * HDMI Type A | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 196 (L) x 80 (W) x 24 (H) mm | |||
Item weight | 500g | |||

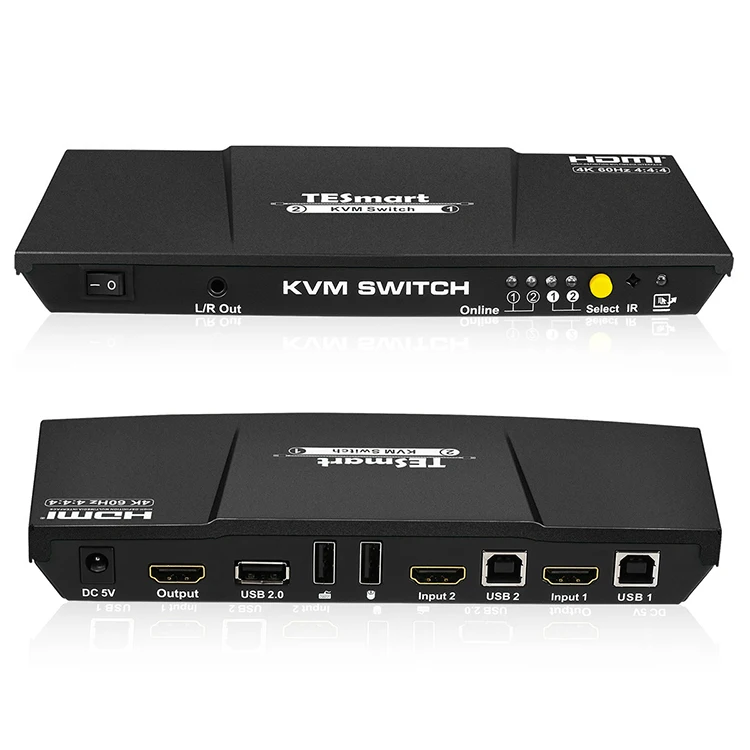

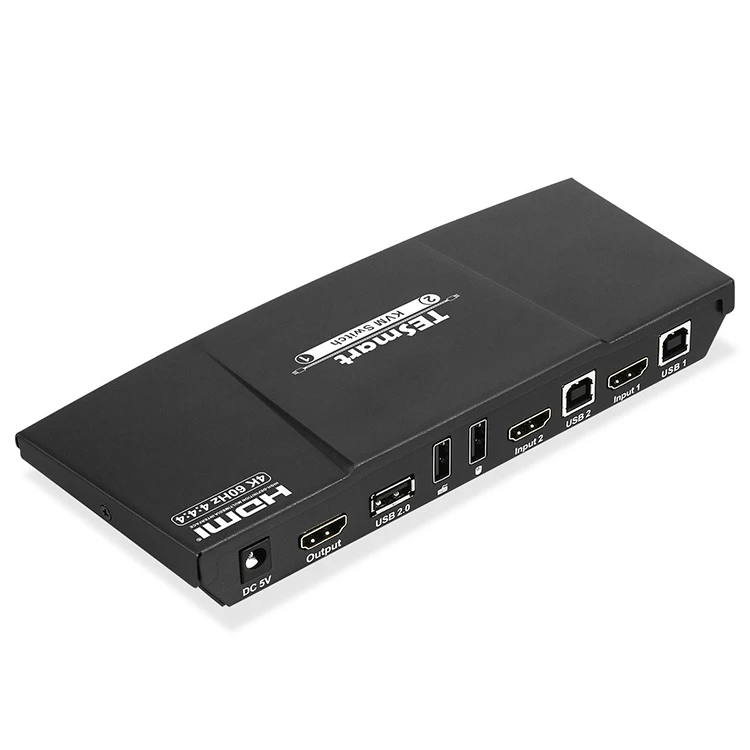

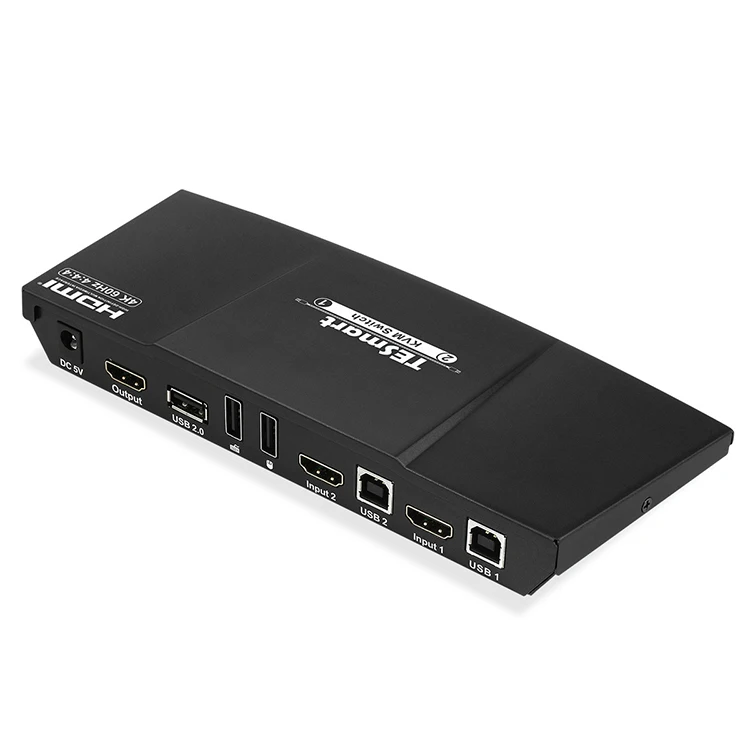

Details Images
FAQ
Q: What is the differences between the 2x1 A1U-black 4k@60hz and the B1U?
2. Please check If your device has 2 HDMI ports, if it has, please do the following setting,thanks
2.1 does your computer directly connect the monitor to output 4K@60Hz?
2.2 Whether the display has two HDMI interfaces, try to change to another HDMI interface.
2.3 When using our equipment, when there is a certain limit on the length, when inputting 4K60Hz signal, it is recommended that the input line is within 3 meters and within 5 meters.
A:Same device except B1U has "ears" so that it can be mounted to a desk. For just a different form factor.
Q:Does this device support dual monitor setup?
A:No, there is only one HMDI-out and all HDMI is point-to-point connection so you cannot split one HDMI-out to 2 different monitors (i.e. "extend the display")， but we have dual Monitor kvm.
Q:What is the maximum length between transmitter and receiver
A:The maximum length depends on the desired resolution:
1080P@60hz = up to 30 ft
4K@30hz = up to 15 ft
4K@60hz = up to 10 ft
1080P@60hz = up to 30 ft
4K@30hz = up to 15 ft
4K@60hz = up to 10 ft
Q:Can anyone explain how to use the mouse gestures to switch pcs? is there something i need to turn this feature on?
A: It should be on by default when you start to use the switch but you can turn on/off by pressing Scroll, Scroll, F12. The mouse needs to be plugged into the mouse port in the back and then you move the cursor to the right or left of the screen's boundary two times. This will switch to the next or previous input.
Q:How can this product support 3840x2160@60hz and only have hdmi when hdmi only supports 3840x2160@30hz ?? does it use hdmi-2 (not yet widely supported)
A:There are 2 situations for your question
1. If your device only has one HDMI port, and it is 3840x2160@30hz,
TESmart HDMI KVM Switch supports 4K@60hz and also Backward compatible, so kvm switch could work well, but the display is 3840x2160@30hz
1. If your device only has one HDMI port, and it is 3840x2160@30hz,
TESmart HDMI KVM Switch supports 4K@60hz and also Backward compatible, so kvm switch could work well, but the display is 3840x2160@30hz
2. Please check If your device has 2 HDMI ports, if it has, please do the following setting,thanks
2.1 does your computer directly connect the monitor to output 4K@60Hz?
2.2 Whether the display has two HDMI interfaces, try to change to another HDMI interface.
2.3 When using our equipment, when there is a certain limit on the length, when inputting 4K60Hz signal, it is recommended that the input line is within 3 meters and within 5 meters.
