This 4x1 Seamless Multi-view KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily.

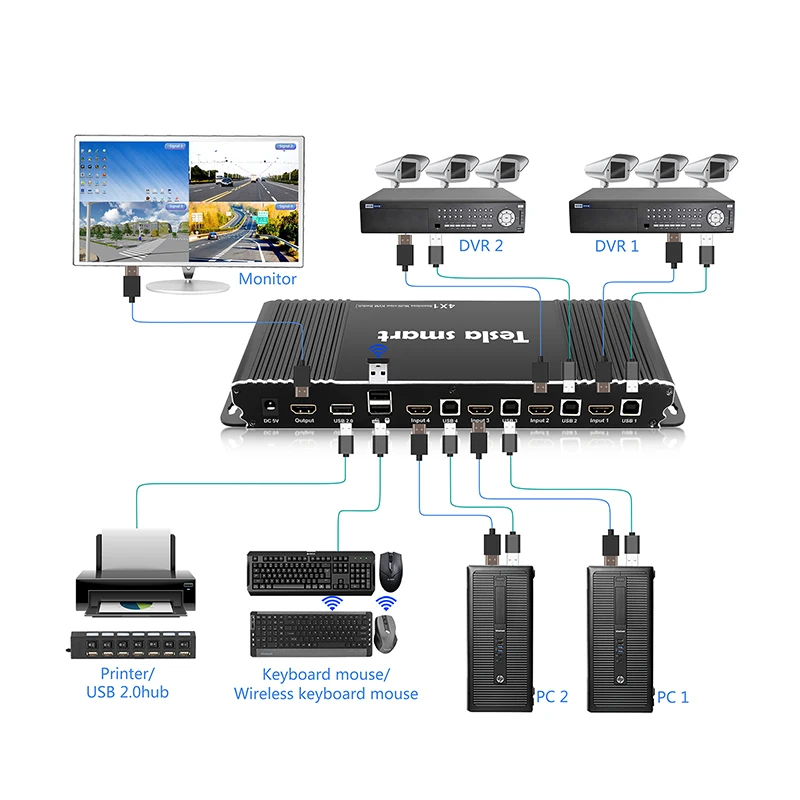

The KVM supports two output mode: KVM mode and synchronizer mode. In synchronizer mode, a set of keyboard and mouse can control four PCs simultaneously; In synchronizer mode, a set of keyboard and mouse can only control one PC at a time. It supports four HDMI input sources which can be displayed on one screen with multiple multi-view modes. It integrates HDMI signals from 4 different HDMI sources for viewing on a single monitor. It can be controlled by various ways, through the front panel button, IR, etc.By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM.
Feature
Using only 1 set of keyboard, mouse and monitor to control 4 PCs No latency, support seamless switching Support resolution up to 1080P Support two working modes: KVM mode and synchronizer mode Support two display modes: full-screen display mode and multi-view display mode Available to use keyboard and mouse without any delay after switching input sources Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices Support auto switching among all devices so as to monitor the devices in a specified time interval Support keyboard hotkeys, IR remote control, front panel buttons and mouse gesture to control the KVM to switch inputs With extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM
Specification

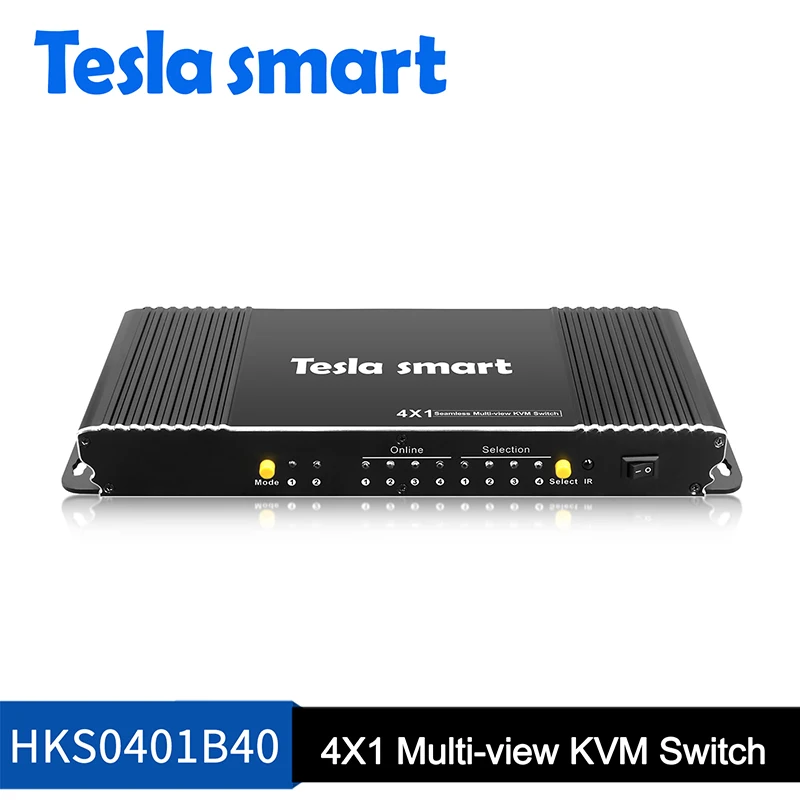

HKS0401B40
4x1 Seamless Multi-view KVM Switch
Functionality:
Auto Scan
Yes
Port selection
Front panel buttons
Yes
Keyboard hotkeys
Yes
IR remote control
Yes
Console commands
No
Technical:
Resolution
1080P
Auto to get EDID
Yes
Data rate
10.2 Gbps
Auto scan interval
1~250 Seconds
Beep Sound
On/Off
OSD
No
Supported OS
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
Console ports
Keyboard emulation
1 * USB Type A
Mouse emulation
1 * USB Type A
USB 2.0 Hub ports
1 * USB Type A
Video /Audio
1 * HDMI Type A
RS232
NA
LAN
NA
System ports
USB Data
4 * USB Type B
Video / Audio
4 * HDMI Type A
ESD protection
Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material
Aluminum Alloy
Product Dimensions
262.5 (L) x 108 (W) x 33.3 (H) mm
Item Weight
800g
Packaging & Shipping
1 * 4x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
Company Information
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience, providing good solutions and professional technology support.
Sales office: 6th Floor, DeShengChang Building, No. 94 HuanGuan South Rd, LongHua Dist. Shenzhen, GuangDong, China
Factory address: 4th Floor N Building, GuanLan Chuang Xin Industrial park, XinTian Community, JingTian Road, Longhua Dist, Shenzhen, GuangDong, China
Our Services
Benefits from commissioned SMT processing, we are able to keep quick delivery and focus more resources on new technology research, product test and improving our customer service. We are providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future
