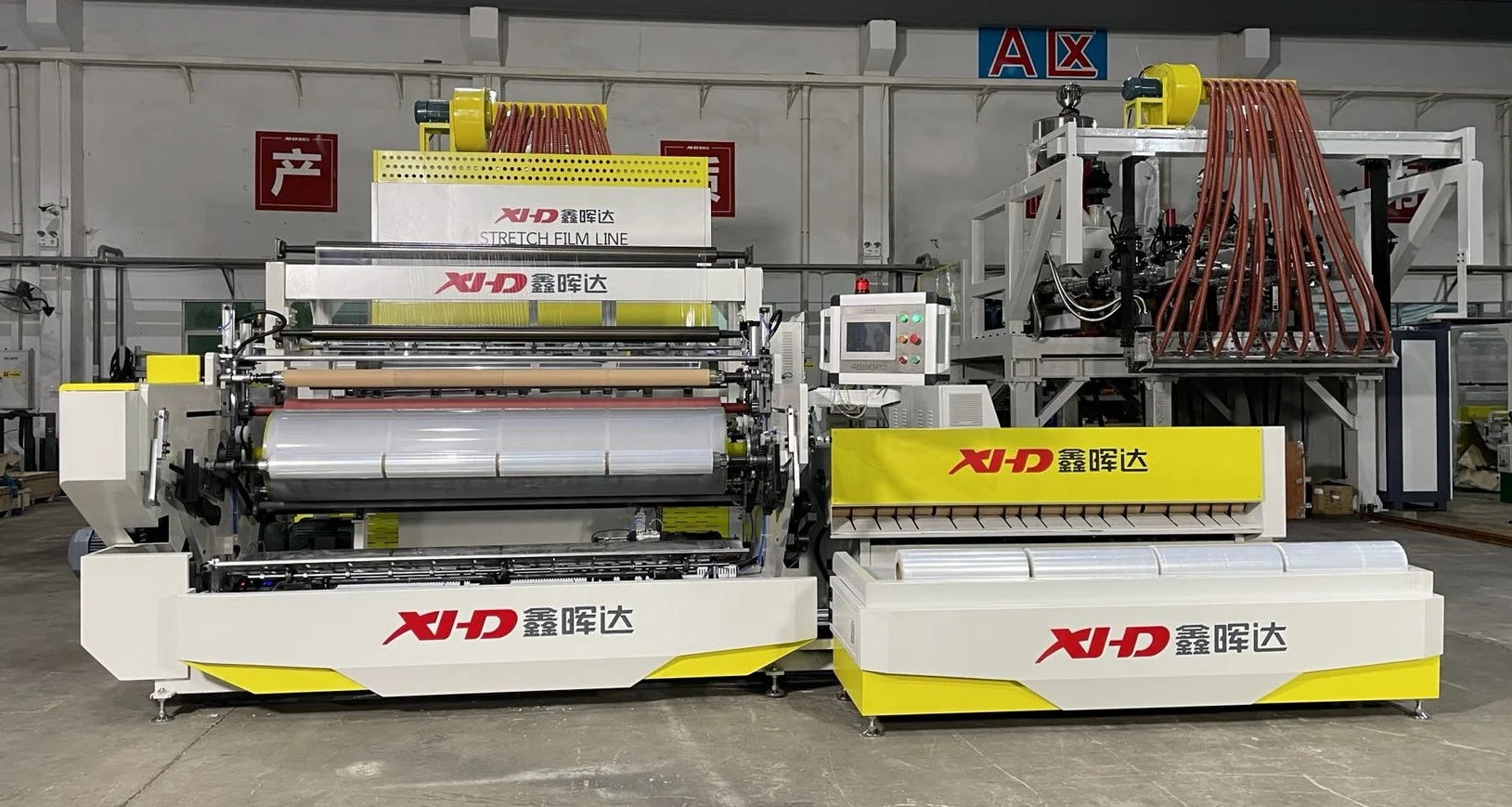

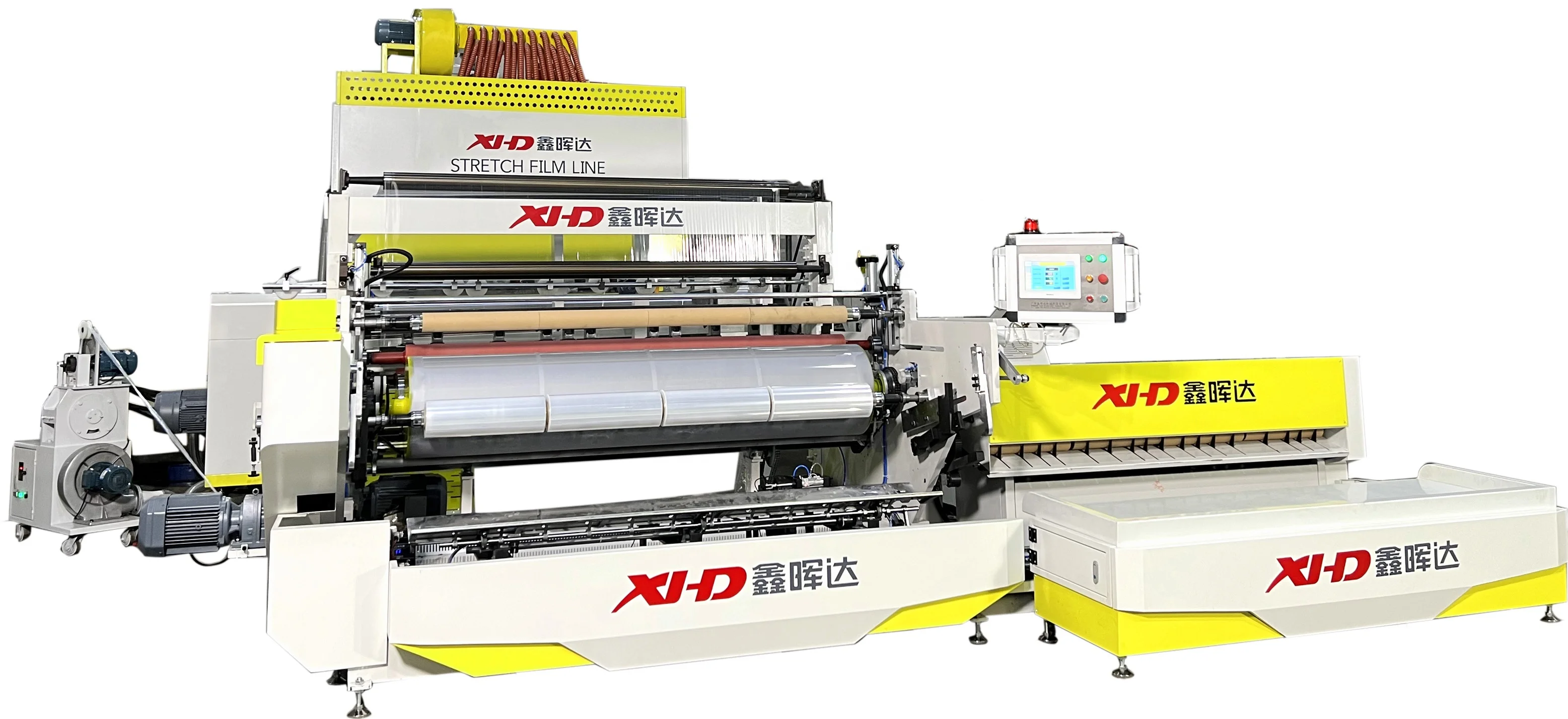

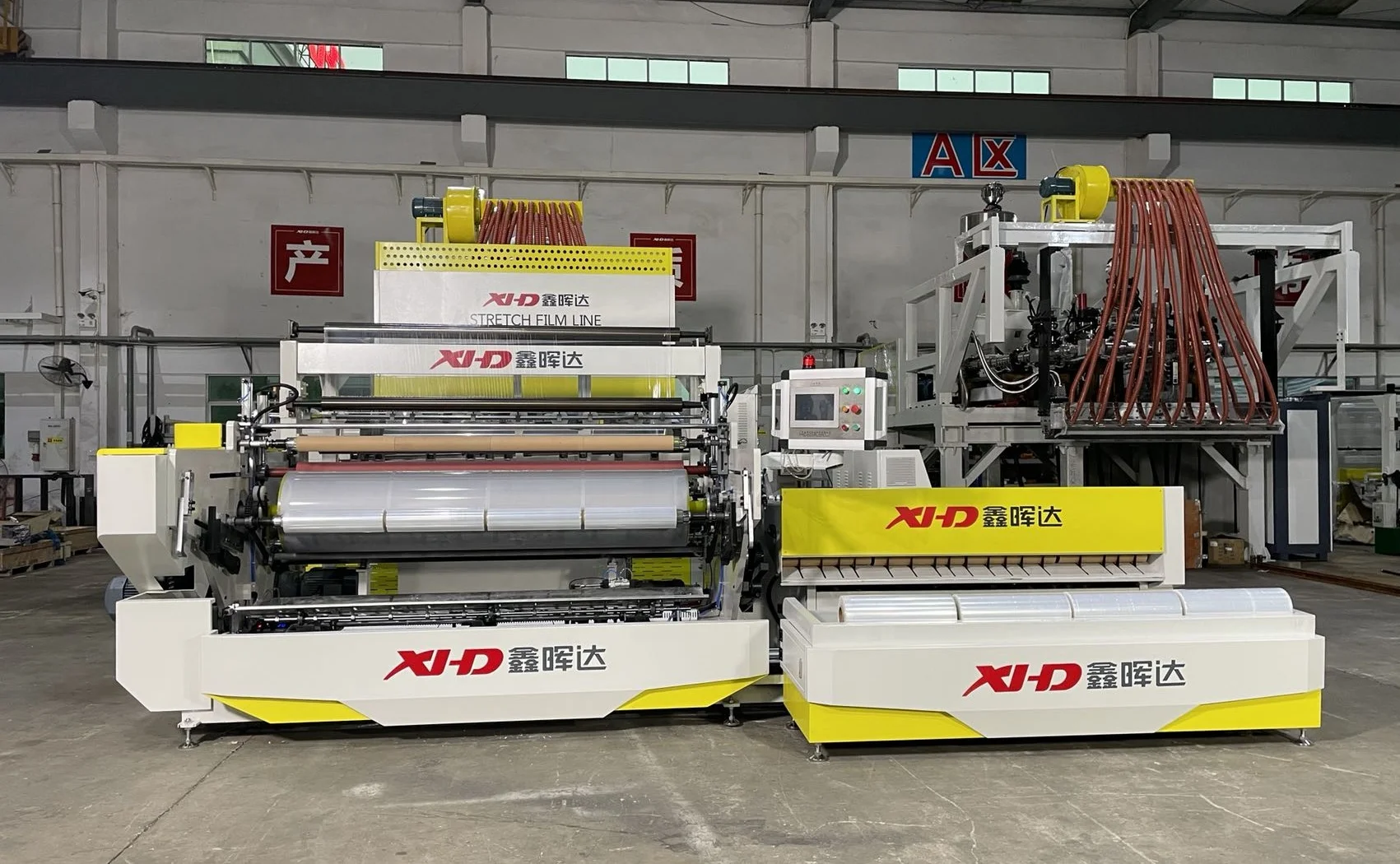

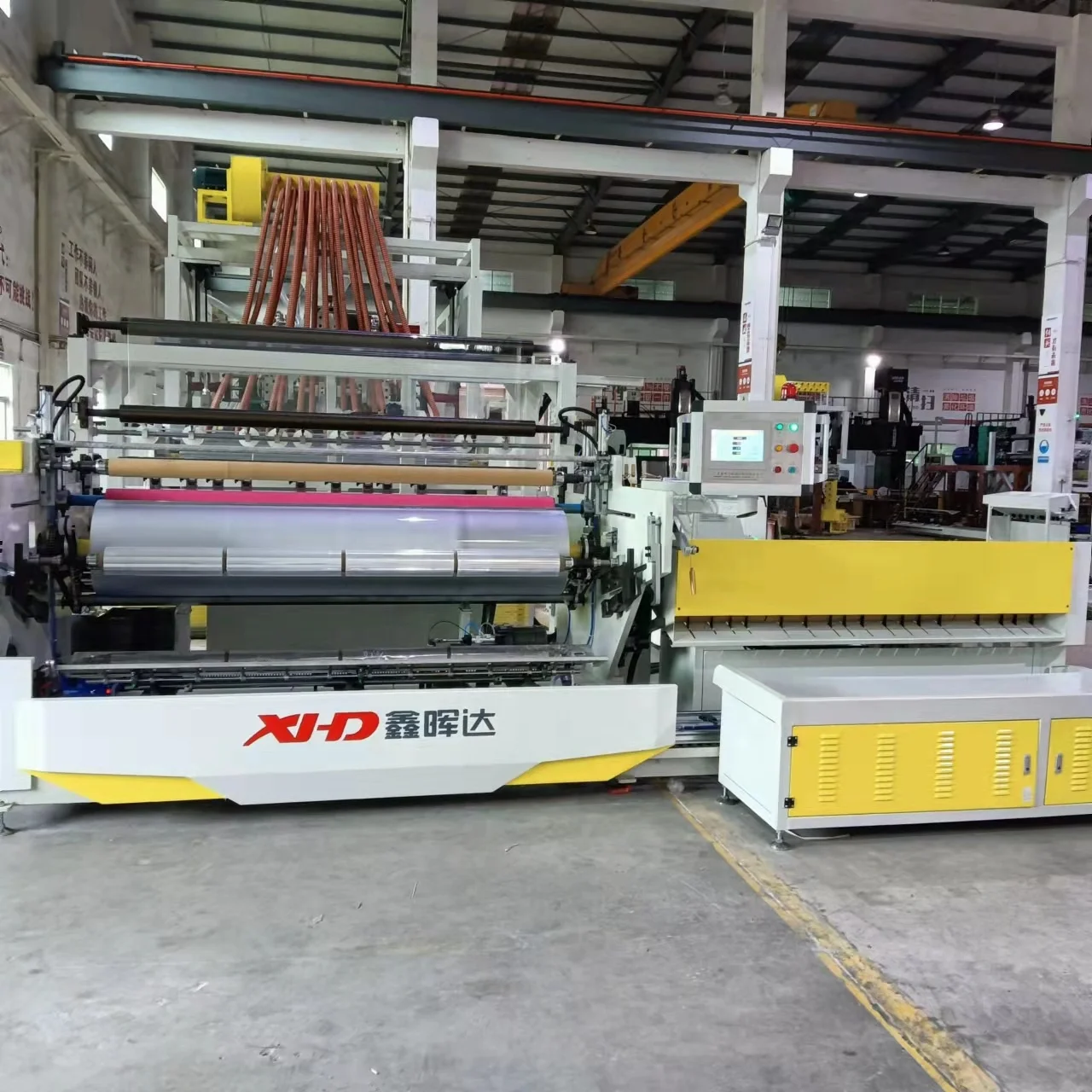

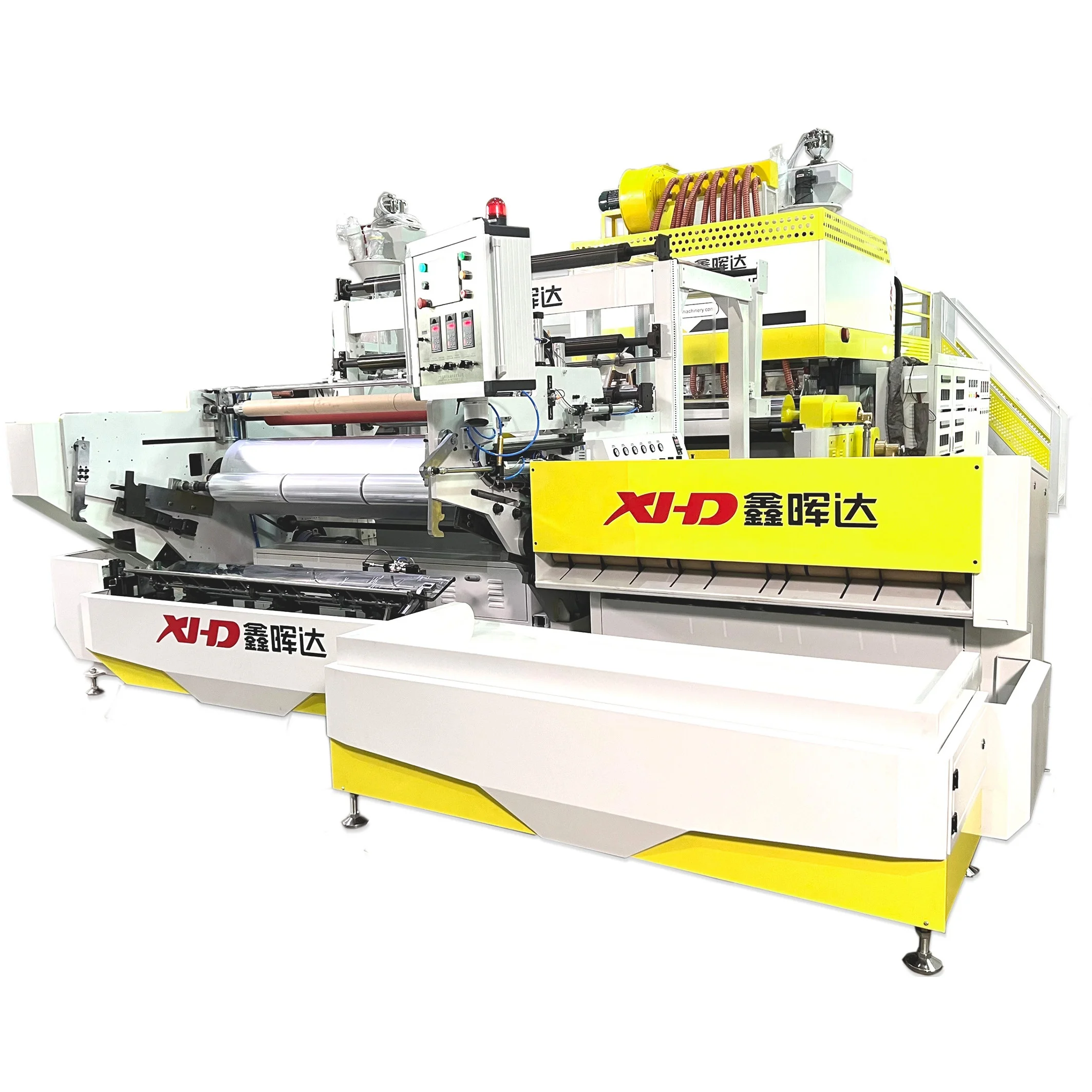

2000mm 3 layers 5 layers LLDPE plastic pallet wrap stretch film making machine
- Category: Plastic Extruders >>>
- Supplier: Guangdong Xinhuida Machinery Technology Co. Ltd.
Share on (60768034391):
Product Overview
Description

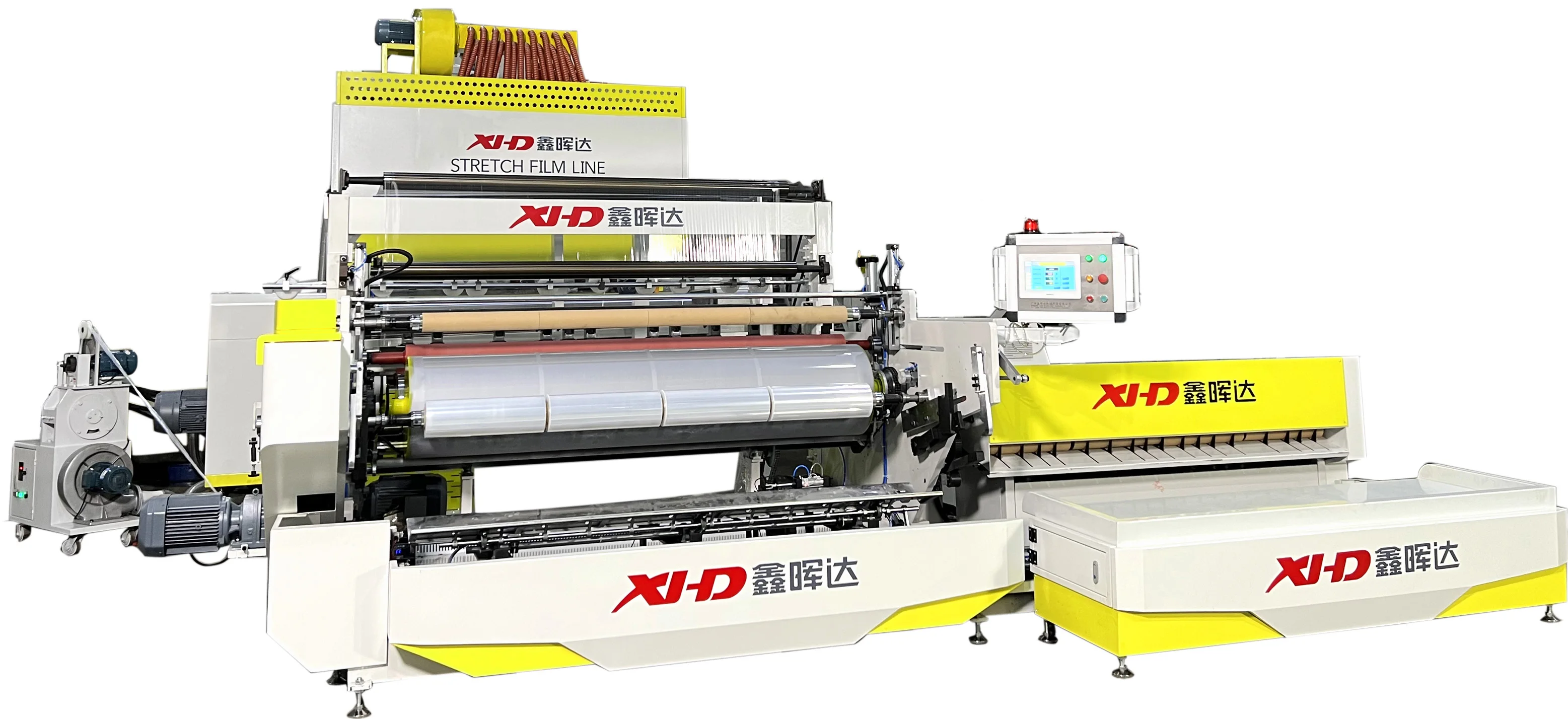

XHD 2000mm high quality stretch film extruder stretch film making machine price
Product Description
LLDPE Stretching Film Making Machine adopt the top intelligent industrial control system which included auto load unit, extrusion unit, auto cooling & shaping unit, on-line recycler, auto count, auto cutting ,auto reel alternation by manipulator. it will ensure the operation safely and easy, the winding is more solid and smooth. therefore, it ensure top product quality and productivity greatly, introduce the production cost to great bigger value.
HD picture
Technical Parameters of high speed stretch film machine
No. | Item | Specs | Remarks |
1 | Voltage/Frequency/Phase | Customized | / |
2 | Total Installation Power | 250 KW | For the machine only. |
3 | Consumption Power | 220 KW | For the machine only. |
4 | Main Raw Material | LLDPE & MLLDPE | / |
5 | Thickness of Film | 10-50 μm | tolerance≤±5% |
6 | Width of the Useful Film | 2000 mm/4×500 mm | / |
7 | Film Layer Structure | ABC or ACBCA | ratio: 30%40%30% |
8 | Designed Linear Speed | 300 M/min | / |
9 | Output | 180-350 Kg/h | / |
10 | Dimensions (L×W×H) | 14×4.8×4.5 M | for ref. only |
11 | Gross Weight | 20000 Kg | for ref. only |

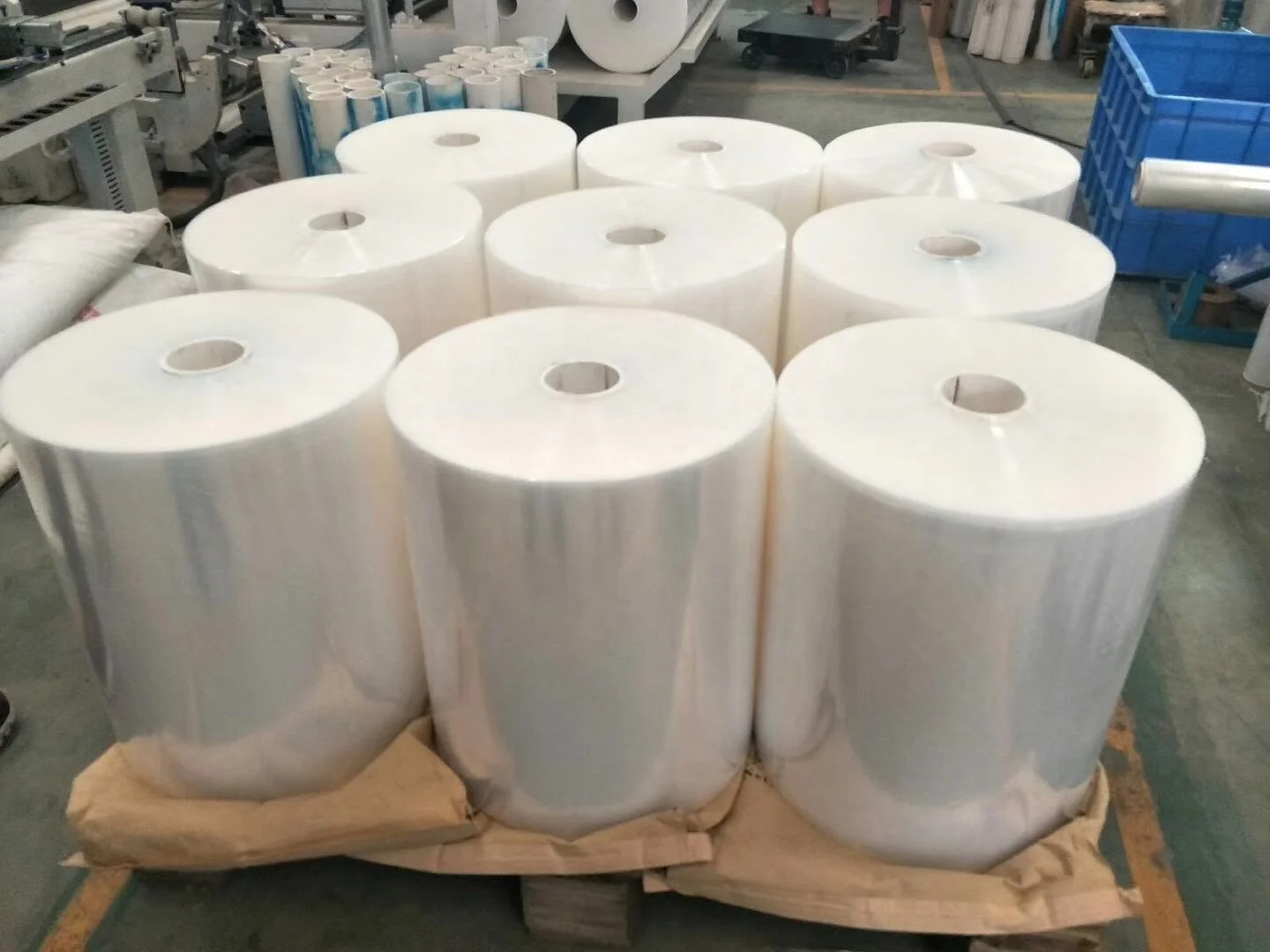

High Quality Stretch Film Produced By XHD Machinery
features and usage of Stretch film
It is a very good kind of packaging material mostly used in the industrial field, port pallet packaging, building material packaging, hardware packaging etc. It enjoys the following advantages:
1) Good tensile strength.
2) Superior anti-pricking ability.
3) High transparency.
4) Good ductility and anti-impact strength.
5) Stable sticky sides etc.
Cling film
It is for all kinds of food package. Fruit, Dishes, Cooked Food and etc. It enjoys the following advantages:
1) Food Grade Cling Film
2) Great for edible items
3) Safe and non toxic
4) High strength and durability
5) Many size available
Packaging & Shipping
Packing information for customer's reference
>1. Packed with stretch film;
>2. The machine is fastened to the walls of the container;
>3. Dimensions: 14X4.8X4.5 M;
>4. Gross weight: 15 T;
>5. Containers needed: 1X40 HQ+1X20 GP.
Pictures of loading
Customer cases
XINHUIDA had sold High Quality Cast Pe Stretch Film Extrusion Line all around the world.
We can provide our customer information for your evaluation!
You can even visit our customers' factories to check the machine running!
Our Services
>1. 24 hours after-sale hot line 400-833-5568.
>2. High quality stretch film recipe free sharing.
>3. 1 year warranty for all system and free technology support.
>4. Engineer dispatched to install the machine with travelling cost borne by the buyer.
Company Information
Established in 2000. With years’ experience in stretch film making machine & cling film making machine manufacturing.
Avenue in 2014: around 60 million RMB (US$ 10 million)
Domestic market share: 40%
Exported machines to 50+ oversea cities
No. of technicians: 30+
No. of sales team: 10
No. of after-sale service team: 10
FAQ
Q: Can we make both manual grade and machine grade stretch film?
A: Yes.
Q: Can we make 5 layer stretch film by this machine?
A: Yes. You can make both 3 layer and 5 layer stretch film.
Q: Is this machine full automatic?
A: Yes. This machine is fully automatic one.
Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add, the stretch film will not as stretchable and transparency as the raw material one. One of our customer in Russia used 100% recycled material. Of course, the design of the screw will be a little different.
Q: What's the spare parts?
A: We have a lot of spare parts free to you. Pls email me for the list.
Q: Is there any other material that we use add to make stretch film?
A: It depends on your customers requiryment. You can add MLLDPE (metallocene) to make the film more stretchable, especially used in pallet package. Or the glue to make the film more sticky.
Q: Can you help us to install the machine?
A: Yes. We can arrange the technician to install the machine after it arrives in your factory.
Please contact Grace Lee free for more details about the machine :whatsapp/wechat +8618922901653
