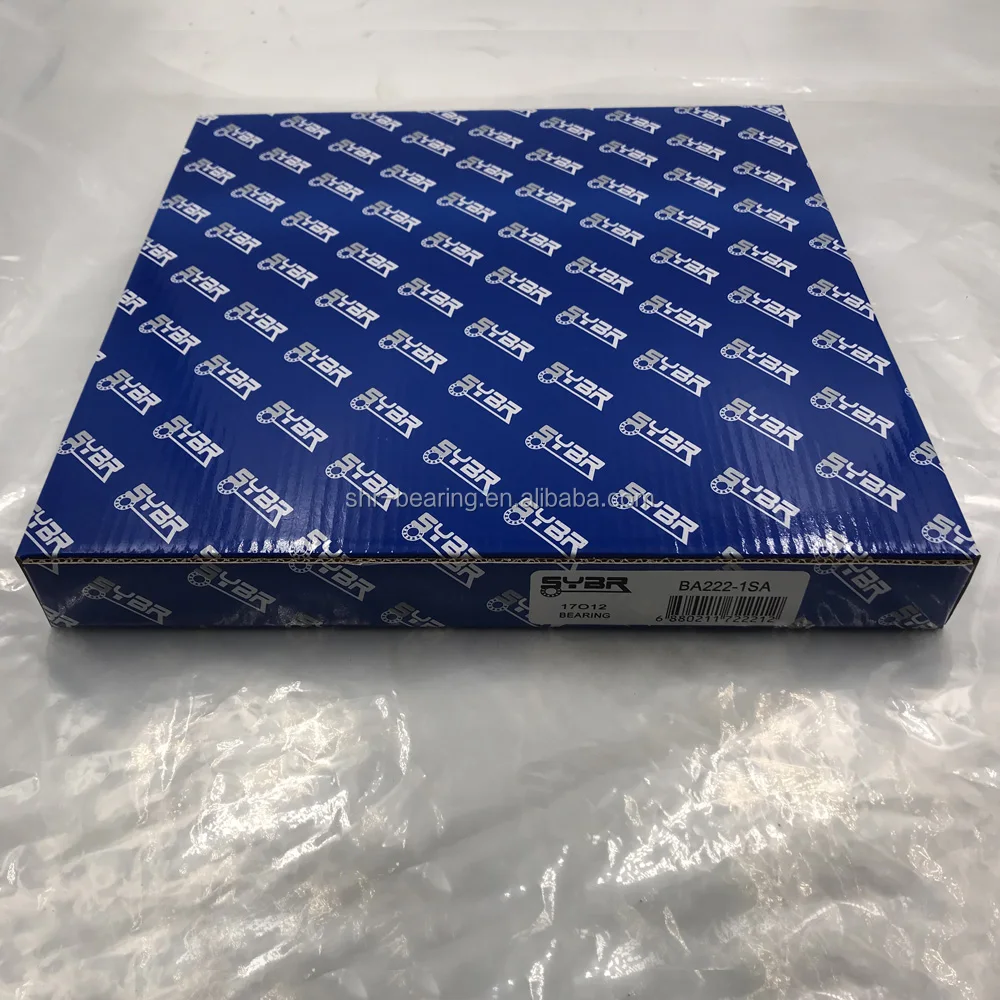

SYBR Angular contact excavator bearing BA222 1SA

Product Overview

Description

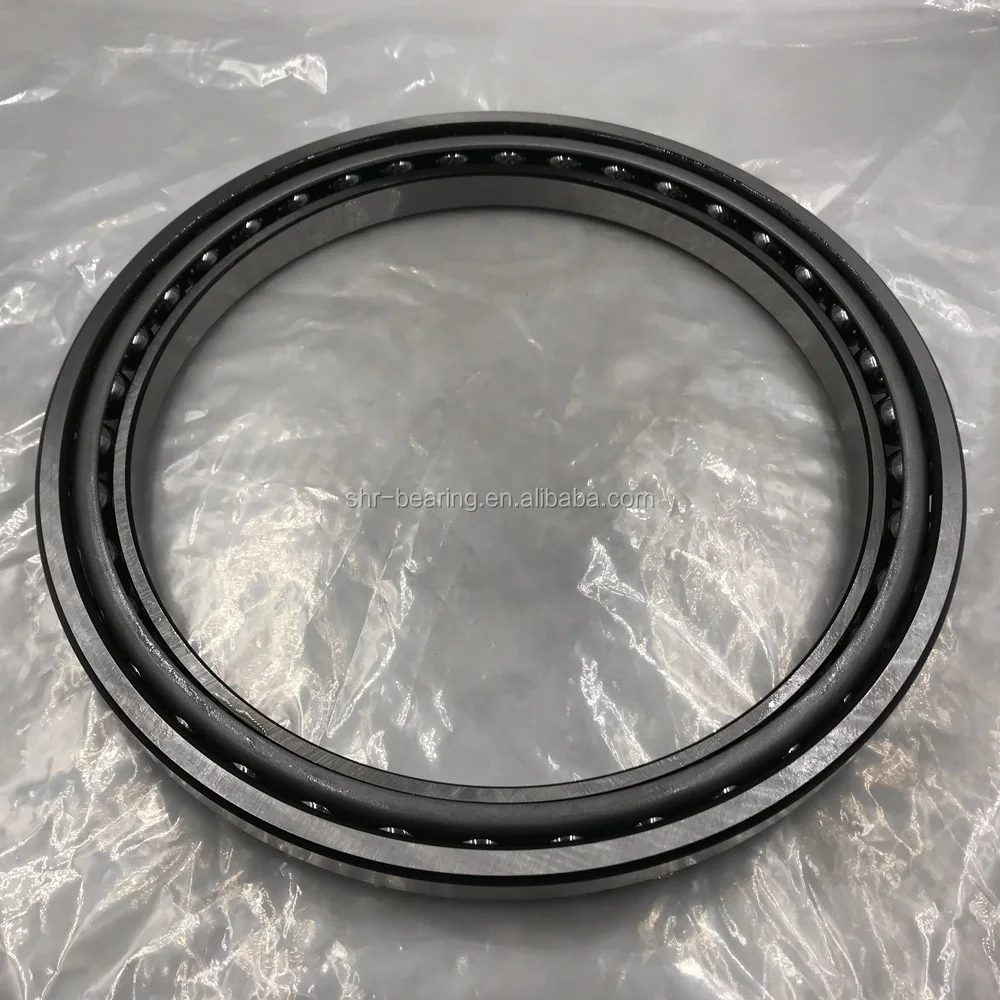

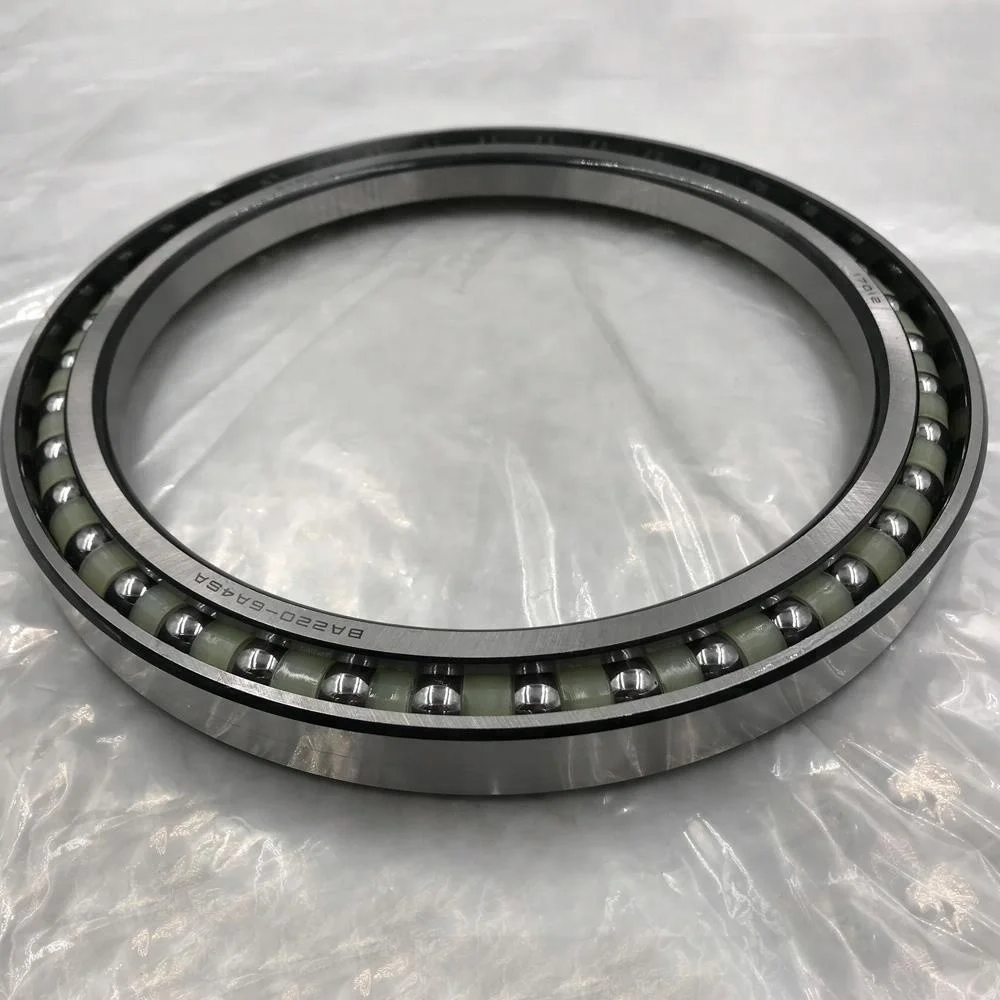

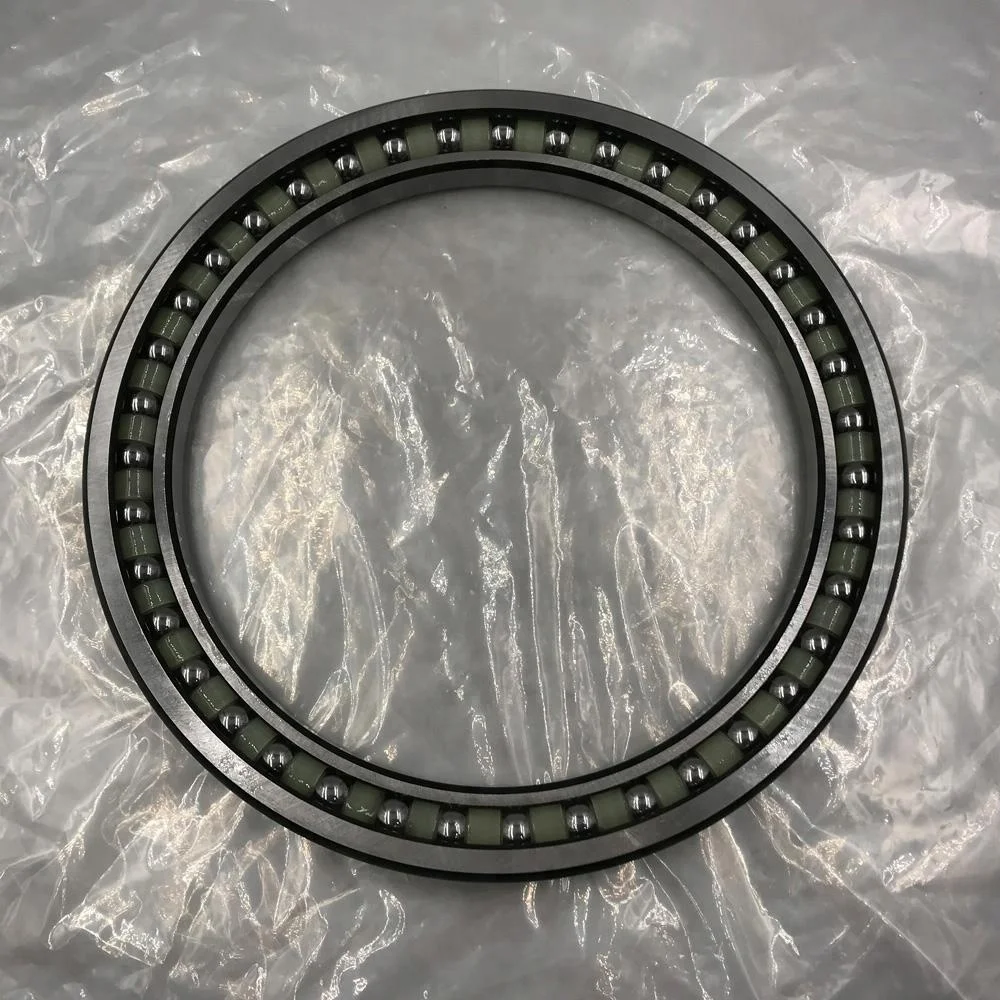

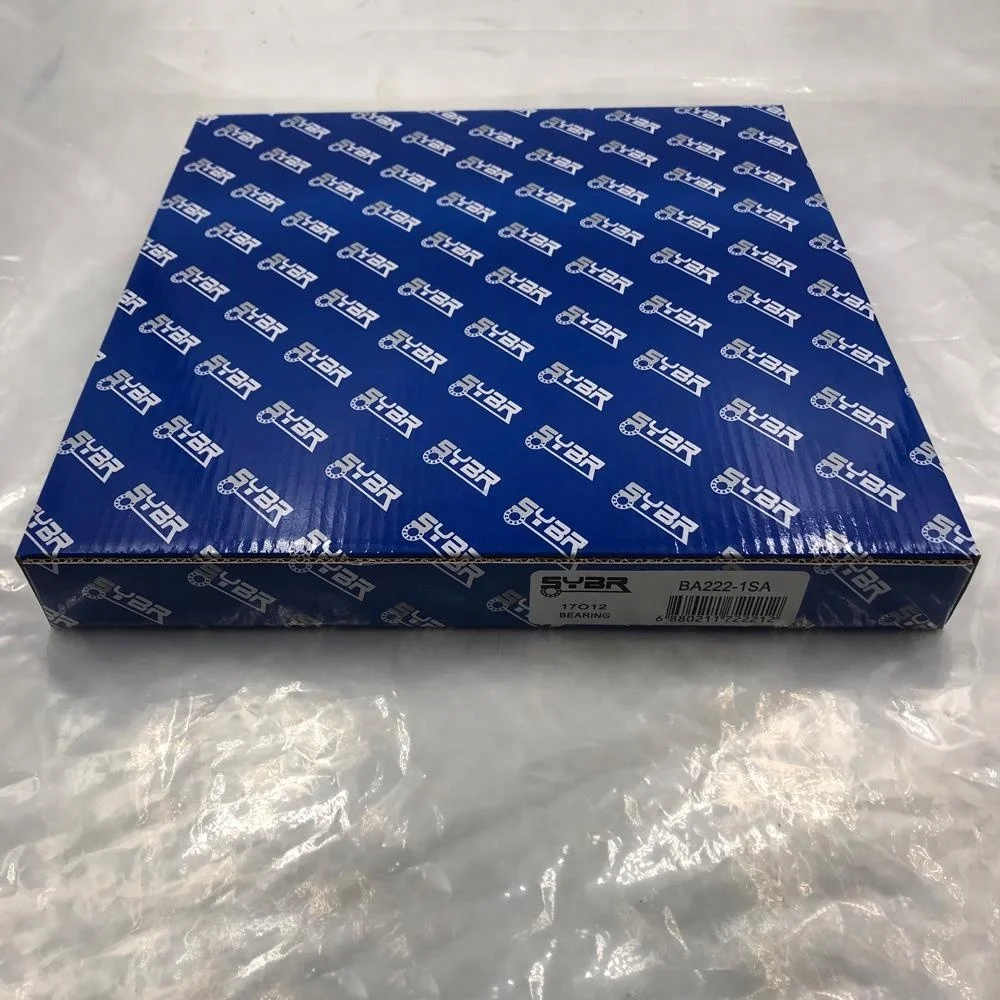

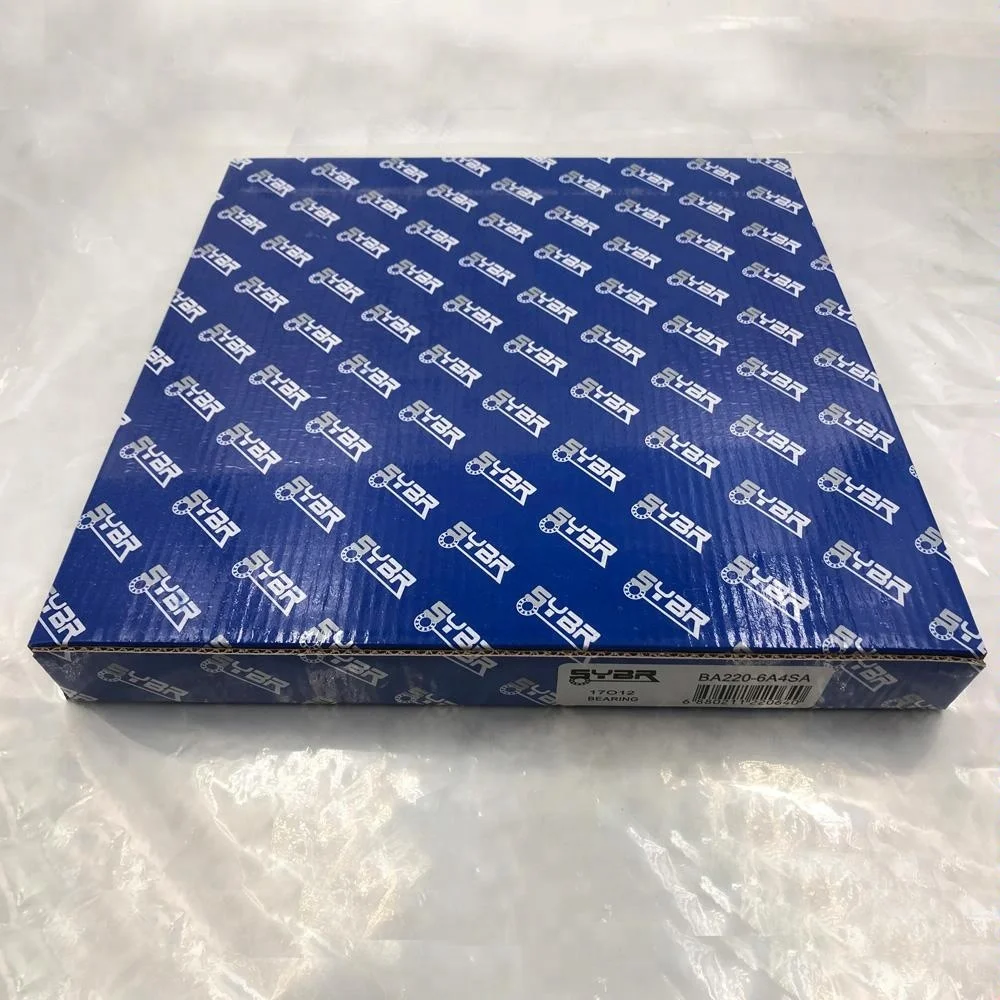

SYBR Angular contact excavator bearing BA222-1SA

SYBR Angular contact excavator bearing BA222-1SA installation and removal methods, should be according to the excavator bearing structure, size and excavator bearing parts with the nature.Installation, disassembly pressure should be directly added to the end face of tight fit excavator bearing stalls circle, not by the excavator bearing rolling elements to transmit pressure, because this will be caused by the excavator bearing work surface indentation, impact excavator bearing normal workeven make excavator bearing damage. Excavator bearing cage, seals, dust cover parts easily deformed, installation or demolition excavator bearing pressure can not be added to these parts.



New model	Old model	Size	cage
BA152-2036	152/203/26	152*203*26	brass
BA222-1WSA	222/273/26	220*273*26	without
BA220-6SA	BA220-6SA	220*276*26	Steel plate
BA240-3ASA		240*310*33.5	Steel plate
SF4815VPX1		240*310*34	With out
SF4831PX1	SF4831PX1	240*310*33.4	Steel plate
AC5033	BA5033AC	250*330*37	nylon
AC5836		289*355*34	nylon
AC463240		230*320*40	nylon
HS05145		117*145*14	without
HS05154		126*154*14	without
HS05383		320*383*30	without
MC6034	300/340/18AC	300*340*18	brass
180BA-2256		180*225*22	nylon
B-SF4454PX1		220*295*33	nylon
BA260-4	AC523438-1	260*340*38	nylon
AC4629		230*290*27	nylon
BA230-7ASA	SF4630VPX1	230*300*35	Steel plate
SF3607		180*225*15	without
BA180-4WSA		180*250*33	Steel plate
AC4531		225*315*36	nylon
AC4631		230*310*39	Steel plate
BA4852PX1		240*310*33	nylon
R196Z-4		196.85*241.3*17.462/23.812	Steel plate
AC46324		230*320*40	Steel plate
180N19W		180*250*33	nylon
200BA27V-2		200*270*33	nylon
210BA29V		210*295*35	nylon
AC423040-1		210*300*40	nylon
