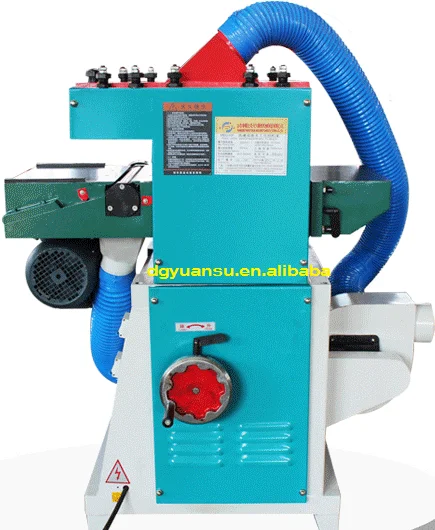

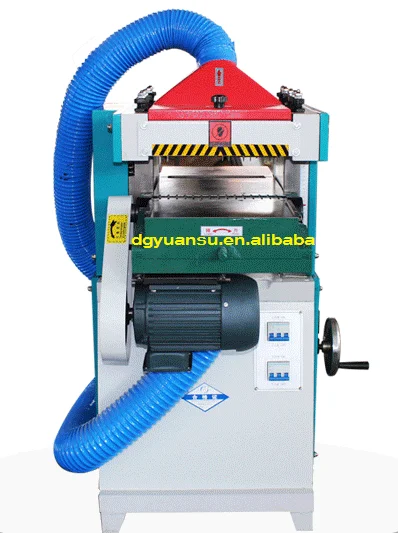

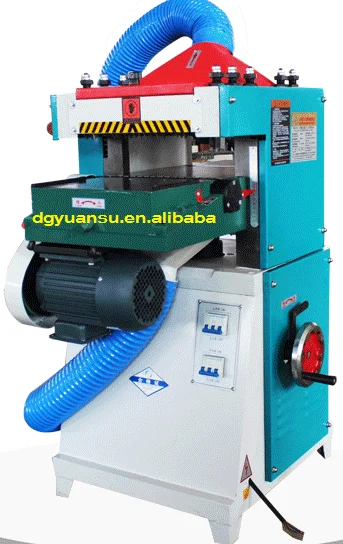

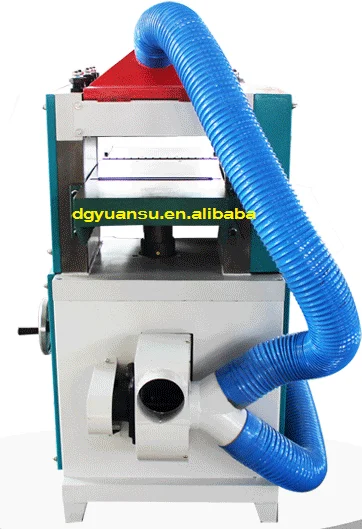

Hot sale MB203F double side woodworking planing machine thickness electric wood planer machine
- Category: Woodworking Machinery >>>
- Supplier: Dongguan Yuansu Hardware Co. Ltd.
Share on (60768110079):
Product Overview
Description

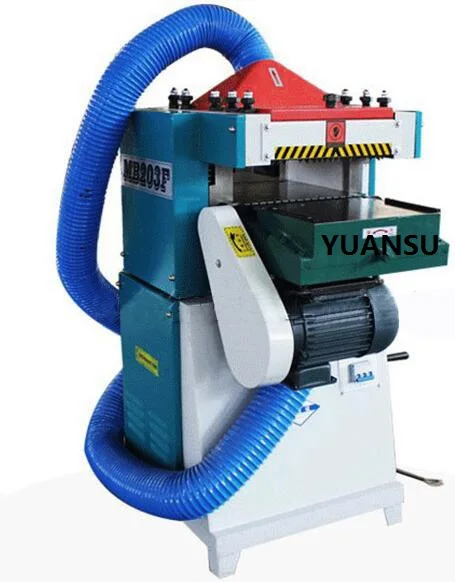

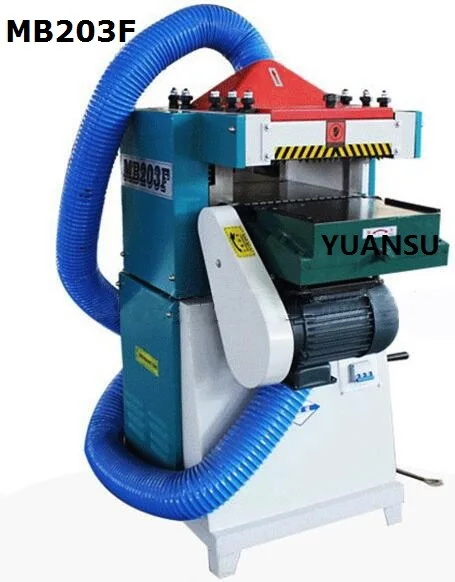

Model no. MB 203F
Heavy duty double side, high speed planer double side planer .
Advantages :

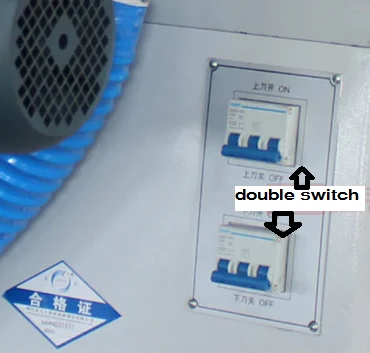

Double switch can control the double side planing and you can also control it to be single side thicknesser，that is to say, one machine dual use ;

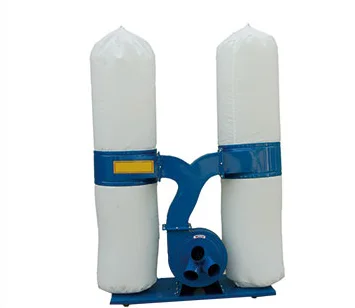

with dust collecting fan
Model no. | MB 202F | MB203F | MB204F | ||
Max planing width | 200mm | 300mm | 400mm | ||

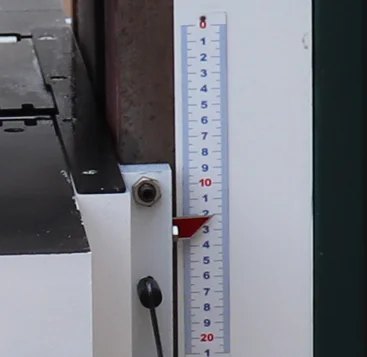

Planing thickness | 3-160mm | 3-160mm | 3-160mm | ||
Min planing length | 165mm | 165mm | 165mm | ||
Max planing depth upper | 4mm | 4mm | 4mm | ||
Max planing depth lower | 2mm | 2mm | 2mm | ||
Feeding speed | 8-10m/min | 8-10mm | 8-10mm | ||
Spindle speed | 7500r/min | 7500r/min | 7500r/min | ||
Motor power upper | 2.2kw | 3.0kw | 4.0kw | ||
Motor power lower | 1.5kw | 2.2kw | 2.2kw | ||
Dimension | 890*495*1180mm | 890*595*1180mm | 890*695*1180mm | ||
Weight | 295.00kgs | 320.00kgs | 375.00kgs | ||
