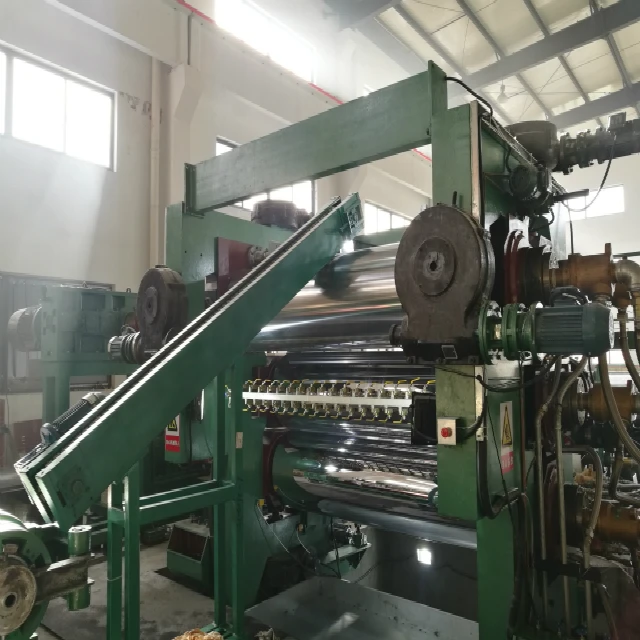

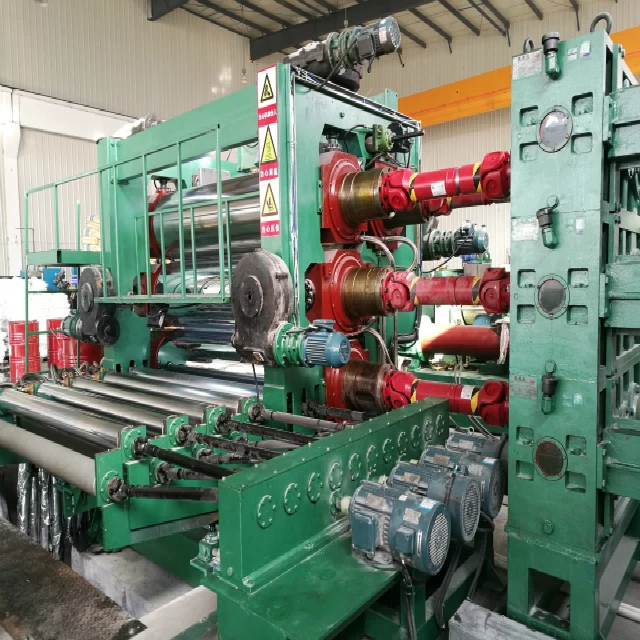

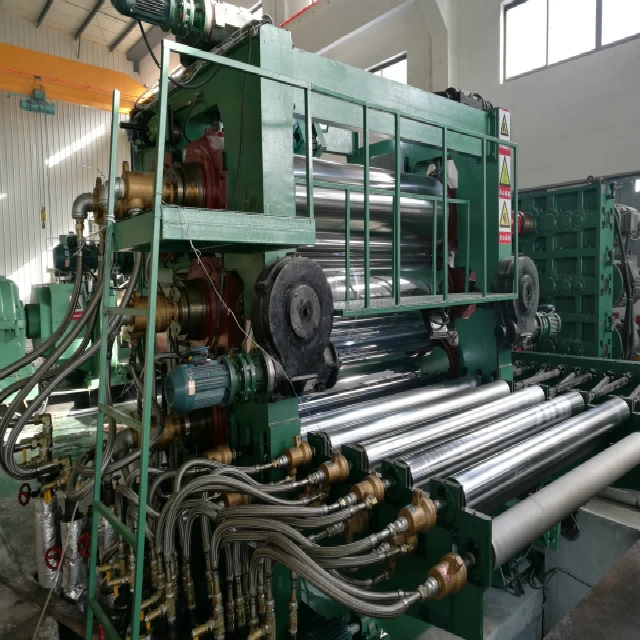

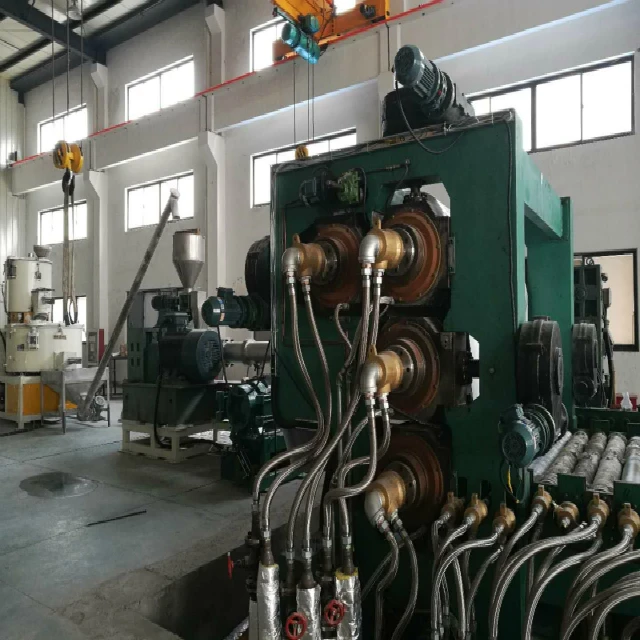

Y560 Four roll used pvc calender machine

Product Overview

Description

Machine application

It is used to produce various rigid, semi rigid or soft plastic films or sheets.

It can also be used to produce high filling plastic film or high filling plastic sheet.



Machine features

1.The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.

2.While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.

3.Roller space can be adjusted both by manual or electric mode.

4.Roller bearings' lubricating can adopt drier oil or dilute oil.

5.The film can infinite extend, with a high work speed, high produce capacity, good quality and uniform thickness.

6.The main machine has roll crossing, preloading and anti-bending device, the adjustment speed can be adjusted, the electric parts has PLC control.

Technical parameter

Machine specifications can be designed according to different products.

Model Item		KY320*950	KY450*1650	KY560*1830	KY660*2200
Roll dia	mm	320	450	560	660
Roll working length	mm	950	1650	1830	2200
roll linear speed	m/min	50	50	50	50
Calendering Product thickness	mm	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5
Calendering product width	mm	≤800	≤1250	≤1370	≤1800

A plastics film/sheet Calendering line usually contains the following machines

(1)high-speed kneading machine and cooling mixer

(2)planet extruding machine

(3)Chain conveyer

(4)single screw extruding machine

(5) 3/4/5/6/7 calender machine

(6) 5/7 roller take off machine

(7)Two-roller plating press

(8)Segment assist machine after a calender

(9)Calendering electric control system

(10)Hot oil temperature control system

(11)Automatic single roller surface winder

(12)Broken material recovery system

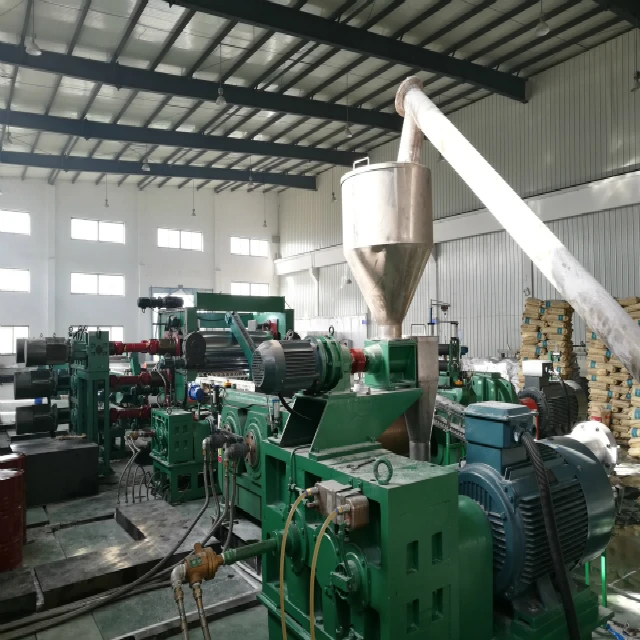

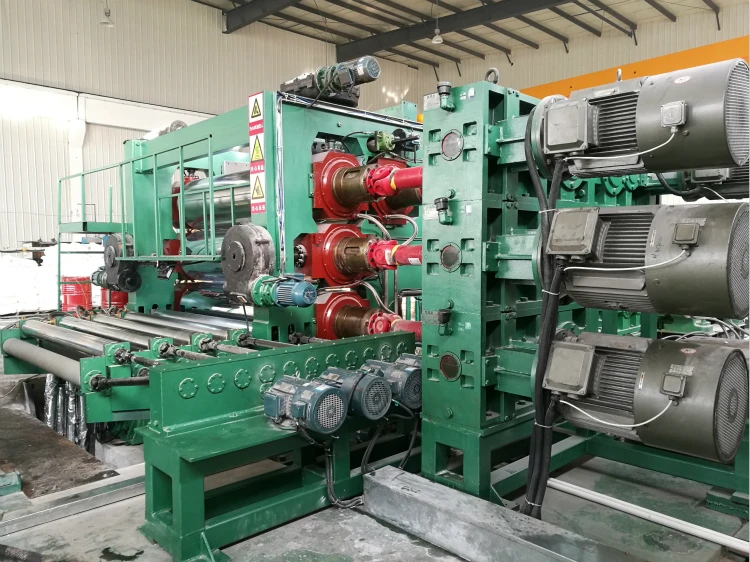

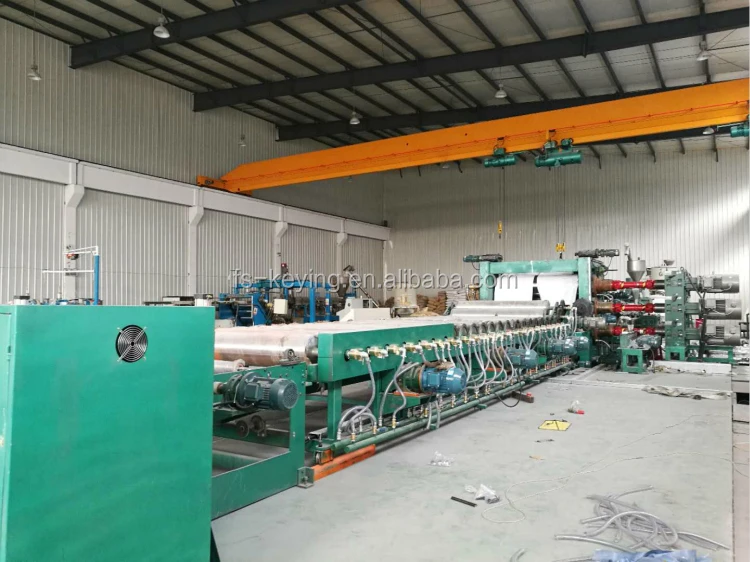

Product Display

Our Services

1. Professional and quick response to your questions within 24 hours.

2. We will communicate with our production dept. and keep you updated about production progress in time.

3. Customized manufacture available for you.

4. Fast delievery to save your time.

5. Good after sale service will eliminate your worry.

6. Long guarantee period of the quality will reduce your cost and trouble.

7. Professional packing and ocean shipping control to make your order safe and sound.

8. Warranty period: From the day of the use of the machine in the buyer’s factory: 12 months

9.Installations and Commissioning

one or two technicians will be sent to the buyer to guide the installation and commissioning of the equipment .

Customers pay the charge of our technicians:

     1) Round-trip Airplane Tickets

     2) Charges of transportation, accommodation and communication

     3) The allowance of the technicians is USD 100 per day for one person.

Packaging & Shipping

All products are strictly tested and carefully packed to ensure the integrity and precision of the products in transit.

Our customers

so far,we have successfully exported our products to numerous countries, including the Saudi Arabia, Turkey, Indonesia, Bangladesh, Ecuador, Vietnam, Egypt,Ethiopia

Exhibition

Company information

Foshan Keying Machinery Co., LTD. Having experienced many years of development,we have made the products increasedly mature up to the same level of similar products at home with various sets of machinery developed successfully. We have been well received by our consumers for our reliable quality,excellent after-sale service and reasonable price. We have professional designing and operating contingent who are able to develop any new type of product professionally as per the special needs of our clients by doing our best to reduce the comprehensive costs and to raise the production efficiency for the clients. Adhering to the concept of high quality and good service, we are creating a new generation of brand product-Keying Machinery.
