PVC Paper Wood Door laminating machine

Product Overview

Description







The Techincal Parameters:



Sticking paper machine is suitable for small-medium enterprise of furniture and Audio and with the features of no wrinkles,bubbles and high rate of quality products.

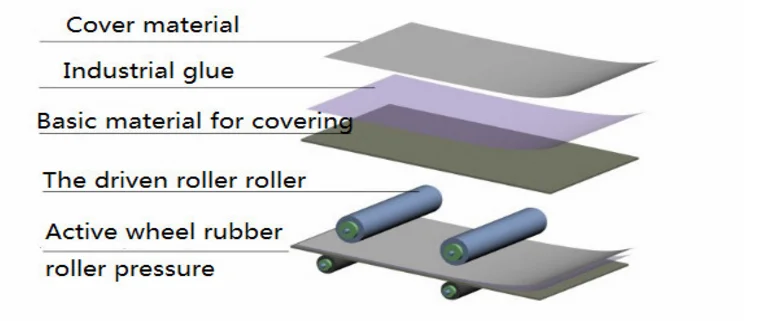

Adopt to advanced-technology of laminating with thehigh precision,reasonable overlay,novel structure and easy operation,which is top choice of PVC equipments.

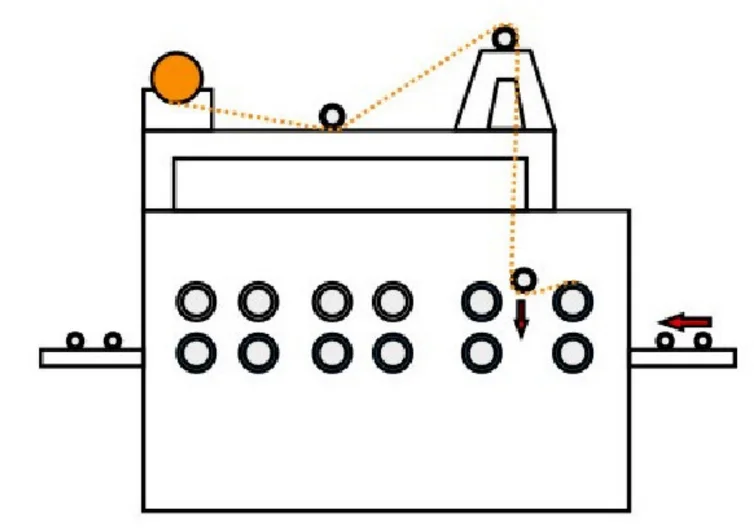

Device configuration:front-rear delivery plate,spreading glue system,unwinding structure,automatically cutting system,hot press system.



Main technology parameter
Mode specification	φ190-1350mm
Board length	Above 600mm
Board width	1220mm
Board thickness	1.5-30mm
Rate of material delivery	3m/min
Motivity power	1.5kw
Heating power	4kw
Machine weight	3000kg
Paper width	1280mm
Structure size	6500*1900*1700mm
Principal axis roller diameter	φ190

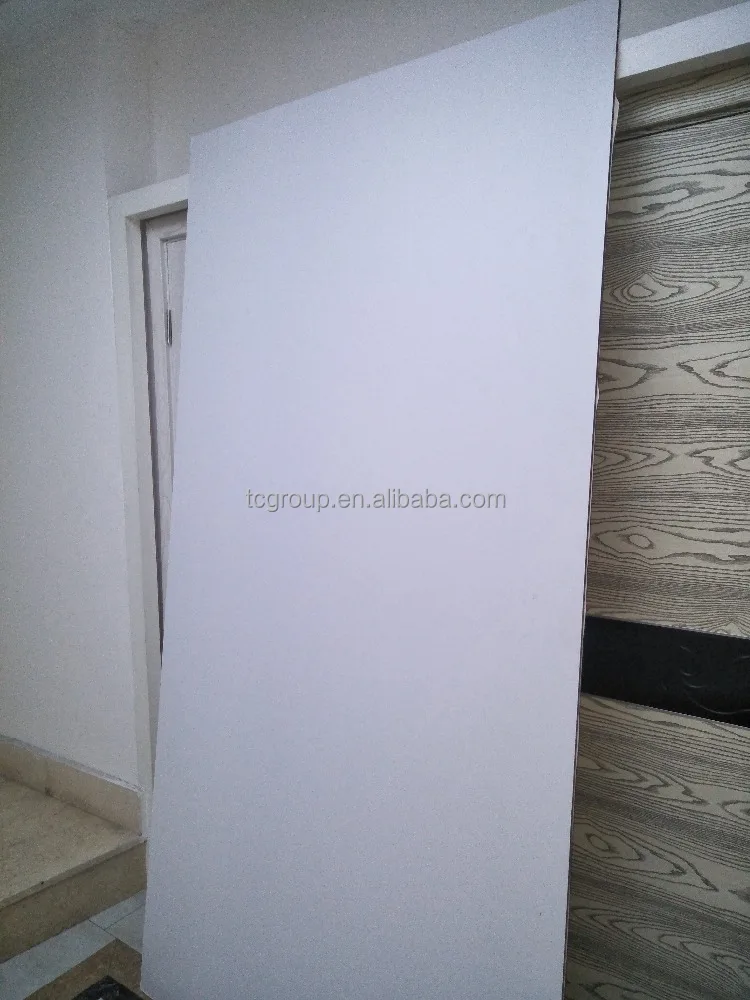

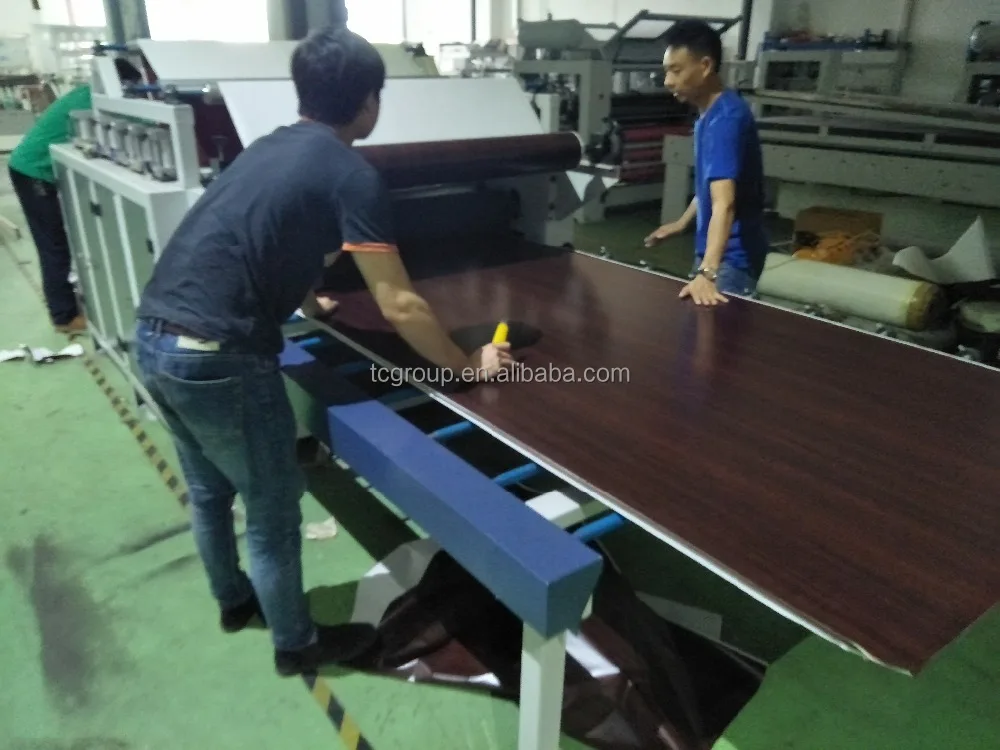

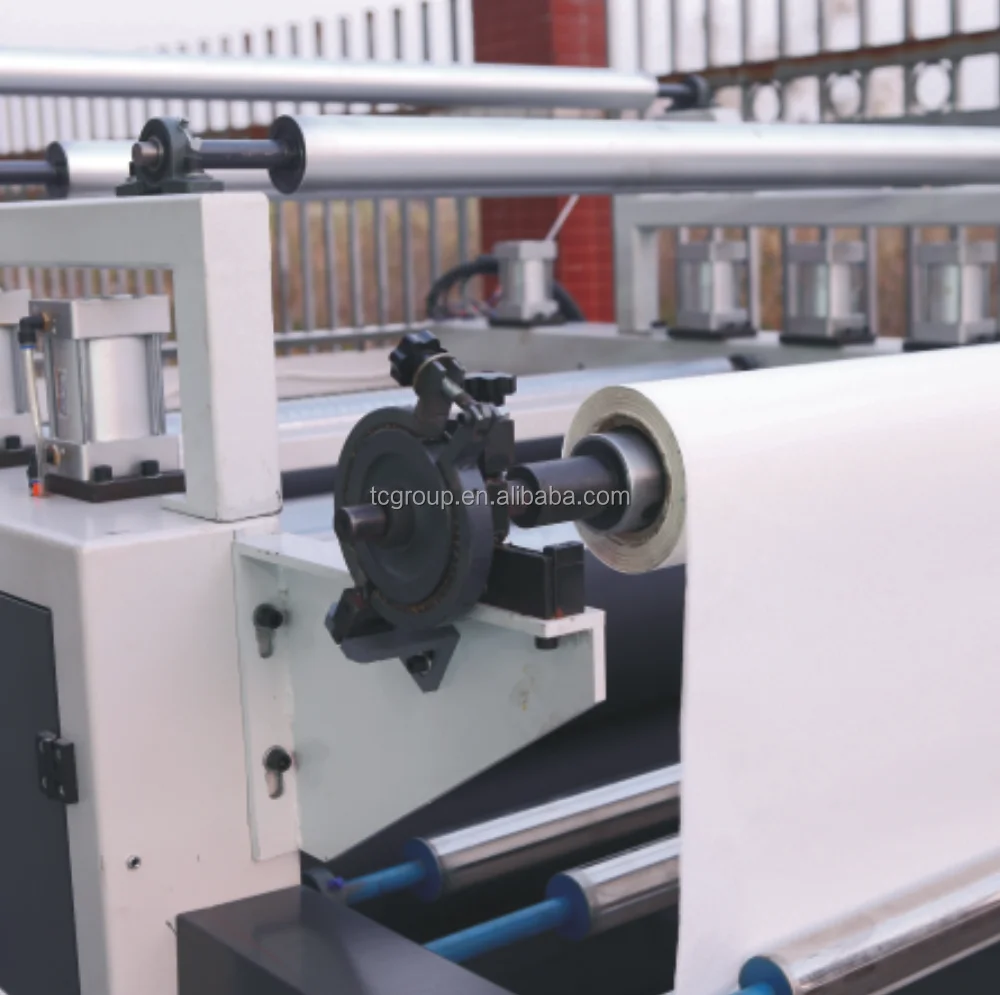

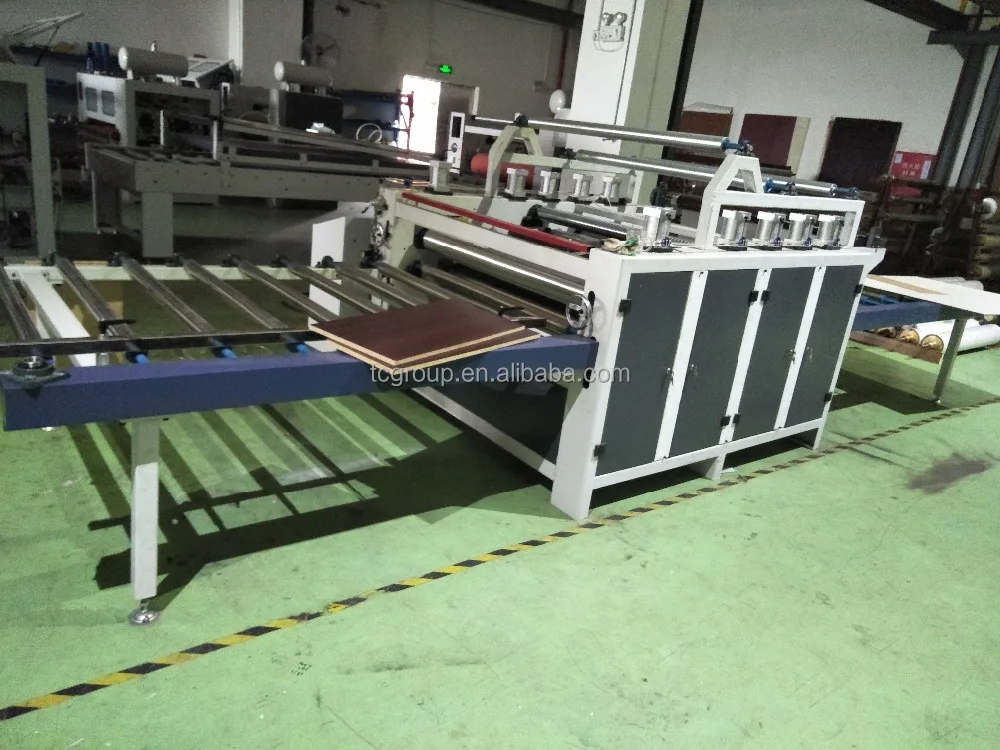

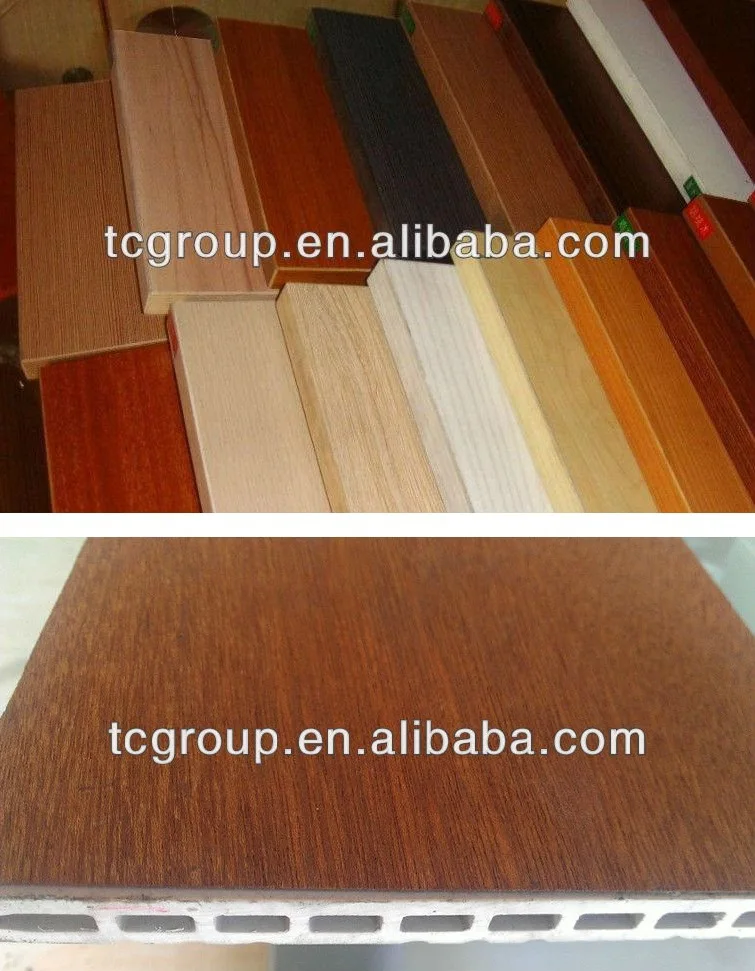

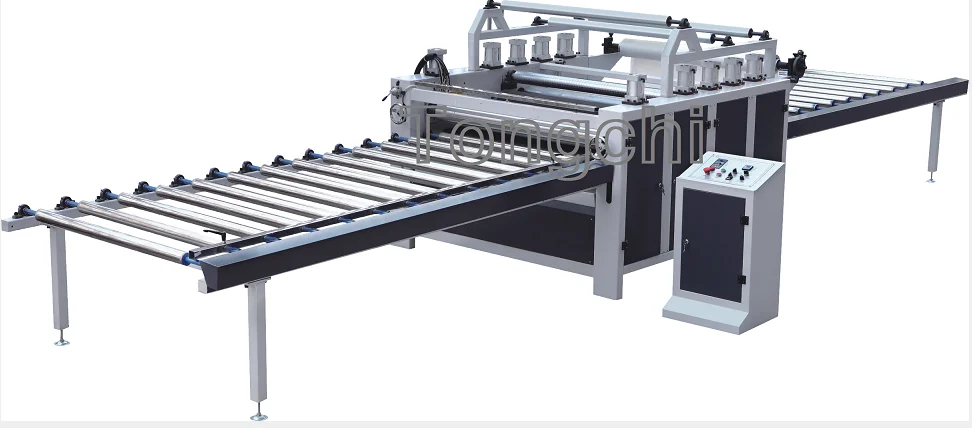

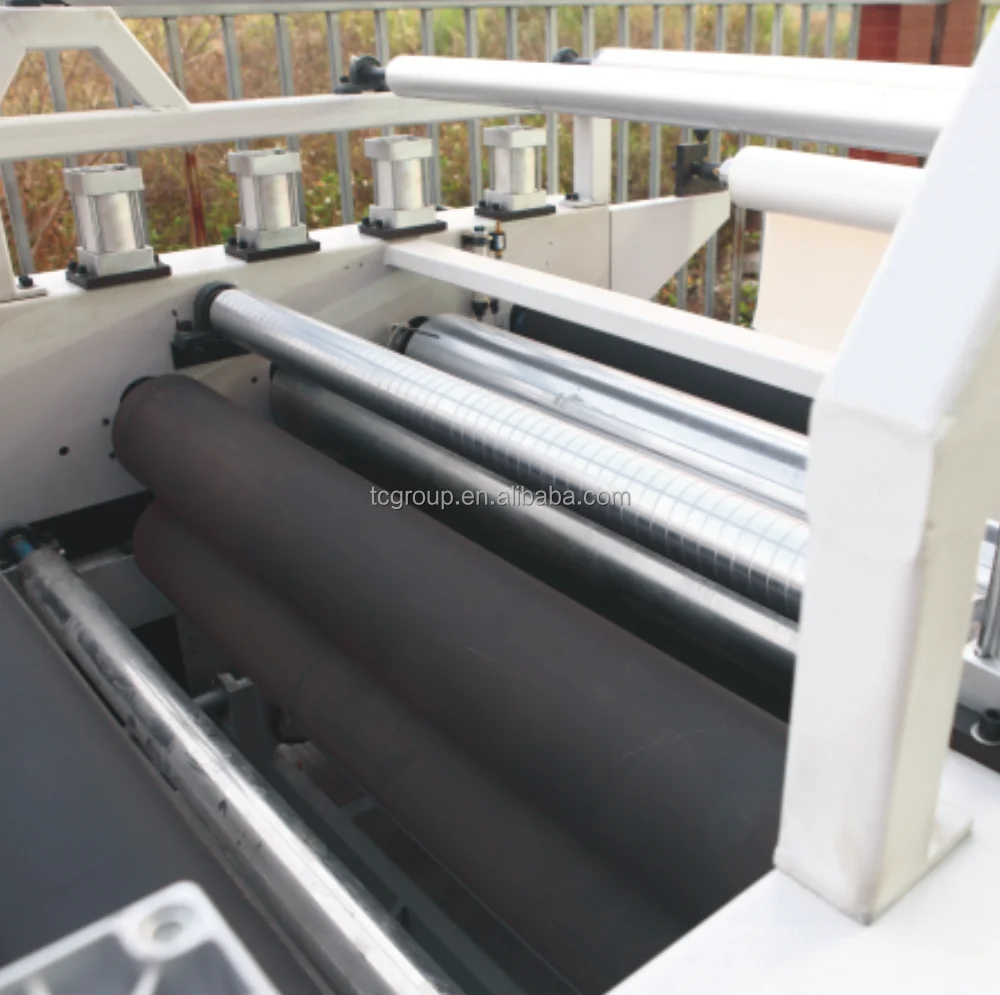

The photos of machines and finished products :

















Welcome to  Contact with me for more details and definite quotation!
