[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500
Dakiou JTCQ D автоматическая высокоскоростная машина для высечки бумажных стаканчиков
- Category: Paper Production Machinery >>>
- Supplier: Ruian Daqiao Packaging Machinery Co. Ltd.
Share on (60768503019):
Product Overview
Description

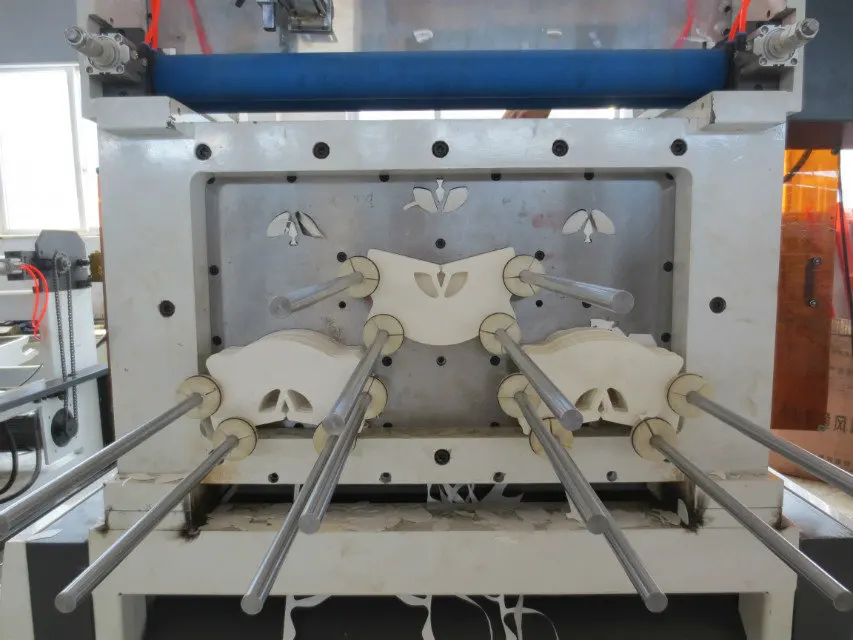

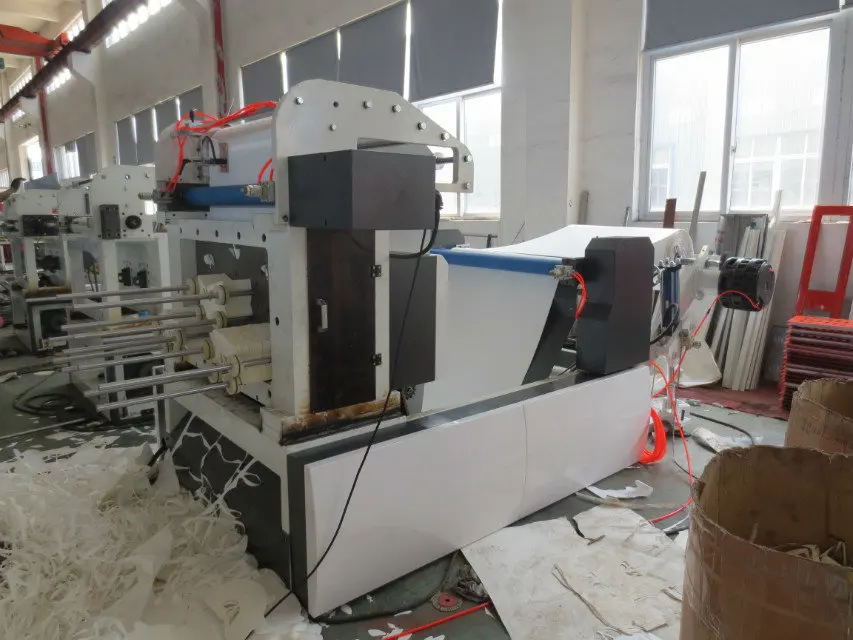

JTCQ-D Roll Die Punching Machine

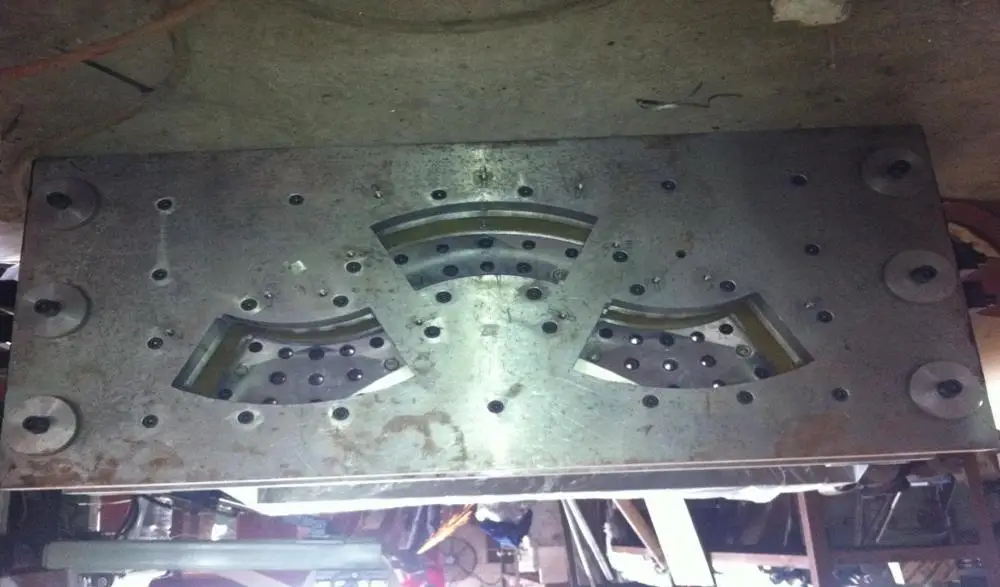

JTCQ-D Automatic Roll Die Punching Machine is a good choice for punching paper cup wall with different sizes by changing moulds, high speed and good performance. Paper feeding in roll, a good partner for the flexo printing machine.
Technical Specification
Type | JTCQ-D |
Cut Precision: | ± 0.10mm |
Production capacity | 280-380 punches/min |
Max Paper Convey Width: | 850mm |
Suitable Material: | 120-400g/m2 Pecoated paper, cardboard,etc |
Total Power: | 10KW |
Total Weight: | 2200KGS |
Overall Dimension: | 3700 x 1800 x 1700 mm |
Working Air Source: | Air pressure 0.5-0.7Mpa (Need to buy compressor) |
List of electric components
No | Name | Model | Manufacturer |
1 | MAIN MOTOR | 4KW | MAILI |
2 | FREQUENCY INVERTER | FX3 | LG(KOREA) |
3 | PLC |
| MITSUBISHI |
4 | SERVO MOTOR | 4.4KW | YASKAWA(JAPAN) |
5 | SERVO MOTOR DRIVER |
| YASKAWA(JAPAN) |
6 | SWITCH |
| AUTONICS(KOREA) |
7 | SENSOR |
| PANASONIC |
8 | PNEUMATIC |
| YISHIDA(CHINA) |
Contact Information
Ms.Vera Yue Mob: +86-15356771883(WeChat & WhatsApp) Tel: +86-577-65592060
Fax: +86-577-65595666 https://youtu.be/xx4qhKXVkMA //www.daqiaobaoji.com
Add: No.68 Bada Road, Linyang Industrial Estate, Ruian City, Zhejiang Province, China
Company Information
Product Show
FAQ
We are Manufacturer...
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
