TJB 500 Countertop 45 Degree Cutting Machine for sale

The machine is automatically controlled by PLC (or manually controlled). The cutting size is input via computer terminal. Users can set the quantity, processing thickness, cutting thickness and feeding speed according to requirements. It is equipped with infrared tool setting gauge, to accurately adjust the cutting size. The crosswise feeding speed and spindle speed is controlled by frequency converter. Users can adjust it as per requirements.
Worktable rotation is 0-90°, and table tilting is 0-85°. Once all the parameters are well set, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone thin plate cutting machine.
Note: Different countries, different payment terms.

Features:

1. Neat and nice Appearance of the machine.

2.The machine integrated into a whole body which saves debugging cost with simple installation and no foundation fees.

3. With 1 cm thickness of the steel structure makes the machine more firm and secure.

4. Cutting head can automatically rotate to 90°,tilt to 45°. Flexible rotation and simple operation highly improve the efficiency.

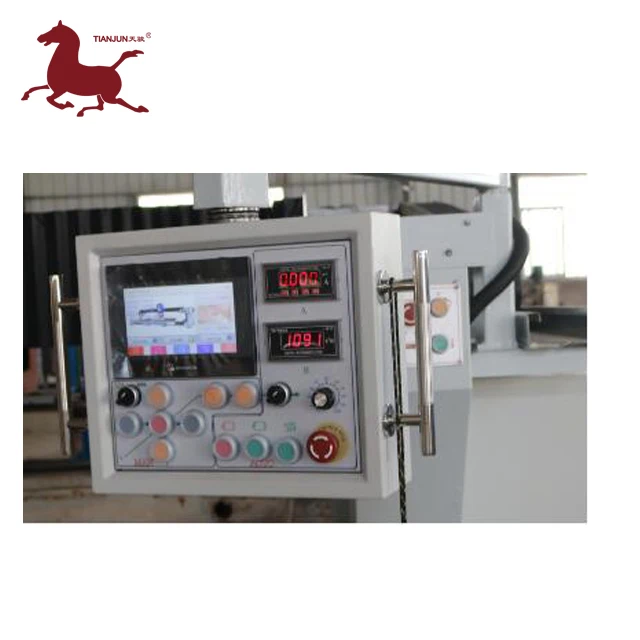

5. Operation by touch screen, Different menu languages are available.

6. Laser fully install

7. On request, a full 360 degree rotating table is available



 Technical Data-TJB-500 New Arrival Multi-Function Marble Cutting Machine

Model	Unite	TJB-500
Blade Diameter	MM	350~500(Blade inner hole diameter:50mm)
Dimensions Of Working Platform	MM	3200*2000
Main Motor Power	KW	18.5
Dimensions(L*W*H)	MM	5800*2700*2300
Gross Weight	KG	5500
Tilting angle of table	°	0-85°
Rotating angle of worktable	°	0°,45°,90°,180°,270°,360°
Manual /Auto Tilting angle of Blade	°	45°



 Detailed Images



accessories:

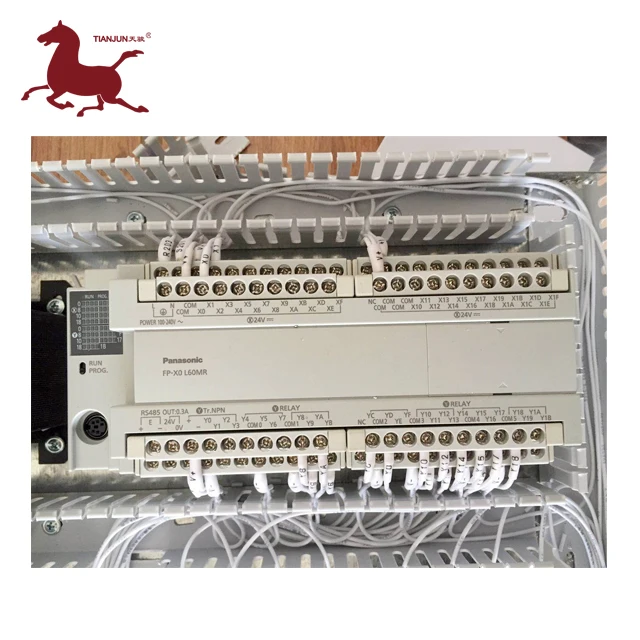

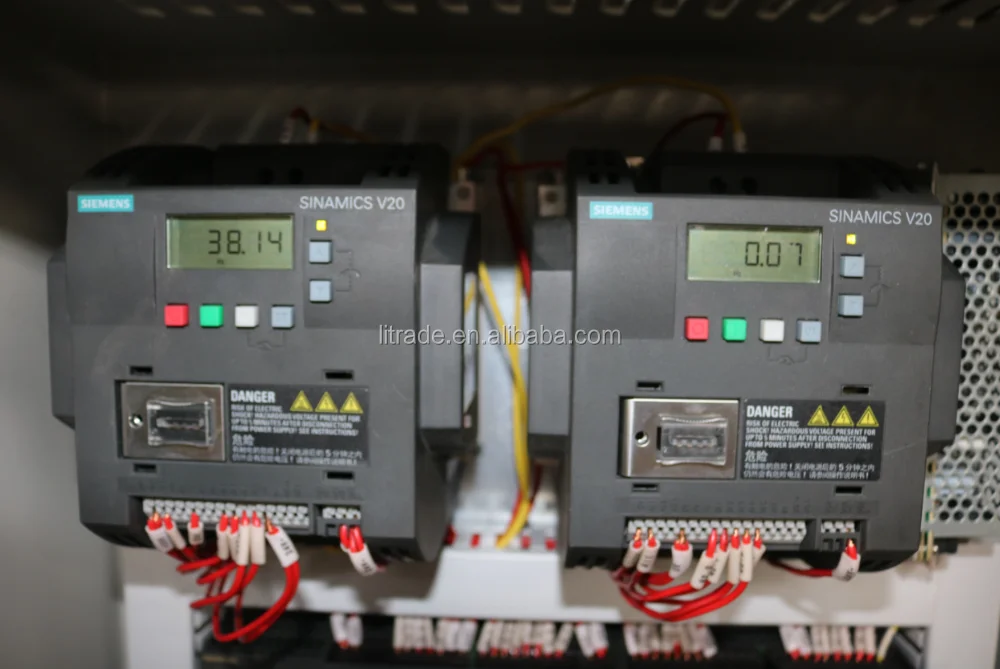

PLC, Electric Control system and Converter adopt the advanced Siemens, Schneider accessories.

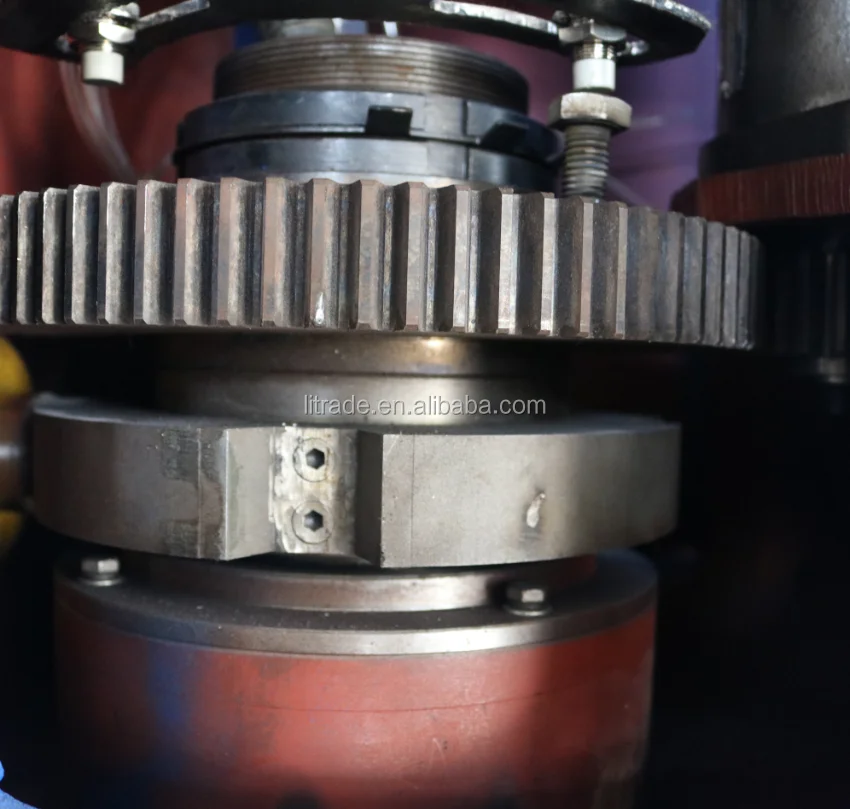

Precise positioning block:

Precise positioning block using 40R steel which has a hardness around 60° ensures a long-term life of the machine. The normal cutting machine uses normal steel which has a hardness around only 17°.

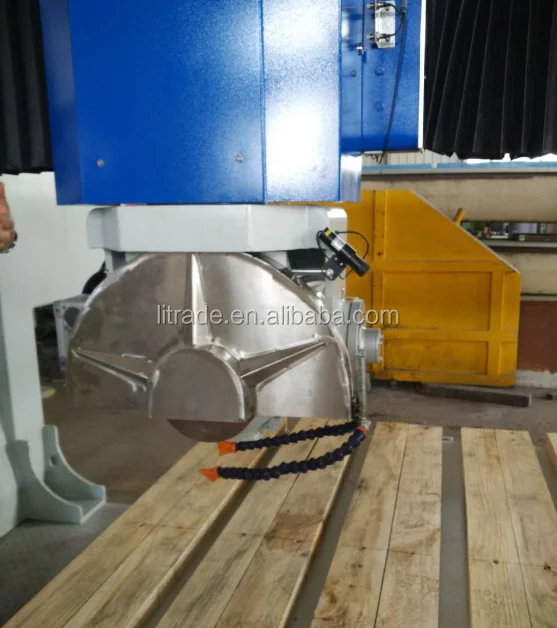

Cutting head:

Cutting head can automatically rotate to 90°,tilt to 45°. Flexible rotation and simple operation highly improve the efficiency.

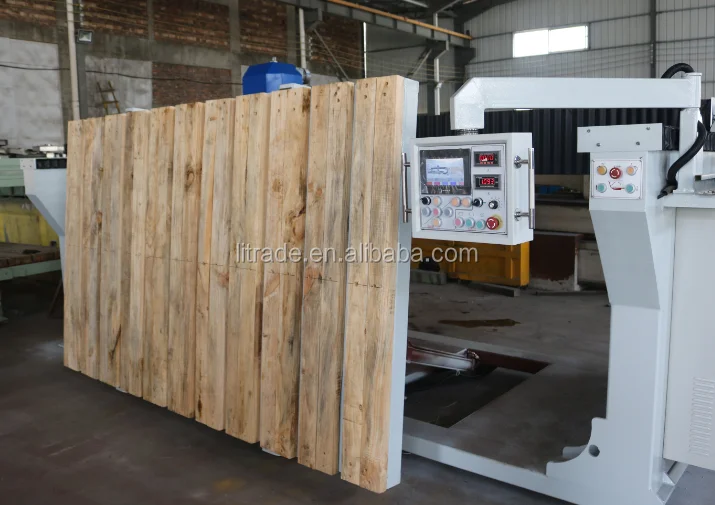

Worktable:

Worktable automatically rotates 45°,90°,180°,270°,360° , tilts 0-85 °

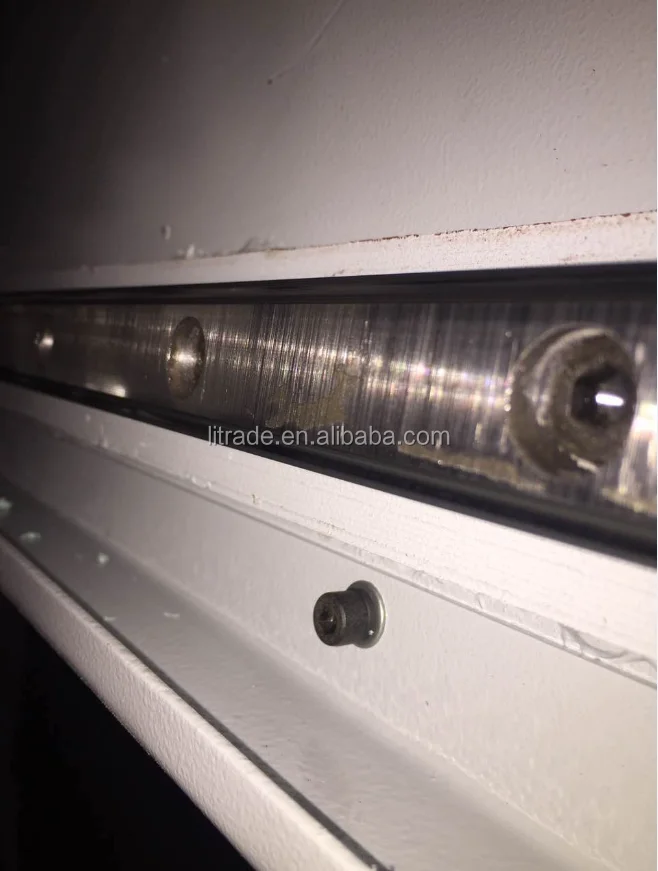

Linear guide rail system applies not only in left and right movement of the girder but also in lifting up and down section, thus reduces the error and improves cutting accuracy.

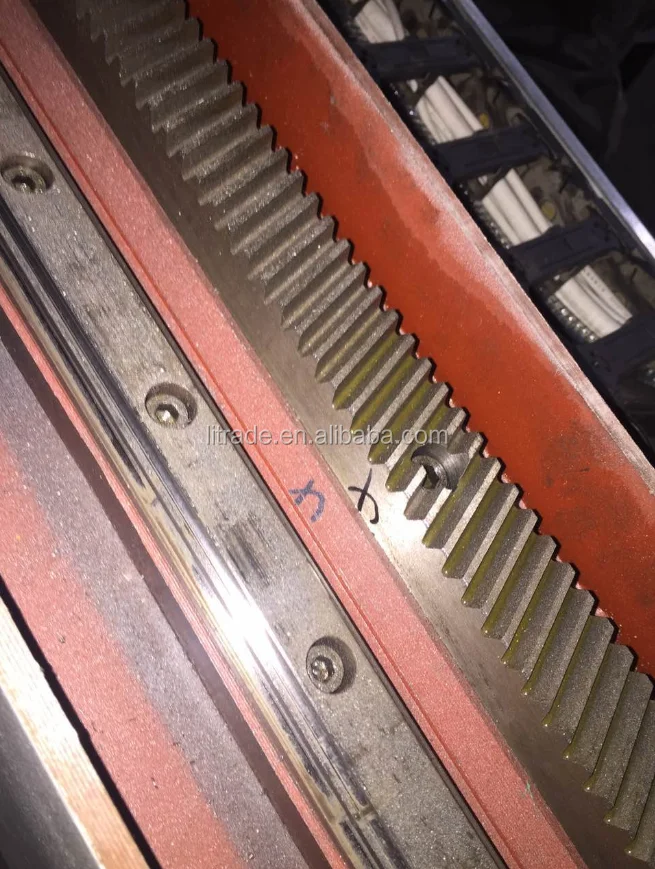

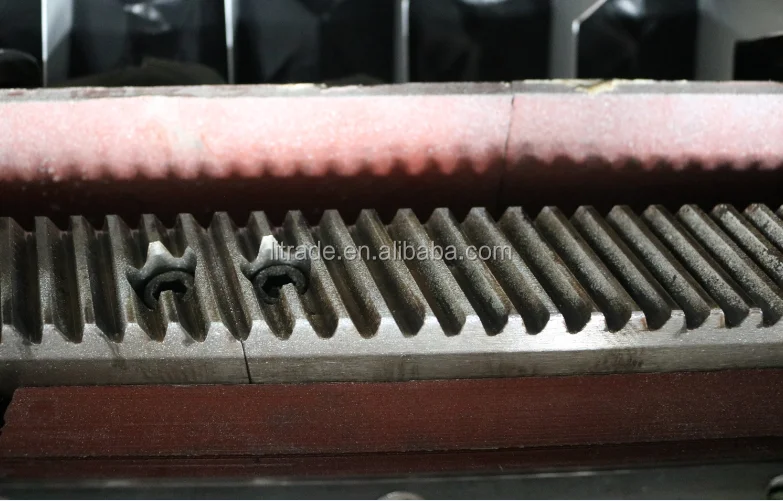

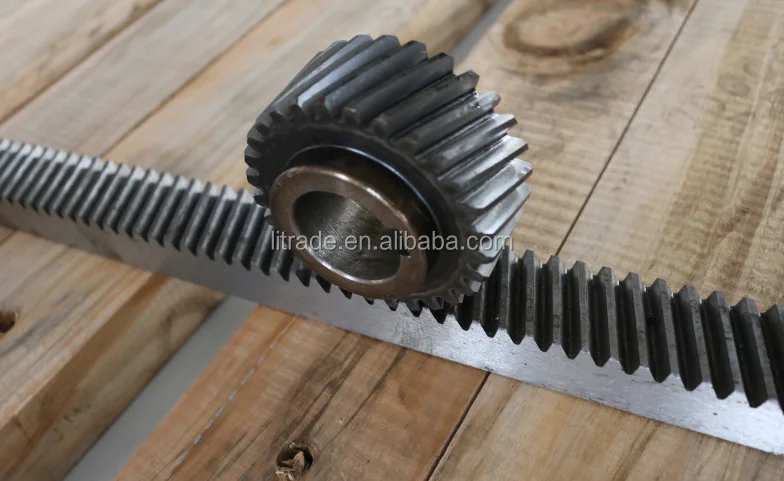

Helical tooth drive reduces abrasion and noise so as to prolong the life of the machine.
