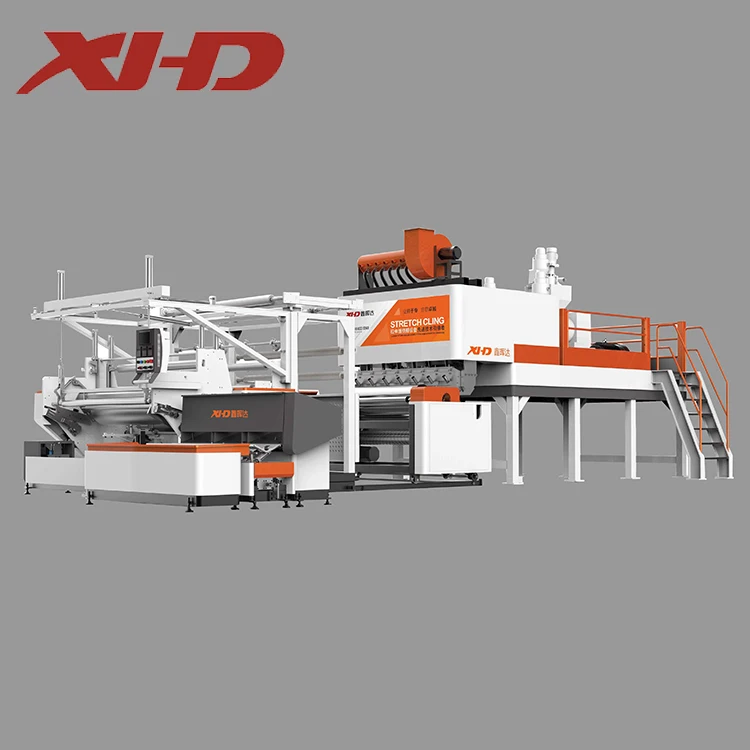

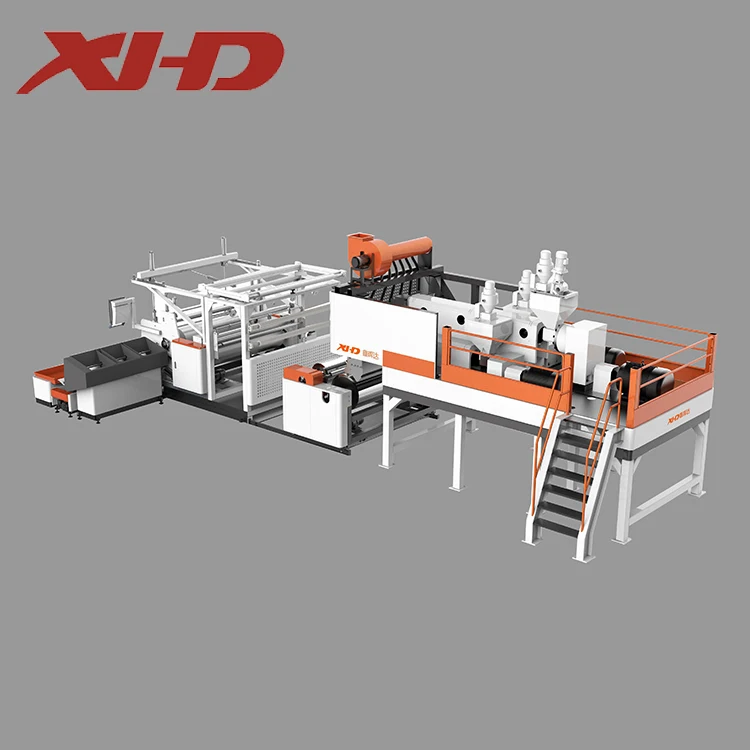

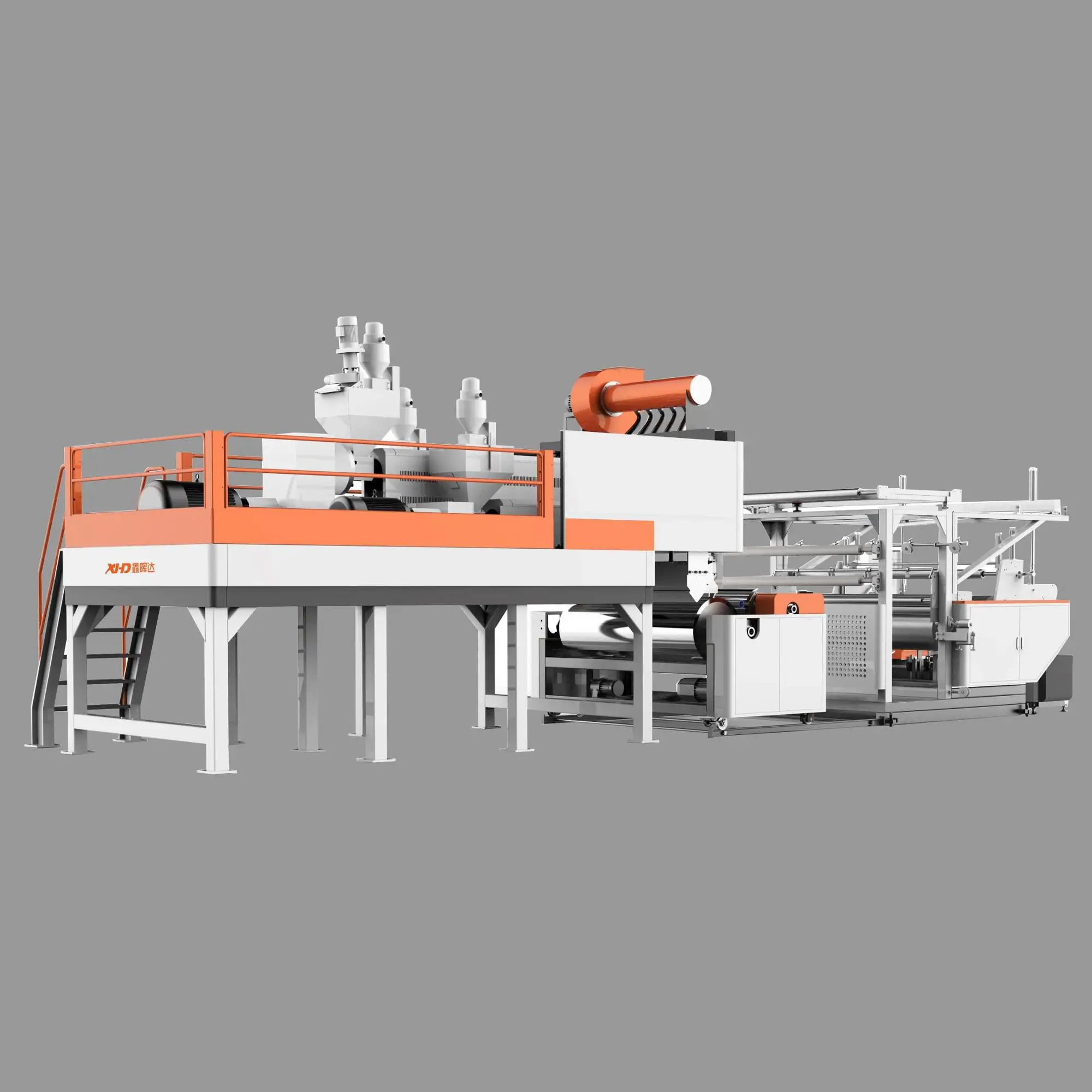

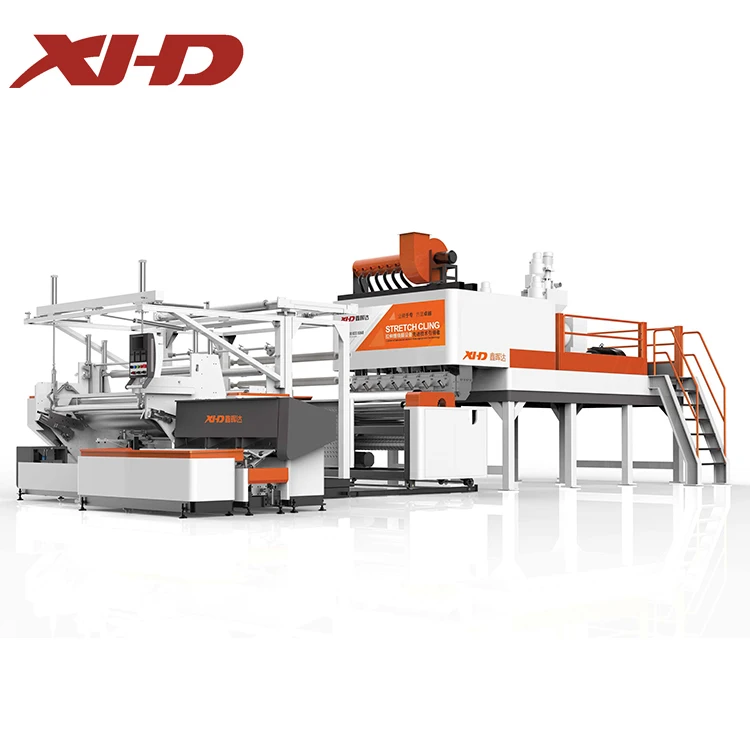

3 layer co extrusion high speed stretch film making machine
- Category: Plastic Extruders >>>
- Supplier: GUANGDONG XINHUIDA MACHINERY TECHNOLOGY GROUP CO. LTD.
Share on (60769760327):
Product Overview
Description

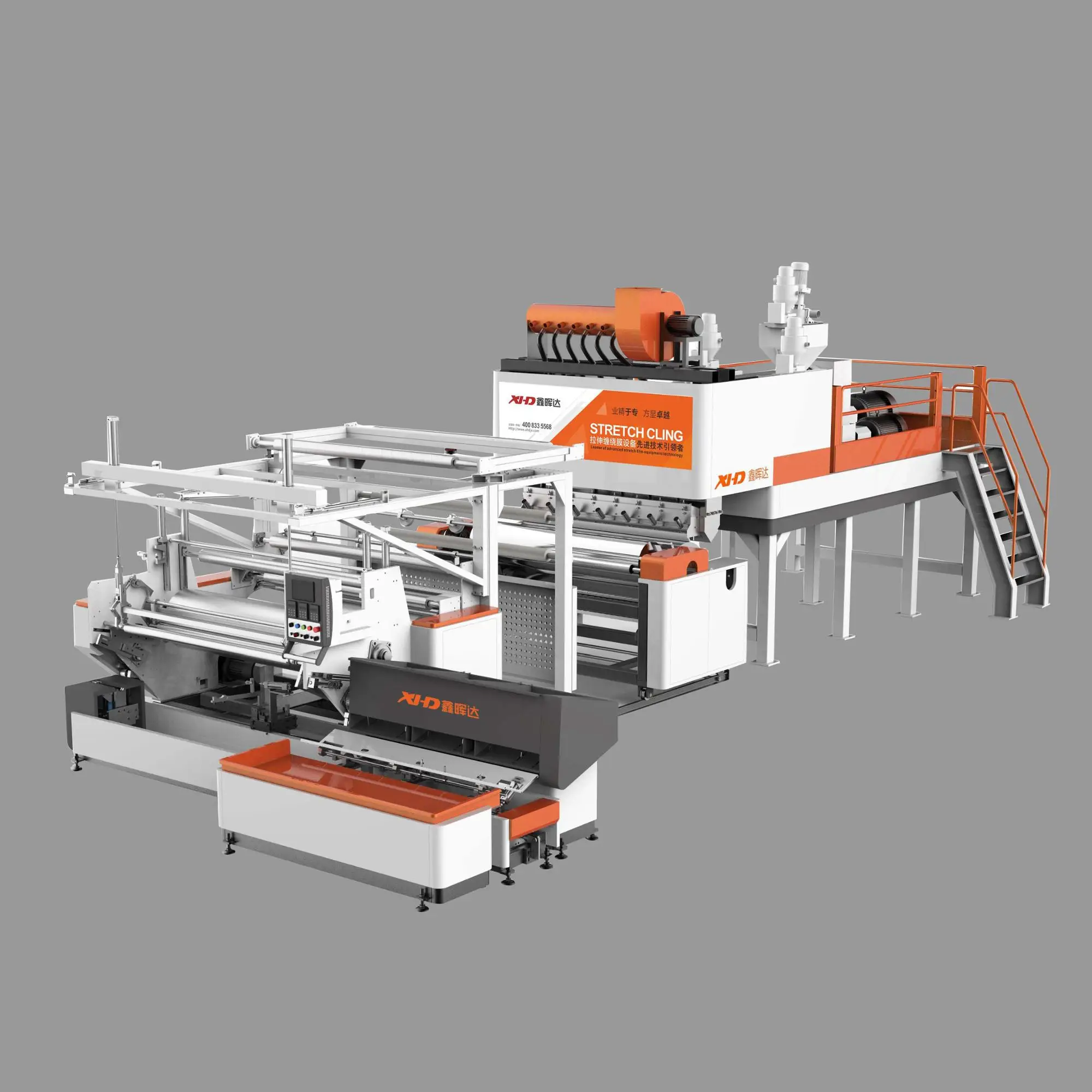

XHD-L65/90/65*1850mm 3 layers 5 layers co-extrusion high speed stretch film machinery
Product Description

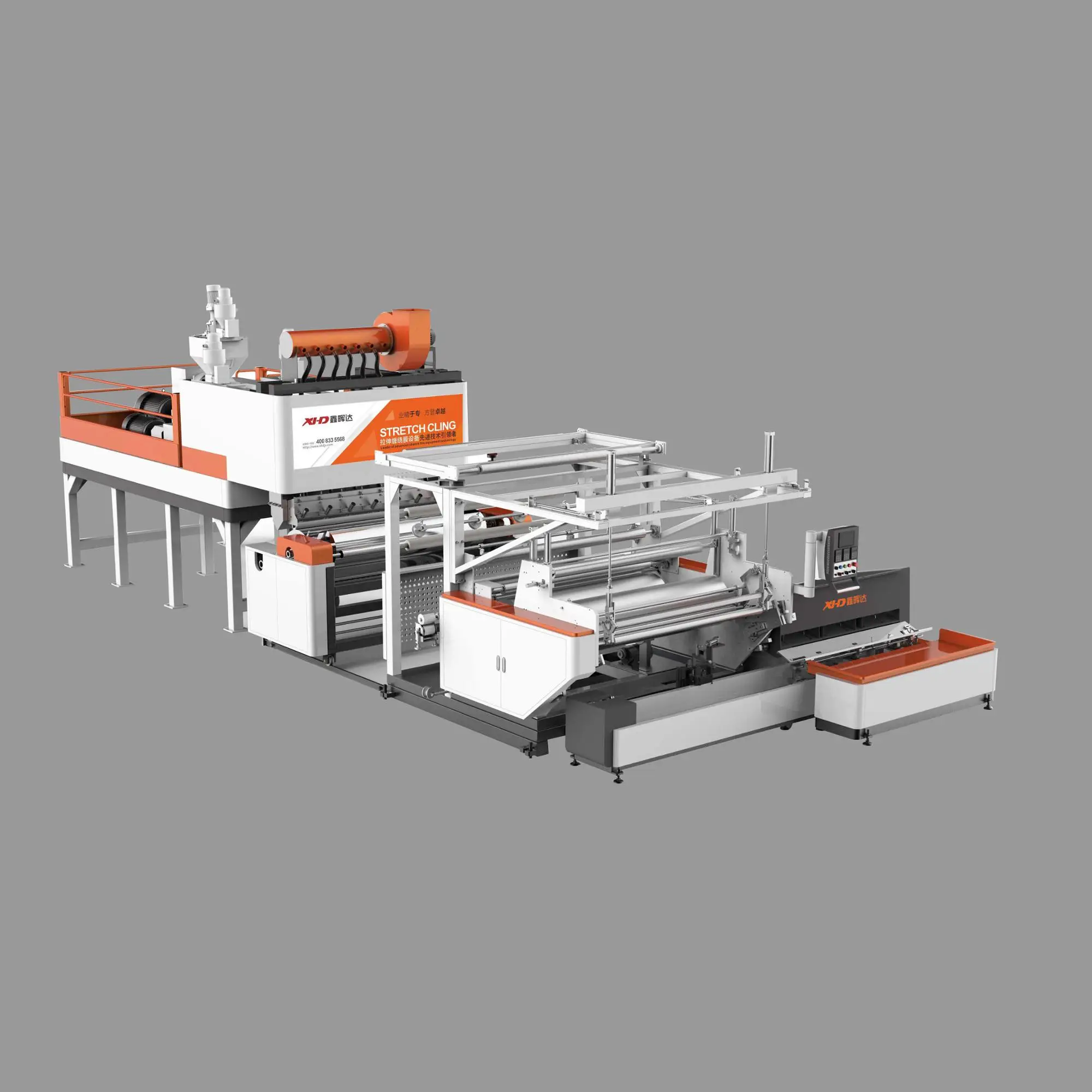

HD pictures
Parameters of 3 layer co-extrusion durable high speed stretch film machine
Item | Specs | Remarks |
Voltage/Frequency/Phase | Customized | / |
Total Installation Power | 150 KW | For the machine only. |
Main Raw Material | LLDPE | / |
Thickness of Film | 12-50 μm | tolerance≤±5% |
Width of the Useful Film | 200-1000 mm/2×500 mm | / |
Film Layer Structure | ABC or ABCBA | / |
Designed Linear Speed | 150 M/min | / |
Output | 150-300 Kg/h | / |
Dimensions (L×W×H) | 9×3.5×3.5 M | for ref. only |
Gross Weight | 8000 Kg | for ref. only |

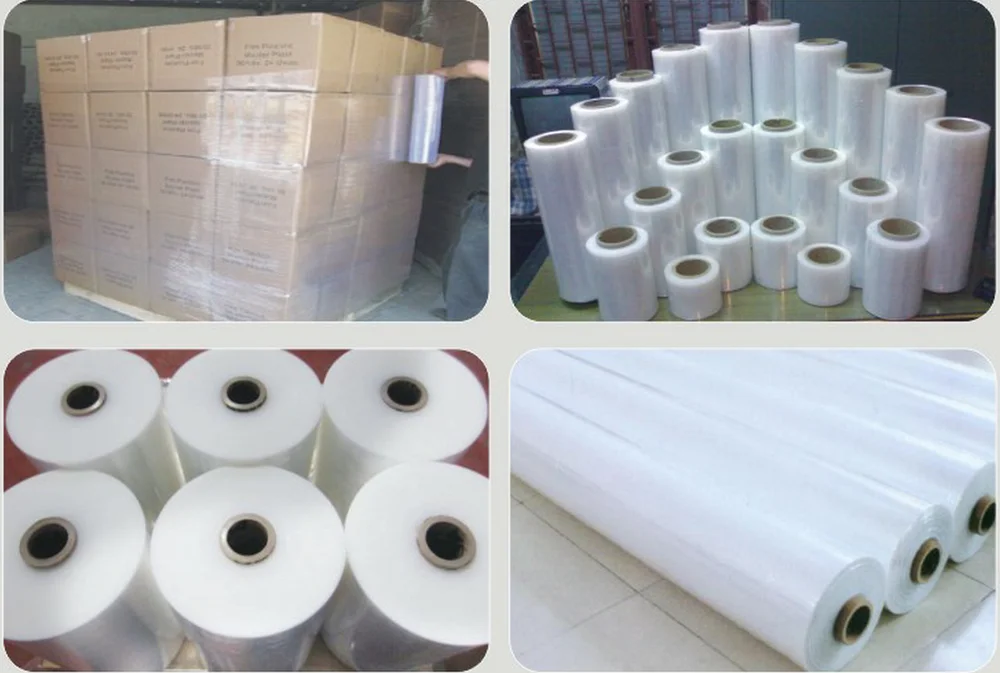

Films produced by 3 layer co-extrusion durable high speed stretch film machine
It is for all kinds of food package. Fruit, Dishes, Cooked Food and etc. It enjoys the following advantages:
1) Food Grade Cling Film
2) Great for edible items
3) Safe and non toxic
4) High strength and durability
5) Many size available
Features of 3 layer co-extrusion durable high speed stretch film machine
1. The stretch film machine alloy screw adopts special mixing function and high plasticizing design which
combine import static mixer to ensure plasticization is good, color is uniform and increase extrusion capacity
greatly.
2. Stretch film machine T-die material employs imported top special mould steel. By high precise process and
treatment to ensure the long-term use of the T-die and no deformation.. Meanwhile insures material
extrusion is more smooth and stable.
3. Stretch film machine inside cool roller adopts two-way circulation design and built-in spiral flow way to ensure
roller surface temperature is equal.
4. Stretch film machine winding station can move forth and back. Adopts advanced torque motor with four-axis
automatic tension control. Both the speed and film width arefreely adjustable.
Packaging & Shipping
Packing information for customer's reference
>1. Packed with stretch film;
>2. The machine is fastened to the walls of the container;
>3. Dimensions: 9X3.2X3.0 M;
>4. Gross weight: 12 T;
>5. Containers needed: 1X40 HQ+1X20 GP.
Pictures of loading
Our Services
>1. 24 hours after-sale hot line 400-833-5568.
>2. High quality stretch film recipe free sharing.
>3. 1 year warranty for all system and free technology support.
>4. Engineer dispatched to install the machine with travelling cost borne by the buyer.

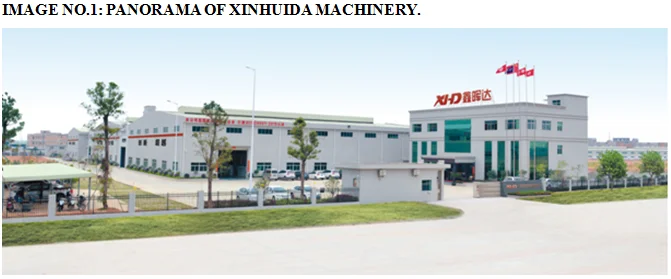

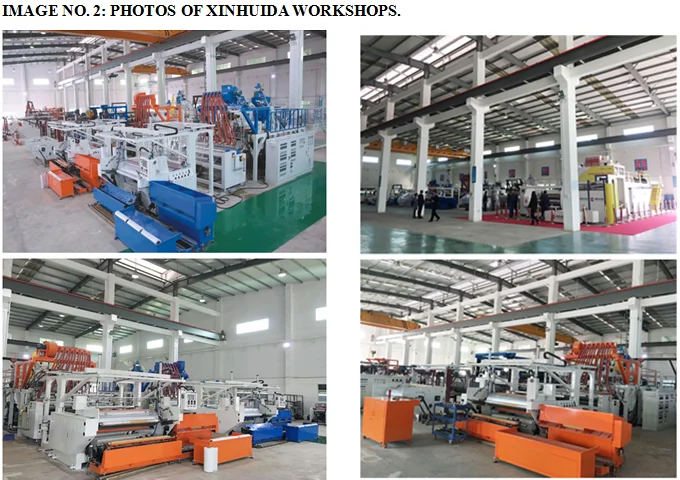

Company Information
Established in 2000. With years’ experience in stretch film making machine & cling film making machine manufacturing.
Avenue in 2014: around 60 million RMB (US$ 10 million)
Domestic market share: 40%
Exported machines to 50+ oversea cities
No. of technicians: 30+
No. of sales team: 10
No. of after-sale service team: 10
FAQ
Q: Can we make both manual grade and machine grade stretch film?
A: Yes.
Q: Can we make 5 layer stretch film by this machine?
A: Yes. You can make both 3 layer and 5 layer stretch film.
Q: Is this machine full automatic?
A: Yes. This machine is fully automatic one.
Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add, the stretch film will not as stretchable and transparency as the raw material one. One of our customer in Russia used 100% recycled material. Of course, the design of the screw will be a little different.
Q: What's the spare parts?
A: We have a lot of spare parts free to you. Pls email me for the list.
Q: Is there any other material that we use add to make stretch film?
A: It depends on your customers requiryment. You can add MLLDPE (metallocene) to make the film more stretchable, especially used in pallet package. Or the glue to make the film more sticky.
Q: Can you help us to install the machine?
A: Yes. We can arrange the technician to install the machine after it arrives in your factory.
