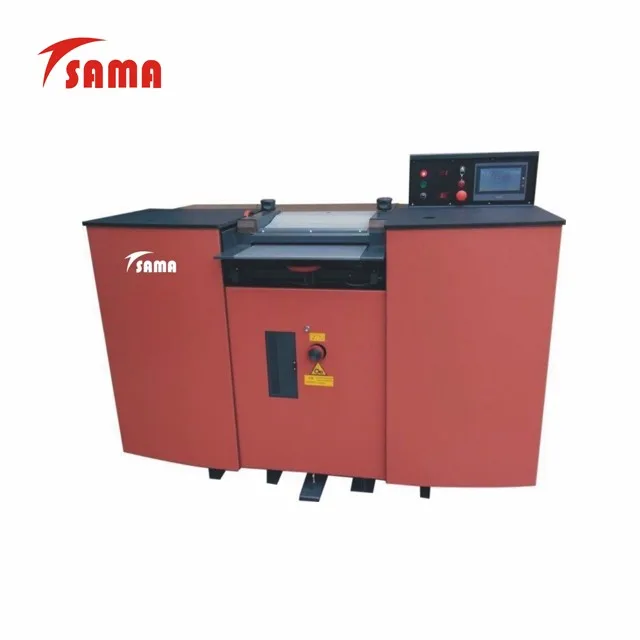

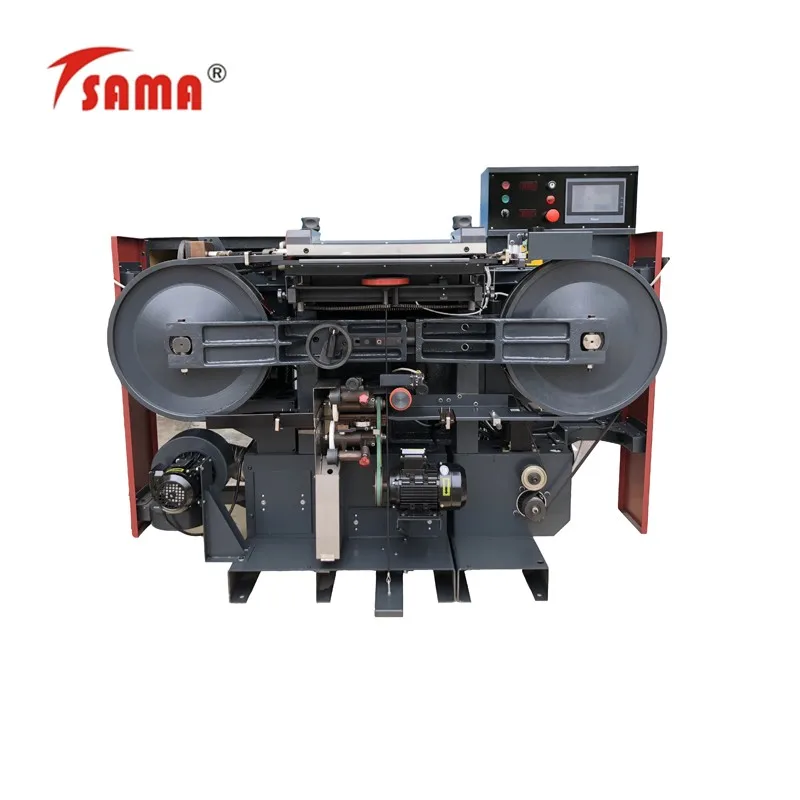

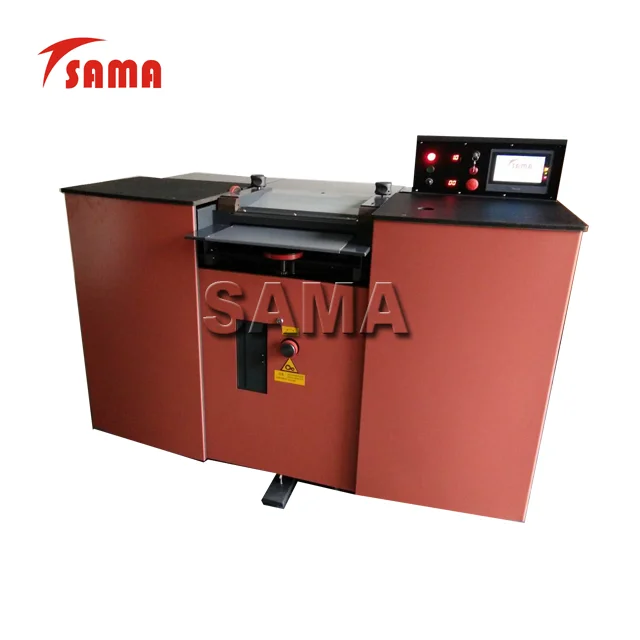

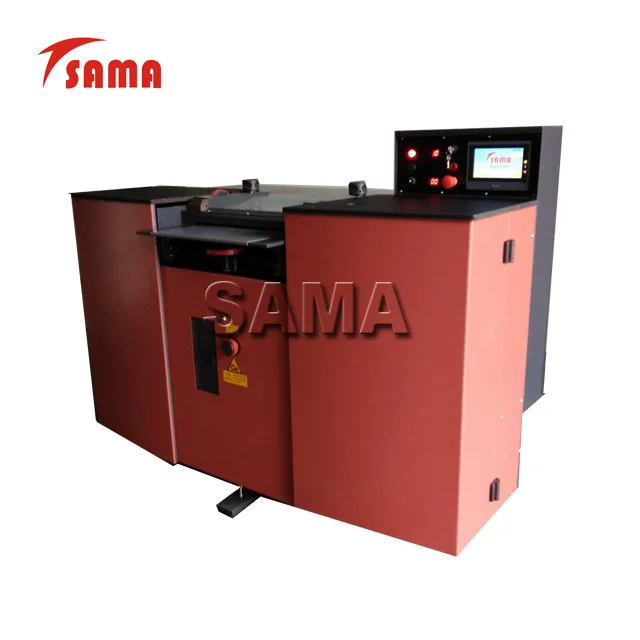

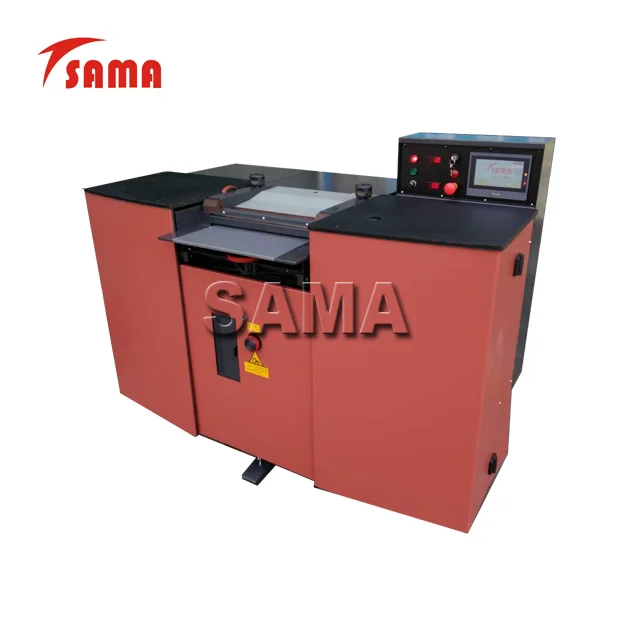

Equipment to Skive Tip Edges and Back of The Belts Leather Splitting Machine
- Category: Leather Production Machinery >>>
- Supplier: Dongguan Sama Machinery Co. Ltd.
Share on (60769813709):
Product Overview
Description
Product Description
Product Application
Machines which equalize the thickness of the leather, for the shoe upper parts, removing material from the flesh side. The machines can also carry out skiving edge through the use of geometry templates. Generally the range working width is including from 400 to 600 mm.
| Technical partameter | |
| Model | S520RC+ |
| Feeding speed | Stepless speed change |
| Fault display | Touch screen |
| Indicator & Information | Touch screen |
| Working pressure | Mechanics |
| Installation power | 3.6kw |
| Working Width | 520mm |
| Max.splitting thickness | 8mm |
| Min.splitting thickness | 0.5mm with top feed roll |
| 0.1mm with top bar | |
| Knife dimensions | 3950×60×0.8mm |
| Machine size(L×W×H) | 1800×1100×1290mm |
| Package size(L×W×H) | 1850×1150×1440mm |
| N.W. | 800KG |
| G.W. | 860KG |

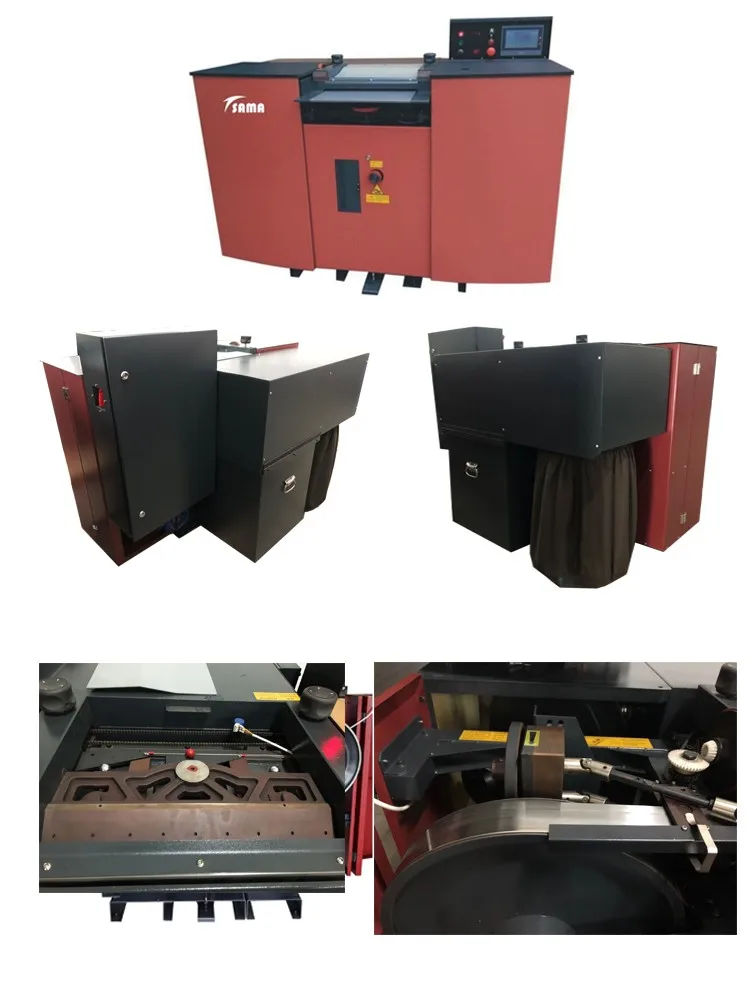

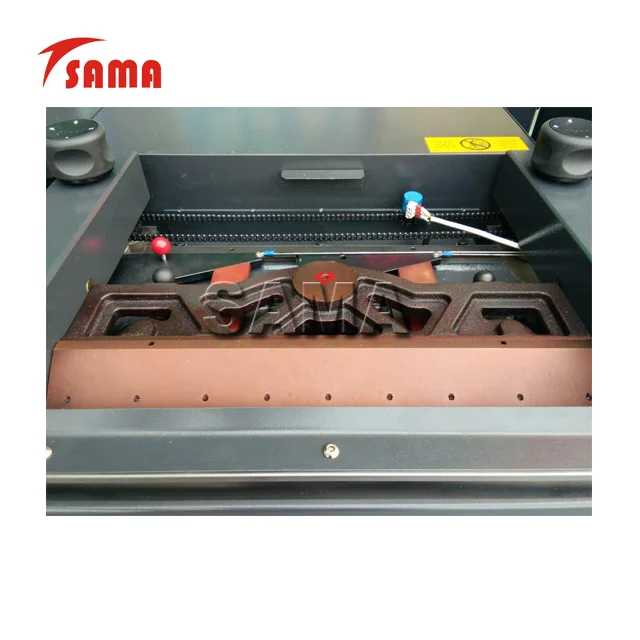

Detailed Images
Machine Parts

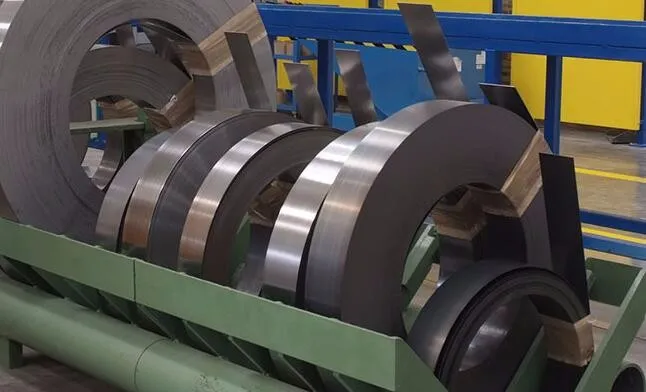

Name: Splitting Band Knives
Brand: LAMEBO
Original: Italy
The knives are ground on both surfaces to guarantee a uniform thickness, machined on the edges to guarantee maximum straightness when used and pre-beveled to reduce the time taken to start operation once they are mounted on the splitting machine.
Main Features

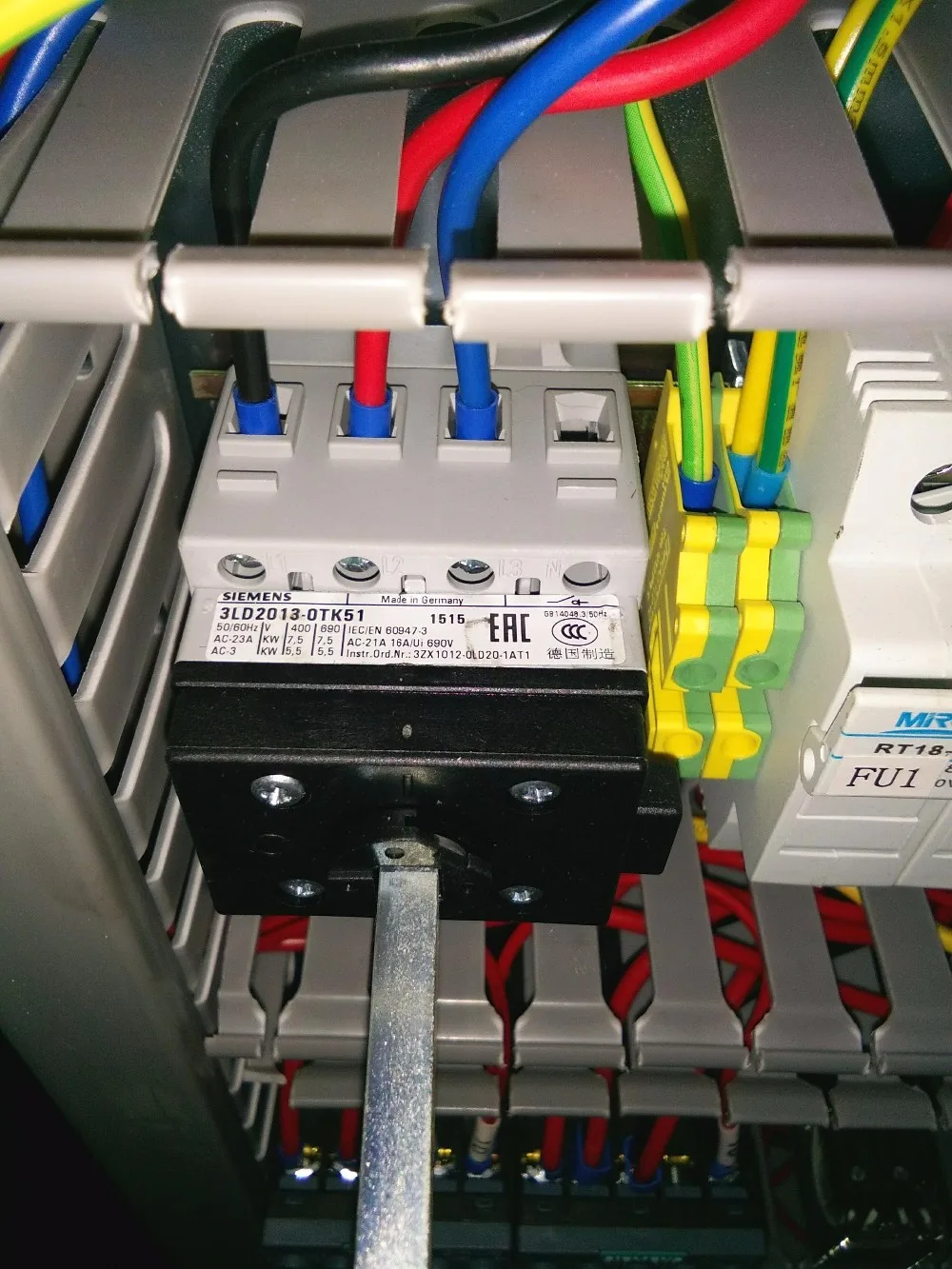

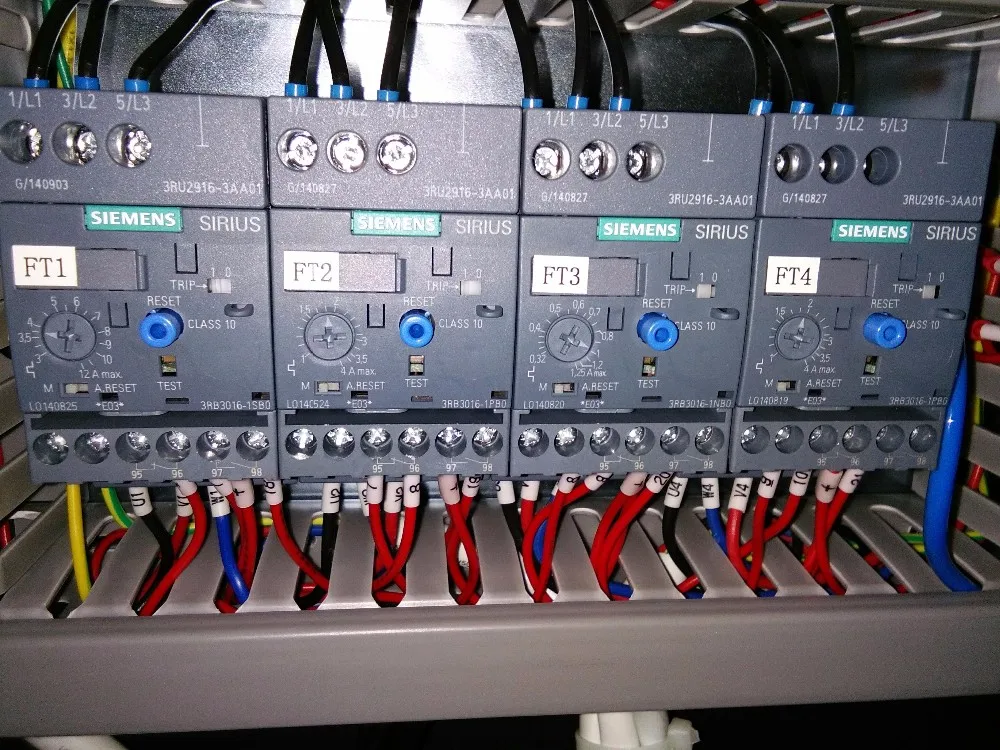

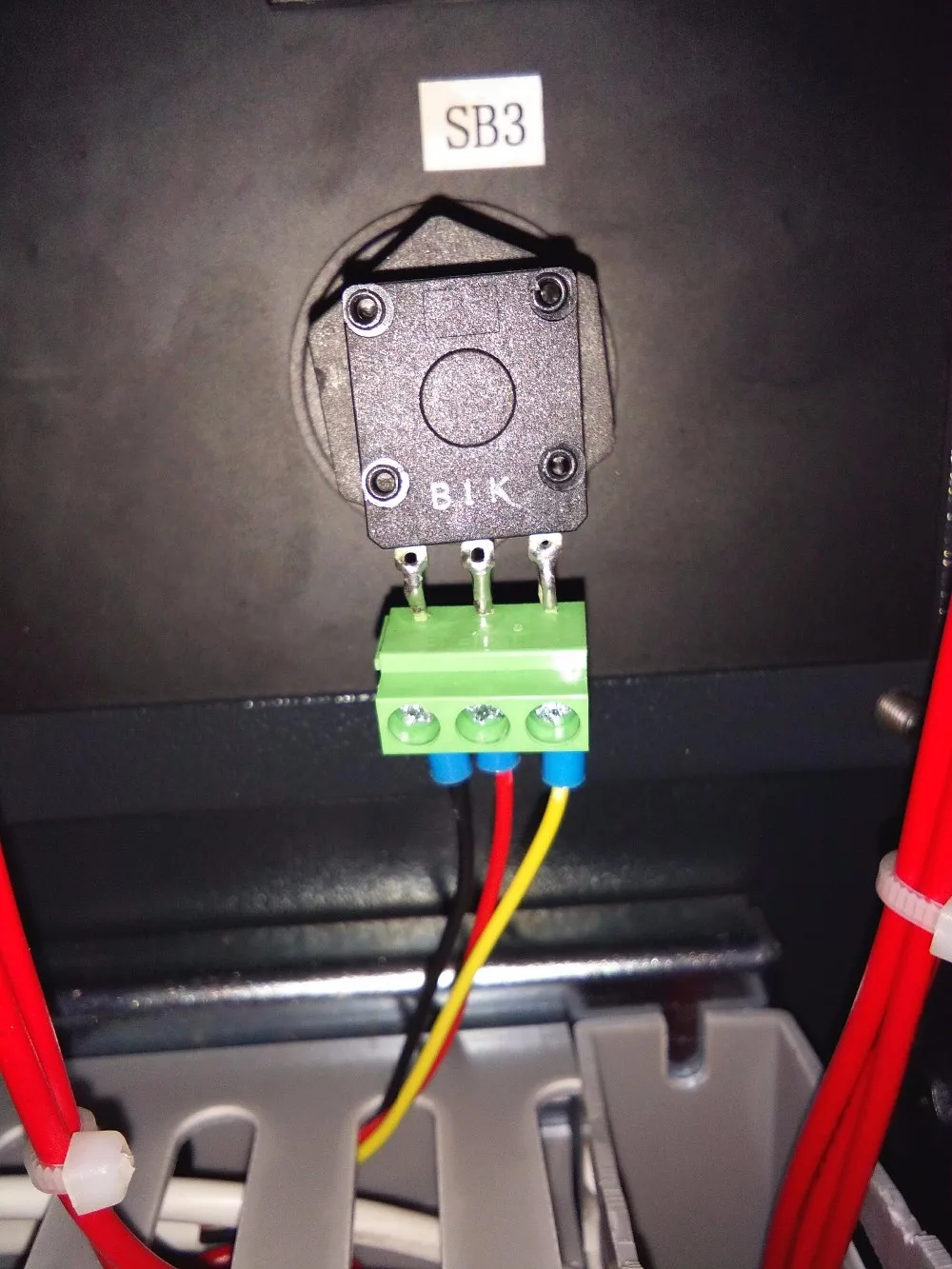

Name: Parts
Brand: SAMA
Original: China
Reliability and Solidity of single components and complete machines in order to provide our customers with top performances stable over decades
Packing & Delivery
| Item | Name of machine or parts | Specification | Amount |
| 1 | S520RC+ Splitting Machine | set | 1 |
| 2 | The machine tools | set | 1 |
| 3 | Band knife lubes | pc | 1 |
| 4 | Thickness gauge | pc | 1 |
| 5 | Granding knife sharpening belt | pc | 1 |
| 6 | Wool Felt | pc | 1 |
| 7 | Fuse wire | pc | 3 |
| 8 | Instruction Manual | pc | 1 |
| Packaging | |
| Size | 1850(L) * 1150 (W) * 1440 (D)mm |
| Weight | 860kg |
| Packaging Details | The normal package is plywood box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

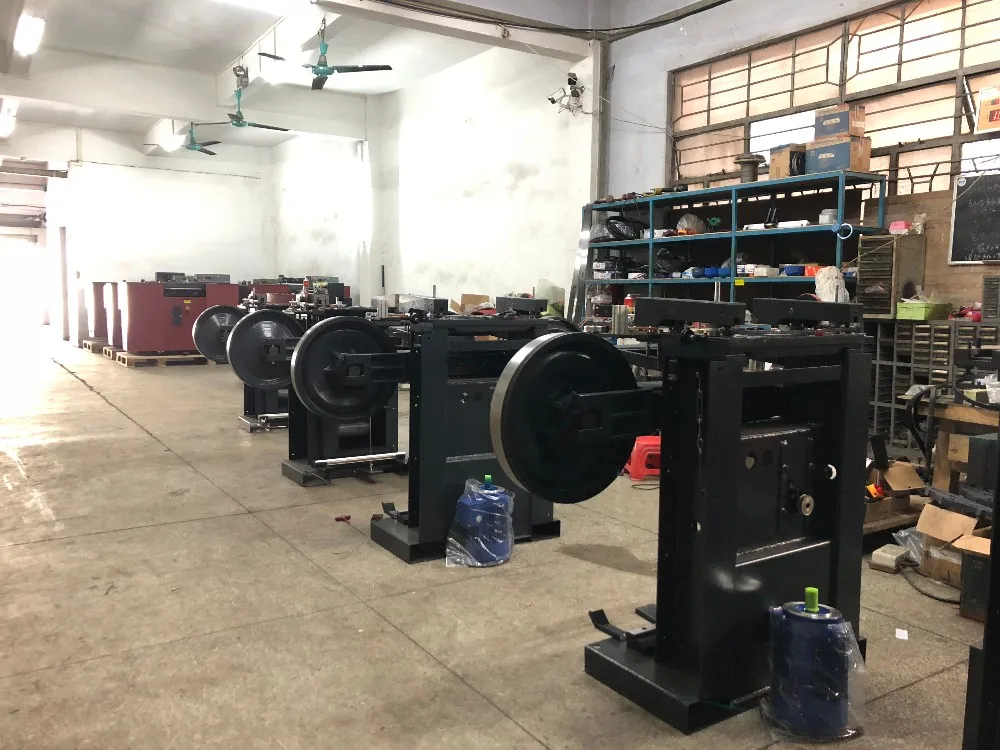

Our Company
DONGGUAN SHENGMA MACHINER
Operating in the splitting machine sector since 2005, today SAMA is the China market leader. Our brand "SAMA" is worldwide recognized being synonymous with highest quality, technological innovation, guaranteed performances and customer care.
