Gold Refining Equipment Mini Gold Concentrator Extraction Machine For Sale
- Category: Mineral Separator >>>
- Supplier: The Nile Machinery Co. Ltd.
Share on (60769868111):
Product Overview
Description
Product Description

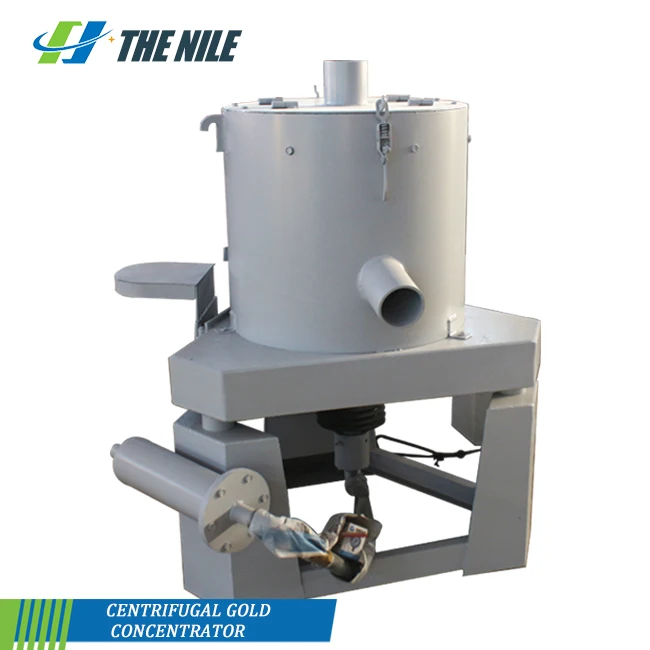

Centrifugal Gold Concentrator
Centrifugal gold concentrator is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailings.
Features
High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.
Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)
Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)
How to Work

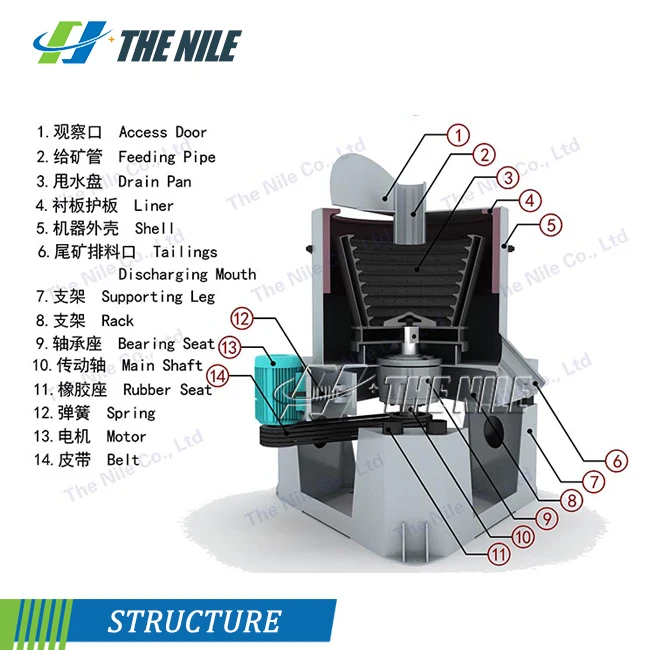

Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus. The machines utilise the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density.The key components of the unit are a cone shaped "concentrate" bowl, rotated at high speed by an electric motor and a pressurized water jacket encompassing the bowl.Feed material, typically from a ball mill discharge or cyclone underflow bleed, is fed as a slurry toward the centre of the bowl from above.The feed slurry contacts the base plate of the vessel and due to its rotation, is thrust outward. The outer extremities of the concentrate bowl house a series of ribs and between each pair of ribs is a groove.
During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them.Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them.Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.

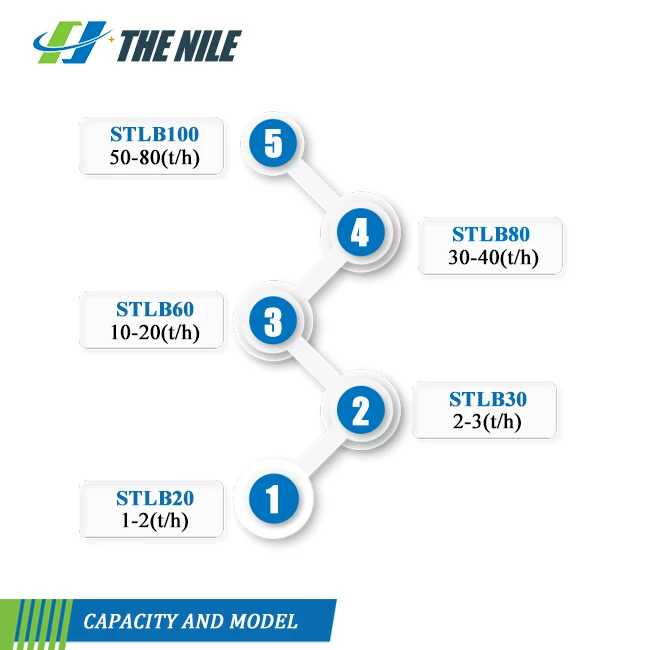

Technical Data
Model | Capacity | Power | Feed size | Slurry density | Recoil water | Concentrates capacity | Water pressure | Weight |
(t/h) | (kW) | (mm) | (%) | (m/h) | (kg/lot) | (mpa) | (t) | |
STL-20 | 0.25-0.3 | 1.5 | ＜6 | ＜40 | 5-10 | 2-3 | 0.05 | 0.25 |
STL-30 | 2-3 | 2.2 | ＜6 | ＜40 | 10-15 | 10-20 | 0.1-0.2 | 0.4 |
STL-40 | 5-8 | 3 | ＜6 | ＜40 | 10-25 | 20-30 | 0.1-0.15 | 0.6 |
STL-60 | 10-15 | 5.5 | ＜6 | ＜40 | 40-60 | 40-60 | 0.1-0.2 | 1.4 |
STL-80 | 35-40 | 11 | ＜6 | ＜40 | 60-70 | 60-80 | 0.2-0.3 | 2.3 |
STL-100 | 55-70 | 22 | ＜6 | ＜40 | 70-80 | 70-80 | 0.2-0.3 | 2.9 |
Product Details
Customer Site
Packing&Shipping
Company Profile
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.
Our Advantages
Overseas Service
1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .
2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .
Factory and Warehouse in Kenya
Welcome to visit our factory in China and Kenya .
FAQ
Q1: What is input size for your raw material?
A1:For Centrifugal Gold Concentrator, input size is 0-5mm.
A1:For Centrifugal Gold Concentrator, input size is 0-5mm.
Q2: What is the recovery rate?
A2:Very effective for the process of ultra fine gold ore, The recovery rate of 37-39 micron is over 95%.
Q3: What is the smallest particle that can be recovery?
A3:The smallest particle that can be recovery is 300 mesh.0.04-0.4mm recovery is the highest.
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q5: How about the wear parts supply?
A5: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q6: What about after-sale service?
A6:#12 months warranty for all kinds of products.
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q5: How about the wear parts supply?
A5: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q6: What about after-sale service?
A6:#12 months warranty for all kinds of products.
#Local on-site after-sale service available -- Our overseas branch ,distributor and overseas engineer will do it.
Q7: How to get the free solution and quotation ?
A7: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
Q7: How to get the free solution and quotation ?
A7: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
