45mm Standard AC Electric Shutter Tubular Motor
- Category: AC Motor >>>
- Supplier: Guangzhou Autorail Electric Co. Ltd.
Share on (60769956625):
Product Overview
Description

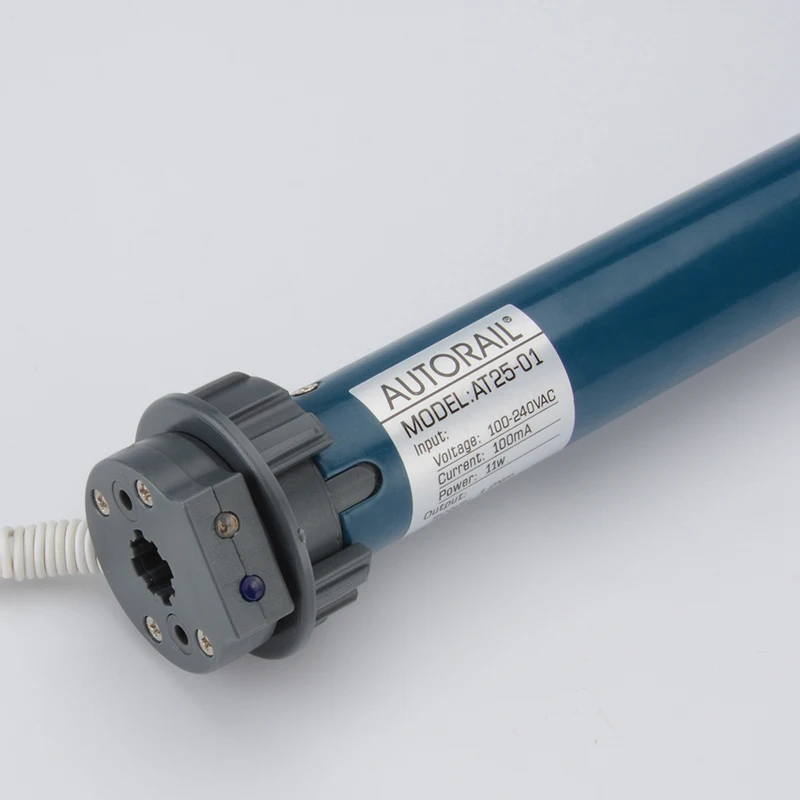

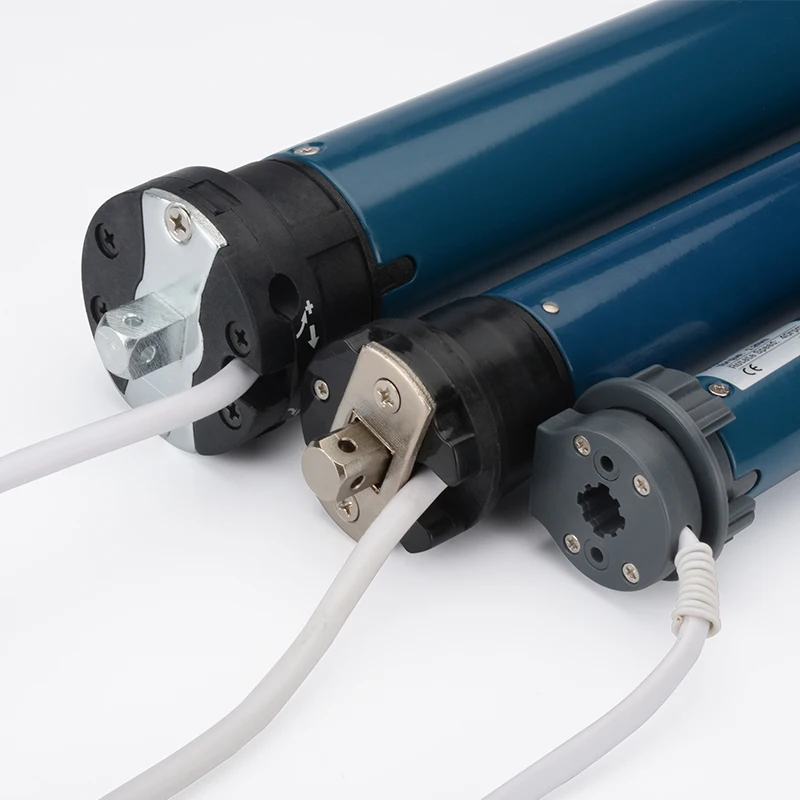

AC 50nm tubular motor 12rpm 45mm for awnings
-
50nm tubular motor
-
50nm tubular motor
-
50nm tubular motor
Product Description
Application
Motorized roller blinds, Zebra roller blinds, Rome blinds, Skylight, Shutters, Screen, etc.
Structural Features
1.Receiver built-in or without receiver;
2.Mechanical limit;
3.Large torque, low noise.
Structural Drawing
Performance Parameter
| Motor Type | Torque | Rated Speed | Rated Voltage | Rated Current | Running Time | Max Turns | Length(L) | Remark |
| AT45-20 | 20 n.m | 15 rpm | 220 VAC/50HZ | 0.64A | 4 min | 42 turns | 555mm | Without Receiver |
| AT45-20/26 | 20 n.m | 26 rpm | 220 VAC/50HZ | 0.86A | 4 min | 42 turns | 585mm | Without Receiver |
| AT45-30 | 30 n.m | 15 rpm | 220 VAC/50HZ | 0.83A | 4 min | 42 turns | 585mm | Without Receiver |
| AT45-40 | 40 n.m | 15 rpm | 220 VAC/50HZ | 0.86A | 4 min | 42 turns | 585mm | Without Receiver |
|
AT45R-20 |
20 n.m | 15 rpm | 220 VAC/50HZ | 0.64A | 4 min | 42 turns | 655mm | Receiver built-in |
| AT45R-20/26 | 20 n.m | 26rpm | 220 VAC/50HZ | 0.86A | 4 min | 42 turns | 685mm | Receiver built-in |
| AT45R-40 | 40 n.m | 15 rpm | 220 VAC/50HZ | 0.86A | 4 min | 42 turns | 685mm | Receiver built-in |

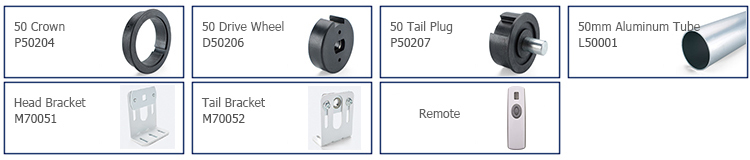

Accessories Lists
55mm,63mm,70mm,90mm aluminum tube and other accessories can be choose.
Sturcture Picture

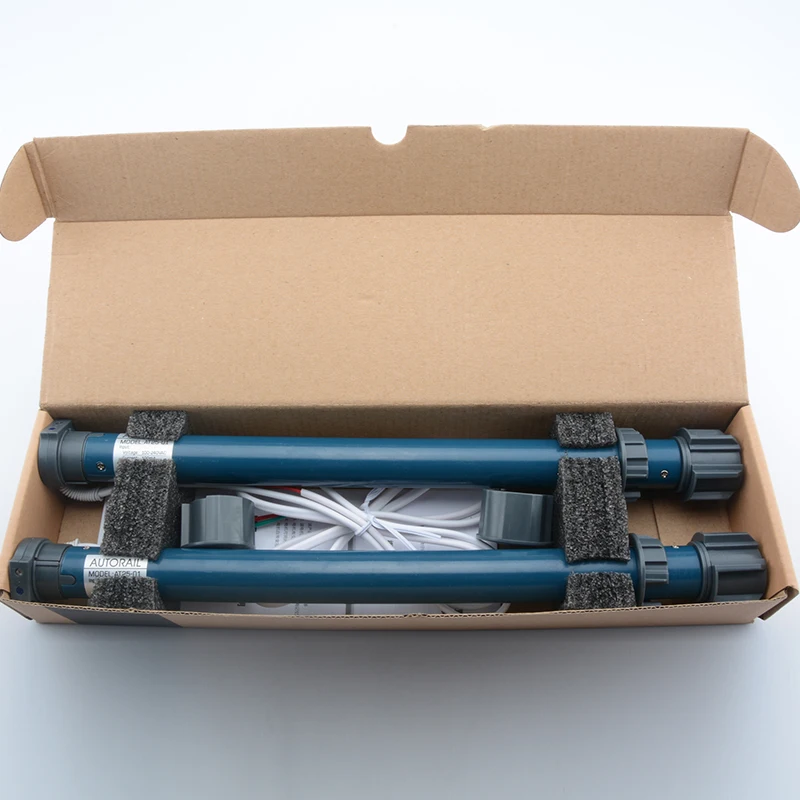

Packaging & Shipping
Our Services
Company Information
FAQ
1.Are you manufacturer or trading company?
We are manufacturer for 15 years experience.
2.What's your MOQ?
1 pieces.If you order more,there will be a discount.
3.How to choose a suitable motor?

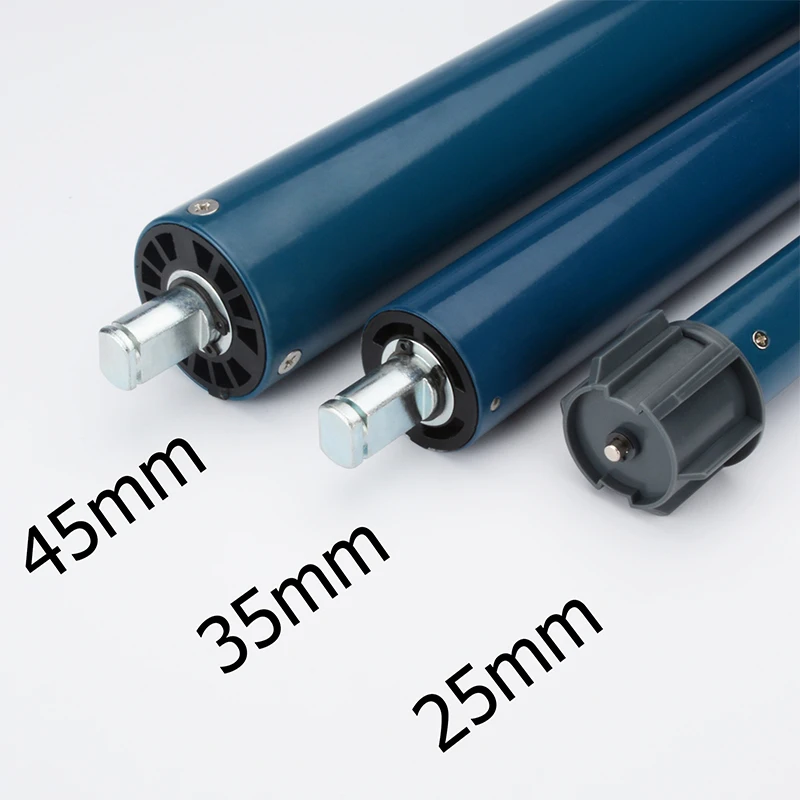

If use 25mm tubular motor,the blind max width 2 meter,max load 6 KG.
If use 35mm tubular motor,the blind max width 3 meter,max load 35 KG.
4.How to get a sample?
You should pay for the sample and freight charges.
5.How about the lead time?
The sample will be delivered within 3 working days. The goods will be delivered with 30 days according to
your order.
6.Do you have finished blinds?
Yes,we can sell finished blinds or only accessories.
7.Can I customize the blinds?
Yes,we can produce the blinds according to your size and we provide the printed fabric that you can print
your favorite pictures on the blinds.
