semi automatic type fabric rotary screen printing machine .

Product Overview

Description

Below is the favorable price of semi-automatic type  closed bearing rotary screen printing machine JX-02 Panasonic for nominal width 2200mm, maximum printing width 2050mm, 8print colors for full magnet scraper system, repeat 640mm, 4 chambers of dryer, as follows:

Item Name	Printing width (mm)	Repeat (mm)	Printing colors	Scraper system	Servo motor drive system	Unit Price/set (USD)
						FOB XIAMEN,CHINA,
Printing unit of JX-02	2200	2050	8	BLADE SCRAPER	Japan Panasonic

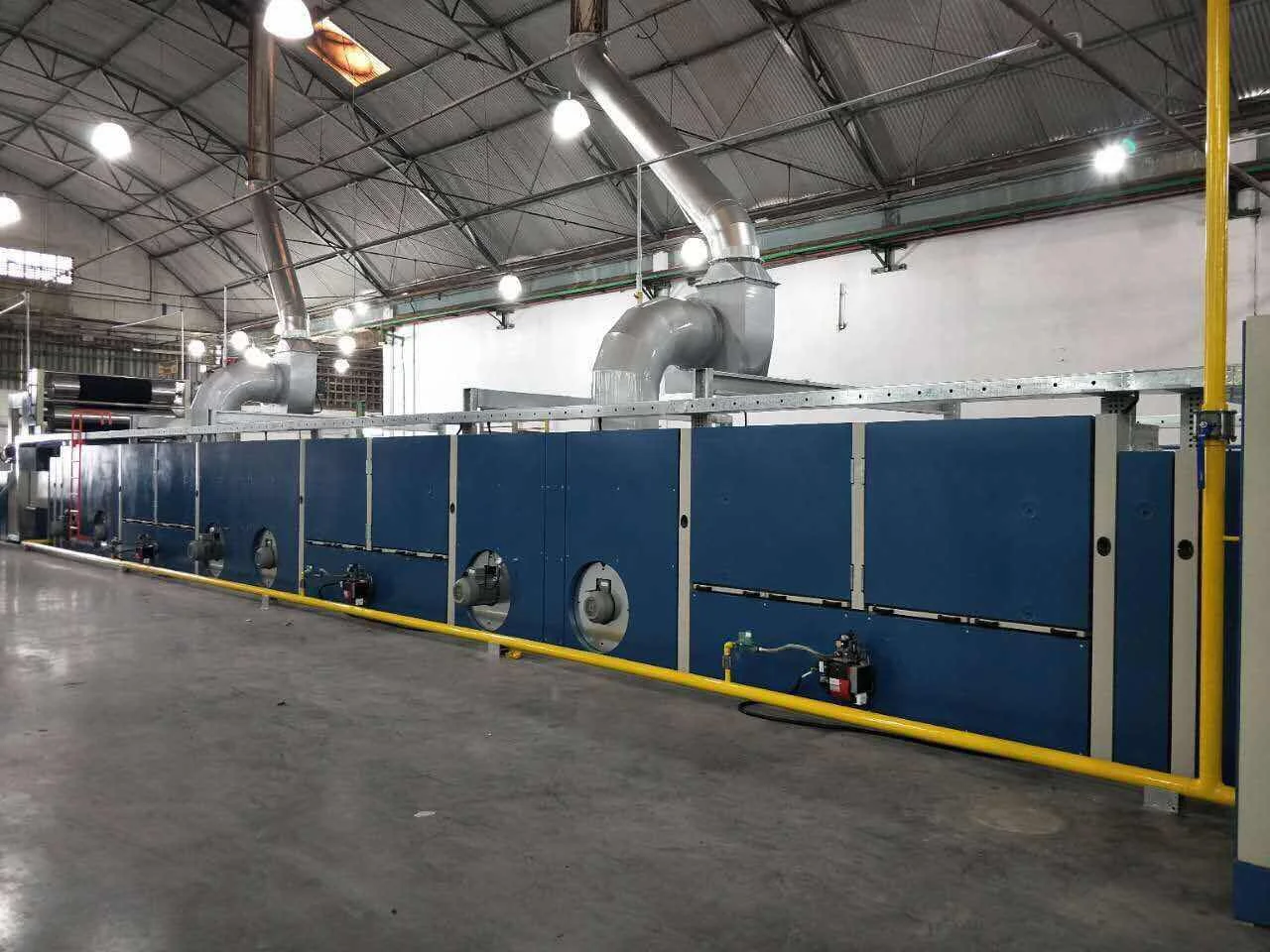

Dryer	1. For 4 chambers in total. 2. Tensionless type fabric feeding and passing design. 3. Heating source have thermal oil, steam or gas for option. 4. Each chamber cloth capacity loading is 9 meters, which length is 3 meters. 5. 3-layers cloth passing structure design, save space and highly improve drying efficiency. 6. Each chamber have independent temperature regulation control system, suitable for different fabric drying request.
TOTAL FOB Price is



1. For Installation and commissioning of machine:

The above price does not include machine installation and commissioning , the buyer have to pay for installation fees at USD100 a day each person. Besides, the buyer has to in charge of their round trip flight ticket, food and accommodation when they are in your factory. For the visa of our technician, we will in charge of it.

2. Quality Warranty: The seller will offer the warranty of the machine for Two year.

3. Technical data:



Printing Width	2200mm
Machine Type:	Left hand, the driving is on the left hand facing to the fabric exit
Fabric entrance:	Cloth
Plaiter:	Exit
Printing Speed:	6m/min-85m/min
Machine Speed:	4m/min-100m/min
Printing Accuracy:	0.1mm
Repeat:	640mm
Printing Color:	8colors
Heating Source:	Natural gas
Driving Mode:	Individual driving, auto registration.
Working Temperature of Dryer:	130°C
Quantity of Chambers:	4
Suitable Fabric:	Natural Fiber, Chemical Fiber, and other blended Woven Fabric



4. Main Features:

1) Feeding entry device with dust collection device, fabric tightening device, rolling feeding device, transmission roller, brush box and fabric edge-align device.

2) Printing unit adopt advanced independent motor drive system,with automatic fabric register system, squeegee system and paste supply system, washing system and control system, gluing system and thermal oil glue system, fabric and blanket heating system, line deflection correcting system of blanket.

3) Servo system adopt Japan Panasonic bus servo distributor control system,human-machine interface.

4) Each print head use Japan Panasonic servo motor independent drive system

5) The speed of screen and blanket is adjustable to meet any kind of fabric printing with best effect.

6) PLC with the function of speed and time indicator, error diagnosis and register parameter locking function, which realize human-machine interface control and easy for maintain work.

7) Screen base suit to different repeat and length of screen used in the same machine at the same time.

8) Adopt the digital registering system, which suit to different production with high production efficiency, and help you save the consumption for making fabric sample before bulk production up to 6%.

9) As the machine adopt digital and independent transmission system which get rid of the transmission chain, print head can be recycle used for repeat order, which will reduce your cost.

10) The gluing system adopt magnetic rod gluing system which can make the gluing more even and stable and avoid to appear bubble.

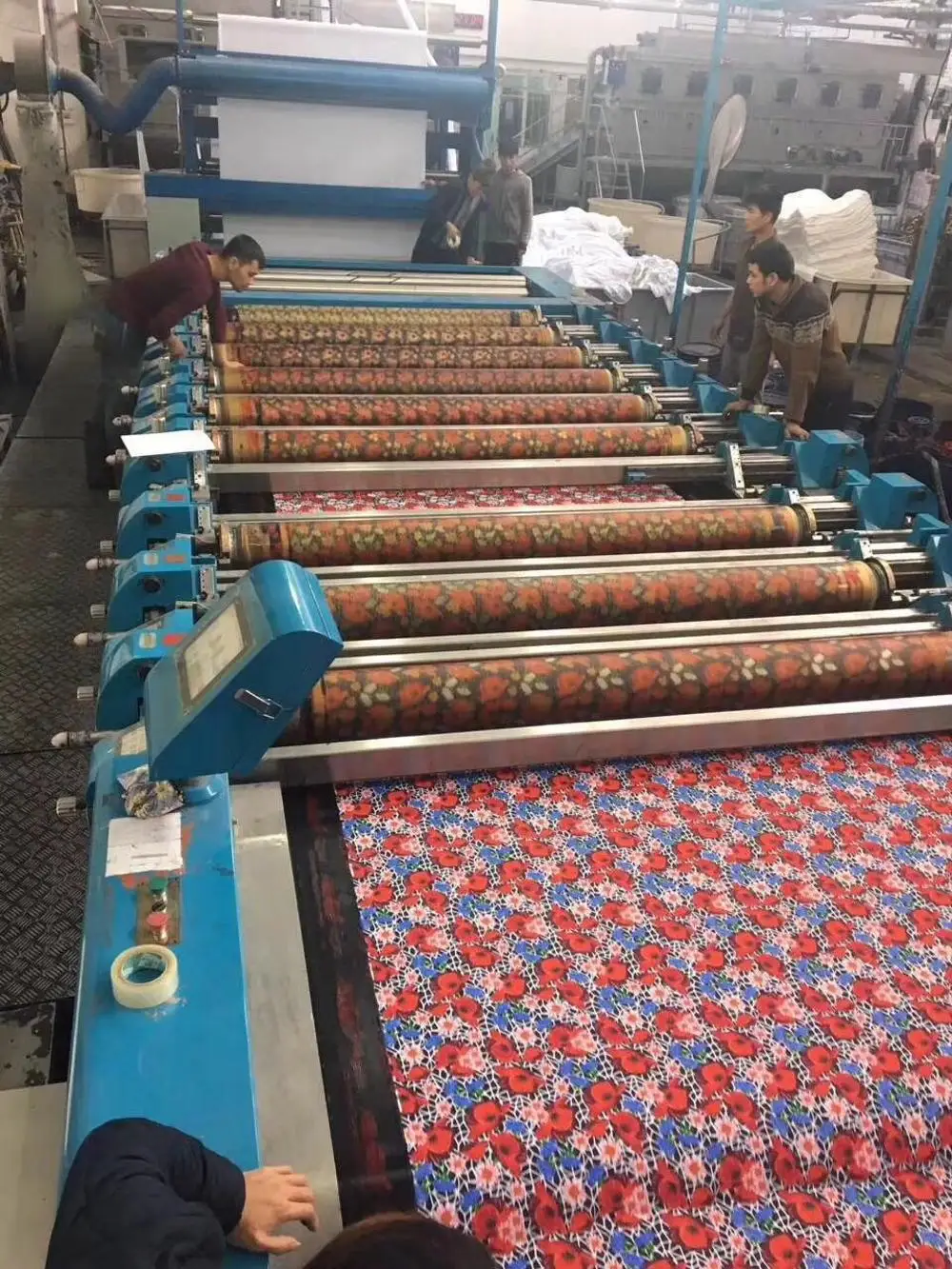

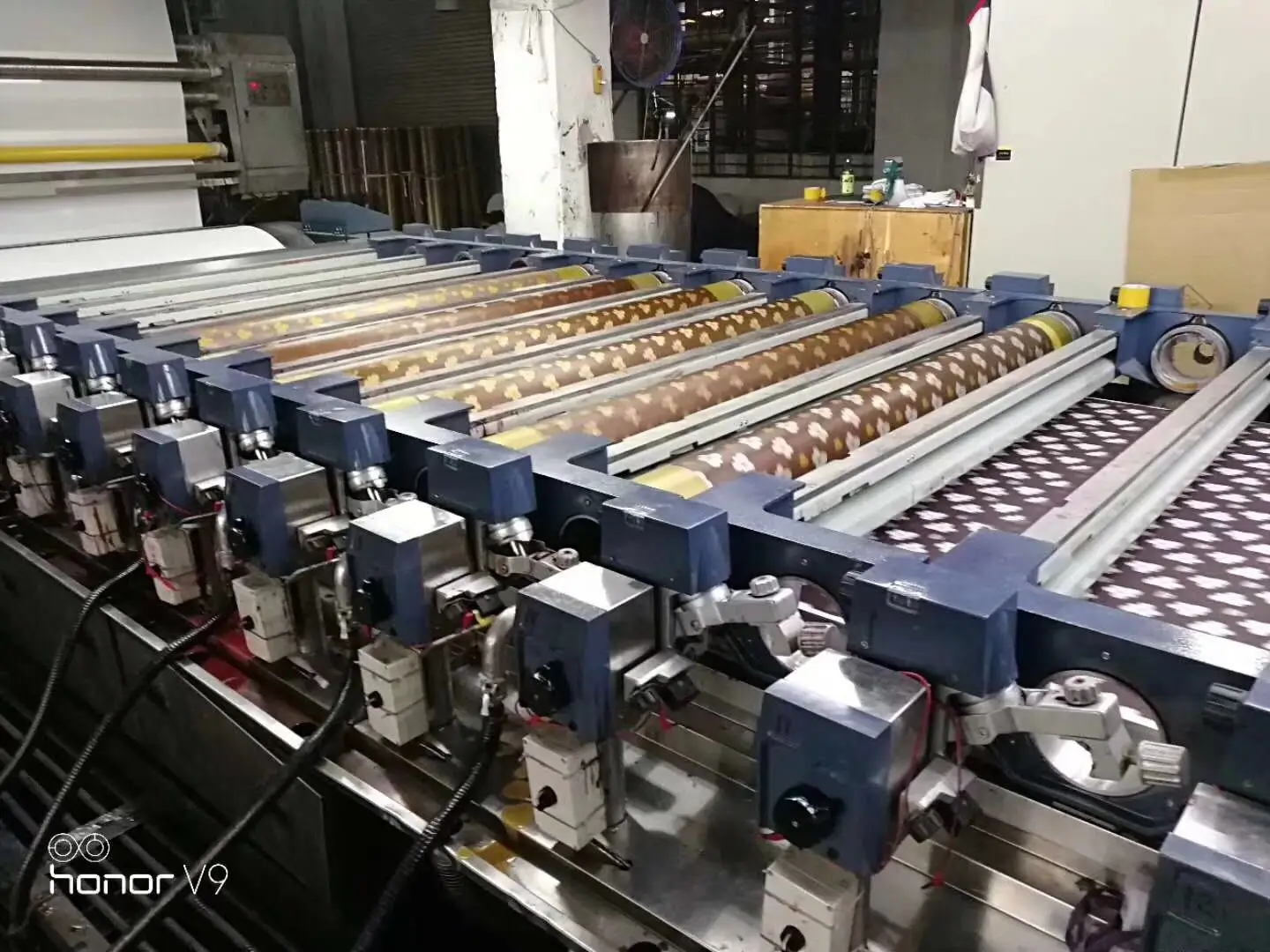

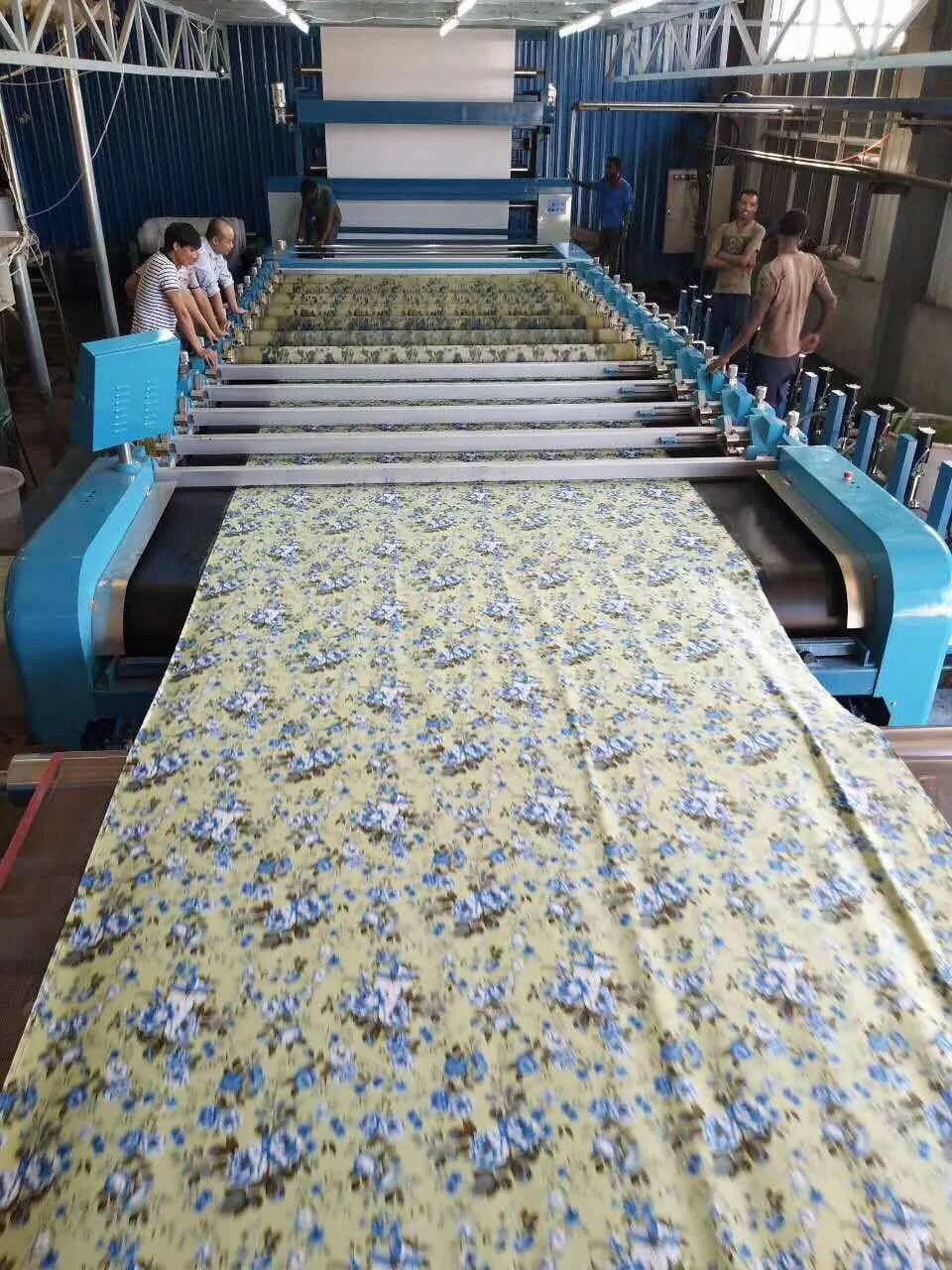

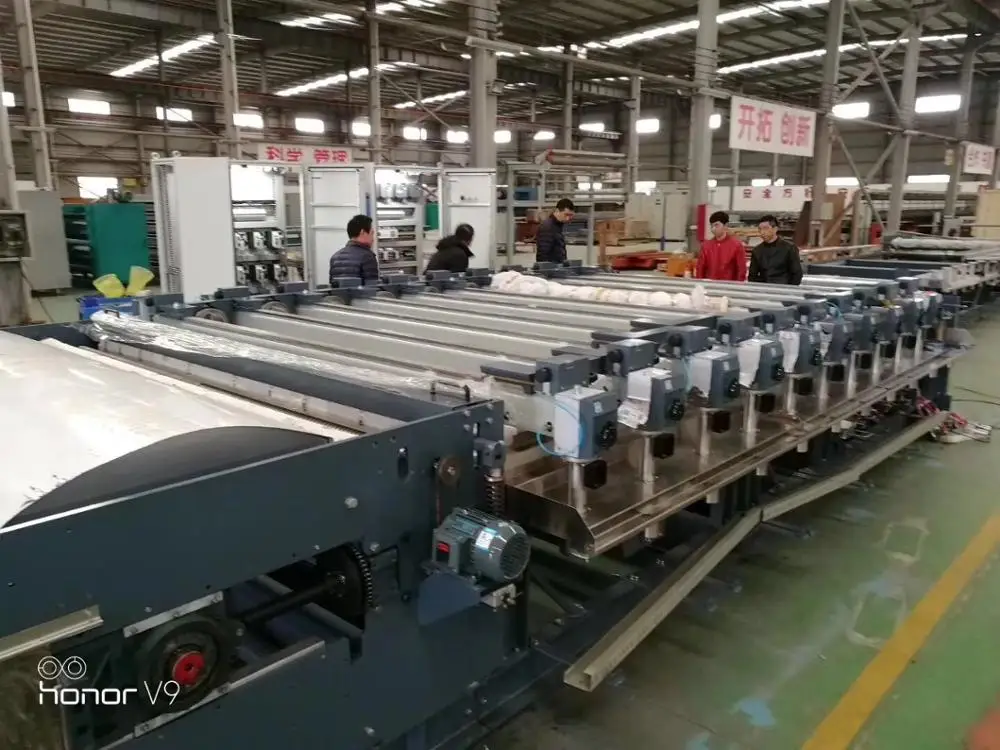

5. The picture details of JX-02 Panasonic rotary screen printing machine, as below:

























Delivery time:60-70DAYS AFTER RECEIVE THE ALL PAYMENT

Payment terms: 30% AS DOWNPAYMENT AND THE REST PAID BEFORE SHIPMENT.
