83mm Electric Wheelchair 12v24vPMDC gear motor

Share on (60770437978):


Price:RUB 7,774.81 - RUB 9,520.17

Quantity:


Product Overview

Description

products descriptio

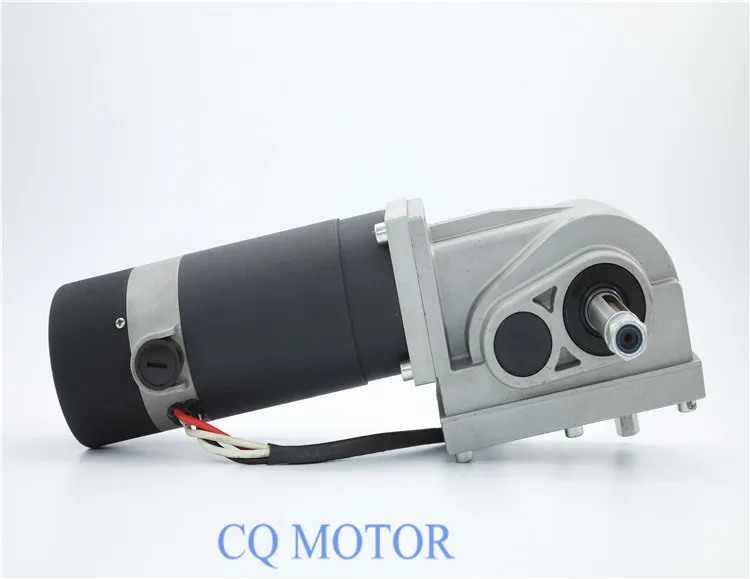

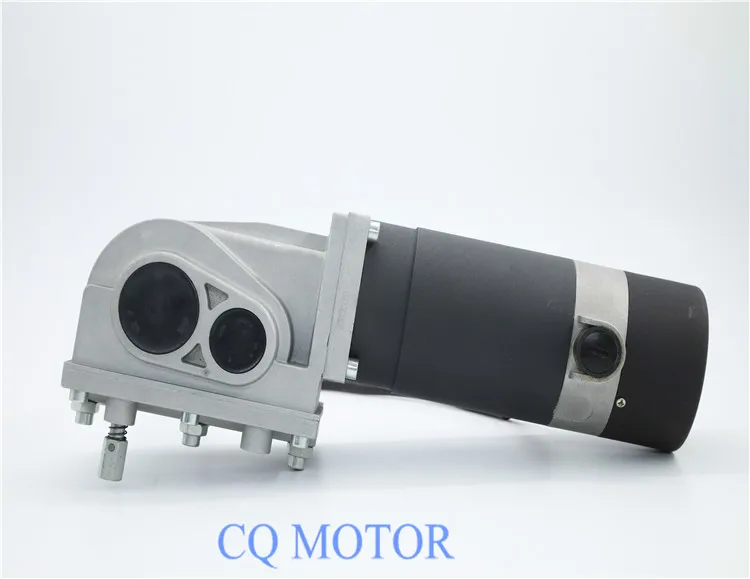

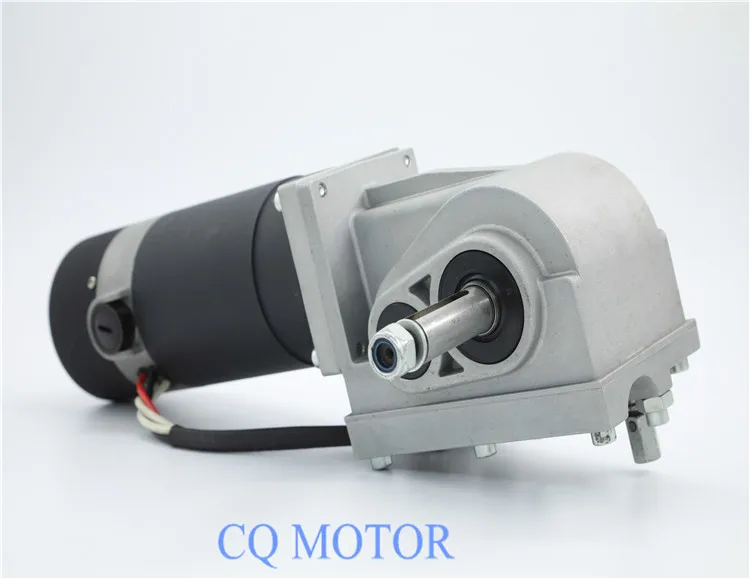

83ZYJ DC permanent magnet gear motor consists of DC permanent magnet motor and gear reducer. Its characteristics are beautiful structure, large torque, large power, stable operation, low noise, can be positive and negative, and it is suitable for use as actuating element in drive components and control systems. Such as electric wheelchairs.

Motor Technical Data





Type



Voltage

Torque

N.m

Current

A

Speed

r/min

Power

W

Length

cm

83ZY-157

12/24

0.65

25/13

3800

280

157





Gearbox Technical Data





Ratio

Size of Gearbox

L*W*H

No-Load Speed

r/min

Loaded Speed

r/min

Rated Torque

N.m

Max Torque

N.m

32:1

122*285*90

132

120

11

30


Product presentation


Company introduction



    Zibo Chuanqiang Motor Co.,Ltd is a professional motor manufacturing enterprise which set develop,research,production and sale in one. We have been working on motor since 2002. Our main products are DC motors, worm gear motors and special gear motors. The application arena covers field mower, truck tarp systems, golf cart, wheelchair, automatic tarp etc. The company is located in Boshan, Shandong—the most influencial Chinese industrial area of electric motor. By cooperating our sophisticated equipment and advanced process with good working environment  efficient reflected. Our company is one of the biggest tarp motor OEMs in USA, UK and Australian market, one of the best suppliers of Dongfeng Automobile Co.,Ltd—the biggest automobile manufacturer in China.





Packaging & Shipping

Packed in pallets according to the international container standard. Deliver in Qingdao or any other ports which are suitable for customers.
