rubber kneader and Open Type Rubber Mixer Machinery / Two Roll Mixing Mills with high quality
- Category: Other Rubber Processing Machinery >>>
- Supplier: Guangdong Lina Industrial Co. Ltd. [Guangdong China]Guangdong
Share on (60770708174):
Product Overview
Description
Basic Info
Model No.: XK-300-12 Warranty: 1 Year
Control Type: PLC Automatic Grade: Automatic
Power Source: Electric Type: Open Mixing Mill
Main Motor: TECO Motor/TATUNG Motor Gear Reducer: Hard-tooth Surface Gear Reducer
Low-voltage Apparatus: Omron/Schneider Bearing: Sweden Imports
Frequency Converter: Shihlin/ Delta PLC Soft Control: Mitsubishi
Safty Devices: The Roller Adopts 360 Degrees Emergency And Reverse braking device.
LINA 12 Inch Two Roll Open Mixing Mill with PLC Device
LINA is an important member of China Rubber Association and 12 Inch Mass Production Mixing Mill With Cooling Type is popular with the Student Entrepreneurship Practice Base of South China University of Technology. PLC intelligent soft control system is easy to import or export data and record. Extremely accuracy in control and measurement of mixing temperature and ratio. In order to keep fafety when the dangerousLow Maintenance Open Cooling Mixing Mill is working, LINA pays more attention in Safety, and developed the new type safety device for decreasing the risk and damage. High precision and high safety are LINA`s Cooling Type Rubber Two Roll Milling Machine`s main advantages. Besides, user friendly, higher safety, higher control precision, higher durability and excellent temperature control are LINA Heating Type Rubber Open Mill`s advantages that make LINA outstanding in the industry. in the market of China`s Factory Production Open Mills, about 47% domestic science and research institution and universities are using LINA Small Type Two Roll mills.
Characteristics of LINA Two Roll Open Mixing Mill for Medical Rubber
Excellent appearance: LINA new design laboratory roll milling machinewith comprehensive optional functions and securedevices, which ensure the accuracy of formulaand high efficiency.
Safe guaranty: The roller adopts 360 degrees emergency and reverse braking devices, infrared automatic detection and ergonomics security to ensure operator`s safety.
Intelligent operation: LINA Lab Two Roll Open Mill for product test PLC intelligent soft control system is easy to import or export data and record. Extremely accuracy in control and measurement of mixing temperature and ratio.
PLC intelligent control system: 1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code. 2. The control system can be set up to 20 mixing steps, save 20 recipe spaces. 3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface. 4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
Specifications of LINA Open Mill
| Item | Specification | Remarks |
| Type | XK-300-12 | |
| Roller Diameter | 300 mm | |
| Roller Width | 700 mm | |
| Linear Velocity of Front Roller | 17m/min | |
| Speed Ratio of Rollers (Front/Rear) | 1:1.3 | |
| Maximum Roller Distance | 10 mm | |
| Production Yield | 10-15 KG per time | Electric/oil/steam heating and circulating water cooling. |
| Motor Powder | 18.5 KW | |
| Weight | About 2500 KG | |
| Dimensions | About 3300*1300*1900mm |

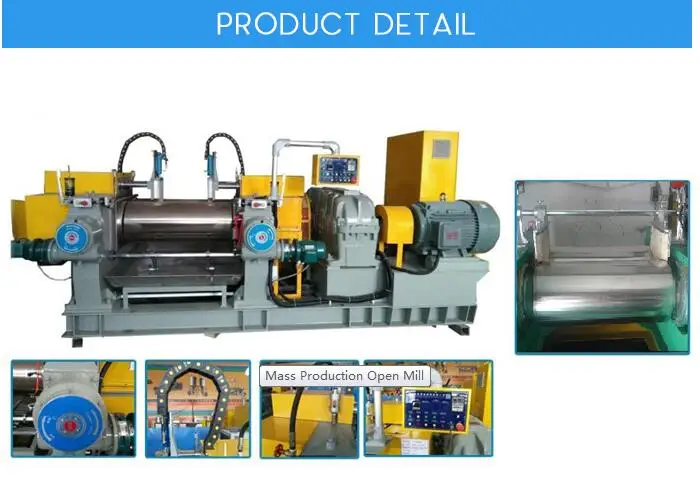

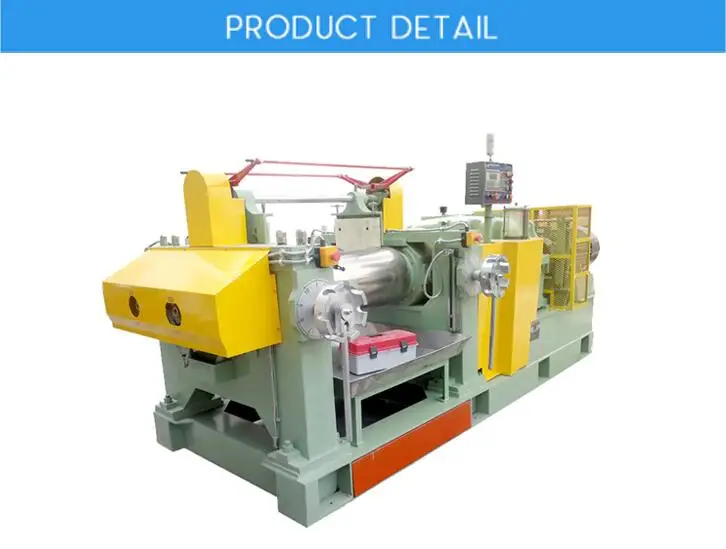

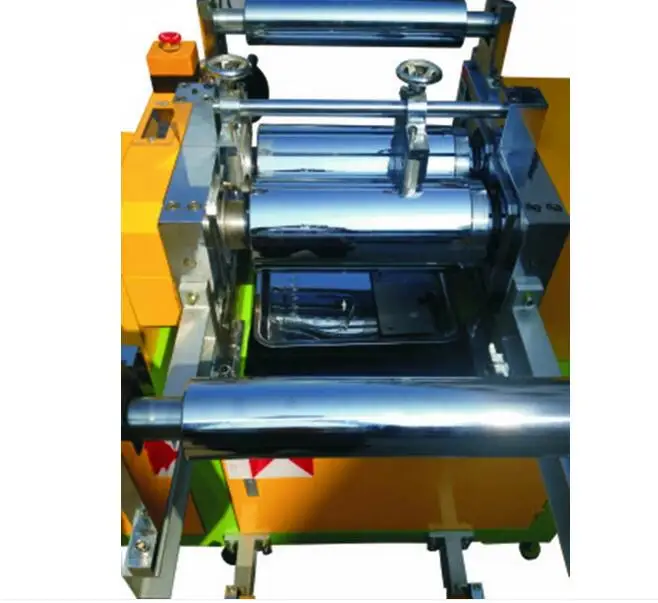

Details of LINA Rubber Open Mixing Mill with Automatic Blender

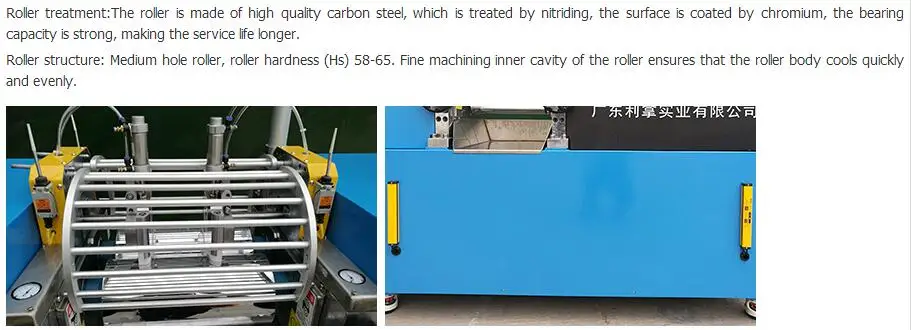

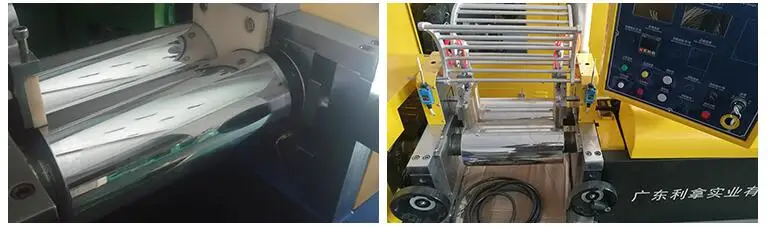

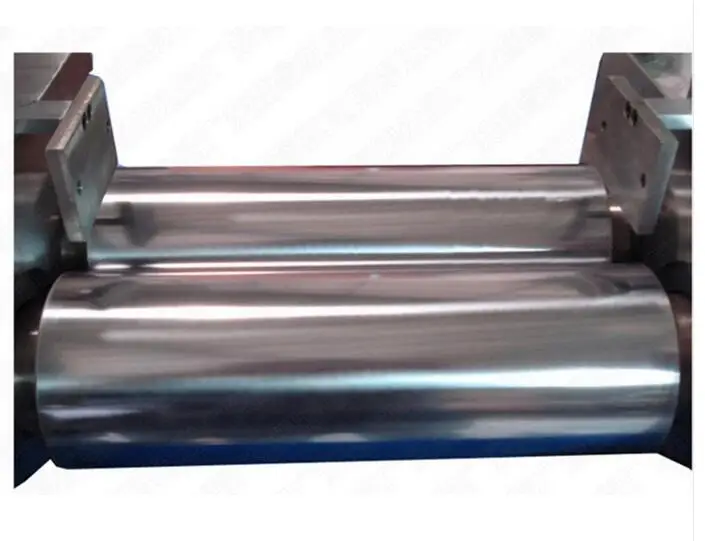

Roller of the open mixing mill
LINA Open Mill New Safety System
1. Infrared Sensor: A infrared sensor device for braking is installed to keep the operator's body and the running Two Roll Open Mill in a safe distance. Many unexpected accidents on the Open Milling Machine are caused by causal and incorrect operations, this infrared sensor is designed to rule the operator's basic actions and protect the user from the roof of the danger.
2. 360 Degrees Emergency Braking Button: Based on human engineering, this safety device is designed to protect the user when an emergency happened. This technology has applied China's National Patent. When touching the button, the rollers will stop immediately and reverse 1/4 round to maximize the protection.
3. Knee-Hitting Safety Device: According to human engineering, this device is installed to brake the rollers when an unexpected emergency occurred.
4. Hand-Pressing Safety Device: This is the basic safety device installed on all types of Rubber and Plastic Two Roll Mill. Once press the button, the rollers will stop immediately and reverse about 1/4 round.

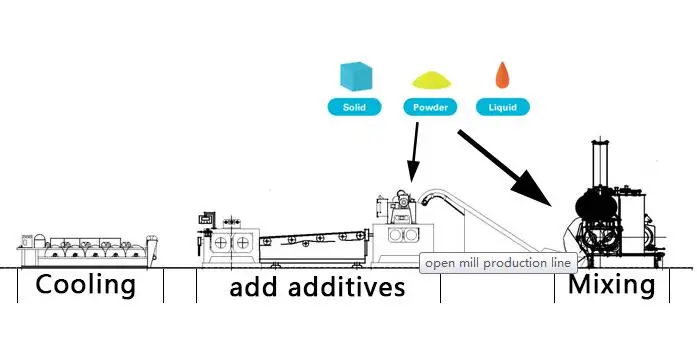

5. Safety Cover: This safety cover is installed on the top of the rolls, to ensure the user's safety when adding other solid, powder or liquid additives into the mixing materials.

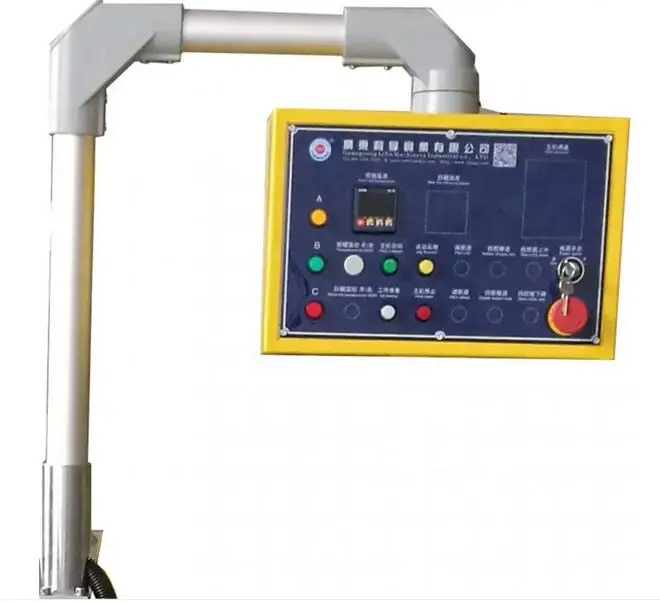

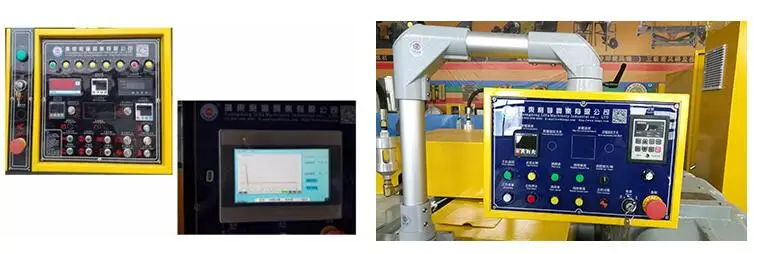

Intelligent control panel and PLC control system
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
Are you factory or trading company?
LINA Machinery has been engaged in Rubber & Plastic Mixing Machine for many years. We have workshop and R&D department.
What about the operational guideline?
Training of customer's operator and maintenance personnel and long-term technical consultation is provided.
How about the warranty time?
One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/component are available.
Do you offer the customization of the machine?
Certainly, LINA will give you the most proper recommendation and setting according to your materials and demand.
