Climbing Concrete Placing Boom Introduction

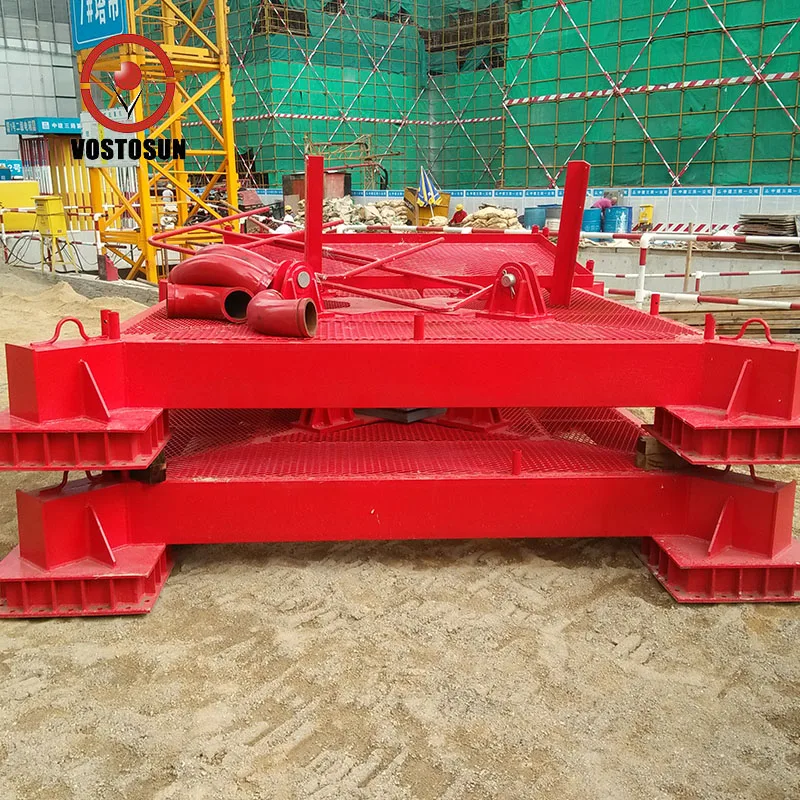

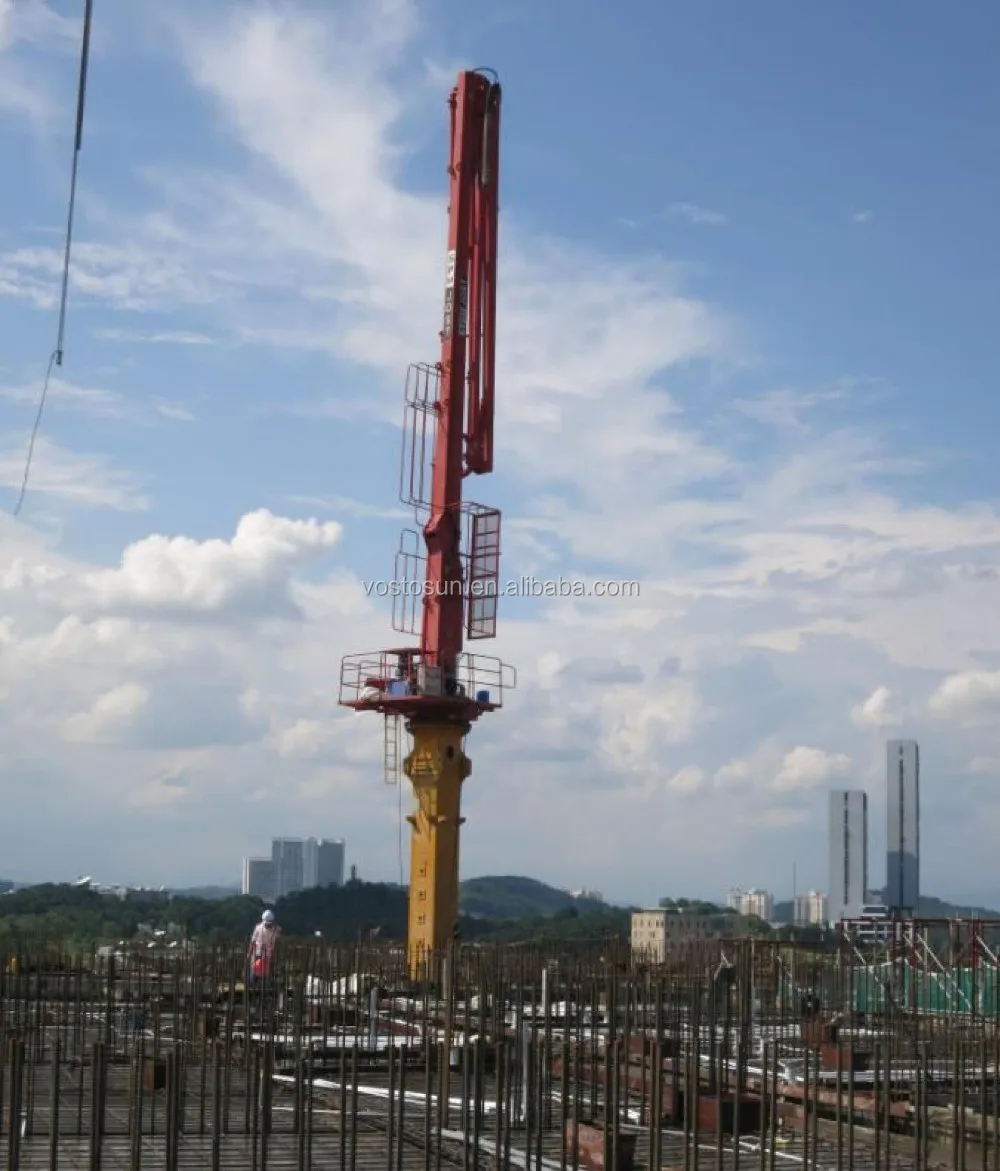

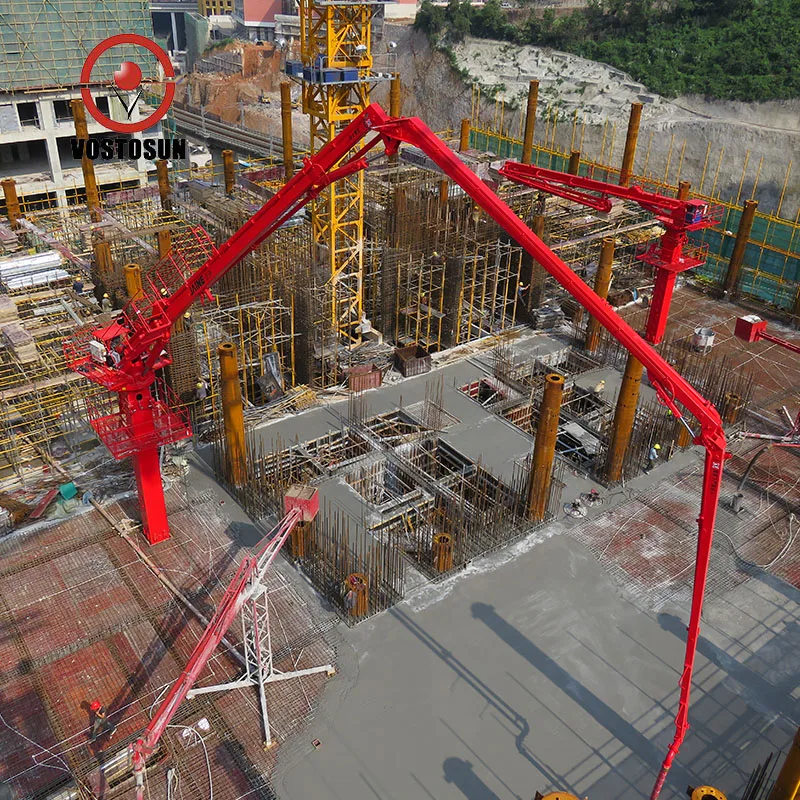

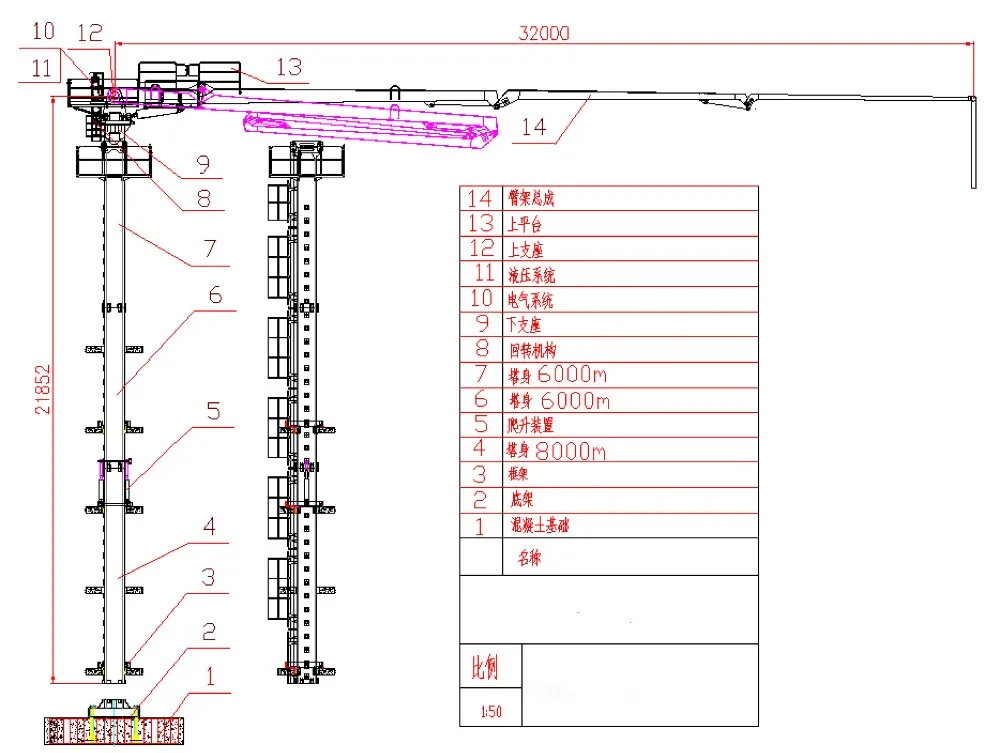

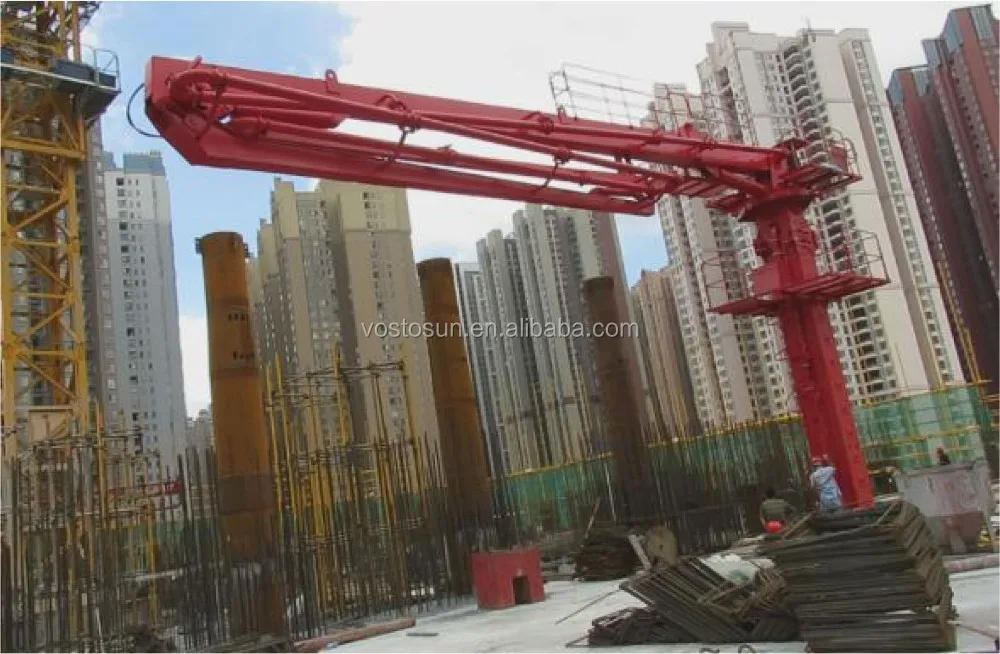

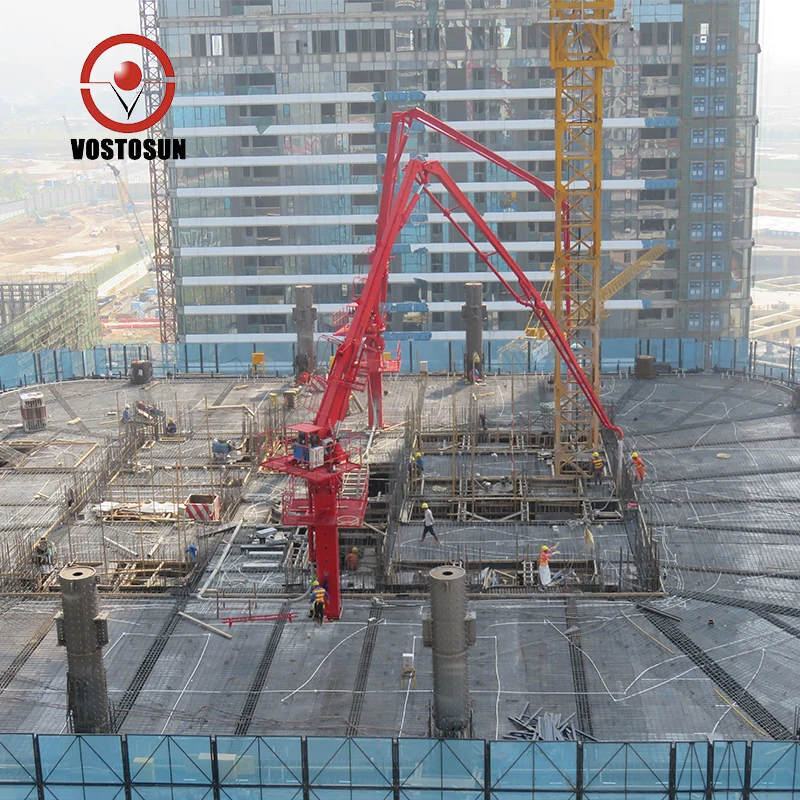

A climbing concrete placing boom mainly consists of the tower body, climbing frames, slewing mechanism, upper-lower pedestals, boom assembly, hydraulic system, electrical system, etc., and is suitable for the construction of high-rise buildings. It is fixed in the lift shafts or floor openings and climbs up by means of its climbing system or a tower crane, providing enhanced efficiency and quality of concrete placement and saving labor.
Technical Parameters
No. | Model | HGY32 | ||
1 | Radius of placing boom (m) | 32 | ||
2 | Three hydraulic foldable arms (m) | 1st section | 14.23 | |
3 | 2nd section | 9.31 | ||
4 | 3rd section | 8.47 | ||
5 | Boom articulation | 1st section | -4.2~+82.5° | |
6 | 2nd section | 0°~180° | ||
7 | 3rd section | 0°~180° | ||
8 | Slewing range (°) | 360 | ||
9 | Height (m) | 22.5 | ||
10 | Dimension of tower section (mm) | 750x750 | ||
11 | Weight of the heaviest component ( kg) | 4567 | ||
12 | Dimension of the biggest transport component (mm) | 11250x1600x1950 | ||
13 | Delivery pipe dimension (outside diameter × thickness) (mm ×mm） | Φ133x5 | ||
14 | Delivery hose dimension (inside diameter × length) (″×mm） | 5’’x3000 | ||
15 | Mode of operation | 1. cable remote control 2. radio remote control | ||
16 | Power of motor (kW) | 15 | ||
17 | Pressure of hydraulic system (MPa) | 22 | ||
18 | Power | 380V/50Hz | ||
19 | Type of hydraulic oil | Great wall 68# | ||
20 | Wind speed | Placing concrete | ≤56 | |
21 | Climbing | ≤28 | ||
22 | Working temperature | -20~40 | ||
Self-climbing type:

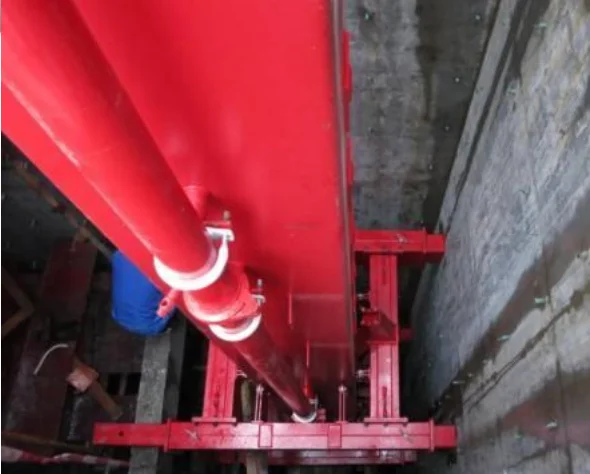

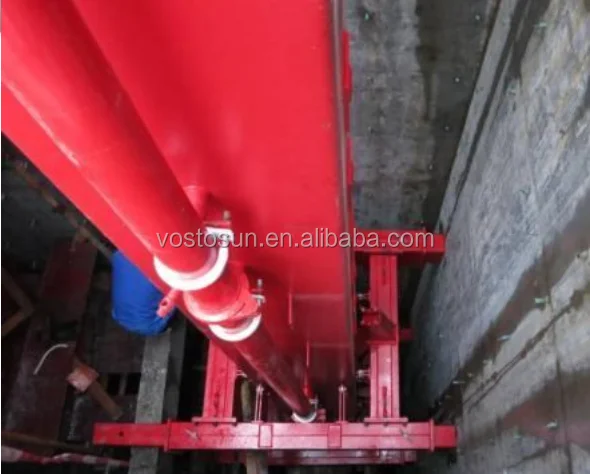

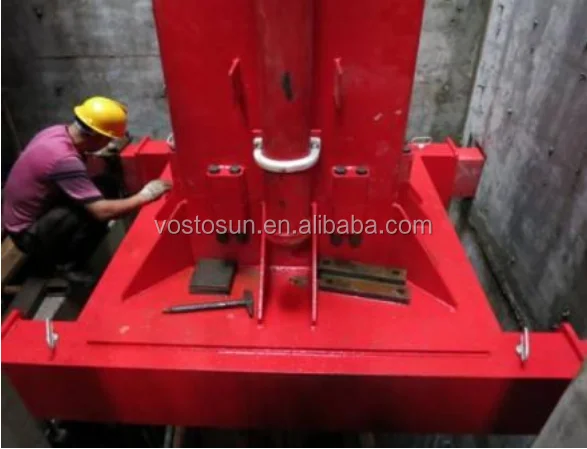

1). Self-climbing in the lift shafts: The placing boom climbs up along the lift shaft with the rising of the floors, with horizontal reaches of 28 mand 24m.
2). Self-climbing in the floor openings: The placing boom climbs up along the floor openings with the rising of the floors, with horizontal reaches of 28m,24 mand 17m.
