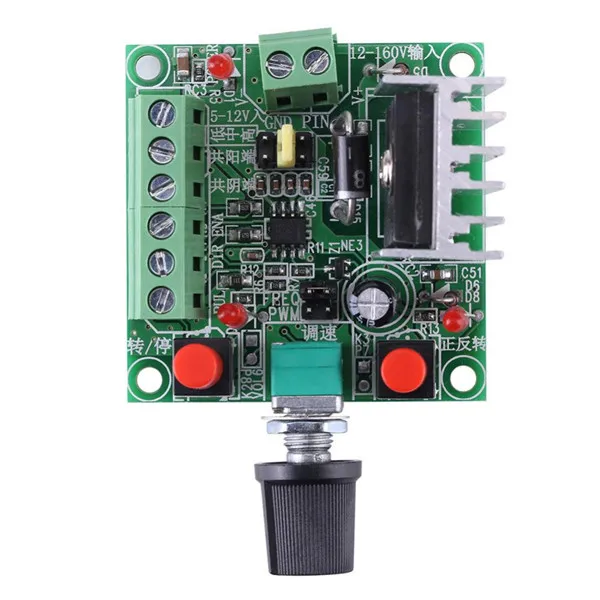

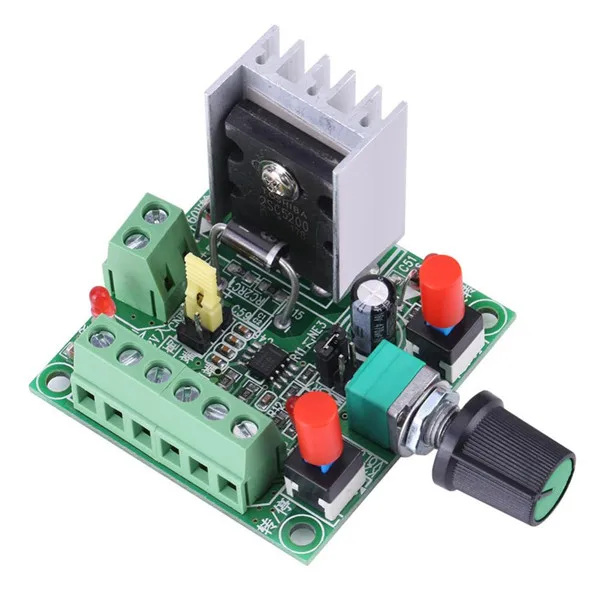

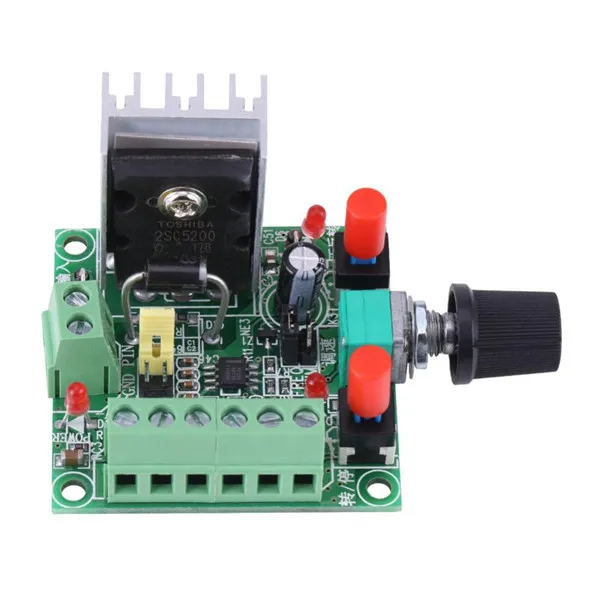

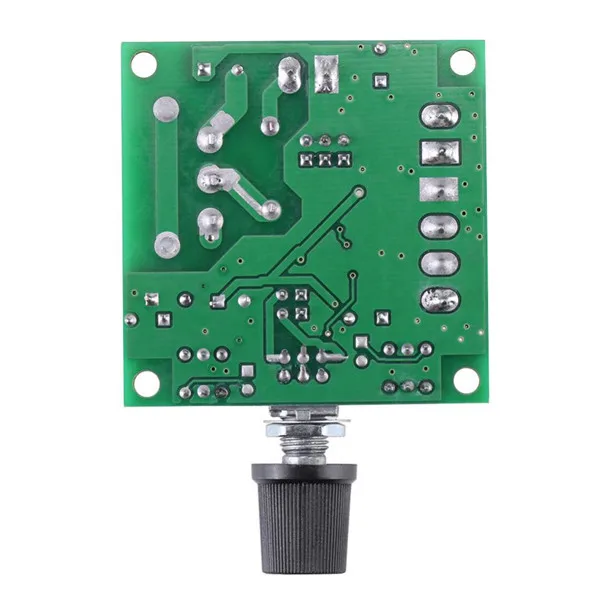

Stepper Motor Controller PWM Pulse Signal Generator Speed Regulator Board

Product Overview

Description

Description:
This controller can generate a PWM signal functions, the board has a jumper, you can set the default selection provided in the pulse frequency signal.

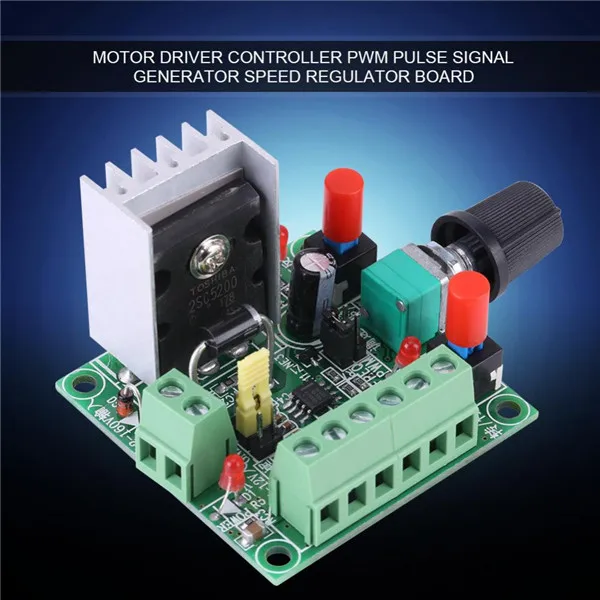

Stepper Motor Controller PWM Pulse Signal Generator Speed Regulator Board



Features:

• This module is supplied as a stepper drive signal. To control the stepper motor, but also must have the drive to use.

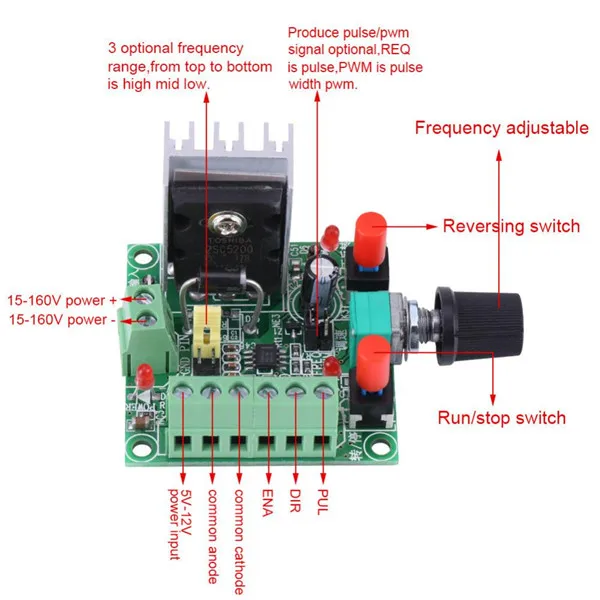

• The controller has high, medium and low total of three types of frequency signals can be used to select jumper.
• Frequency of measurement can amount PUL and common cathode terminal (GND) two ports.

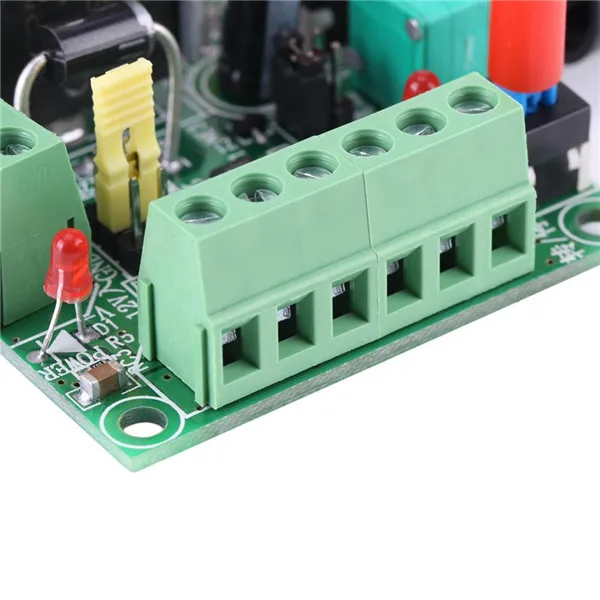

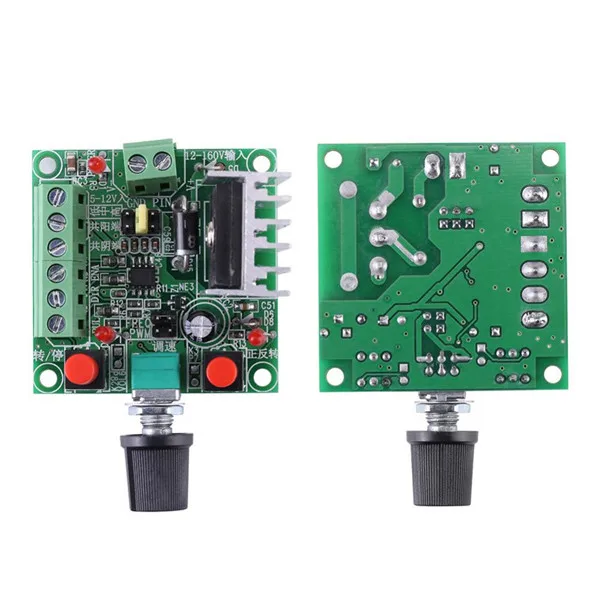

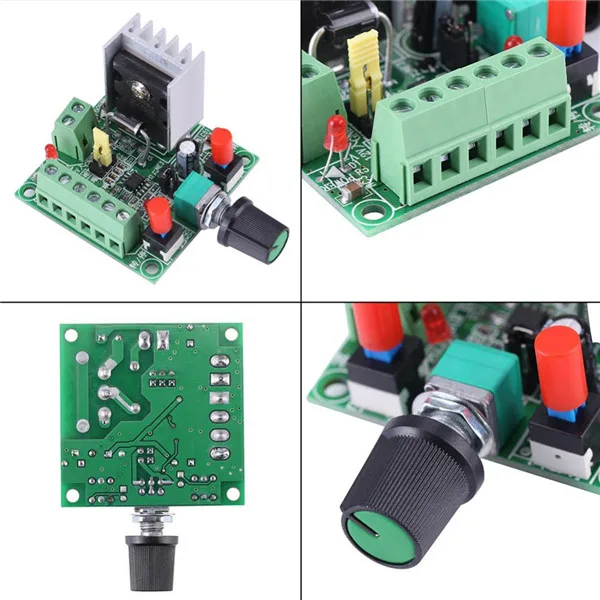

• PUL + and PUL- pulsed positive and negative; EN + and EN- is to enable the positive and negative terminals; DIR + and DIR- are the positive and negative directions. These six lines are connected to drive the corresponding pulse, direction, so six ports possible.
• Power supply: 15-160VDC or 5-12VDC. If you are using 5-12VDC power, positive end connect DC 5-12V Input, negative end connect Common Cathode End.
• The forward and reverse of the motor can be controlled by pressing the key.

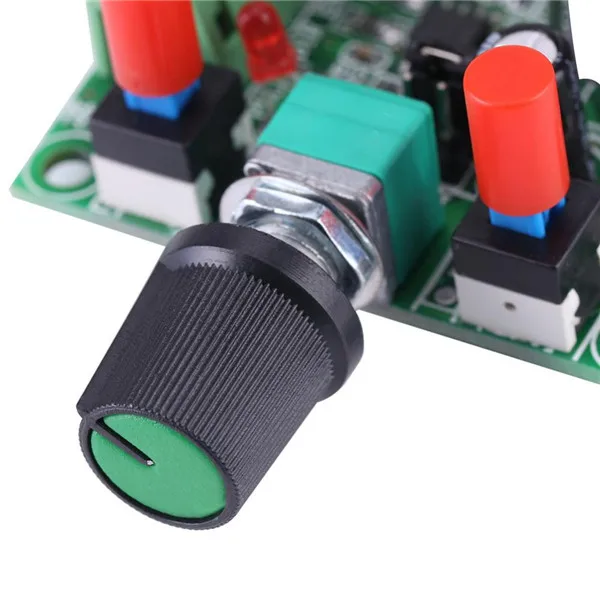

• The speed of the motor can be controlled by adjusting the frequency of the potentiometer.

Specification:
Power supply voltage: 15-160V / 5-12V
Frequency: High: 5.8KHZ-127KHZ, Mid: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ

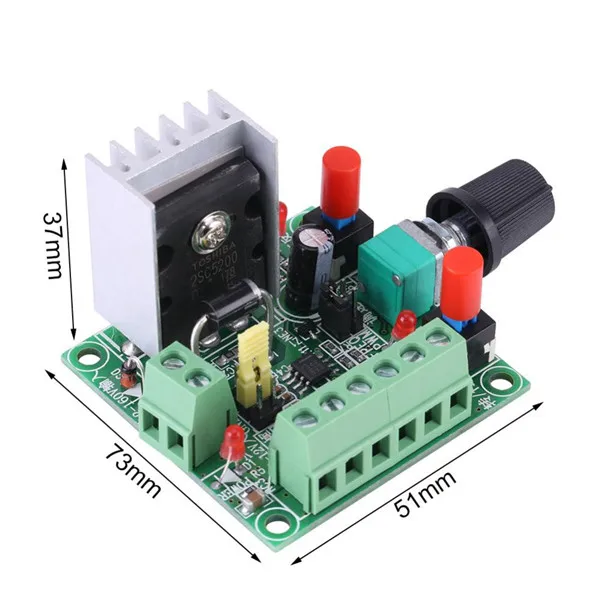

Size: Approx. 73 x 51 x 37mm / 2.87 x 2 x 1.45inch
Weight: 50g
Quantity: 1pc

Package List:
1 x PWM Generator

Note:
If you use to start or stop the function, ENA controller enable terminal must be connected to common cathode or common anode drive.
