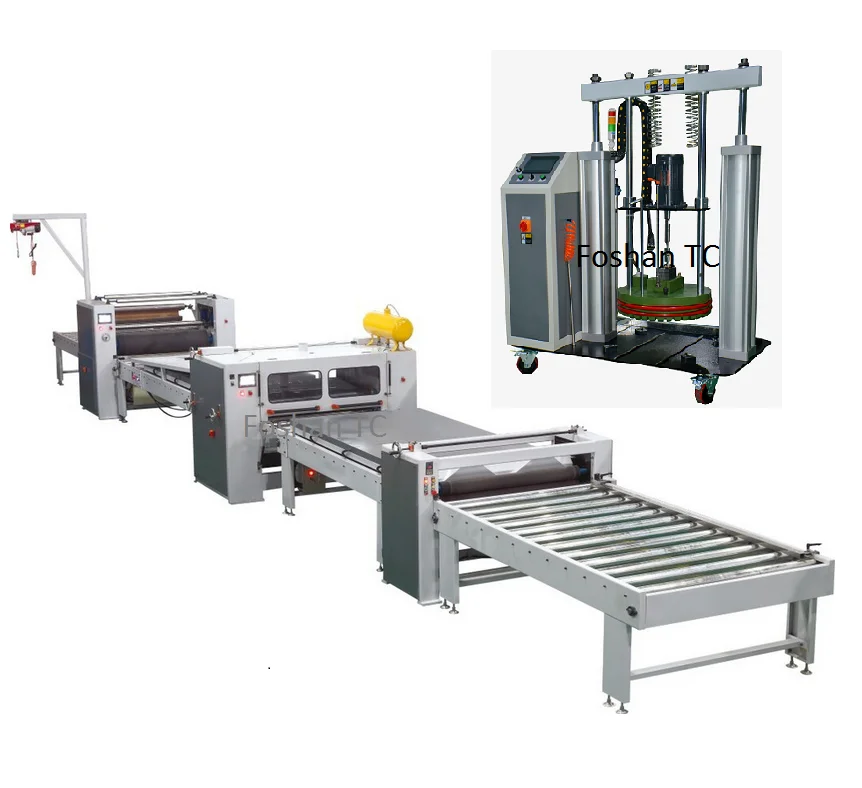

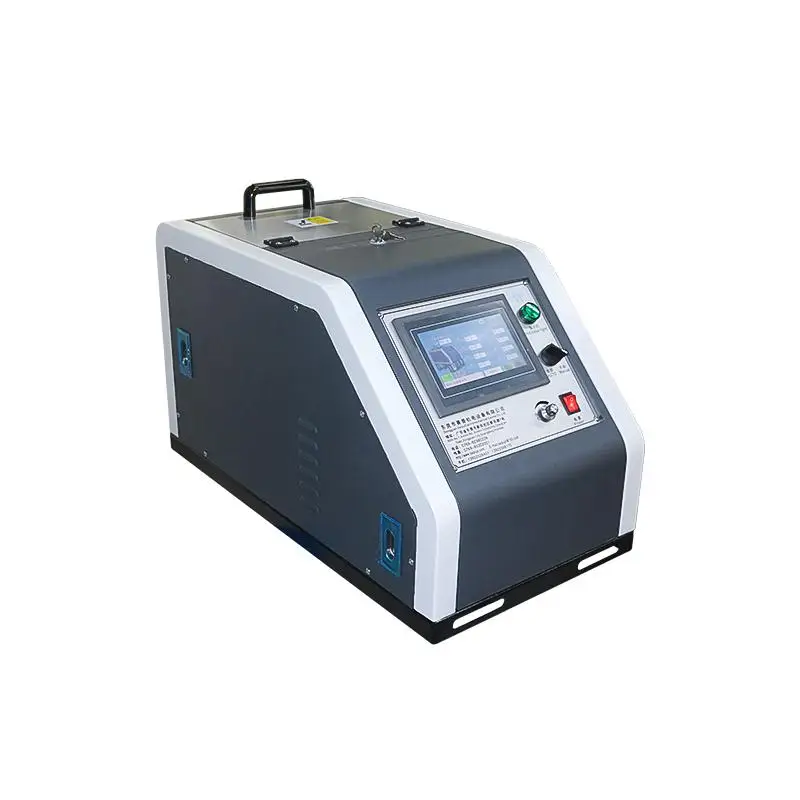

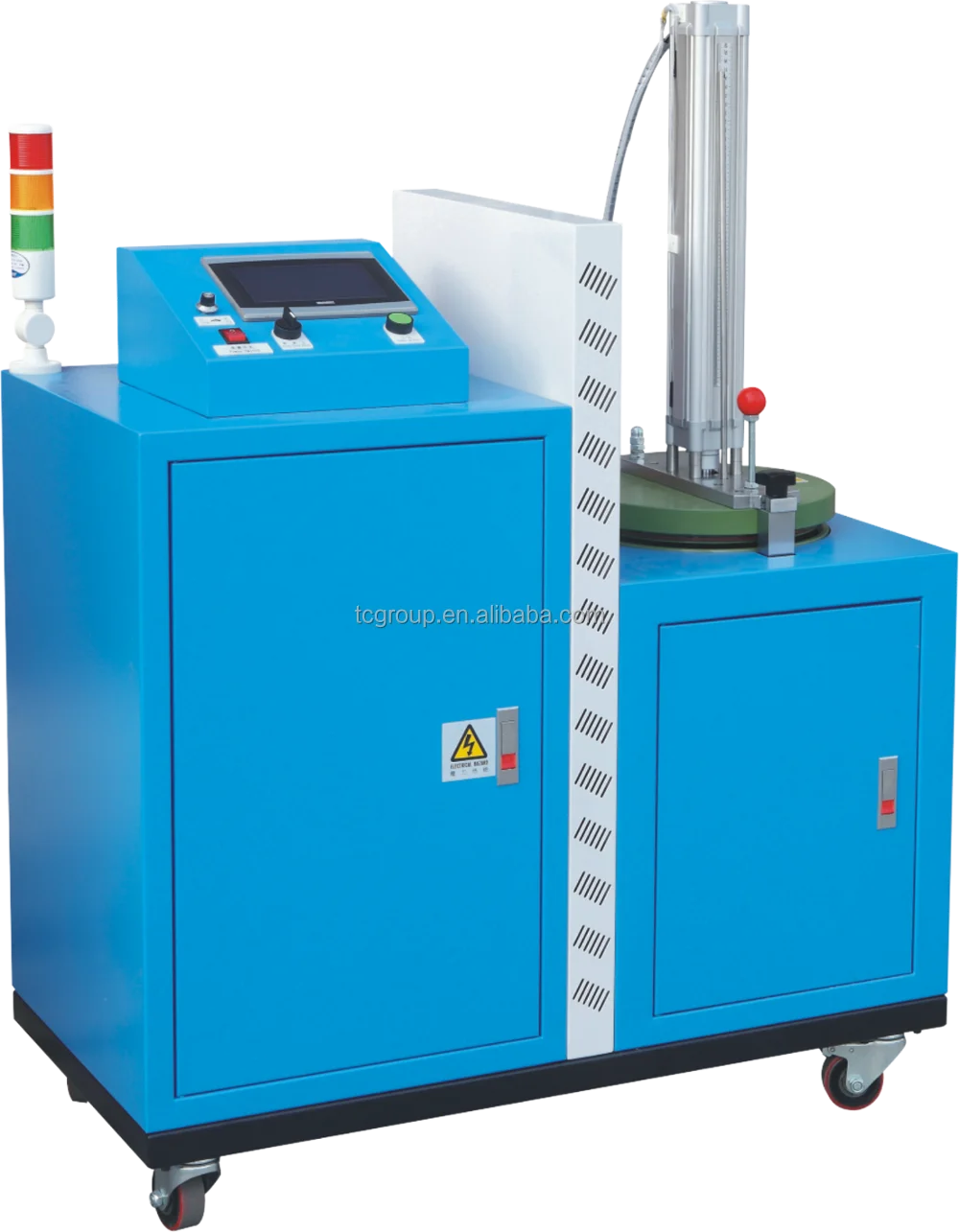

PUR MELTER HOT MELT GLUE MACHINE

Product Overview

Description



 PUR MELTER HOT MELT GLUE MACHINE:



Hot Melt Adhesive, Glue Applicator Machine, Pur Glue Melter Application Equipment

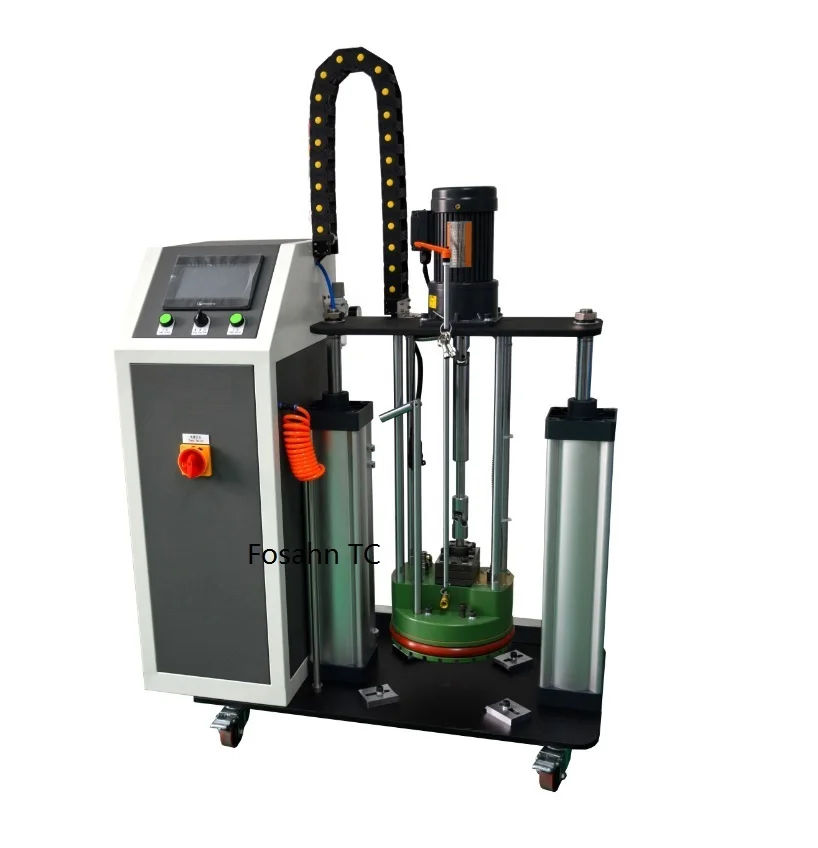

5 Gallon Glue Melter Machine Parameters
Dimension	L1040×W550×H1450mm	Control system	PLC+ touch screen
Net weight	190kg	Temperature control scope	Normal atmospheric temperature –180 ℃
Power type	AC220V/50HZ	Heating time	25 minutes
Heating power	7.5KW	Maximum glue extruding pressure	Delivery ≤50kg/cm2
Specification of glue cylinder	20 kg standard barrel	Heat insulation function	None
Inside diameter of glue cylinder	280mm (286mm need to customized)	Overheat alarm	Available
Maximum rotate speed of motor	60rpm	Low glue level alarm	Available
Inside diameter of glue pipe	φ8mm	Alarm of empty barrel	Available
Working air pressure	0.4~0.8MPa	Pressure plate route	Max: 600mm

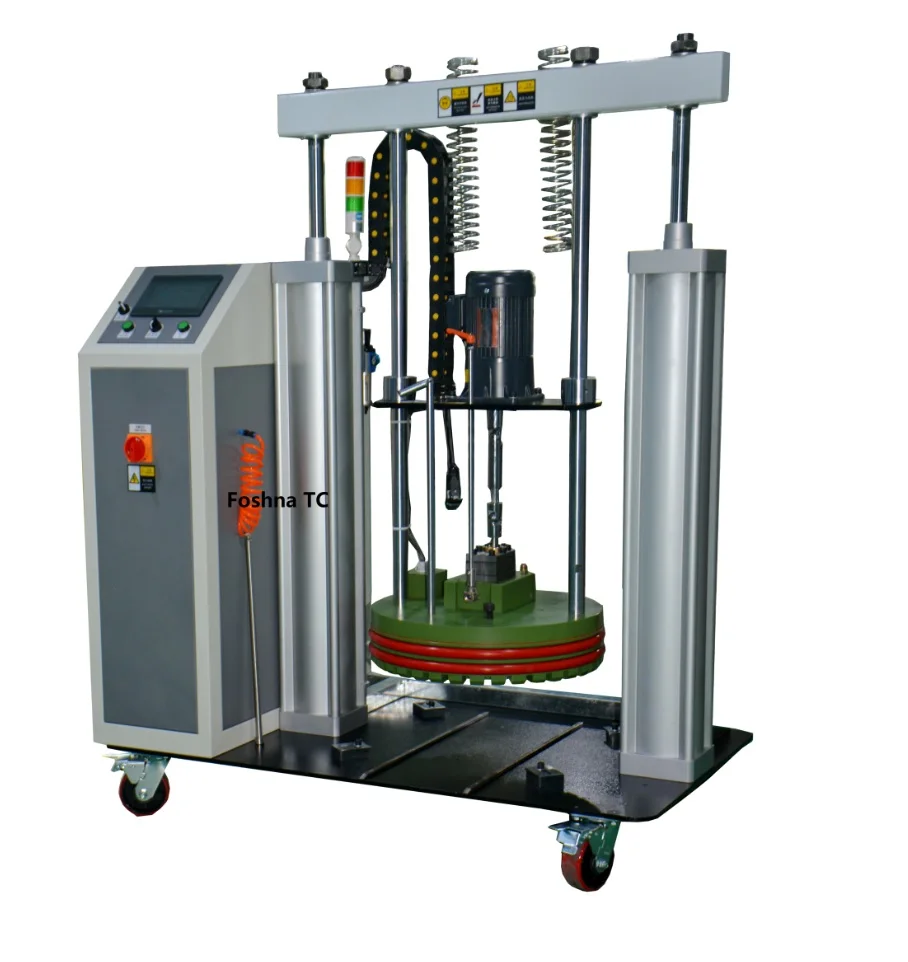

55 GALLON GLUE MELTER MACHINE PARAMETER:
Dimension	L1450×W980×H1650mm	Temperature control scope	Normal temperature --200℃
Net weight	465kg	Heating time	25 minutes
Power type	A380V/50HZ	Maximum glue diacharging pressure	Ex-factory ≤50kg/cm2
Heating power	15.5KW	Temperature keeping function	Yes
Glue tube spec	200kg standard tube	Alarm in excess temperature	Yes
Inner diameter of glue tube	571mm(276mm requiring customization)	Alarm upon low glue level	Yes
Highest rotation speed of motor	50rpm	Alarm on empty barrel	Yes
Inner diameter of glue tube	φ12.8mm	Platen travel	Max:1400mm
Working air pressure	0.4~0.8MPa	Control system	PLC+touch screen







Company Introduction:

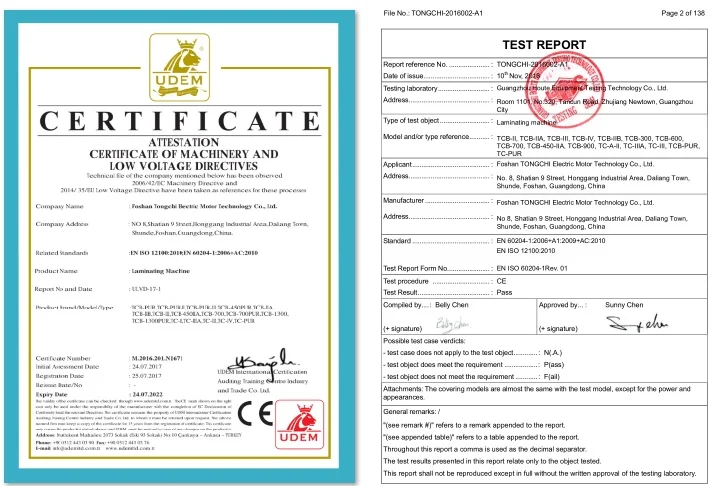

Foshan TC(Tongchi), found in 2006, is a fast growing company, now have 2 factories, total around 30,000 sqm., located at Shunde District, Foshan city and Jiangmen city of Guangdong , China.  with CE approval, is a professional manufacturer engaged in delvelopment, production, sales and services of following machines:

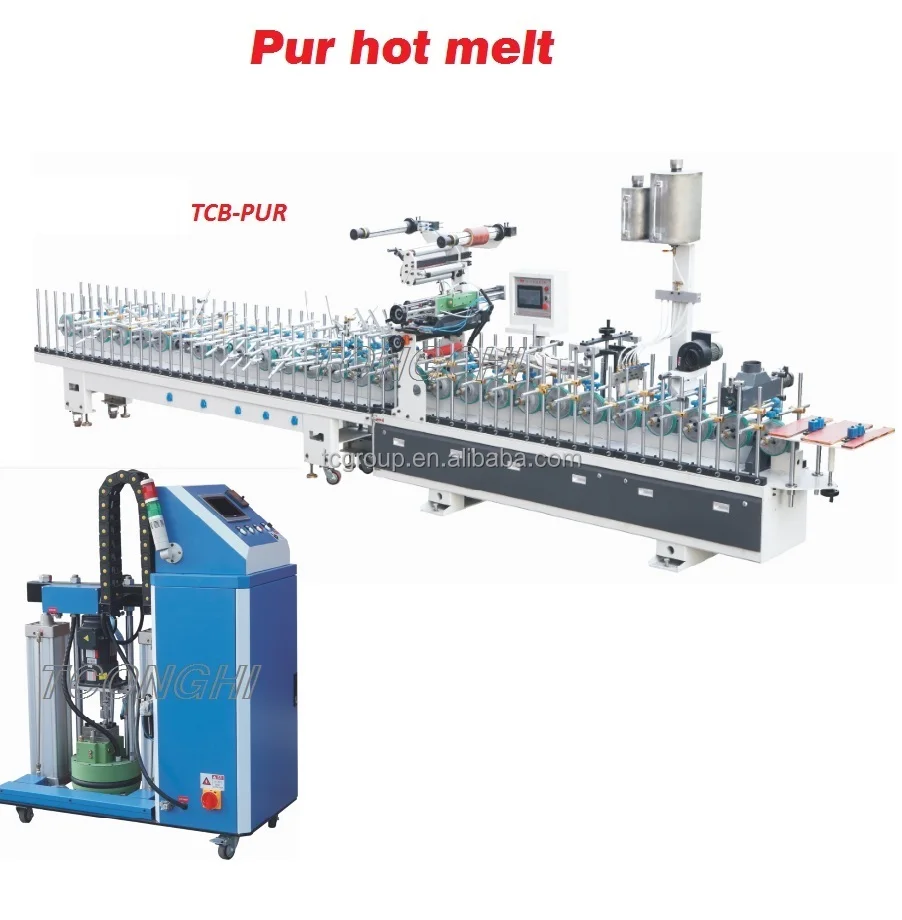

Profile wrapping machines(Pur Glue, Eva Glue, Cold Glue)

PVC Paper Wooden Board Laminating machines

High Glossy Film/Acryic/HPL Sheet laminating Machine

PVC Metal Sheet Laminating Machine

Vacuum Press Machine

Slitting & Rewinding Machines

Other Machines and machine accessories



To be the most professionional in lamianting/wrapping, our machines aim at sticking decorative film on the surface of wood, wood-plastic, plastic, metal profiles for decoration.



To control the product quality well, reduce the production cost and assure accurate delivery time, the company has introduced a series of advanced equipments to porduce machine accessories and components by ourselves, with these advantages and good reputation from clients, the products are selling well in overal China and also exported to India, Pakistan, Egypt, Vietam, Thailand, Malysia, Korea, UK,Lebanon,Turkey, Russia,Dubai, Algeira, UK, Peru, Brazil and many other countries.





If you have interesting in our products, please don’t hesitate to contact. Welcome to visit us!
