New products 2835 SMD LED RGB 0.6w 6 pin 0.2W rgb 5050 led chip

Share on (60772401359):


Price:

Quantity:


Product Overview

Description


Product Description

new products 2835 SMD LED RGB 0.6w 6-pin 0.2W rgb 5050 led chip

Item Name high bright smd led 2835 0.2w
Color Temperature

  R:620-625nm G:515-525nm B:455-465nm

Forward Current 60mA
Forward Voltage  R:1.9-2.4V G:3.0-3.4V B:3.0-3.4V
Viewing Angle 120°
Power 0.2w
Other Color Temperature 2000K,4000K,5000K,6000-100000K,blue,yellow etc.
Warranty  2 years
Other Models 2835,3014,3020,3528,4014,5730,5050,5630,5054 etc.





SMD TypeColorWLLMVFAngleRaPacking Size
2835RGB

R:620-625nm G:515-525nm B:455-465nm

R:2-3lm G:5-6lm B:1-2lm

R:1.9-2.4V G:3.0-3.4V B:3.0-3.4V

120-2000pcs/Roll

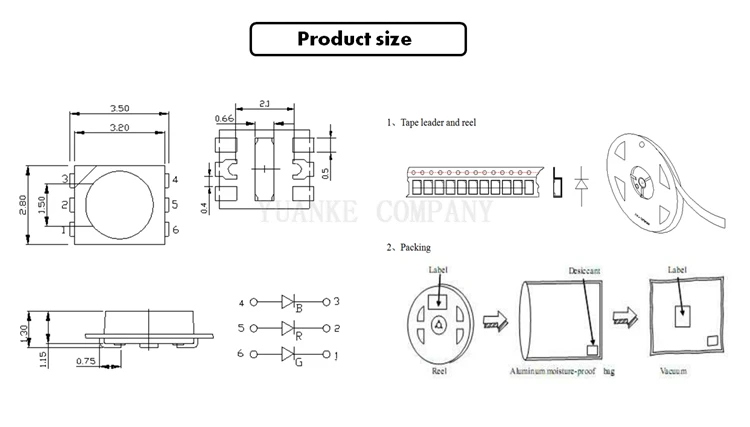

 2835 .jpg2835 RGB .jpg

Packaging & Shipping



We provide EMS DHL UPS FedEx TNT that several different types of express allows you to select, under normal circumstances, the transport time is in 5 to 10 days or so, if large cargo, go shipping, so time is longer, but safer, and the freight is lower.

Application area


Are widely used in the LED lamp, LED bulb light, LED panel light, LED ceiling lamp, LED street light, LED lamp, miner's lamp, stage light, flashlight, lighting, lamp lighting lamps and lanterns, as well as outdoor billboards, such as electronic display, traffic lights, signs, car tail lights, LED modules, LCD back light, LED lighting lighting, LED soft/hard light bar, etc., is the better choice to replace traditional lighting light source.

Color


<380nm:uv    380nm-430nm:purple   430nm-480nm:blue     500nm-550nm:green  550nm-580nm:yellow green   580nm-600nm:yellow    600-620nm:orange     620nm-780nm:red    >780nm:ir

Production process


Factory introduction




The company is a collection development, production, sales, after-sales service as one of the photoelectric lighting high-tech enterprise, specializing in the production of LED light-emitting diodes LAMP, integration, high power LED and COB light source SMD2835, 3014, 3535, 5630, 5730, 5050, such as the light source and LED floodlight, LED mining LAMP, LED fluorescent tube, LED ceiling LAMP, LED landscape lighting, lighting, LED indoor lighting, LED lighting application products, etc.
The company SMD SMT LED series products adopt imported chips with high luminous efficiency, narrow spectrum, good monochromaticity, high color rendering, green environmental protection, precision constant current, life 50000 hours, low attenuation, high brightness, low attenuation, small energy consumption, long service life. Antistatic ability, high brightness, good color consistency; Low light, long life, etc.
The product adopts integrated high-power LED light source with its voltage, power, color temperature, dimension, color change and inner and outer control can be set by the customer. Products can be widely used in roads, Bridges, square, garden landscape area, residential and commercial district, the courtyard, the guesthouse, hotel, shopping plaza, dance halls, theaters, office, home, etc all kinds of life, leisure and entertainment.
The company spirit of "practical, innovative and enterprising, quality first, service first" principle, to design diversity, moderate price based on the market, products are exported to Europe, North America, Japan, South Korea, southeast Asia and other global markets, we will create more products and services to more customers, meet the demand of the broader market, sincerely look forward to your sincere cooperation, create a better world.
Welcome the new and old customers to send us a telegram and understand the negotiation business.

Certificate display


FAQ



Q1. Can I have a sample order?



  A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.



Q2: What’s the delivery time?



  A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at different time.



Q3:What's your warranty terms?



  A: The warranty for all our Led products is 2 years.



Q4: How does your factory do regarding quality control?



  A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
