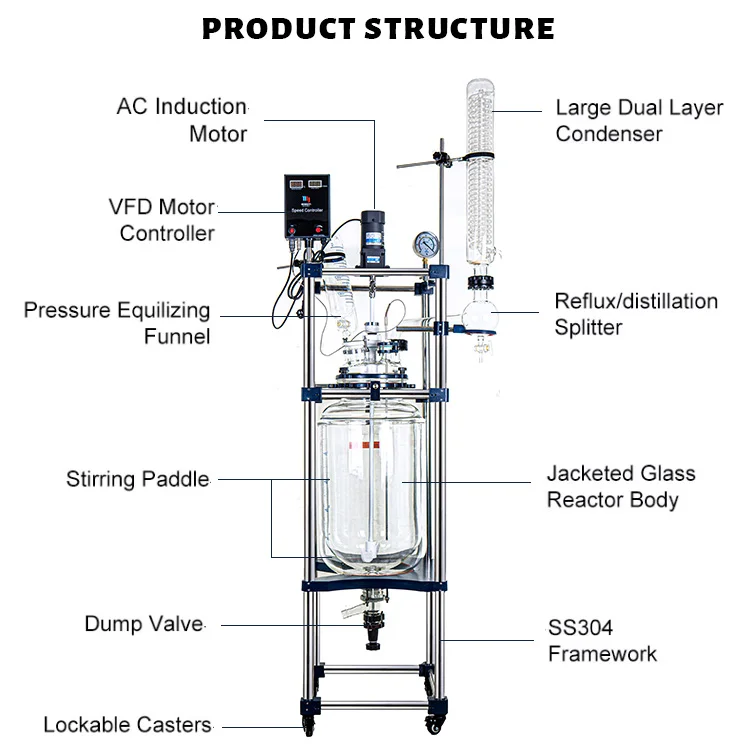

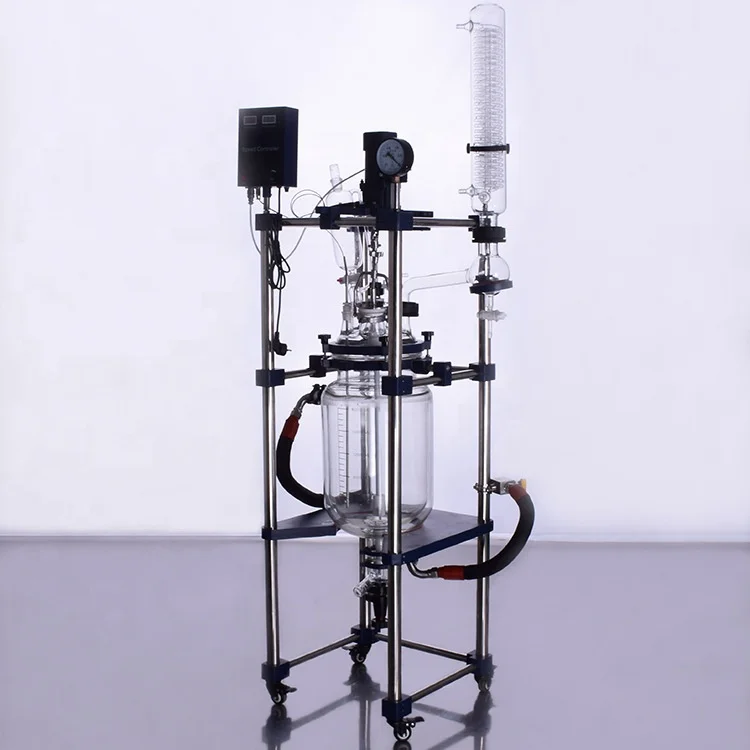

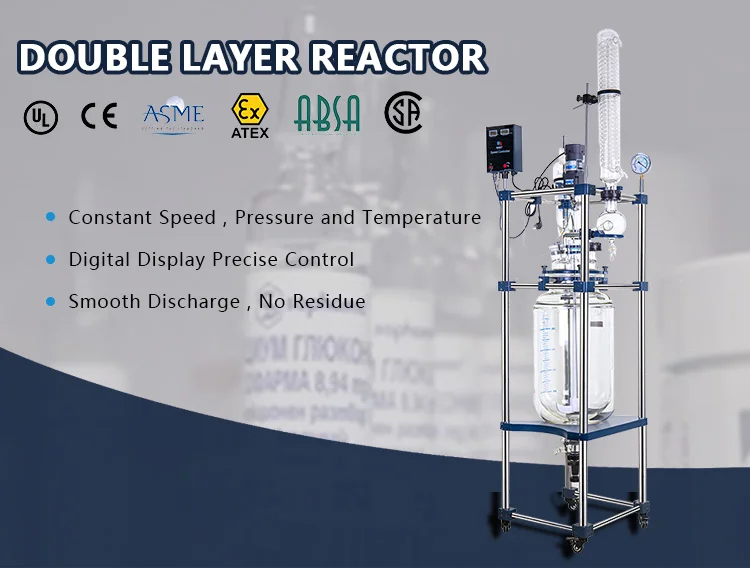

MINGYI 100L Distillation Chemistry Jacket Glassware Reactor With Plc
- Category: Reactors >>>
- Supplier: Zhengzhou Mingyi Instrument Equipment Co. Ltd.
Share on (60772435872):
Product Overview
Description
Product Application
100L glass reactor chemistry is commonly used in chemical and biological equipment, widely selected modern fine chemicals, bio-pharmaceuticals, scientific experiments and other industries, can be concentrated and distilled at constant speed, constant force, constant temperature conditions, will remain separate, purification reaction is teaching, laboratory, test, production of the ideal equipment.
Model | MY-100L | |||||
Glass material | 100L | |||||
Structure material | Stainless steel | |||||
Fittings Material | 304Stainless steel | |||||
Moves | Universal casters with brakes | |||||
Reaction flask volume | 100L | |||||
Mezzanine capacity | 28L | |||||
Flanged out of the oil circulation port | Low feed high out | |||||
Covering the bottle number | 6 | |||||
Distance from the ground of the discharge opening | 450mm | |||||
The reaction kettle body temperature | -80-250C | |||||
Vacuum | 0.098Mpa | |||||
Stirring speed | 0-280rpm | |||||
Stirring Shaft | 15mm | |||||
Mixing Power | 750W1/5 | |||||
Voltage(V/Hz) | 220V/50Hz | |||||
Size(mm*mm*mm) | 1300*900*3400 | |||||
Packing weight（KG） | 190 | |||||
Before order:
1. 24h online service.all of our inquiries will be replied in 3 mins during the working time,
2. Professional sales guidance from the product to shipping to save your time and cost!
After-service:
1.1 year warranty. During the warranty,any problem on machine,we have after service to fix,glass except.
2.Offer technical guidance all the life.

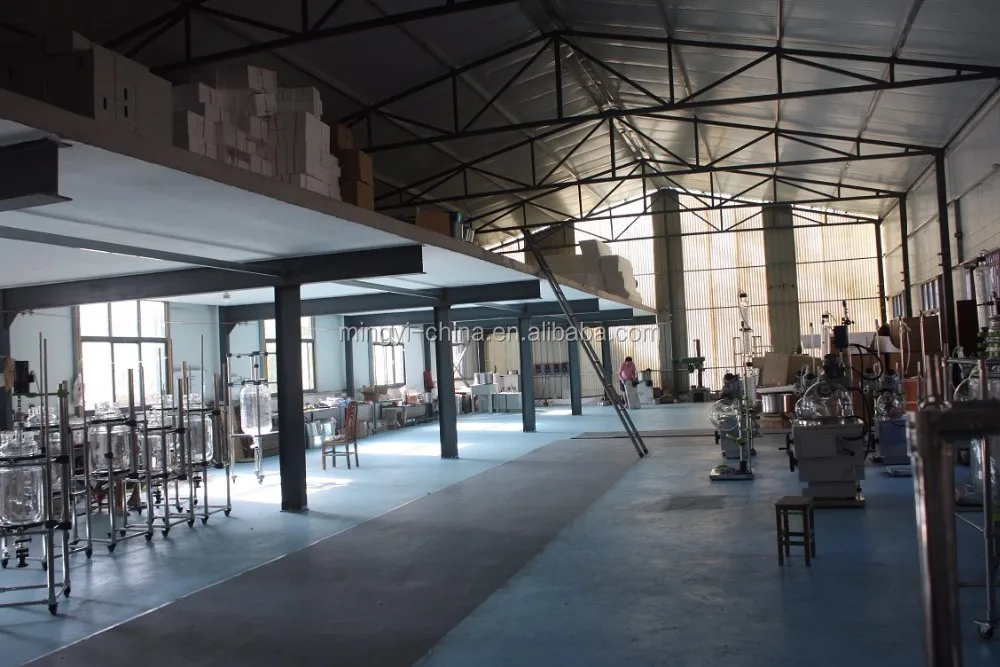

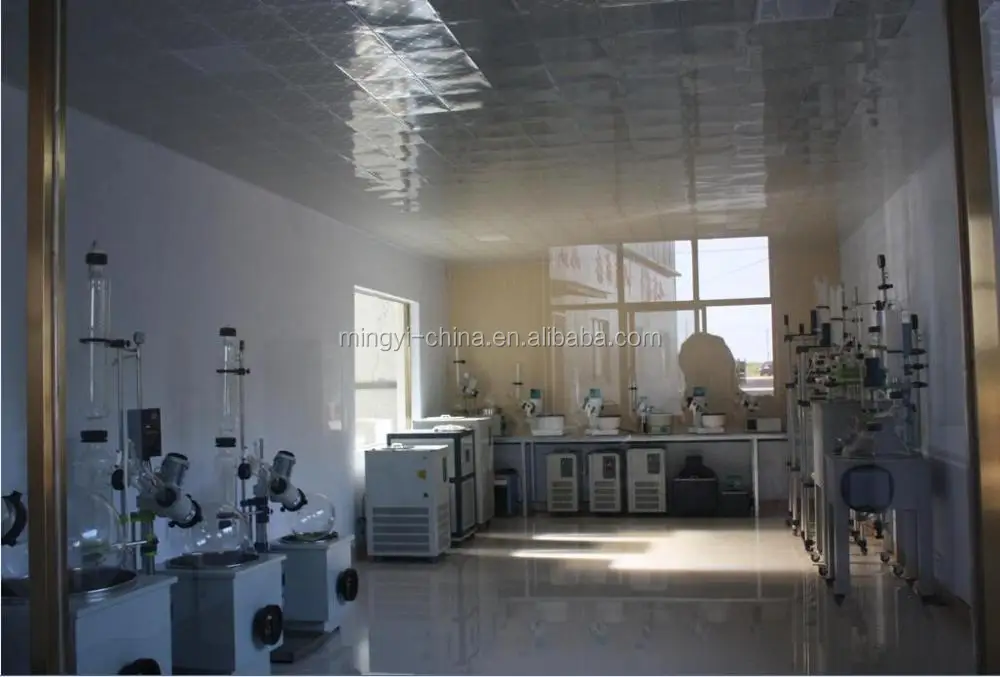

3.Welcome to visit our factory anytime.
Packaging | ||
Size | 1920*720*930mm | |
Weight | 132.5kg | |

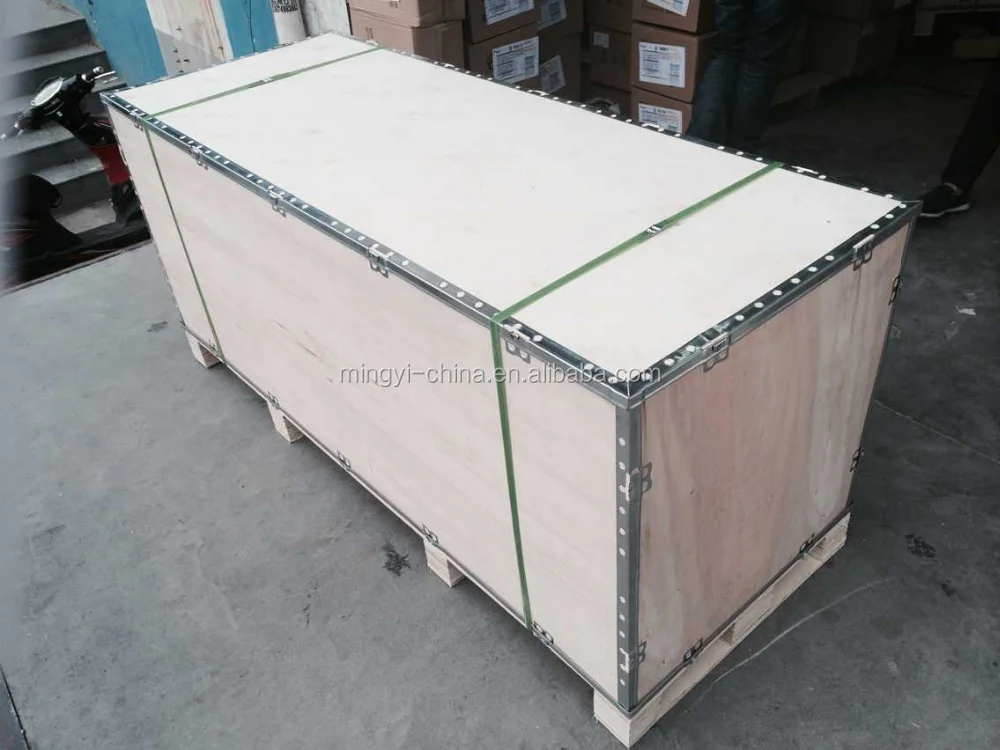

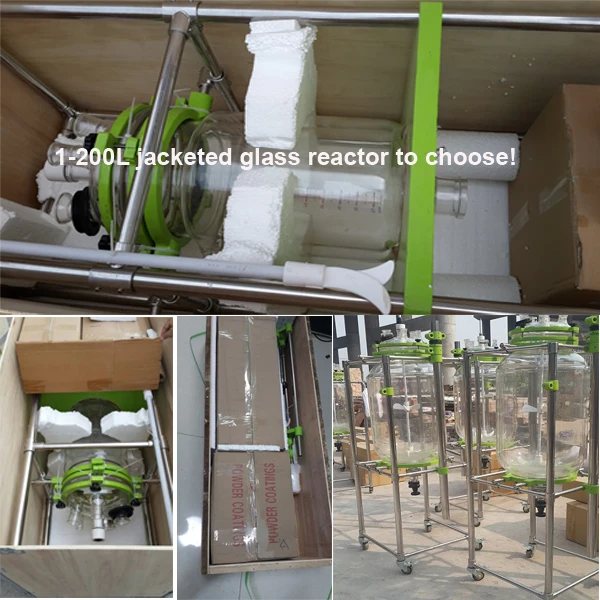

Packaging Details | All of our glass reactors from 1L-200L are packed with exporting standard wooden case to make sure the glass part safe! | |
1-5L jacketed glass reactor
10L-100L jacketed glass reactor
150L-200L jacketed glass reactor
1-5L single layer glass reactor
10L-50L single layer glass reactor.
10L-50L vacuum filter
Small rotary evaporator
10-50L rotary evaproator
10-50L auto lift rotovap
Our 100L glass reactor chemistry has excellent quality,if any needs,welcome to contact me,I'm here always!
