Price:$56.00 - $210.00

Quantity:


Product Overview

Description



Product Description




Specification


Voltage range
AC80V-260V / 50HZ-60HZ
Power dissipation
15W
Working temperature
-10℃-60℃
Coordinates Display
2/3/4/5 axis
Certification
CE,ROHS
Input signal
5V TTL / RS422
Input frequency
≤4MHZ
Operating keypad
Mechanical keypad
Resolution
0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 2.5μm, 5μm, 10μm, 50μm

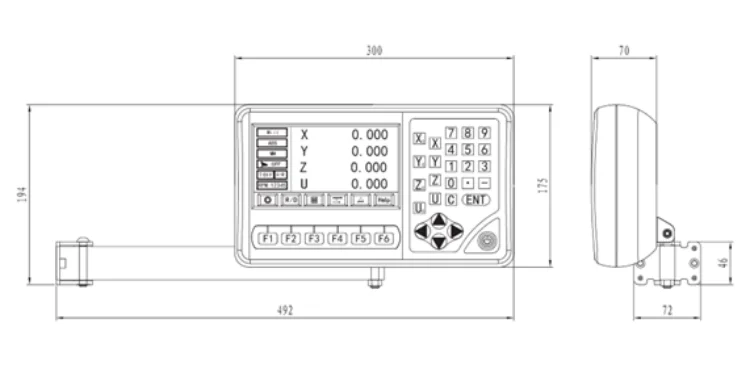

Dimension
300mm*175mm*70mm


Function








Processing functions
1. Setting,ABS/INC Coordinate 8. Radius/Diameter switching
2. 200 sets of SDM Coordinates 9. Axis summing,Digital Filtering Function
3. REF Centering 10. Taper Measuring Function
4. PLD Function 11. Bevel Function
5. PCD Function 12. 16 sets of Tool Memory
6. Simple R function 13. Dynamic Graphics
7. Smooth R Function 14. Preview Drawing



Basic functions
1. Zeroing,Data Recovery 7. Calculator
2. Value Inputting 8. Counting Direction Setting
3. Metric and Imperial Switching 9. EDM Function
4. Power off memory, 10. 200 sets of SDM coordinates
5. Encoder Selection(Rotary or Linear) 11. Linear Measuring Basing Rotary Encoder
6. Linear Compensation,Non-linear Compensation








Features.
1. 7' true color LCD screen,easy to recognizing.
2. Saving the drawing function,the DRO allows to save the drawings into the system which makes the machining to be much more convenient.
3. Special previewing the drawing function, after setting well the parameters, the DRO will display the machined well effect which makes the operating be more visual.
4. Displaying the tool's current position function,during the machining,the system will display the tool' s current position according to the drawing which makes the machining be much more easier.
5. Help function,during the machining,if there is any doubt, pressing the help button will help you to solve.
6. Custom settings for the shortcut keys,operator can set the shortcut keys according to his operating habit.
