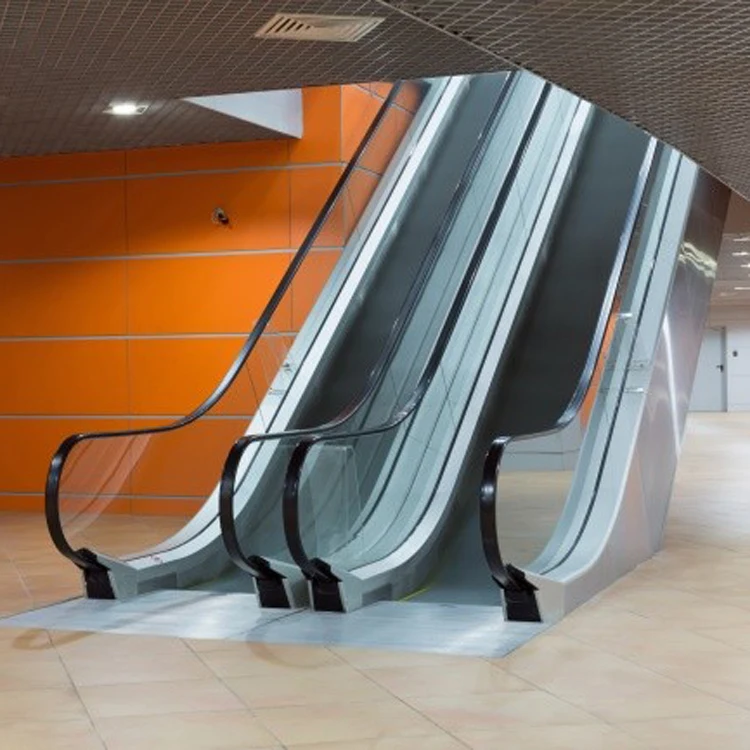

VOLKSLIFT Great Height Moving China Home Escalator Stairs

Product Overview

Description

 VOLKSLIFT Great Height Moving China Home Escalator Stairs



 30°VF-escalator:

Step width(A)	Lift height(H)	Motor Power(KW)
600	2500-6000	5.5
800	2500-4390	5.5
	4391-5990	7.5
	5991-6000	8
1000	2500-3300	5.5
	3301-4490	7.5
	4491-4790	8
	4791-6000	11

Step width(A)	A	B	C	D	E	F
600	600	838	1200	2500	3150	1200
800	800	1038	1400	2900	3550	1400
1000	1000	1238	1600	3300	3950	1600

	Support load(KN)	Support load(KN)	Support load(KN)
Step width(A)	600	800	1000
No intermediate support	R1=(0.0034L+15.5)*2	R1=(0.00375L+17)*2	R1=(0.0042L+18.5)*2
	R2=(0.0034L+10)*2	R2=(0.00375L+11)*2	R2=(0.0042L+11.5)*2
One middle support	R1=(0.0034L+13.5)*2	R1=(0.00375L+15.1)*2	R1=(0.0042L+16.5)*2
	R2=(0.0034L+8.1)*2	R2=(0.00375L+8.8)*2	R2=(0.0042L+9)*2
	R3=(0.00355L+10.5)*2	R3=(0.00375L+11.5)*2	R3=(0.0042L+12)*2



35°VF-escalator:

Step width(A)	Lift height(H)	Motor Power(KW)
600	2500-6000	5.5
800	2500-4590	5.5
	4591-6000	7.5
1000	2500-3420	5.5
	3421-4660	7.5
	4661-4970	8
	4971-6000	11



Step width(A)	A	B	C	D	E	F
600	600	838	1200	2500	3150	1200
800	800	1038	1400	2900	3550	1400
1000	1000	1238	1600	3300	3950	1600



	Support load(KN)	Support load(KN)	Support load(KN)
Step width(A)	600	800	1000
No intermediate support	R1=(0.0034L+15.5)*2	R1=(0.00375L+17)*2	R1=(0.0042L+18.5)*2
	R2=(0.0034L+10)*2	R2=(0.00375L+11)*2	R2=(0.0042L+11.5)*2
