Компьютеризированная машина для резьбы по дереву 4x4, фрезерный станок с ЧПУ 1212 для 3d скульптур, ротационная древесина, МДФ, пластик, мягкий металл
- Category: Wood Router >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (60773052420):
Product Overview
Description
Product Show
Product Feature

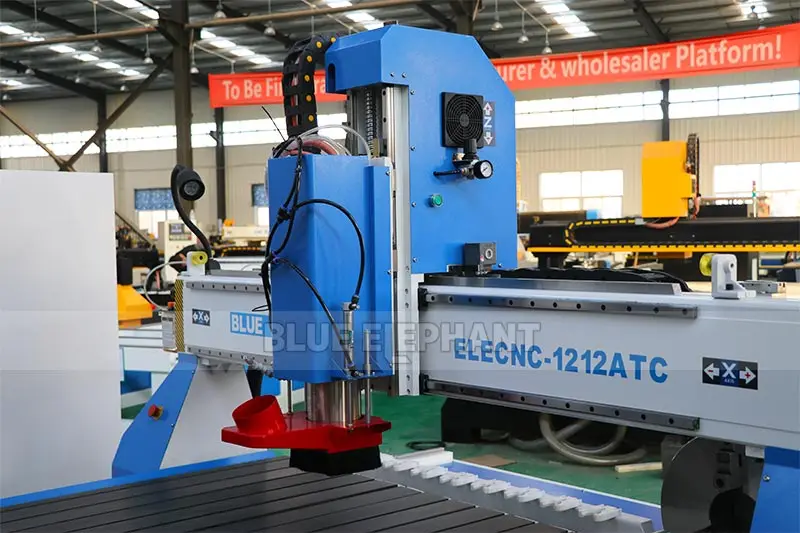

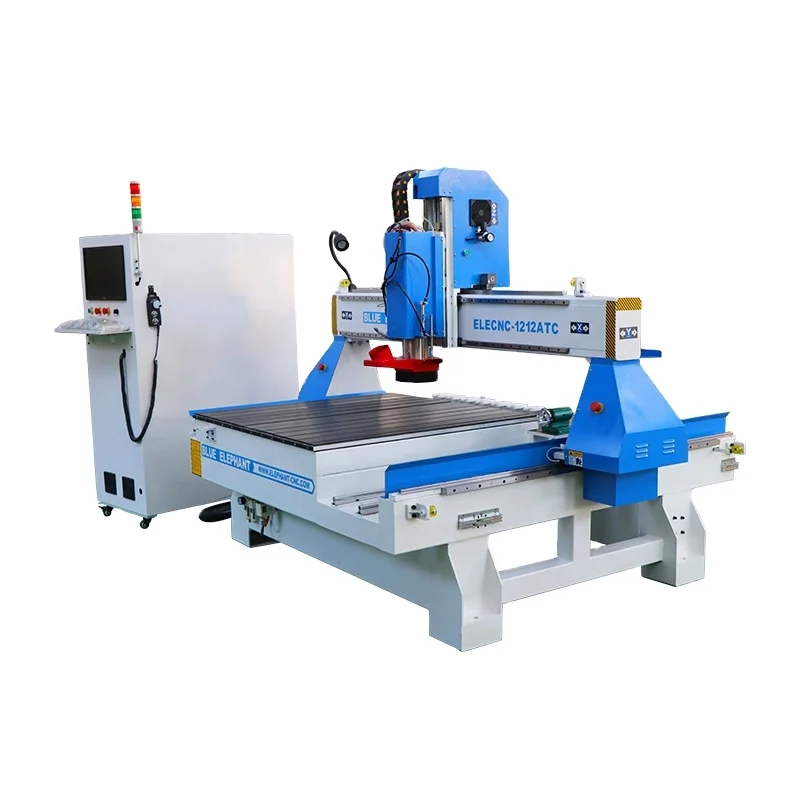

This type ELE1212-4 cnc router machine can be widely used for engraving 2d or 3d finished product, such as Roman column, stair handrail, furniture legs, statue or flat furniture or home decorations in widely industry. some users like computer control cnc machine, it is mach3 control with handle easy operation. the rotary attachment can be removed from the working table for dual convenient use. so it is ideal choice for users who need multifunctional small router cnc.
Product Details
Technical Parameters
X,Y,Z Working Area | 1200*1200*400mm |
Working Voltage | 220V, 3Ph, 60Hz (optional: 380V) |
Control System | Mach 3 control system with wireless handle |
Spindle | 3kw Changsheng water cooling spindle |
Spindle Speed | 0-24000RPM |
Inverter | 3.7 kw Fuling inverter |
Drive Motors | Leadshine 860H driver |
Table surface | Vacuum and T-slot table |
Lubrication system | Manual oil lubrication system |
Structure | New type thicker and bigger heavy duty welded frame and gantry |

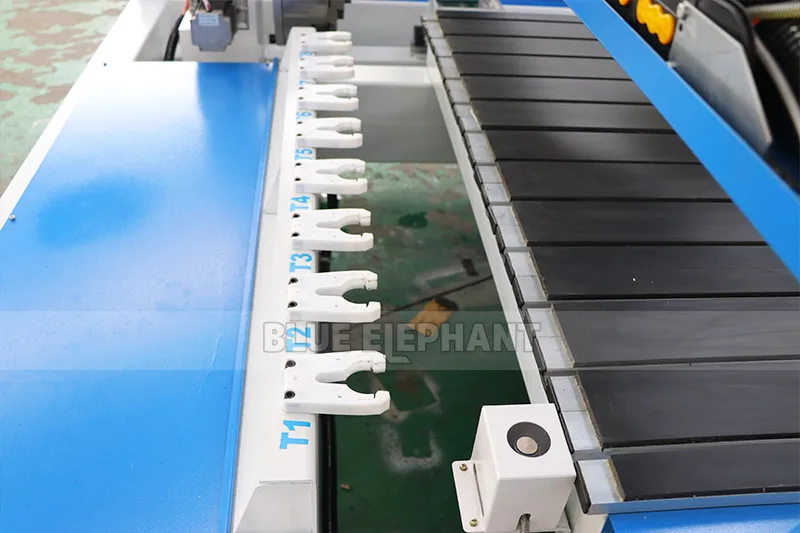

Tool sensor calibration | Automatic tool sensor calibration |
Vacuum pump | 5.5kw water circulation vacuum pump for option |
Dust collector | double pocket dust collector for option |
Applied Industries
Applied Material
Related Video
Quality Control
Service Process
Company Information
Jinan blue elephant is in the manufacture of automated CNC Router machine, CNC laser machine and other CNC equipments. Our main products include: ATC CNC router, 4 axis CNC router, 5 axis CNC, customized furniture production line, CNC nesting machine, metal laser cutting machine, CNC five-sided drilling, six-sided drilling, CNC machining center, automatic drilling machine, foam/eps cnc machine, plasma cutter, laser cnc, stone cnc etc .
Feedback
We are able to provide satisfied service of cnc router machine and laser machine for customers all over the world, with more than 10 years experience in Jinan city, China.
