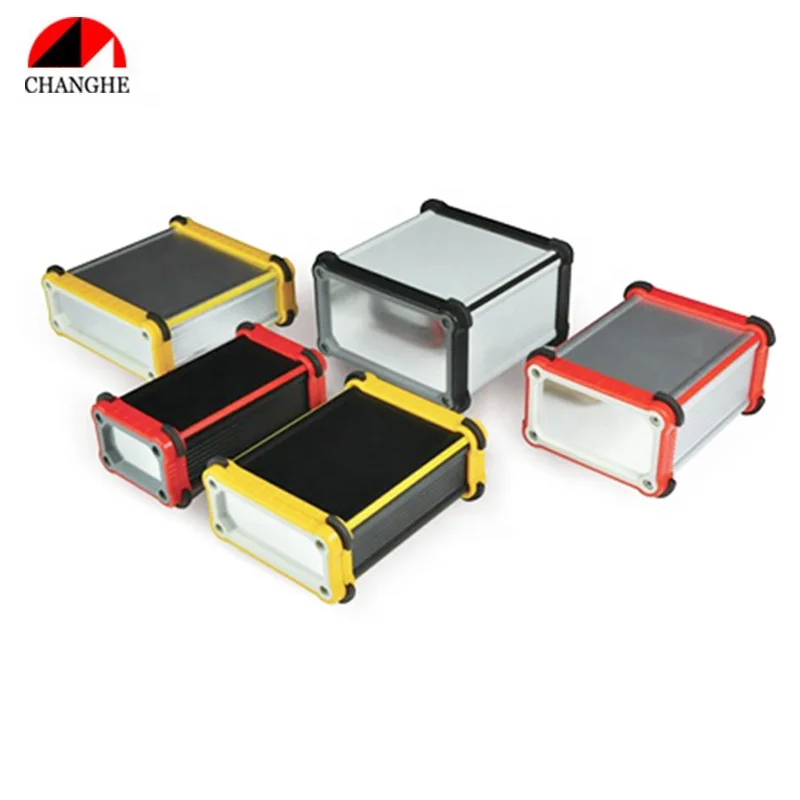

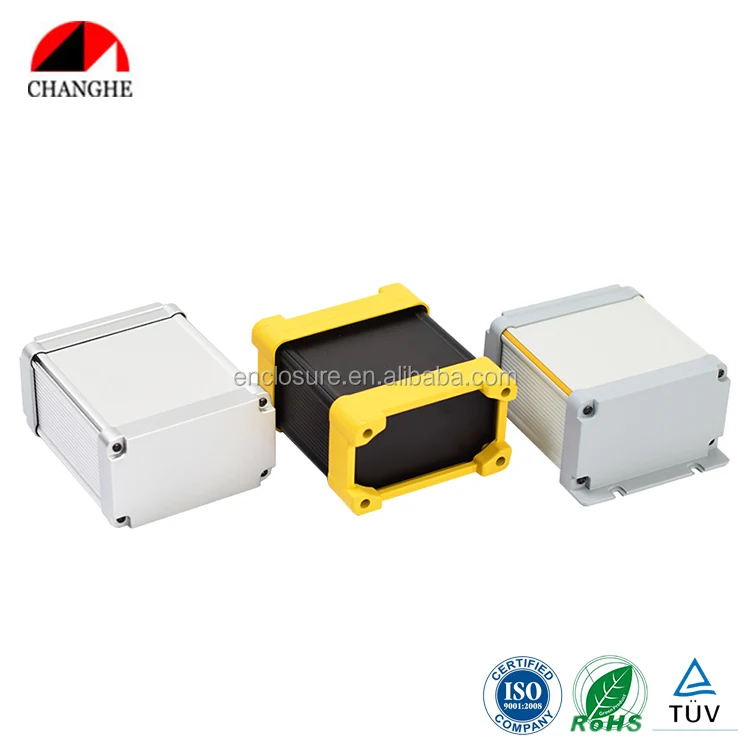

Custom electronics aluminum extruded enclosure aluminum extrusion box
- Category: Electronic & Instrument Enclosures >>>
- Supplier: Ningbo Dayang Enclosures Co. Ltd.
Share on (60773073987):
Product Overview
Description
Product Description

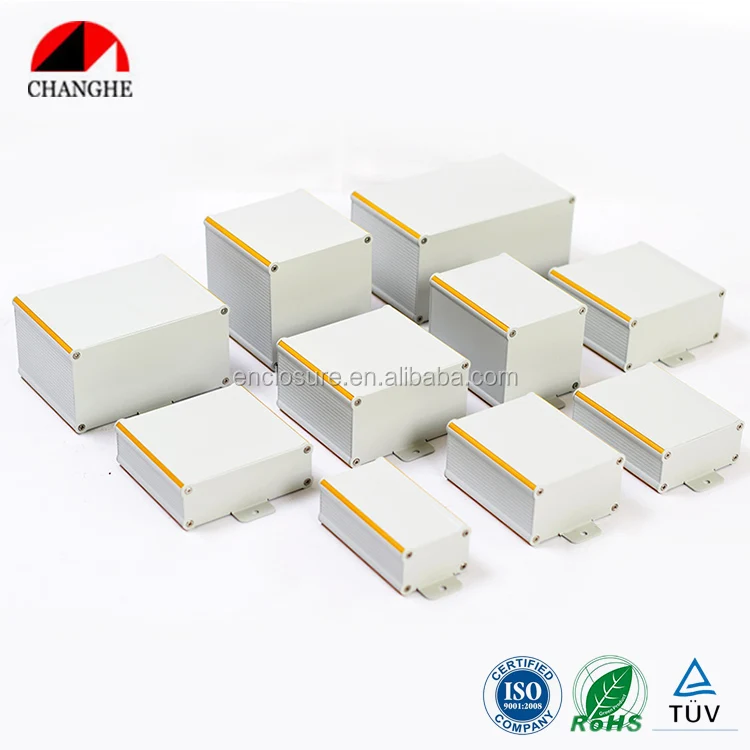

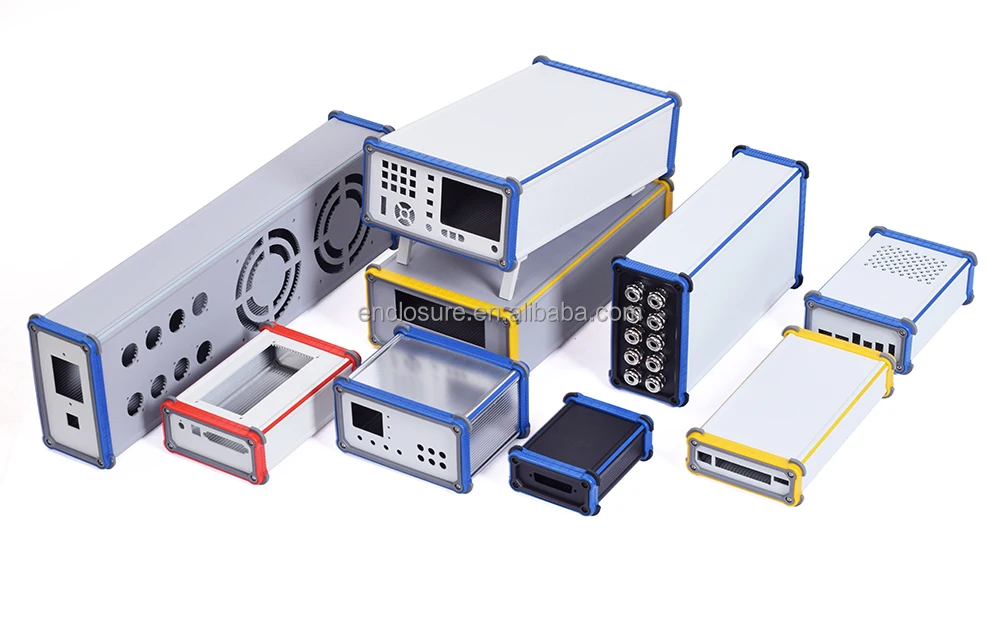

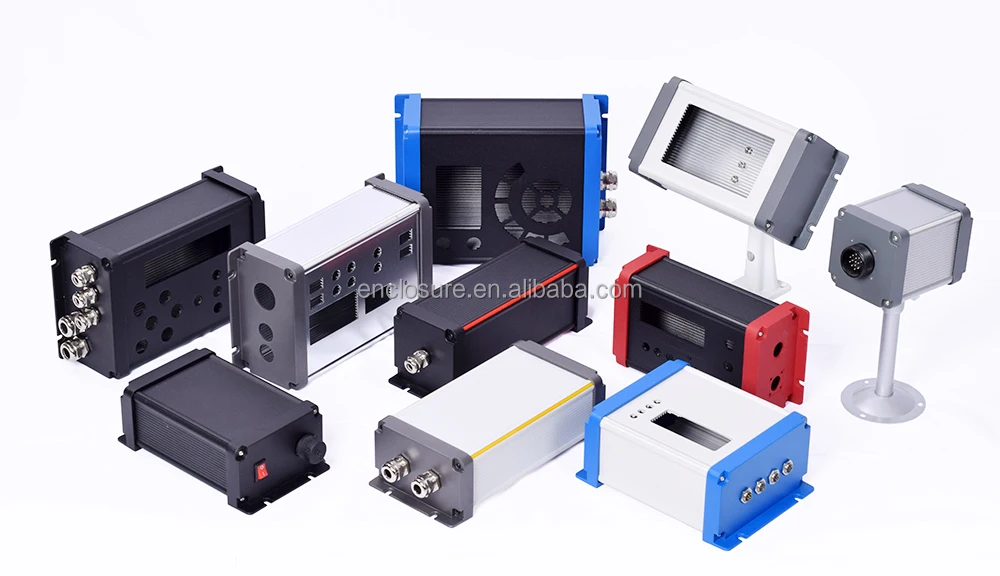

Aluminum Extruded Enclosure
CHANGHE aluminum extruded enclosures are made of aluminum alloy, with enhanced flexibility and customization.
You can choose your own fully custom length.
Ingress protection ratings range from IP52 to IP65. Some of their most noteworthy advantages are EMI shielding, heat dissipation and integrated PCB slots.
Custom & Modified Enclosures
When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:
- Various color and design combination
- Custom length
- High precision machining
Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
>>For more detail, please visit our website: www.changhe-enclosures.com
Dimension Chart
35G-35H-35L series
* Custom length
* Made of extruded aluminum alloy
* Good heat dissipation andEMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Corner guards are designed to be both aesthetically pleasing, and impact resistant.
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
* Made of extruded aluminum alloy
* Good heat dissipation andEMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Corner guards are designed to be both aesthetically pleasing, and impact resistant.
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) | Model No. | Internal size in mm (WxH) | Internal size in mm (WxH) |
35G-1 | Tx87x49 | 68x33 | 35H-6 | Tx113x62 | 103.7x56.8 |
35G-2 | Tx87x60 | 68x44 | 35H-7 | Tx85x85 | 73.6x73.6 |
35G-3 | Tx102x49 | 77x33 | 35H-8 | Tx105x105 | 93.6x93.6 |
35G-4 | Tx102x60 | 77x44 | 35H-9 | Tx145x80 | 133.6x68.6 |
35G-5 | Tx102x70 | 77x55 | 35H-10 | Tx175x90 | 163.6x78.6 |
35G-6 | Tx140x48 | 121x32 | 35L-1 | Tx81x45 | 68x33 |
35G-7 | Tx140x65 | 116x34 | 35L-2 | Tx81x56 | 68x44 |
35G-8 | Tx140x82 | 116x40 | 35L-3 | Tx96x45 | 77x33 |
35G-9 | Tx70x37 | 53x22.4 | 35L-4 | Tx96x56 | 77x44 |
35G-10 | Tx176x59 | N/AxN/A | 35L-5 | Tx96x67 | 77x55 |
35H-1 | Tx61x42 | 52x32.6 | 35L-6 | Tx134x46 | 121x32 |
35H-2 | Tx82x42 | 78x32.6 | 35L-7 | Tx134x62 | 116x34 |
35H-3 | Tx82x54 | 78x44.8 | 35L-8 | Tx134x79 | 116x40 |
35H-4 | Tx113x42 | 103.7x32.6 | 35L-9 | Tx66x34 | 53x22.4 |
35H-5 | Tx113x54 | 103.7x44.8 |
35M-35N series
* Custom length
* Made of extruded aluminum alloy
* Good heat dissipation and EMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
* Made of extruded aluminum alloy
* Good heat dissipation and EMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) |
35M-1 | Tx57x32 | 48.5x27 |
35M-2 | Tx106x32 | 97.5x26.5 |
35M-3 | Tx108x42 | 97x36 |
35M-4 | Tx138x34 | 127x27.8 |
35M-5 | Tx169x52 | 158x45.8 |
35M-6 | Tx169x82 | 160x75.4 |
35M-7 | Tx192x74 | 183x67 |
35N-1 | (T+11.5)x57x32 | 48.5x27 |
35N-2 | (T+11.5)x106x32 | 97.5x26.5 |
35N-3 | (T+11.5)x108x42 | 97x36 |
35N-4 | (T+11.5)x138x34 | 127x27.8 |
35N-5 | (T+11.5)x169x52 | 158x45.8 |
35N-6 | (T+11.5)x169x82 | 160x75.4 |
35N-7 | (T+11.5)x192x74 | 183x67 |

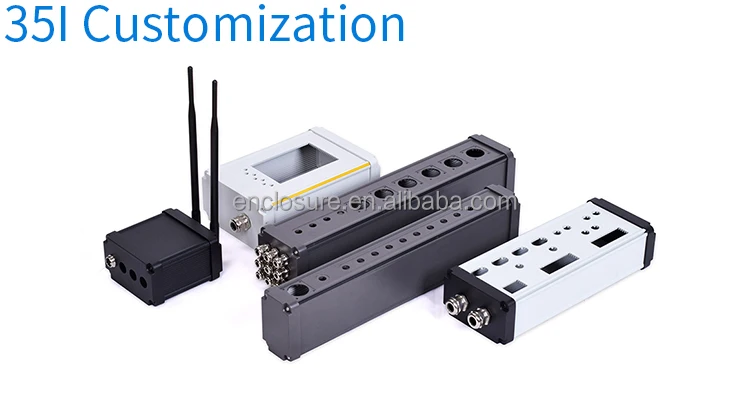

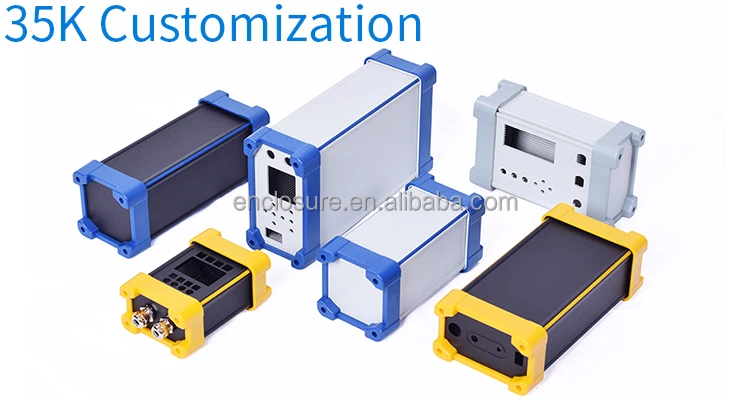

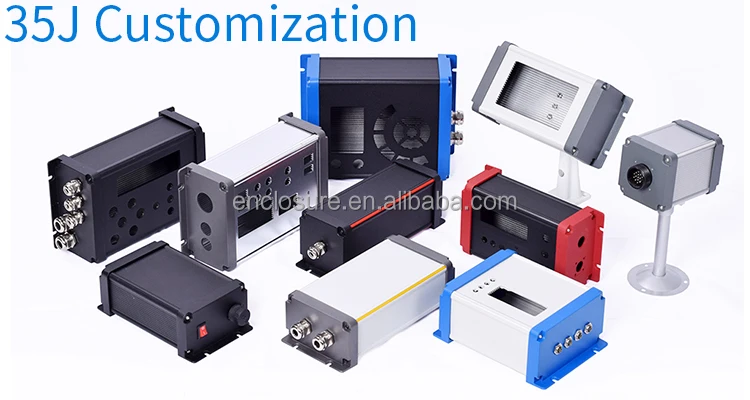

35I-35J-35K series
* Custom length
* Made of extruded aluminum alloy
* Good heat dissipation and EMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
* Made of extruded aluminum alloy
* Good heat dissipation and EMI shielding
* Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
* Slots in the extrusion for installing PCB and components
* Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) | Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) |
35I-1 | Tx88x55 | 78x44.8 | 35J-4 | Tx104x104 | 93.6x93.6 |
35I-2 | Tx114x67 | 103.7x56.8 | 35J-5 | Tx144x79 | 133.6x68.6 |
35I-3 | Tx89x89 | 73.6x73.6 | 35J-6 | Tx175x89 | 163.6x78.6 |
35I-4 | Tx104x104 | 93.6x93.6 | 35K-1 | Tx95x62 | 78x44.8 |
35I-5 | Tx144x79 | 133.6x68.6 | 35K-2 | Tx120x73 | 103.7x56.8 |
35I-6 | Tx175x89 | 163.6x78.6 | 35K-3 | Tx90x90 | 73.6x73.6 |
35J-1 | Tx88x55 | 78x44.8 | 35K-4 | Tx110x110 | 93.6x93.6 |
35J-2 | Tx114x67 | 103.7x56.8 | 35K-5 | Tx150x84 | 133.6x68.6 |
35J-3 | Tx89x89 | 73.6x73.6 | 35K-6 | Tx181x95 | 163.6x78.6 |

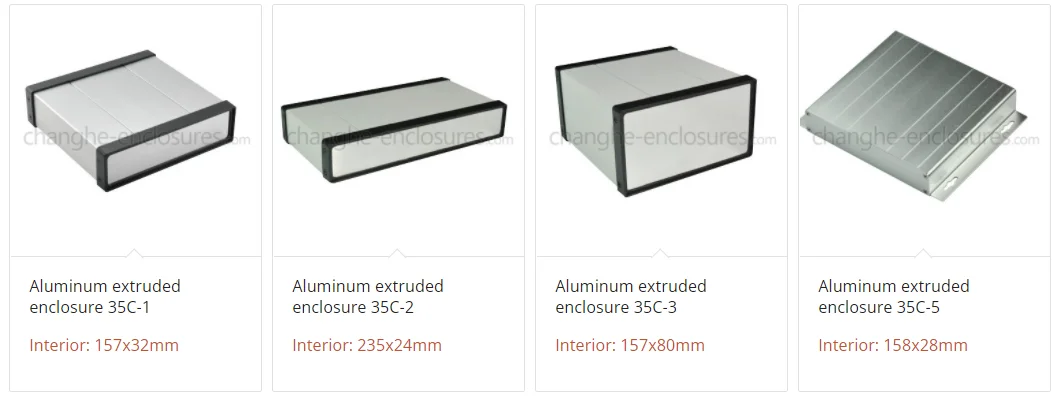

35A - 35B - 35C series
- Custom length
- Ingress Protection: IP52-IP53
- Made of extruded aluminum alloy, with optional flanged panel for easy mounting
- Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
- Good heat dissipation (better if black powder coating surface treatment is applied).
- Good EMI shielding
- Slots in the extrusion for installing PCB and components
- Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided.
>> For more dimensions, please contact our sales team for a personal quote
- Ingress Protection: IP52-IP53
- Made of extruded aluminum alloy, with optional flanged panel for easy mounting
- Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
- Good heat dissipation (better if black powder coating surface treatment is applied).
- Good EMI shielding
- Slots in the extrusion for installing PCB and components
- Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided.
>> For more dimensions, please contact our sales team for a personal quote
Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) | Model No. | External size in mm (LxWxH) | Internal size in mm (WxH) |
35A-1 | Tx90x42 | 85x37 | 35B-27 | Tx95x95 | 91x91 |
35A-10 | Tx160x90 | 157x85 | 35B-28 | Tx95x47 | 91x43 |
35A-11 | Tx240x90 | 234x81 | 35B-31 | Tx67x15 | 64x13 |
35A-12 | Tx214x136 | 209.5x126 | 35B-32 | Tx117x63 | 111x57 |
35A-13 | Tx225x150 | 220x140 | 35B-33 | Tx179x63 | 173x57 |
35A-14 | Tx65x42 | 60x37 | 35B-34 | Tx48x20 | 46x17 |
35A-15 | Tx90x65 | 81x60 | 35B-35 | Tx83x33 | 73x27 |
35A-16 | Tx136x52 | 127x47 | 35B-36 | Tx112x38 | 88x33 |
35A-17 | Tx150x57 | 141x52 | 35B-37 | Tx63x27 | 44x23 |
35A-18 | Tx104x85 | 93x78 | 35B-38 | Tx95x27 | 64x23 |
35A-19 | Tx160x105 | 158x92 | 35B-39 | Tx95x54 | 64x50 |
35A-2 | Tx150x75 | 141x70 | 35B-4 | Tx119x63 | 114x57 |
35A-20 | Tx194x155 | 180x149 | 35B-40 | Tx131x27 | 100x23 |
35A-21 | Tx197x166 | 187x157 | 35B-41 | Tx131x54 | 100x50 |
35A-3 | Tx90x90 | 85x85 | 35B-42 | Tx131x82 | 100x78 |
35A-4 | Tx136x136 | 131xT | 35B-43 | Tx75x27 | 44x23 |
35A-6 | Tx150x150 | 143x142 | 35B-45 | Tx75x37 | 42x33.3 |
35A-7 | Tx136x64 | 131x60 | 35B-46 | Tx58x39 | 47.7x28 |
35A-8 | Tx160x42 | 156x37 | 35B-47 | Tx84x39 | 73.5x28 |
35A-9 | Tx240x42 | 234x37 | 35B-48 | Tx84x51 | 73.5x40.2 |

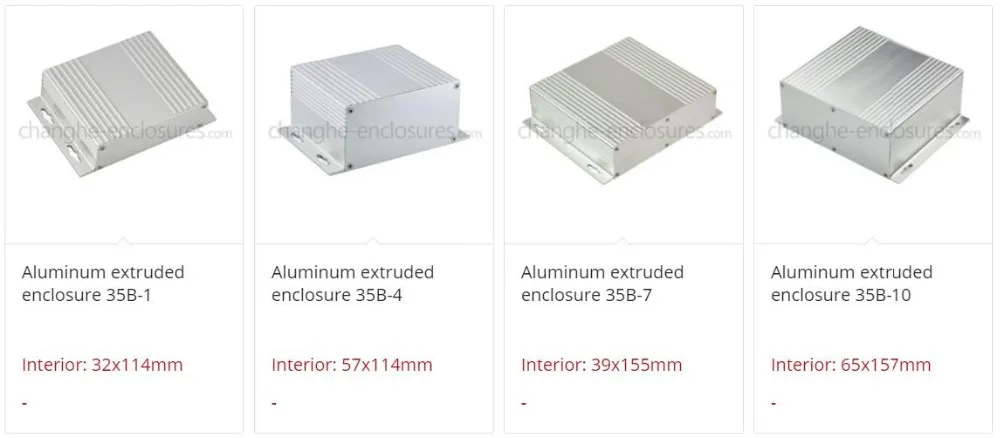

35B-1 | Tx119x38 | 114x32 | 35B-49 | Tx110x39 | 99.1x28 |
35B-10 | Tx160x70 | 157x65 | 35B-50 | Tx110x51 | 99.1x40.2 |
35B-13 | Tx106x36 | 98x30 | 35B-51 | Tx110x63 | 99.1x52.2 |
35B-14 | Tx61x26 | 53x22 | 35B-52 | Tx80x80 | 69x69 |
35B-15 | Tx61x37 | 53x33 | 35B-53 | Tx100x100 | 89x89 |
35B-16 | Tx61x48 | 53x44 | 35B-54 | Tx140x75 | 129x64 |
35B-17 | Tx76x26 | 68x22 | 35B-55 | Tx170x85 | 159x74 |
35B-18 | Tx76x37 | 68x33 | 35B-7 | Tx160x45 | 155x39 |
35B-19 | Tx76x48 | 68x44 | 35C-1 | Tx116x46 | 157x32 |
35B-20 | Tx91x37 | 77x33 | 35C-2 | Tx245x46 | 235x24 |
35B-21 | Tx91x48 | 77x44 | 35C-3 | Tx162x90 | 157x80 |
35B-22 | Tx91x59 | 77x55 | 35C-4 | Tx245x95 | 235x74 |
35B-23 | Tx73x21 | 70x19 | 35C-5 | Tx198x34 | 158x28 |
35B-24 | Tx129x37 | 121x32 | 35C-6 | Tx83x33 | 73x27 |
35B-25 | Tx129x54 | 116x34 | 35C-7 | Tx112x38 | 88x33 |
35B-26 | Tx129x70 | 116x40 | 35F-1 | Tx105x55 | 100.8x27 |
36 Series
- Custom length
- Made of extruded aluminum alloy, with powder coating finish
- Up to IP65 watertight and dust-proof (IEC60529 : 2001)
- Good EMI shielding
- Detachable front and rear panel
- Flanged rear panel for easy mounting
>> For more dimensions, please contact our sales team for a personal quote
- Made of extruded aluminum alloy, with powder coating finish
- Up to IP65 watertight and dust-proof (IEC60529 : 2001)
- Good EMI shielding
- Detachable front and rear panel
- Flanged rear panel for easy mounting
>> For more dimensions, please contact our sales team for a personal quote
