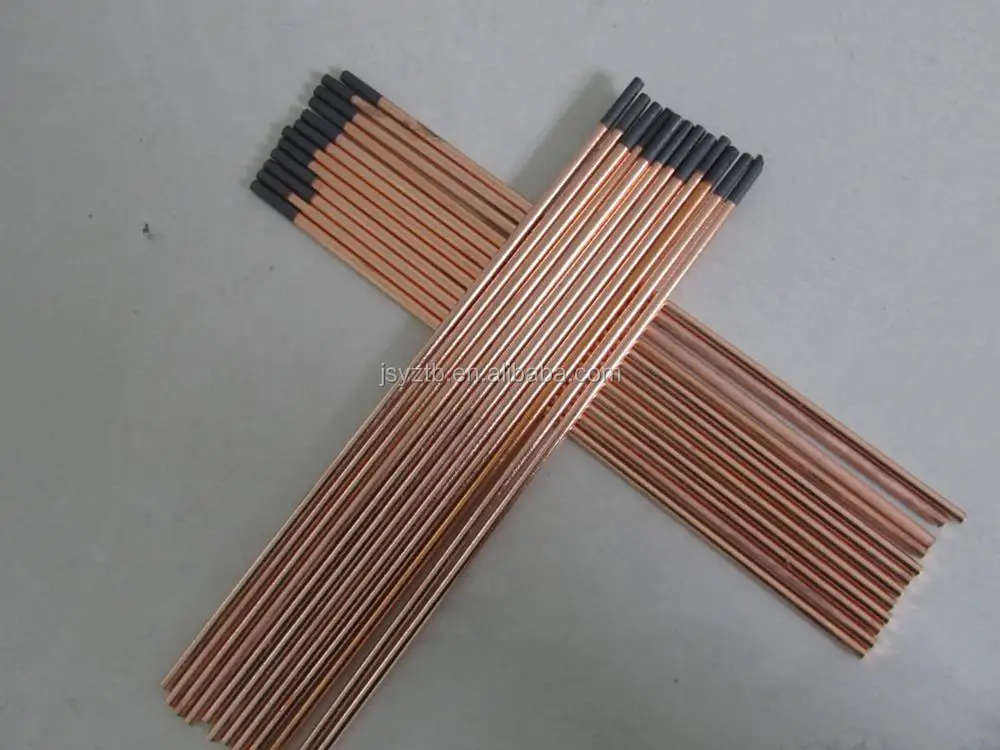

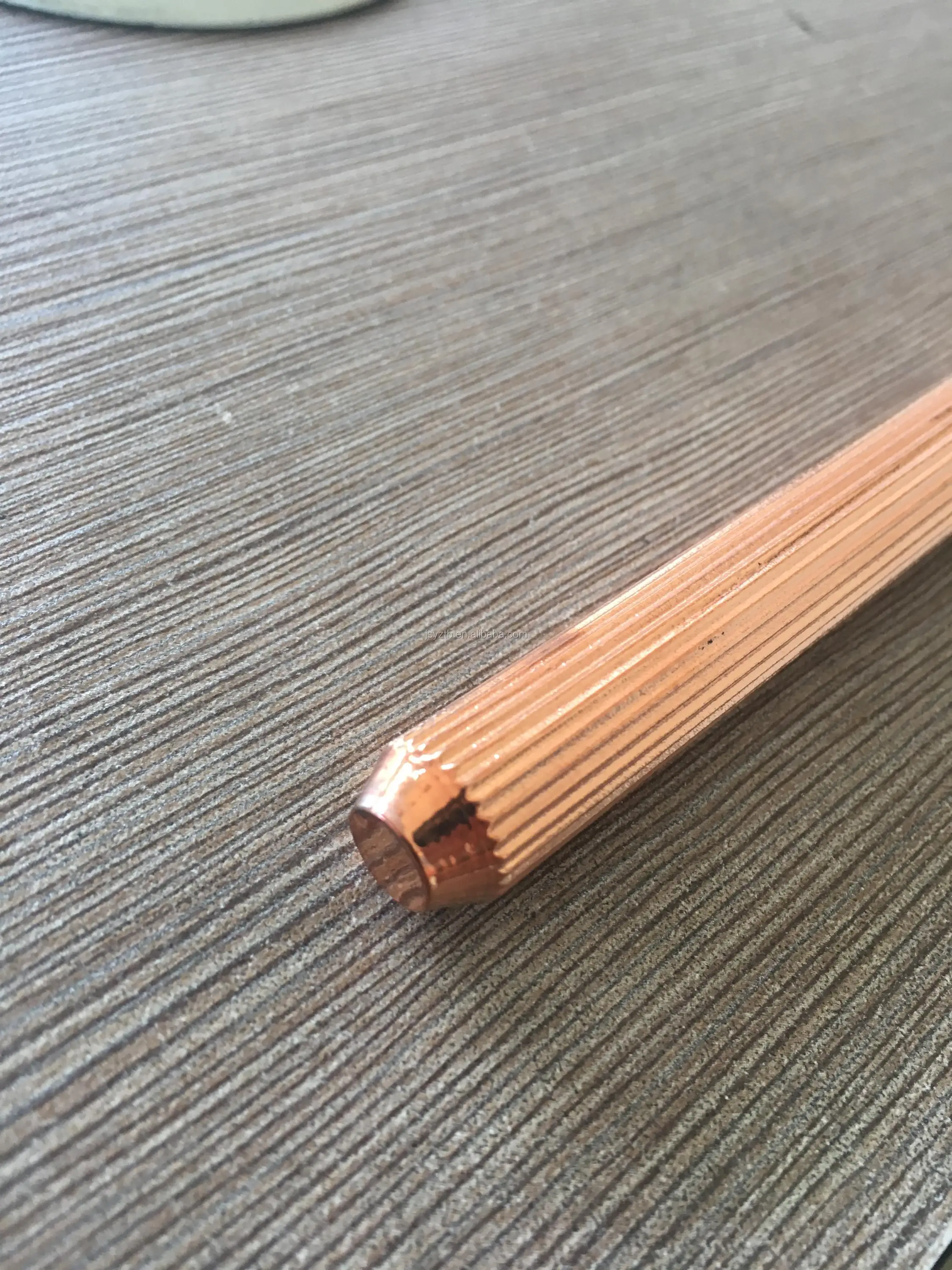

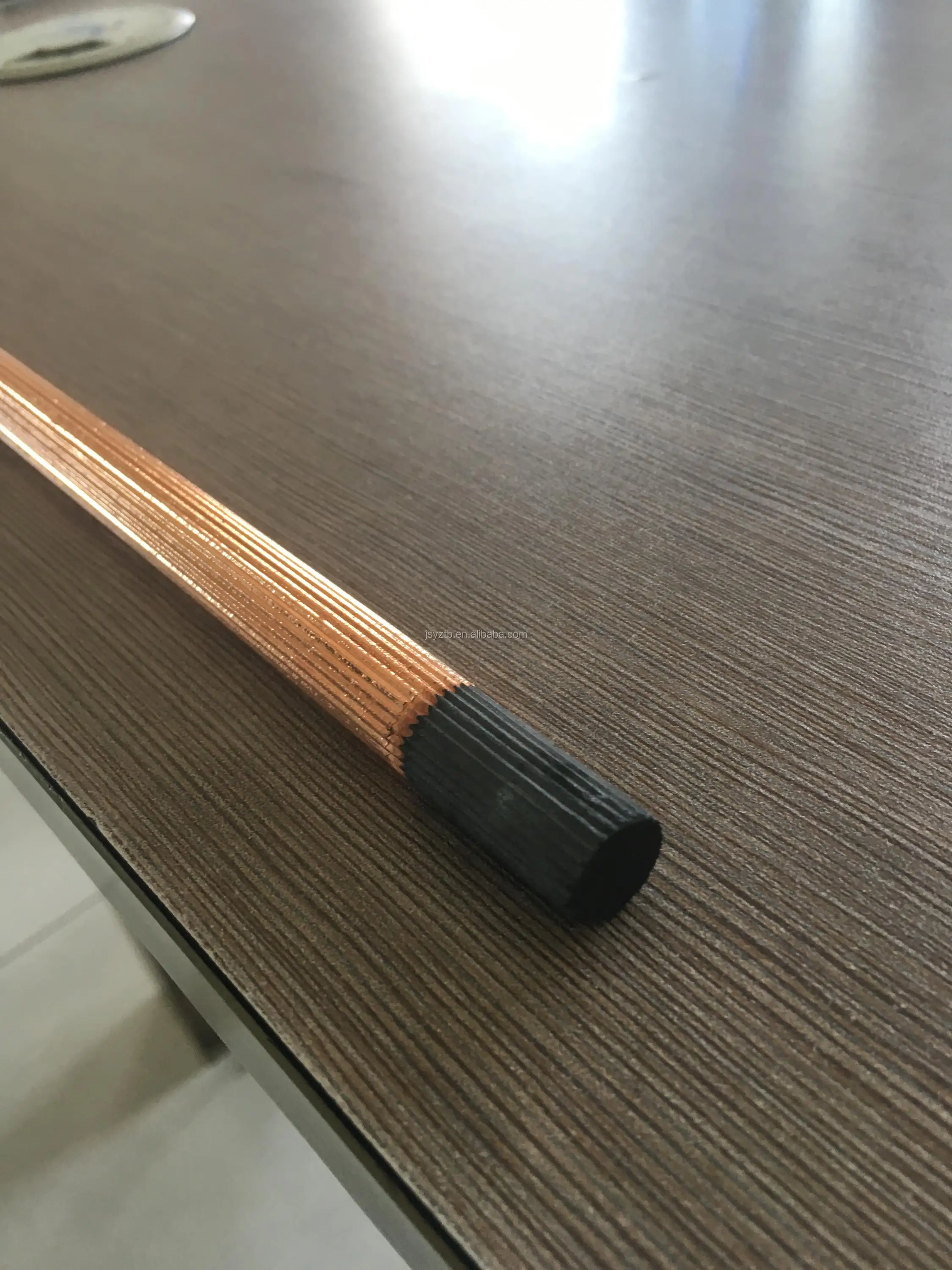

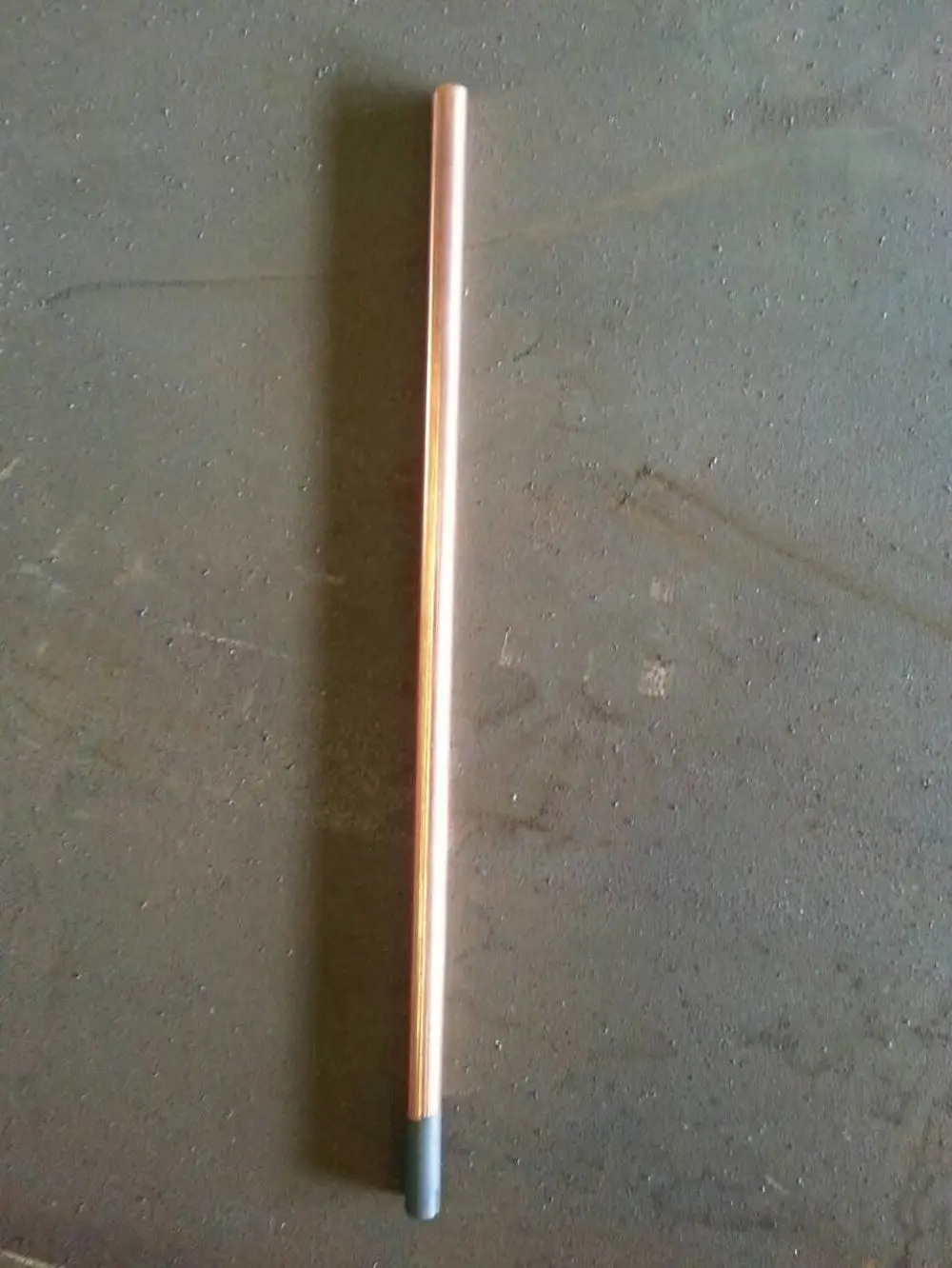

1.pointed carbon rod / gouging carbon electrode 2.all specifications are available 3.good quality&price 4.short delivery time
5.easy to operate, having widely application scales,
6.good effects and economical. 7.Strong anti-oxidizes, low electric resistance race,
Instructions:
1. Thel electrodes must keep in dry environment, if it is affected with damp must be drying before use.
2. When using for the direct current, the electrodes link to the anode, and task to the cathode.
3. Keeping steady of working normal air pressure
Caution:
• Electrodes must be kept dry. Wet electrodes can flake, or splinter and are dangerous. If electrodes become wet, bake at 300°F for 10 hours before using.
Specification:
Diameter * Length
Current Range(A)
mm
inches
3.2*305
1/8*12'
130-180
4*305(355)
5/32*12'(14')
150-200
5*305(355)
3/16*12'(14')
200-250
6*305(355)(400)(455)(510)
15/64*12'(14')(16')(18')(20')
300-350
6.5*305(355)
1/4*12'(14')
320-370
7*355
9/32*14'
350-400
8*305(355)(400)(455)(510)
5/16*12'(14')(16')(18')(20')
400-450
9*305(355)
23/64*12'(14')
450-500
9.5*305(355)
3/8*12'(14')
500-550
10*305(355)(400)(455)(510)
3/8*12'(14')(16')(18')(20')
550-600
11*305(355)
7/16*12'(14')
600-650
12*305(355)
15/32*12'(14')
750-850
12.7*305(355)
1/2*12'(14')
800-1000
13*305(355)
1/2*12'(14')
800-1000
16*305(355)
5/8*12'(14')
1000-1200
19*305(355)
3/4*12'(14')
1200-1400
Working Performance:
Packaging & Shipping
Company Information

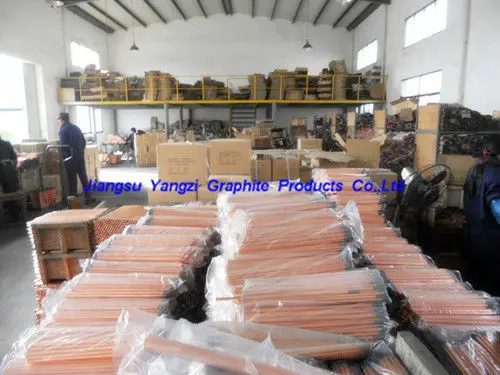

JIANGSU YANGZI GRAPHITE PRODUCTS CO., Ltd, established in 1979, is a professional producer of gouging carbon rods. After over 30 years hardworking, YANGZI GRAPHITE has become the largest manufacture and exporter of gouging carbon rods in china. The company has good team, professional technology and advanced equipment. The products meet ISO9001, and exported products comply with U. S. military standard MIL-E-17777D.
