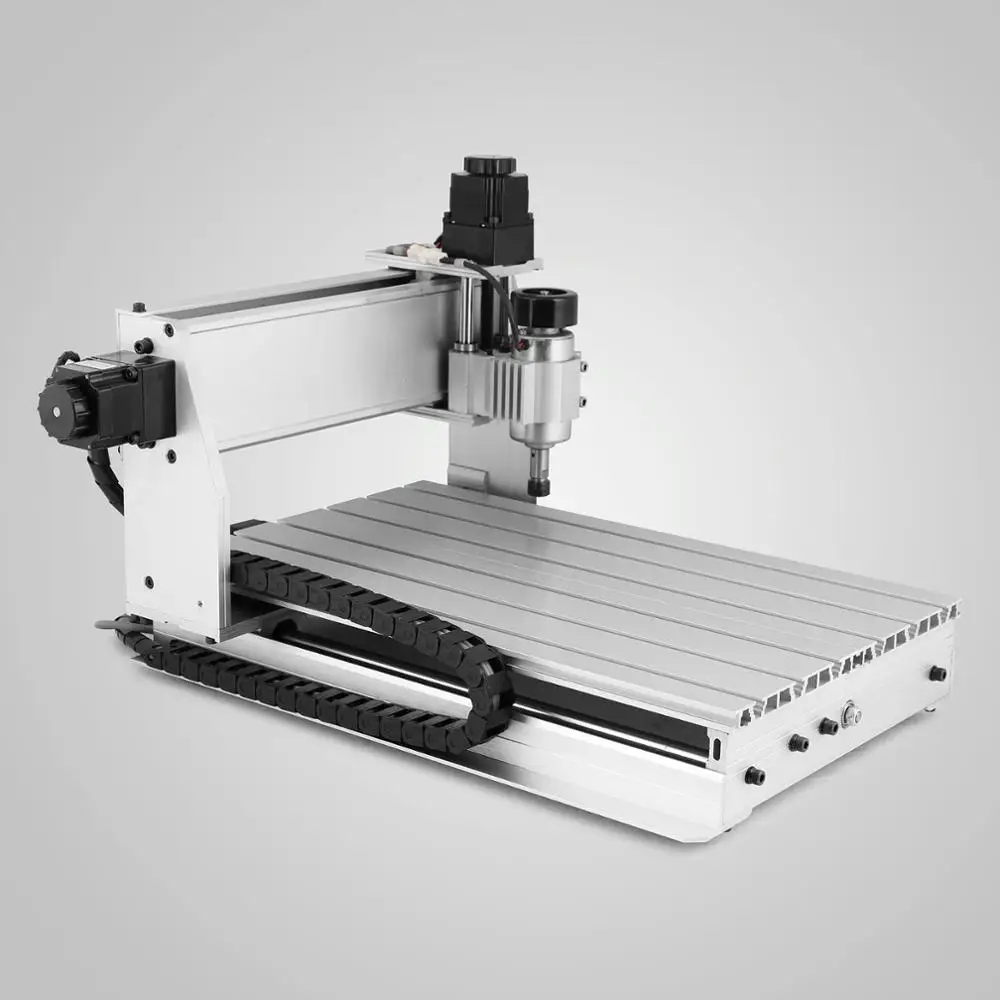

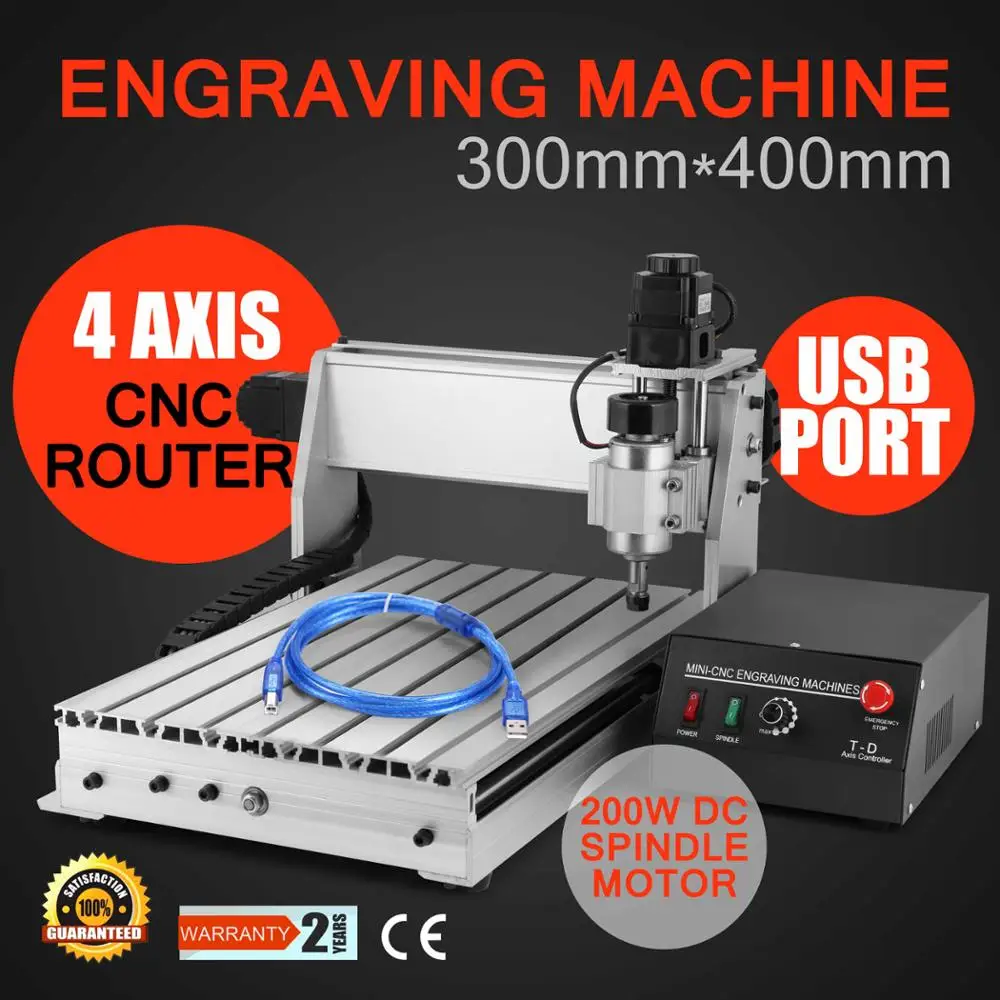

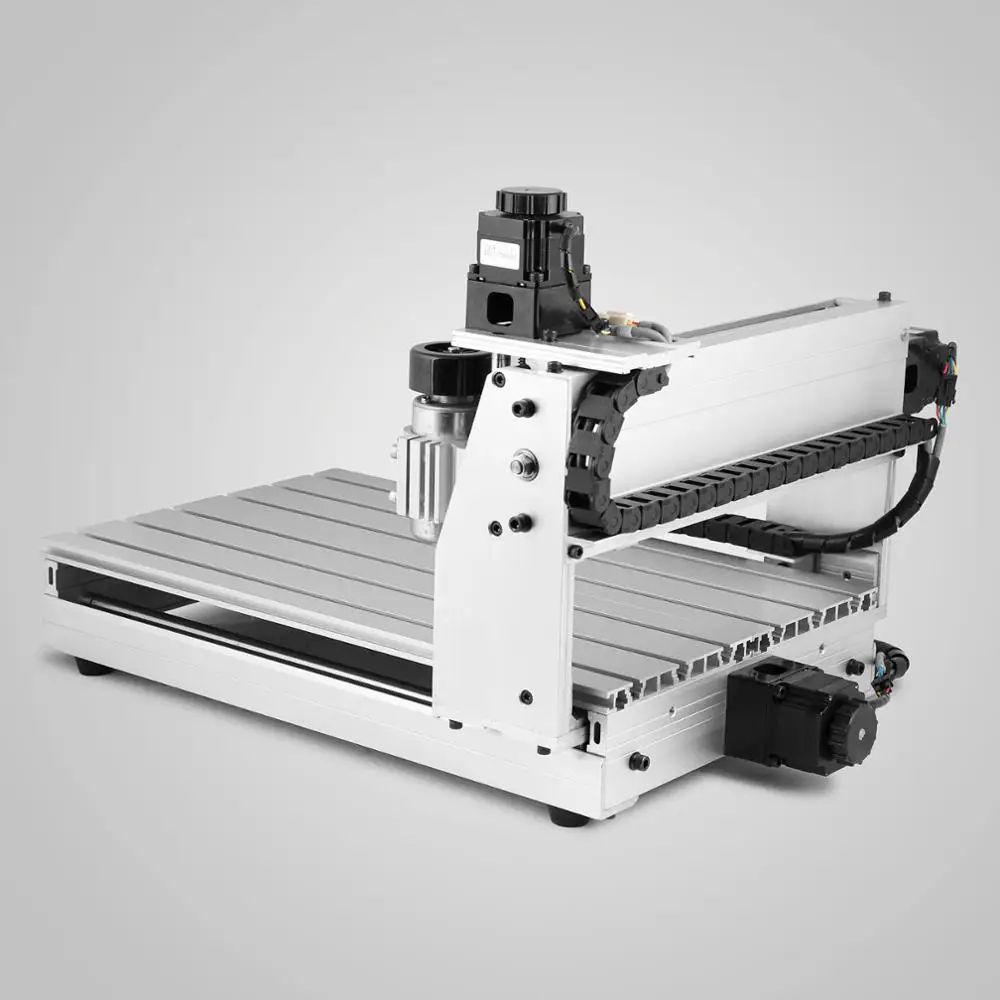

Low cost mini cnc 3040 router/4 axis cnc wood engraving machine (60773260562)

Share on:


Price:$499.00 - $599.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

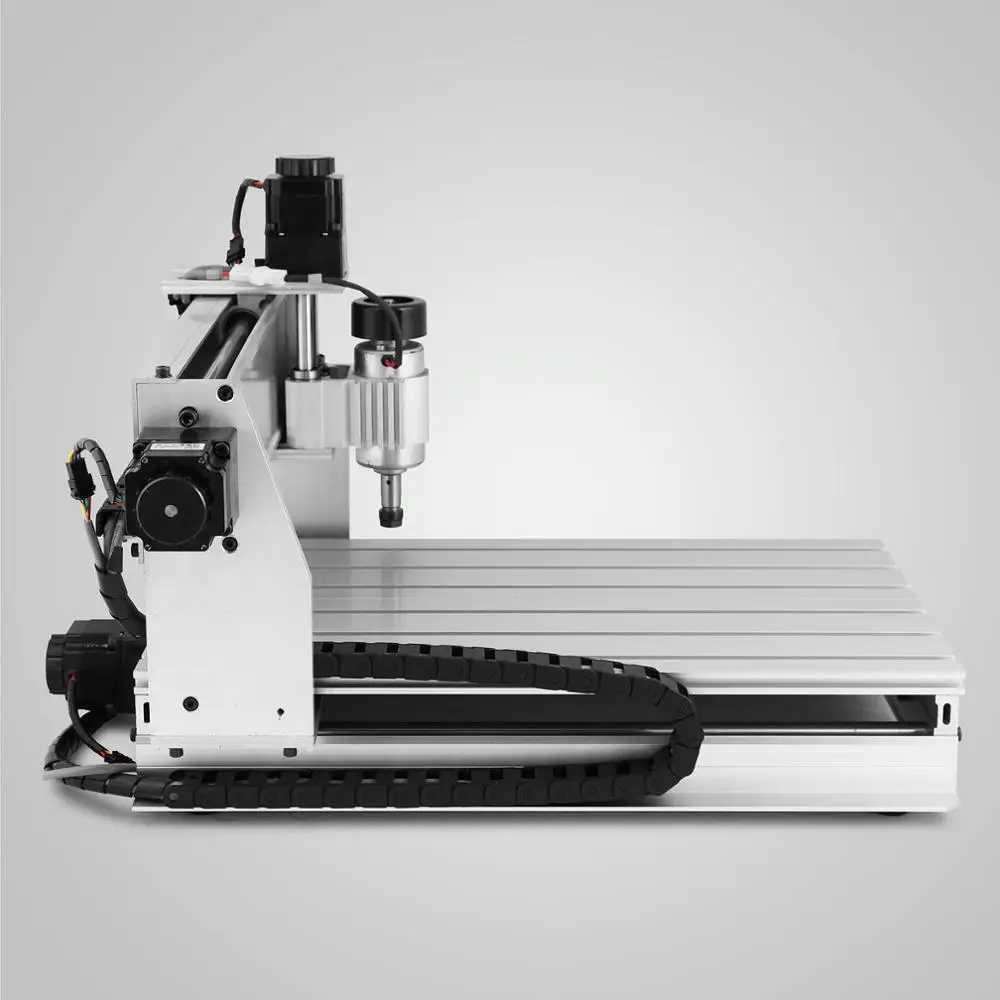

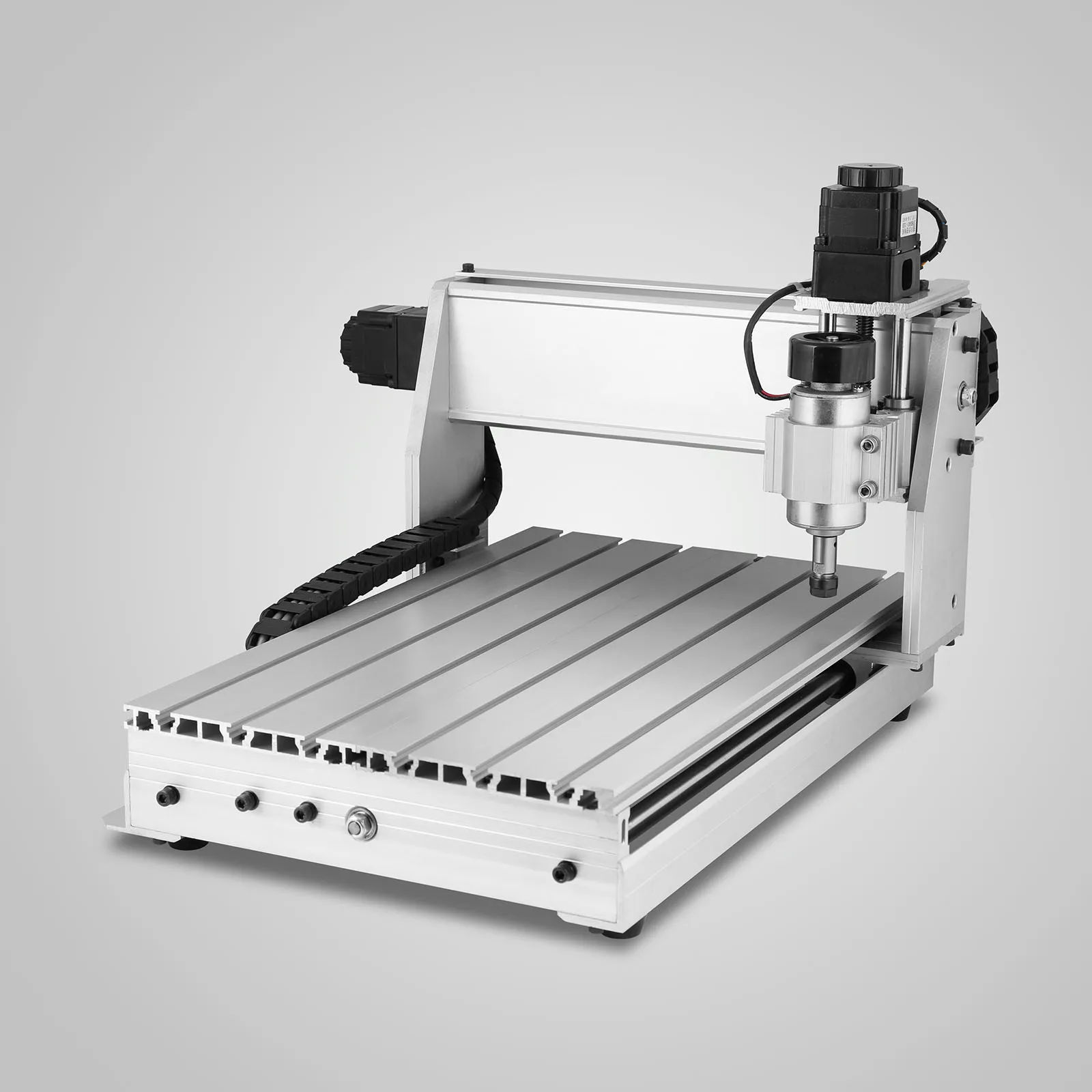

Low cost mini cnc 3040 router/4 axis cnc wood engraving machine

gp100 (1).jpg



USB CNC3040 is suitable for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.USB 3040 CNC engraver is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building, Building Model Making,PCB,Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.
Exquisite USB 3040 is a miniature version of mobile longmen structure of carving machine,put on you computer is like putting a printer or scanner that coordination,and can completely as a compute peripherals tools,anywhere,anytime,help you to design intent fast real appear.Nonmetal materials on the milling,and it can also be used to carving simple PCB/CNC.

Application
This USB 3040 engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make advertising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you.



How to use

1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the CNCUSB on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Following our manual or guideline to set up the software.
6.You can enjoy making you dream with using our CNC machine now.
Features

  • With four axis(rotary axis) and tailstock
  • With USB function
  • Simple operation and installation
  • More steady and strong equiped with aluminum alloy frame materials
  • Can be controlled only by desktop computer,not suitable for laptop
  • Mach 3 software is simple and intelligent
  • Can control the engraving more precise
  • Emergency stop button enhance security
  • Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.
  • Can engraving much more materials by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.
  • Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
  • Cover plates reducing pollution for the screws and shafts.
  • The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
  • The chrome shafts is not easy to deform,suitable for long time use.
  • Flexible coupling can be used for high torque transmission.
  • High Precision Stepping motor makes engraving more precise .
  • 1 years Free warranty
Specifications

3040T tetraxial engraving machine part parameters:
  • Effective working travel:275(X)mm*385(Y)mm*60(Z)mm
  • Shape dimension:610x480*400mm
  • Max.workpiece dimension:70mm
  • Work table dimension:320mm*530mm
  • Carving deepth: 55mm
  • Frame materials:aluminum alloy 6063 and 6061
  • Leadscrew:1204 double thread Trapezoidal screws
  • Driving units X axis:1204 trapezoidal screws
  • Driving units Y axis:1204 trapezoidal screws
  • Driving units Z axis:1204 trapezoidal screws
  • Sliding units X axis:Dia.16mm chrome plate shafts
  • Sliding units Y axis:Dia.16mm chrome plate shafts
  • Sliding units Z axis:Dia.12mm chrome plate shafts
  • Stepping motor type:57 two-phase 1.8A
  • Spindle motor:400w dc motor    500~8000PRM/Min
  • Principal axis collet:ER11 /3.175 mm
  • Repeat accuracy:0.05mm
  • Spindle precision:radial beat acuities 0.03 mm
  • Control unit:triaxial one-piece drive + ring variable power + PWM speed
  • Carving Instructions:G-code/.tab /.nc / .ncc/.txt
  • Communication interface:through parallel or USB connection with computer
  • Software environment:all
  • Maximum speed:0-4000mm/min
  • Carving speed:300-2500mm/min (different materials differ)
  • Machine weight:28KG

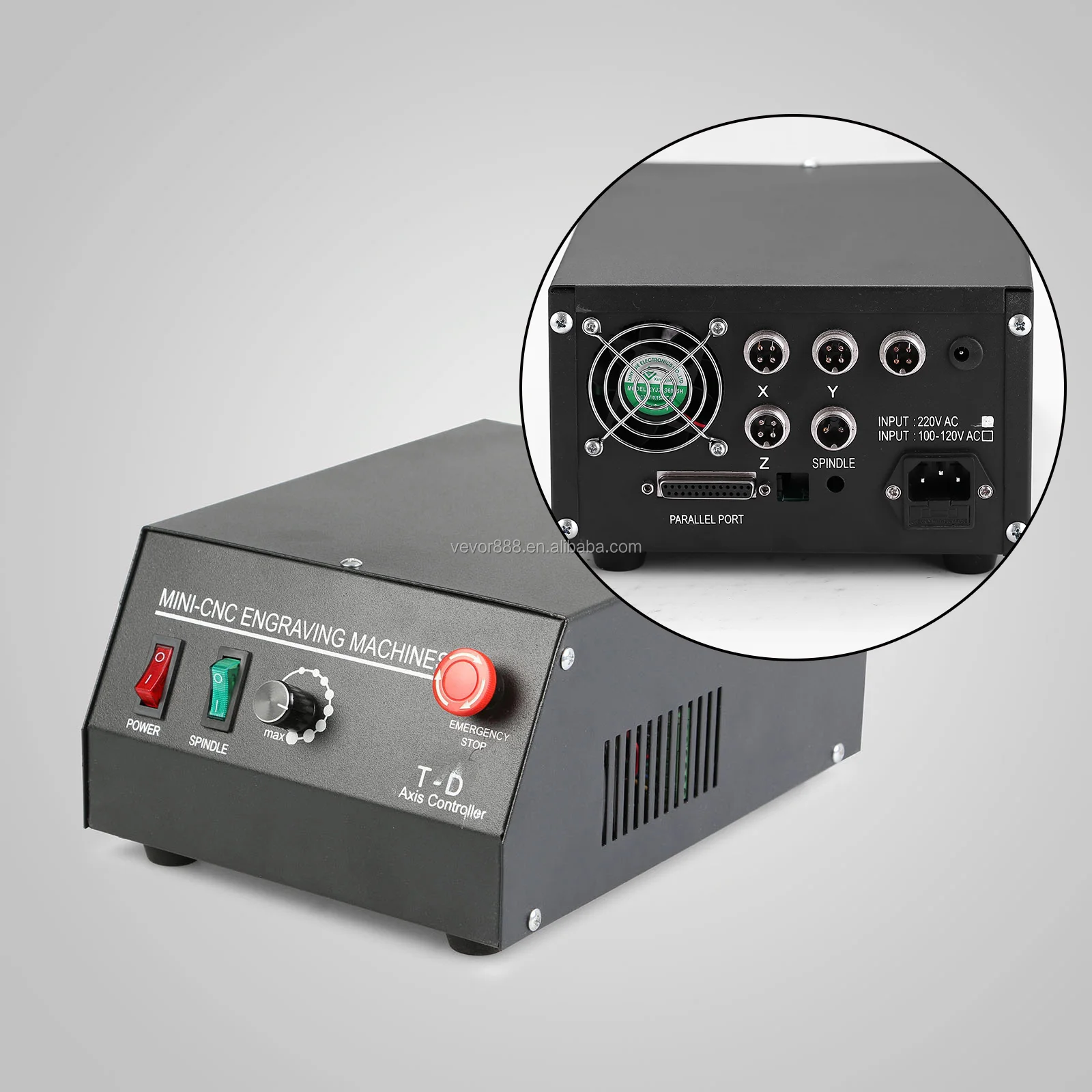

Control box parameters:

  • Operating Voltage:AC110V-AC220V(we also stock USA.UK.EU.AU.plugs and 110V-240V power version for the country all over the world.)
  • Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
  • Computer connection:on board parallel port,USB
  • Command code:G code
  • Acceptable software:only CNCUSB
  • Protection:Emergency stop button

d100-10.jpg d100-11.jpg d100-12.jpg

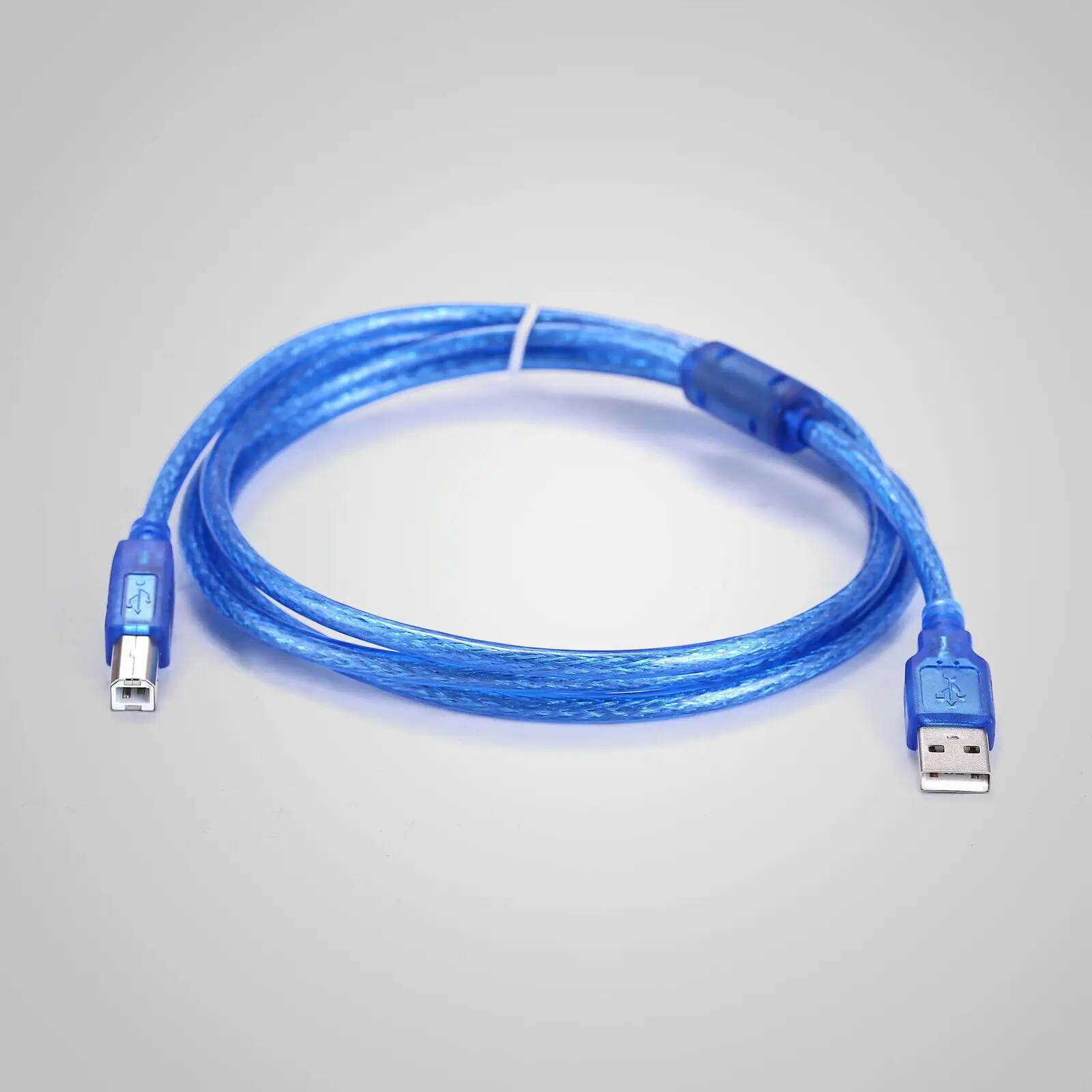

m100-9.jpg m100-10.jpg m100-11.jpg

Packaging & Shipping

1× Engraving machine

1× Control box

1× Parallel cable

1× Power cable(we also stock 110V-220V power version and USA.UK.EU.AU.plugs for the country all over the world.)

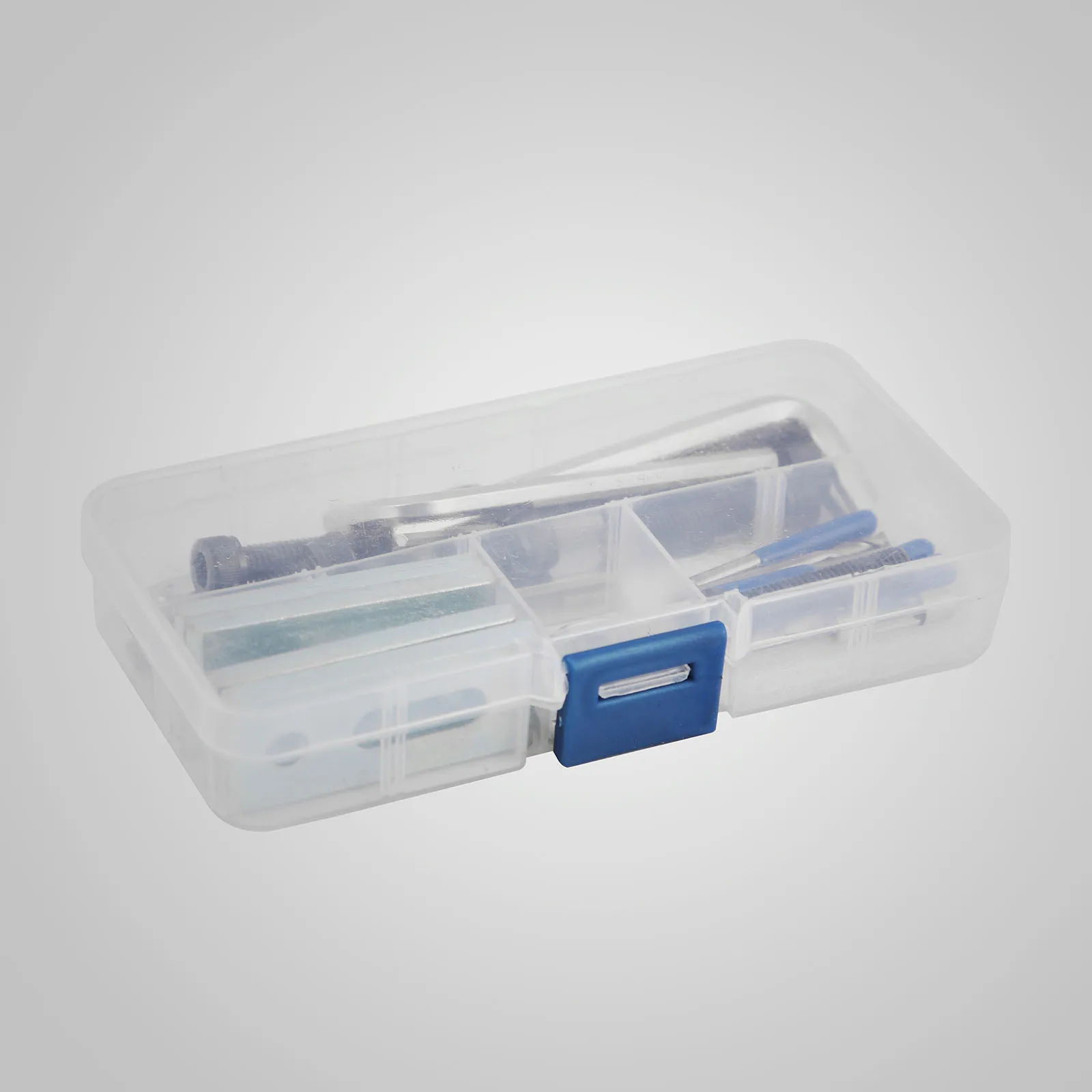

1× Tool box and tools

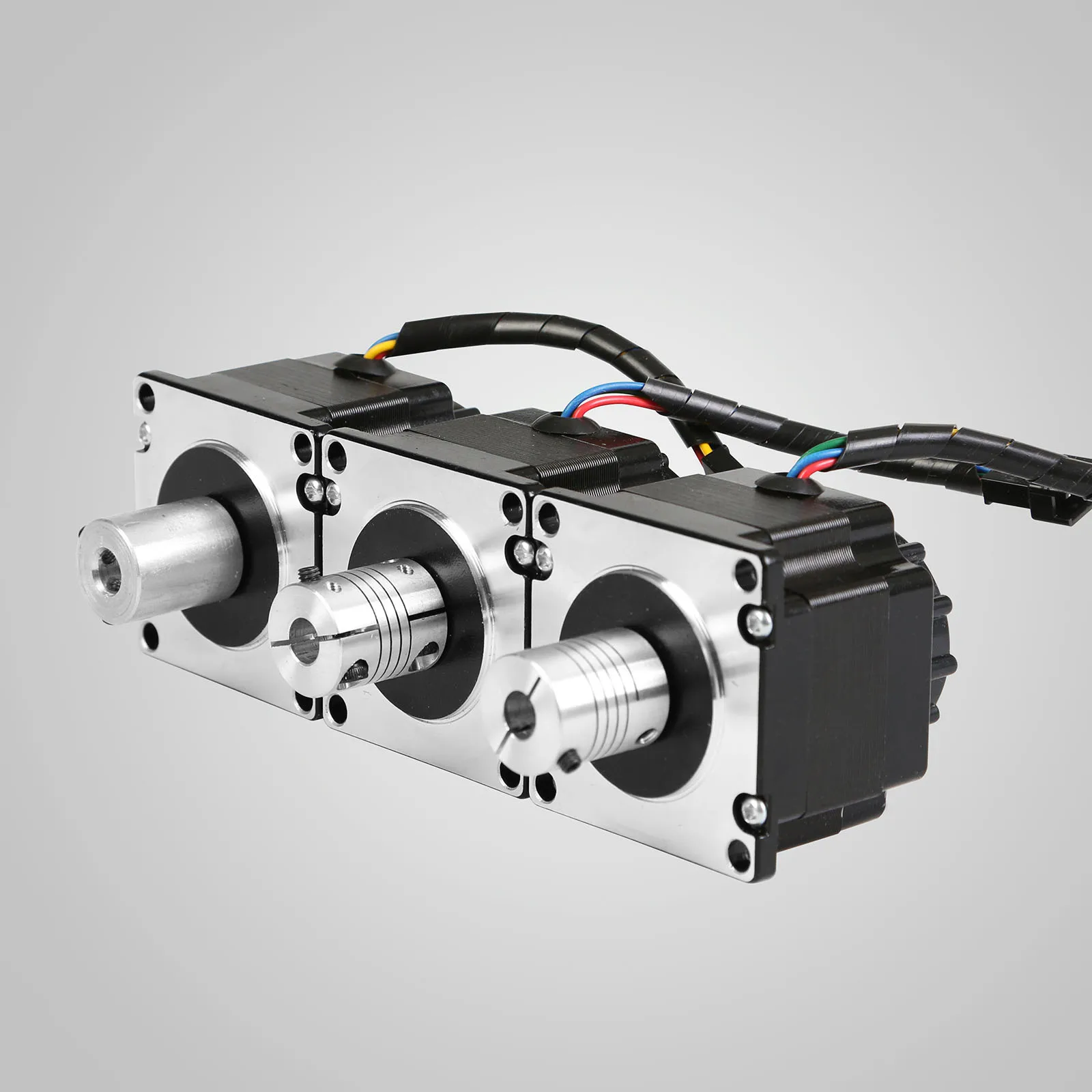

3× Axis motors

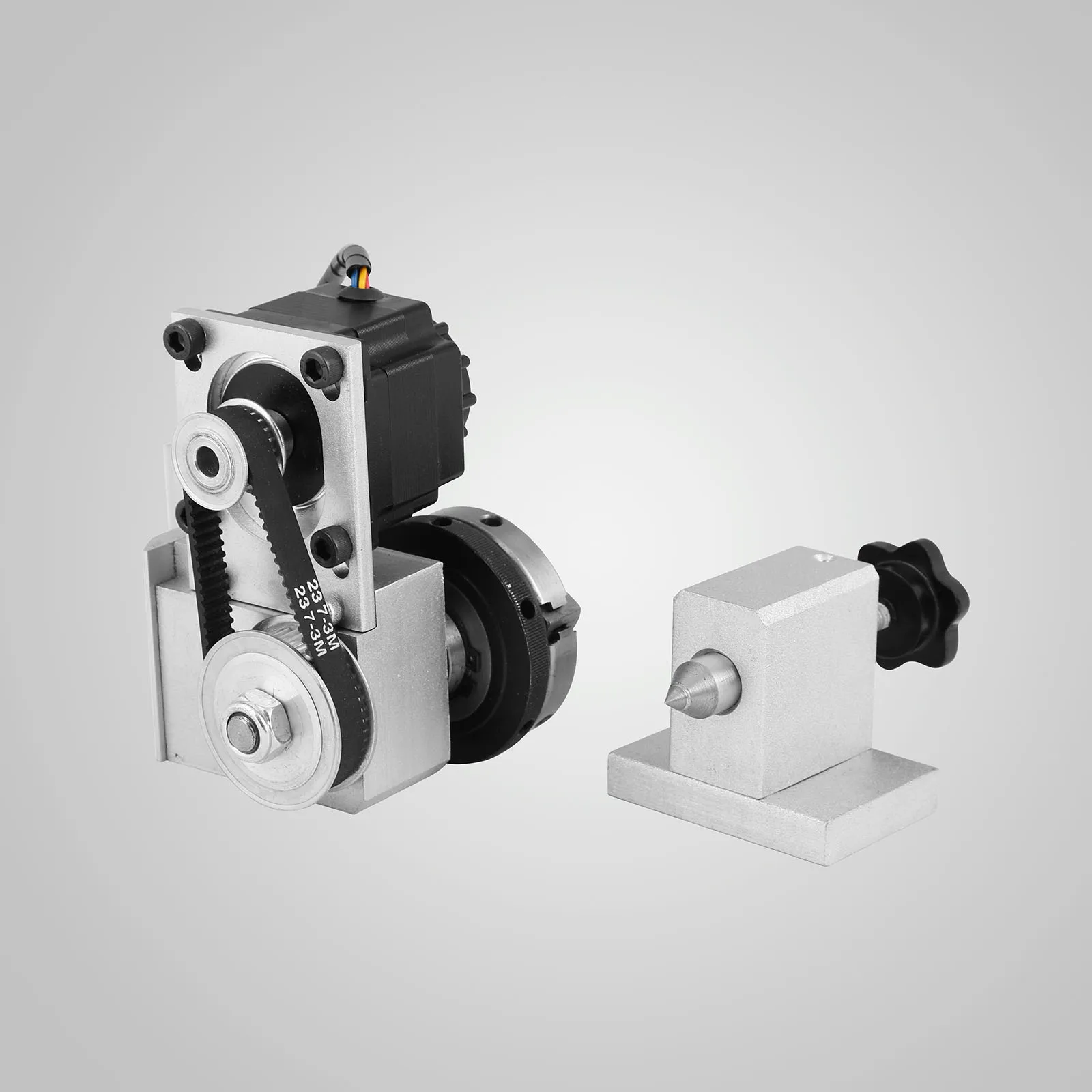

1pcs rotary axis and tailstock





Company Information
Business modleManufacture&Trading
Place of originShanghai,China(Mainland)
Delivery time5~10 days
Minimun order quantity1 set
PaymentL/C;T/T
Warranty2 years
