10mm pipe threading machine tube thread rolling machine ZC28 40
10mm pipe threading machine tube thread rolling machine ZC28-40
10mm pipe threading machine tube thread rolling machine ZC28-40
10mm pipe threading machine tube thread rolling machine ZC28-40
10mm pipe threading machine tube thread rolling machine ZC28-40
10mm pipe threading machine tube thread rolling machine ZC28-40

10mm pipe threading machine tube thread rolling machine ZC28 40

Share on (60773282495):


Price:$5,000.00 - $5,500.00

Quantity:


Product Overview

Description


ZC28-40

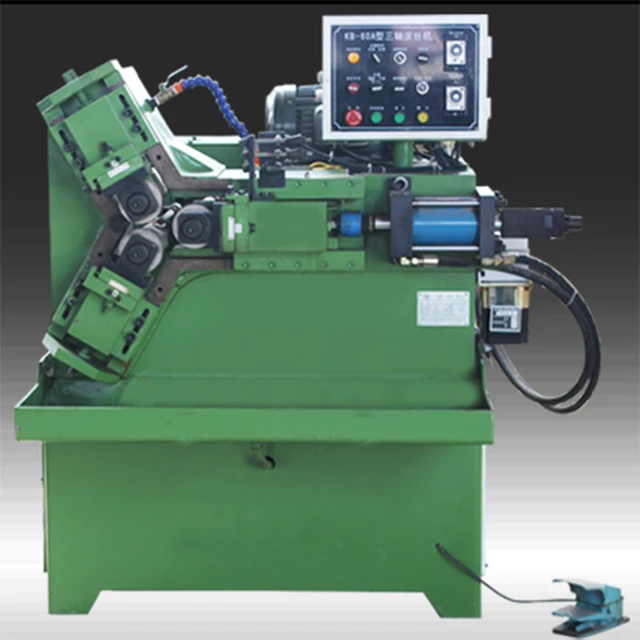

Pipe thread rolling machine

Designed for tube type workpieces, with triangular supports, so that can ensure the workpieces roundness, concentricity and squareness; fixation and rolling dual purpose. The spindle is controlled by frequency converter, the rolling speed can be adjusted; Adopt hydraulic circuit control, so the feed is smoothly and easily to operation. Driving gear grinds after heating treatment with lower noise and high wear resistance; Suitable for the industries like connector, bicycle, auto fittings and oil tube joint and so on.



Specification:

Working diameter: Φ9-40mmThread length:no limits
Pitch range:0.5P-2.5PHydraulic power:1.5kw
OD of roller:Φ78mm(90mm)Main power: 1.5kw
BD of roller:Φ35mmWeight:   600kg
Roller width max:20mm,40mmSize:1200*850*1400mm
Rotating speed:350,600r.p.mAngle:+-3 degree



Equipment Details Show:

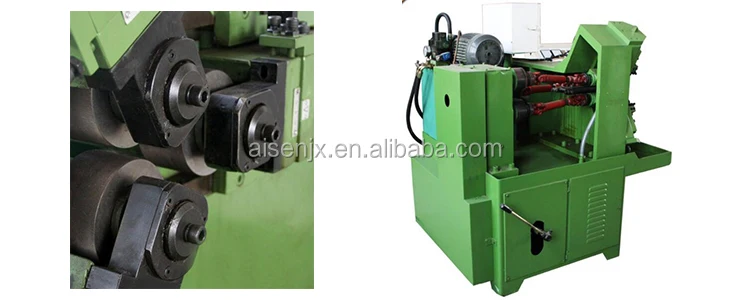

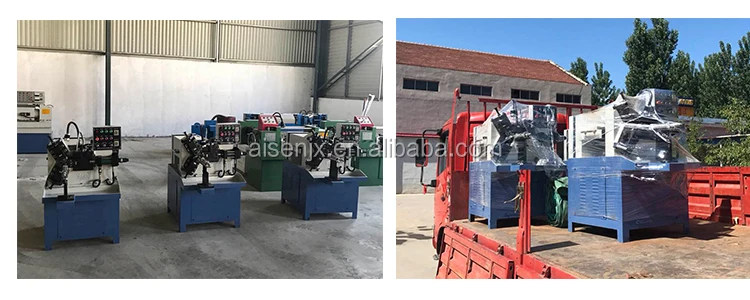

thread rolling machine220v threading machineabout us

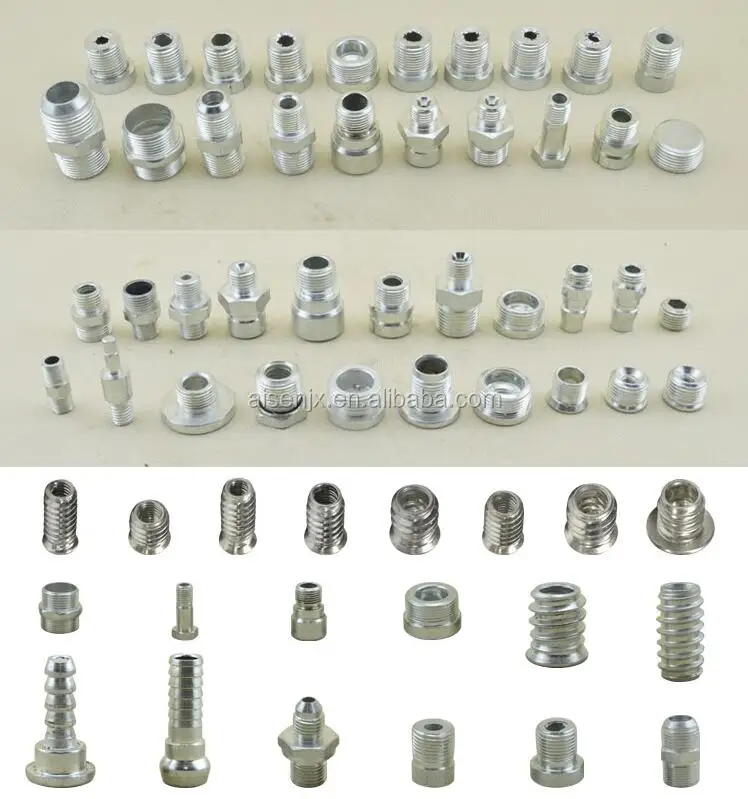

Finished ProductQQ20180228103417wheelascendancypackagingProduct recommendations
