6axis Robotic Arm Welding Machine/Chair Furniture Automatic Mig Welder
- Category: >>>
- Supplier: Guangdong Hwashi Technology Inc.
Share on (60773352093):
Product Overview
Description
Product Description
6axis Robotic Arm Welding Machine/Chair Furniture Automatic Mig Welder

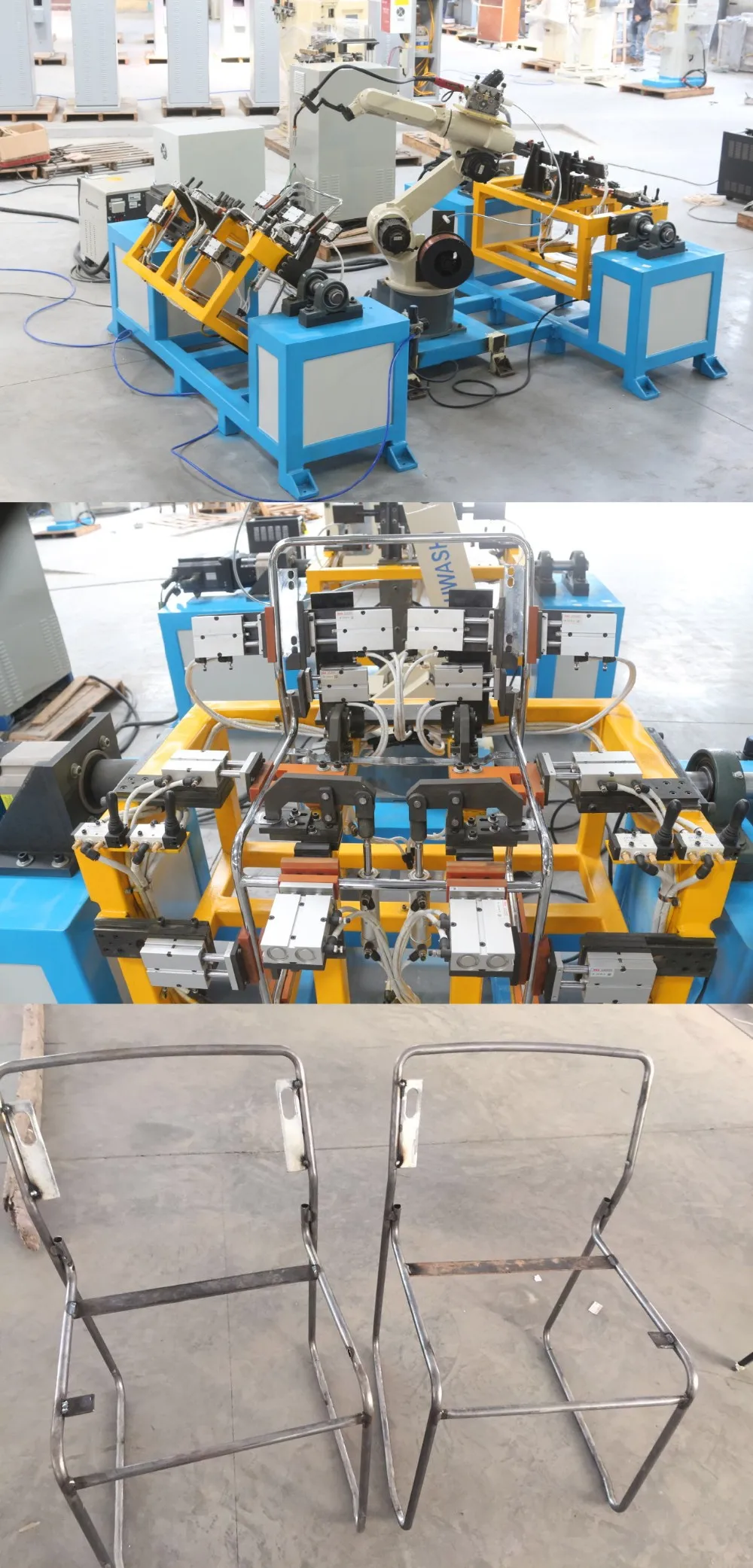

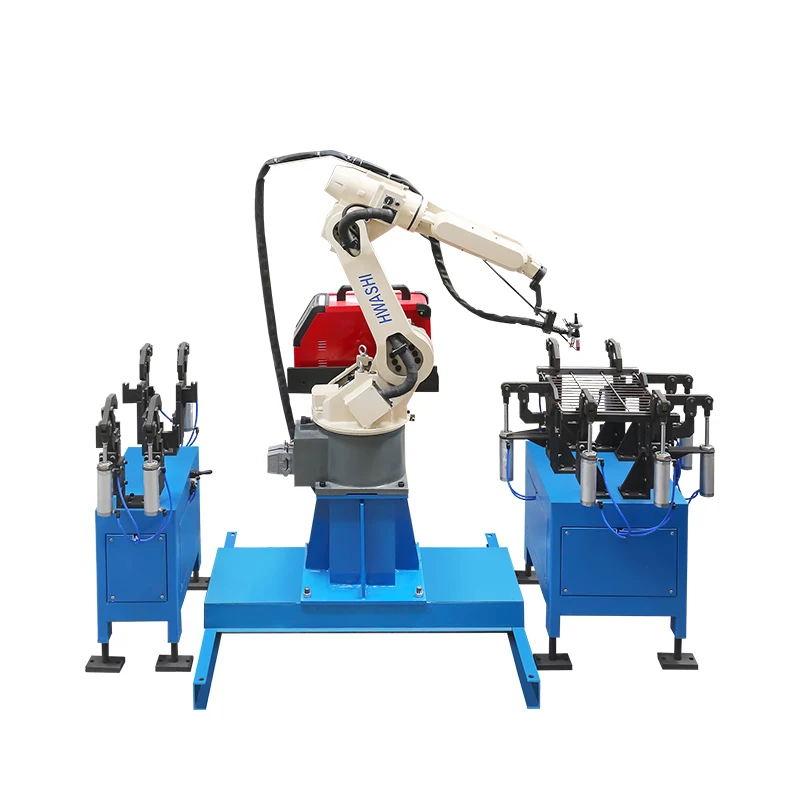

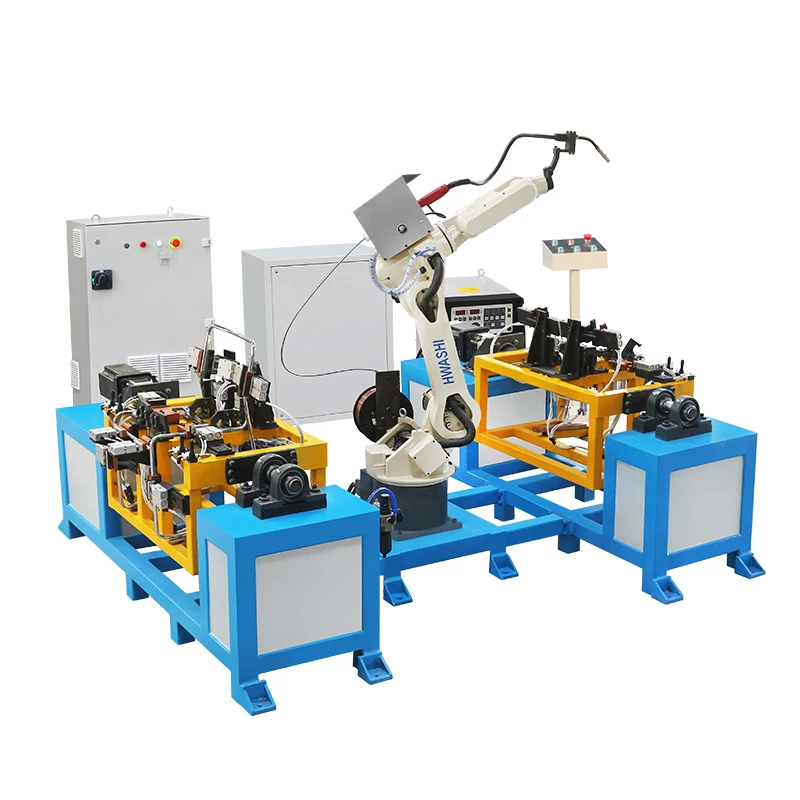

This is one whole set of chair robot welding mchine syste. which is included one set of 6 axis robot arm machine, one set of tig welder, two sets of welding positioner , as well as controler box, electrical box.
Robot arm model: HS-RAW06, be able to lift 6kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm. Front and back distance could reach 1033mm. Six-axis movement.
Welding positioner will be customized as different products.
HWASHI welding robot is compact, with small size, which is a dedicated arc welding robot. This robot equipped with international Brands welding power, can achieve a stable welding, access to high-precision welding path, shorten the welding cycle, with high repeat positioning accuracy, fast running, welding process stability, high consistency of the weld, and can shorten the product replacement cycle, The corresponding equipment investment. Widely used in automotive and accessories, motorcycles and accessories, engineering machinery and other metal welding field.
1. Improve the labor intensity of workers, can work in harmful environment.
2. Shorten the production preparation cycle, reduce enterprise investment.
3. Stabilize and improve the welding quality of work pieces.
4. Reduced requirements for workers to operate skills.
5. Simple operation, convenient for users.
According to the product requirement, the machine will be designed as follows

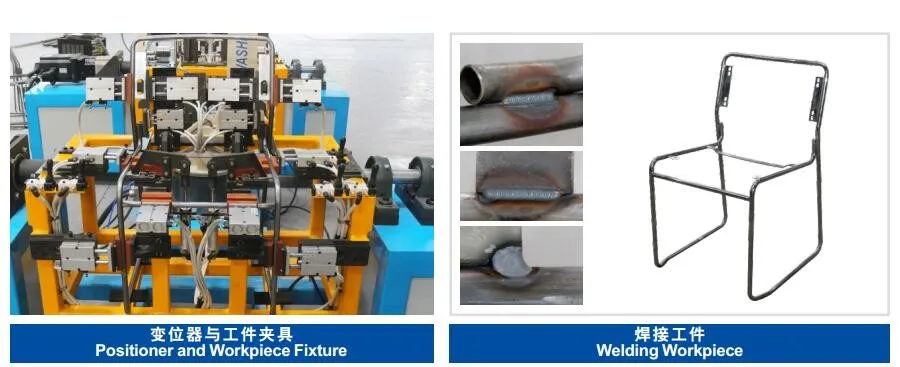

1. Positioner, manual loading;
2. Cylinder for clamping the product;
3. automatic positioner to turn over the fixture;
4. Robot automatic welding;
5. Manual unloading the product;
6. Welding gun cleaner device
2. Cylinder for clamping the product;
3. automatic positioner to turn over the fixture;
4. Robot automatic welding;
5. Manual unloading the product;
6. Welding gun cleaner device
MAIN FEATURES
1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system, laser welding machine and resistance spot welding machine. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 360° rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 360° rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
Robot Welding Processes
HWASHI robots provide maximum workina range and canbe installed from multiple andles to improve the flexibility of the system, The mechanical arm can instal various types of welding torches. arious welding power sources can be matched to meet diferent weldingrequirements and realize various welding processes.

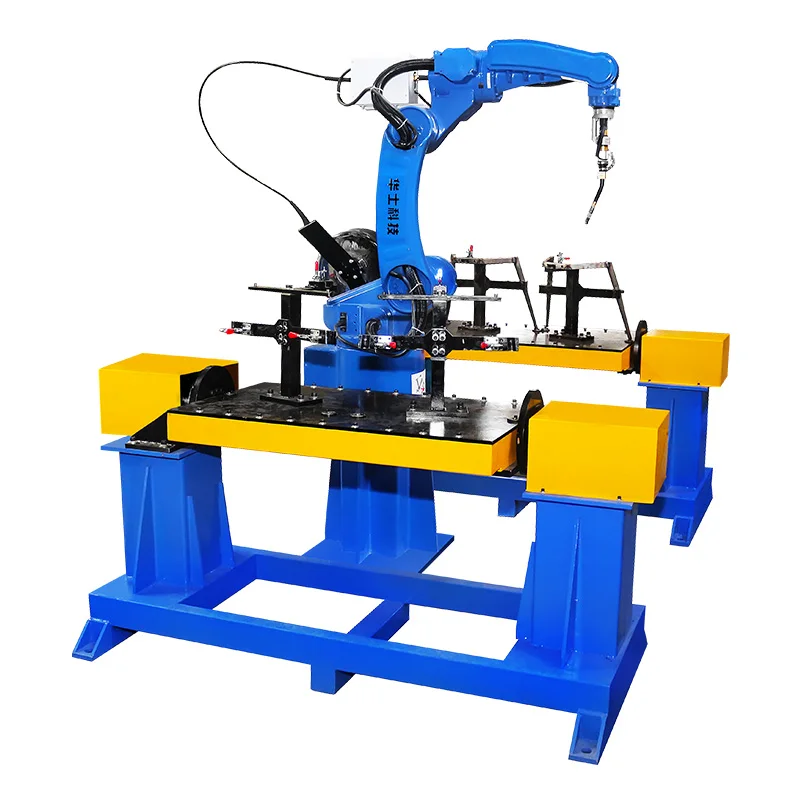

Provide different types of welding positioner
1. it can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.
2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.
3. By turning the workpiece fixed on the worktable to the required welding angle.
Provide the 7th axis of the customized machine
1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot.
2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers.
3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts.
4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.
Robot Integration
In addition to HWASHI robot systems, we can also integrate with international brands of robot to provide complete welding robot solutions.
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

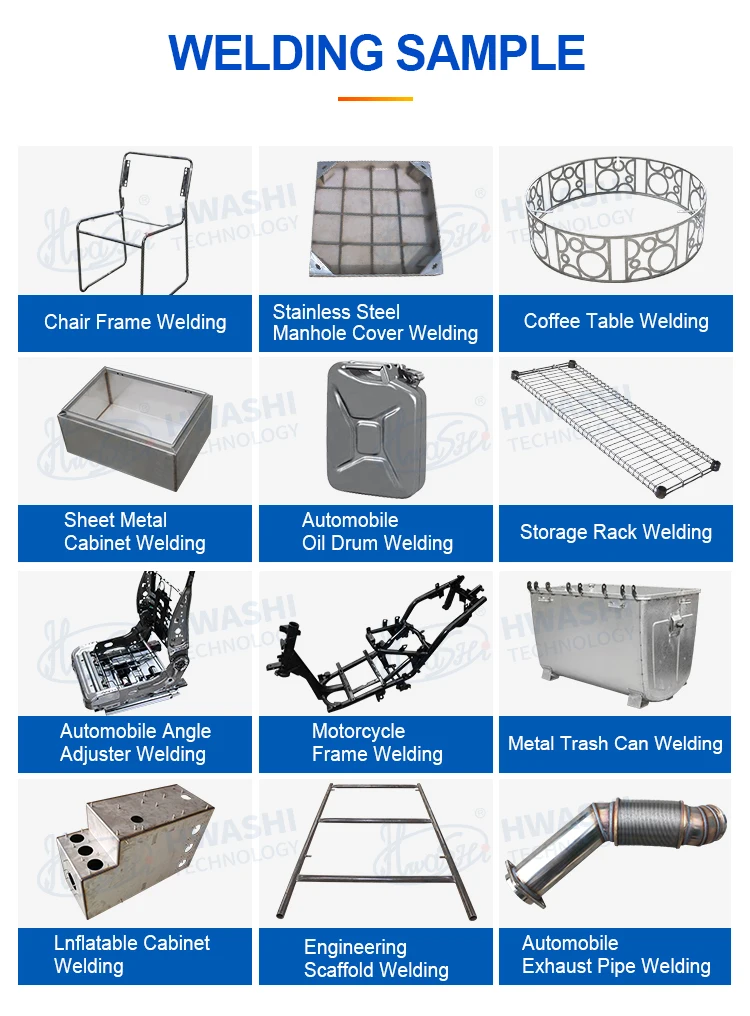

Welding Robot Applications
Welding robot can weld iron, stainless steel, galvanized pipes, plates, wires, tubes, and small and large workpieces can be robotically welded with good and beautiful welding effect.
Factory & Certificate
Packing & Delivery
Service Team & feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
