New Product CCTV 5MP Professional Zoom 8 Channel Home Security System POE Camera Kit

Feature of 5MP POE Camera:

• 5MP ultra clear resolution, the image is clear and delicate;


• Support 2D/3D noise reduction;


• Advanced H.265 video compression technology, ultra low bit rate, high definition image quality;


• Lightning protection, in line with national standard GB/T17626.5, international standard IEC61000-4-5;

Feature of NVR:

• *Online upgrade;


• * Compatible with major manufacturers IPC access;


• * Support ONVIF protocol to ensure interconnection and intercommunication of network video surveillance products;


• * Network diagnostic function, one-click diagnosis of network failure;


• * Easy-to-view network remote monitoring platform, remote seconds connection, smooth and stable picture;


• * Support multi-language version switching;


• * Large hard disk storage, multiple browsers, PC-side CMS, H.264/H.265 compression standard;


• * Easy-to-view remote P2P video is smooth and stable, Android/iOS/PC multi-platform client support;

Package Include:

• 8 Channel 5.0MP H.265 NVR *1


• 5.0MP POE Camera*4


• USB Mouse*1


• User Manual*1


• 1M RJ45 Ethernet Cable*1


• 20M RJ59  Ethernet Cable*4


• 48V NVR Power Adapter*1


• Quick Installation Guide*1


• Warn Sticker*1

With only a single ethernet cable connecting each IP camera to the NVR for both power and video transmission, PoE (Power over Ethernet) security system allows you to DIY the camera position anywhere you want. No need of a separate power adapter for power supply of each camera, truly freeing you from messy and tiring cablings.

24/7 Professional Protection & Multiple Recording Options

There are multiple recording modes for you to customize your monitoring plan based on your needs:24/7 Recording,Recycle Recording,Schedule Recording,Motion Detection Recording.

5MP Super HD Viewing Experience

Super HD 5MP IP camera with a pixel resolution of 2560 x 1920, nearly 2.4X of 1080p full HD (1920 x 1080px). Bring You to a Whole New Viewing Experience.

Customized Motion Detection—Deter the Real Dangers

Customized motion detection enables you to set up the specific zones you need to obtain motion alerts from.

Smart Motion Alerts

Whenever this 5MP security camera system detects motion in your selected spots, it will alert you with instant push notifications, emails and buzzer alarms.

Advanced H.265+ Video Compression

Lower Bandwidth

Less Storage Space

Better Image Quality

All Weather Security Camera—Keep an Eye Inside and Out

With the durable metal camera housing, no matter in the torrential rain day or freezing cold snow weather, under no circumstances will the powerful IP67 weatherproof camera can be ever defeated.

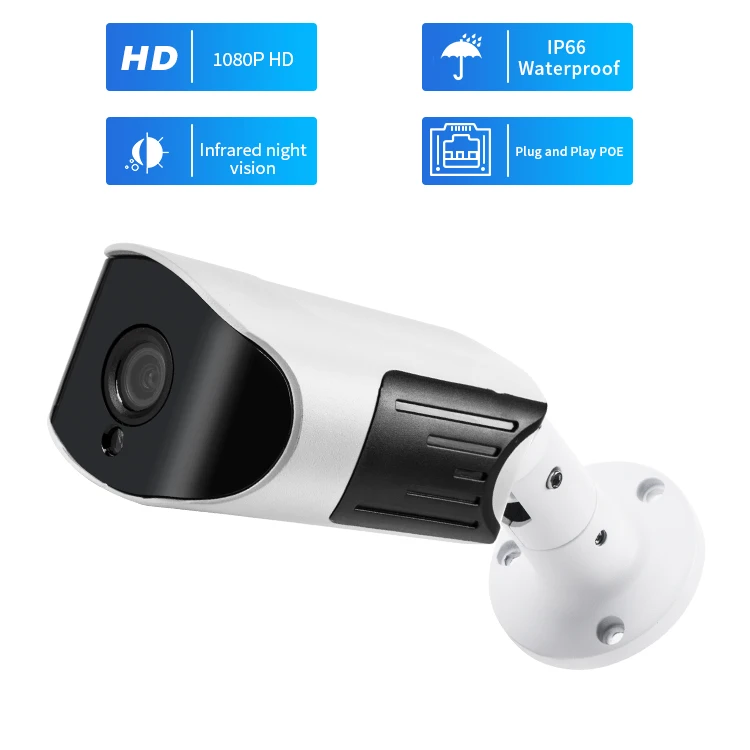

Product Parameters of 5.0MP POE Camera
System structure	embedded RTOS real-time operating system
Sensor	1/2.8" CMOS Sensor
Video processing	H.264/H.265 video encoding, support dual stream
Image output main stream	2560x1920@15fps; substream: 702x576@15fps
Shutter	1/50 (1/60) seconds to 1/10000 seconds
Lens	none
Day and night conversion mode	infrared / day / night
Noise reduction	support 2D/3D noise reduction
Wide dynamic	no
Auto iris	none
Audio processing	G.711 codec standard, support audio and video synchronization
Audio interface	1 input, level 2Vp-p, impedance 1kΩ, support MIC/pickup input;
Network interface	1 RJ45 Ethernet interface, 10/100M adaptive; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols
Expansion interface	support extended SD card
Signal interface	1 photoresistor interface, 1 IR-CUT drive interface, support for photoresistor input signal and IR-CUT
PTZ interface	none
Motor interface	none
Alarm	I/O1/0 (supports PIR departure alarm, optional)
Reset button interface	none
SD card slot	none
Reliability	comprehensive lightning protection, in line with national international standards; 7*24 hours 60 °C high temperature test is stable and reliable (including complete machine test)
Function support	OSD, motion detection; center reminder after motion detection alarm, screen pop-up linkage;
ONVIF	Not supported
Power supply	DC12V/1A, power consumption: ≤3W
Plate size	38 (H) × 38 (V) × 1.2 (T) mm
Other support	POE power supply

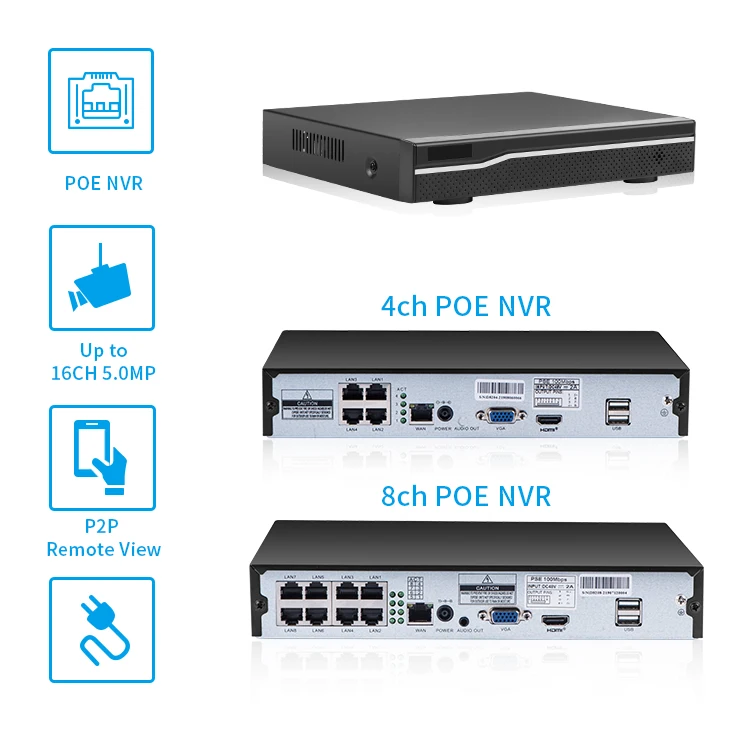

Product Parameters Of NVR
Video input	8-way 720P/960P/1080P/3MP/4MP/5MP, RJ45 interface
HDMI output	1 channel, HDMI interface;
Video and audio output VGA output 1 channel, VGA interface; maximum resolution	2k/60Hz
Audio output 1 way, support 3.5MM audio interface output (standard)
Video compression standard	H265+, H.265, H.264
Video encoding resolution	720P, 960P, 1080P, 3MP, 4MP, 5MP video
Code stream type composite stream/video stream
Audio compression standard	G.711
Video playback	8 channels 5MP@25 frames IPC access / 1 channel 5MP playback
Storage type	1 SATA interface
Hard drive storage capacity	Each interface supports a hard disk with a capacity of up to 6TB
Backup method	USB backup and network backup
Recording mode	manual recording, timer recording, motion detection recording, alarm recording
Network interface	RJ4510M/100M adaptive Ethernet port
External interface	USB interface 2 USB2.0 interfaces (supports upgrade, backup and mouse)
Serial interface	1 way RS485 interface
Power input power input (PSE power supply)	DC48V/2A; network port provides 48V power supply to the camera
Working temperature	-10 ℃ ~ +55 ℃

Warranty

One year warranty for all the products, any unit which proves defective during the validation period will be repaired without charge for parts or replaced.

The end user is responsible for all freight charges .The warranty does not cover any incidental, accidental or consequential damages arising during using.

Feedback&Rating

We sincerely appreciate your business .We will offer you a small gift. If you are satisfied with our products and service, please offer us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.

If you are not satisfied by any reason, please feel free to contact us, communication is much more efficiently than opening a dispute.Our customer service and tech support will do our best to offer you a satisfied solution.

Warehouse

Shipping from Spain/US/Italy/France/Russian warehouse will be FREE of customs tax.

Spain/US/Italy/France/UK/Russian warehouse only ship to local address.

1.Normally the goods will be sent within 5-10 working days after your payment is verified by Alibaba.

2.Please check your address and contact number is right, especially check your post code and city is correct information, otherwise your parcel won't be ship out.

3. The buyer shall have the customs clearance capability, and we aren't responsible for all the local customs clearance fees of the buyer.
