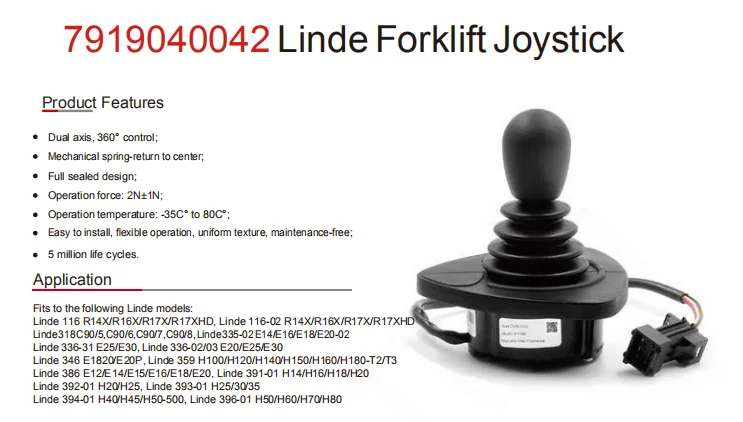

substitute linde joystick for forklift

Product Overview

Description

SJ600 buttons joystick crane controller replacement parts industrial joystick



1.Spring automatic reset

2.Uniaxial, biaxial arbitrary direction and  three shafts operation

3.Button is optional

4.Can choose the output voltage range according to the requirement

Technical Specifications

Environment characteristics
Storage temperature	normal temperature drying
Use environment	(-25℃~+80℃
Mounting flange above protection level	IP56
Mechanical properties
The X and Y axis mechanical angle	±20°
Operating torque	1N(25Nmax)
Mechanical life	5,000,000
Mechanical error	±0.3°
Electrical properities
Supply voltage	5±0.5VDC
The expendable current of power	6.5mA/Each Holzer chip
Resolution	infinite
Maximum voltage	15VDC continuous
Reverse polarity maximum voltage	14.5VDC
Load resistance	5KΩ
The median voltage (no load)	48~52%Vs
