Automatic seam welding machine with laser tracking for light pole
- Category: >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60774022221):
Product Overview
Description
Product Description
Jiangsu Tewei Machine Tool Manufacturing Co., Ltd recently developed a automatic seam welding machine with laser tracking. It adopts pressure adaptive adjustment device and laser vision welding seam tracking system.
The new added laser device is different from traditional operation, which needs much labor work and not quite easy to operate. But it lighten the work in that operator no longer has to keep watching whether the welding nozzle is aligned with the seam during welding.

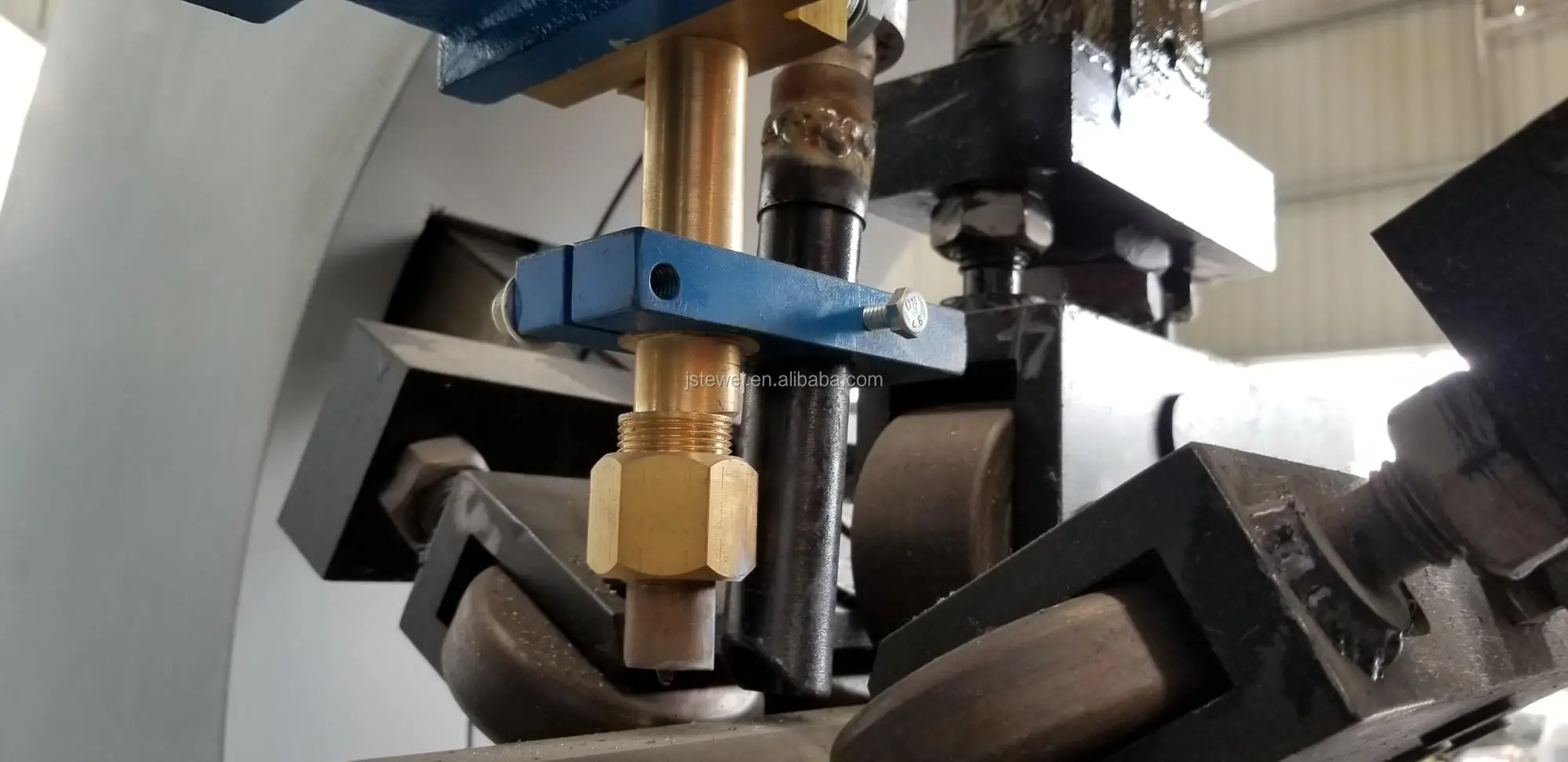

The laser has the function of automatic seam tracking and seam width adaptive adjustment. Operator only has to press start button, then the automatic seam welding machine is welding. It can automatically adjust the welding position according to the data collected by laser track to ensure welding gun is aligned with the seam, and be able to adjust pressure in real time so as to ensure the seam width.
In general, the laser tracking device not only can liberate the hands of operator but greatly improves welding quality. Now it is a patented machine.
If you are interested, you can add this laser tracking device on your existing machine.
Hot line: 15252580888 Mr. Gu
The new added laser device is different from traditional operation, which needs much labor work and not quite easy to operate. But it lighten the work in that operator no longer has to keep watching whether the welding nozzle is aligned with the seam during welding.
The laser has the function of automatic seam tracking and seam width adaptive adjustment. Operator only has to press start button, then the automatic seam welding machine is welding. It can automatically adjust the welding position according to the data collected by laser track to ensure welding gun is aligned with the seam, and be able to adjust pressure in real time so as to ensure the seam width.
In general, the laser tracking device not only can liberate the hands of operator but greatly improves welding quality. Now it is a patented machine.
If you are interested, you can add this laser tracking device on your existing machine.
Hot line: 15252580888 Mr. Gu
Specification
SN | Model | Value | Unit | ||||
1 | Seam Length | ≤12000 | MM | ||||
2 | Max Seam Thickness | 6 | MM | ||||
3 | Host Header Size(L*W*H) | 2100*740*1945 | MM | ||||
4 | Worktable Size(L*W*H) | 13500*400*480 | MM | ||||
5 | Max Seam Diameter | Φ500 | MM | ||||
6 | Min Seam Diameter | Φ60 | MM | ||||
7 | Welding Current | 630 | A | ||||
8 | Walking Device Motor | Model | Y2100-4 | 3 KW | |||
9 | Oil Pump Motor | Model | Y2100l2-4 | 3 KW | |||
10 | Recovery Motor | Model | Y90l-2 | 4 KW | |||
11 | Gear Pump | Model | CBN-E306 | 25ML/R | |||
12 | Max Pressure System | 20 | MPA | ||||
13 | System Working Pressure | ≤6 | MPA | ||||
14 | Machine Size | L | 29000 | MM | |||
W | 2100 | MM | |||||
H | 1950 | MM | |||||
15 | Weight | 8000 | KG | ||||
Packing & Delivery
Spare Parts Suppliers
SN | Name | Spec. | Qty | Supplier |
1 | Gear Pump | 25 Above Displacement | 1set | Huaiyin |
2 | Gear Pump Motor | 3kw | 1set | Siemens Bade |
3 | Bencher | 3kw | 1set | Siemens Bade |
4 | Bencher | Bwd220 | 1set | Dajiang |
5 | Sealings | Full Sets | 1set | Import From Japan |
6 | Electric Components | 1set | Schneider | |
7 | Hydraulic Oil | 46# Anti-Wear Hydraulic Oil | 1barrel | Shanghai(Charged By User) |
8 | Bearings | 1set | Harbin | |
9 | Hydraulic Valve Stack | Dedicated System | 1set | Home Made |
10 | Cylinder | Special Cylinder | 1set | Home Made |
11 | Submerged Arc Welding Machine | 630a | 1set | Shanghai |
12 | Wire Feeding | 1set | Shanghai | |
13 | Recycling Machine | 1set | Wuxi | |
14 | Line Panel | 1pcs | Home Made |
