Product Overview

Description





Products Description

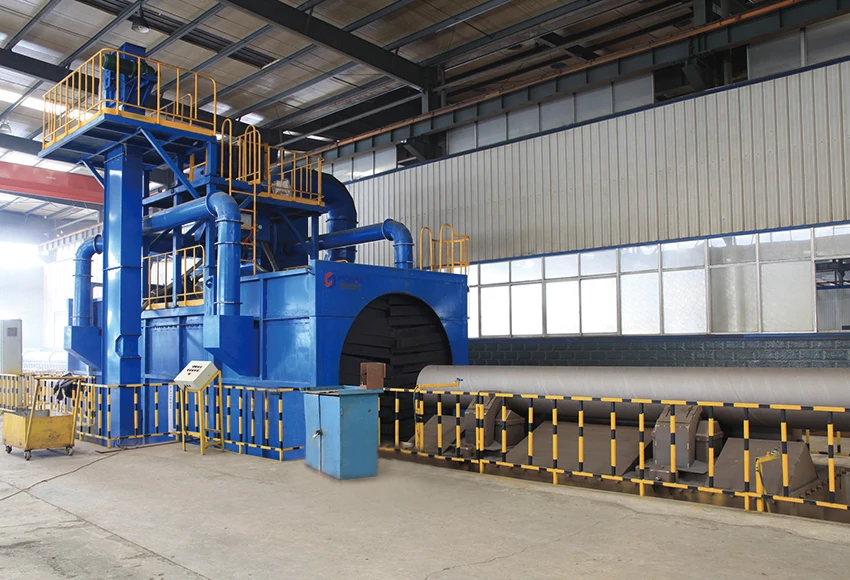

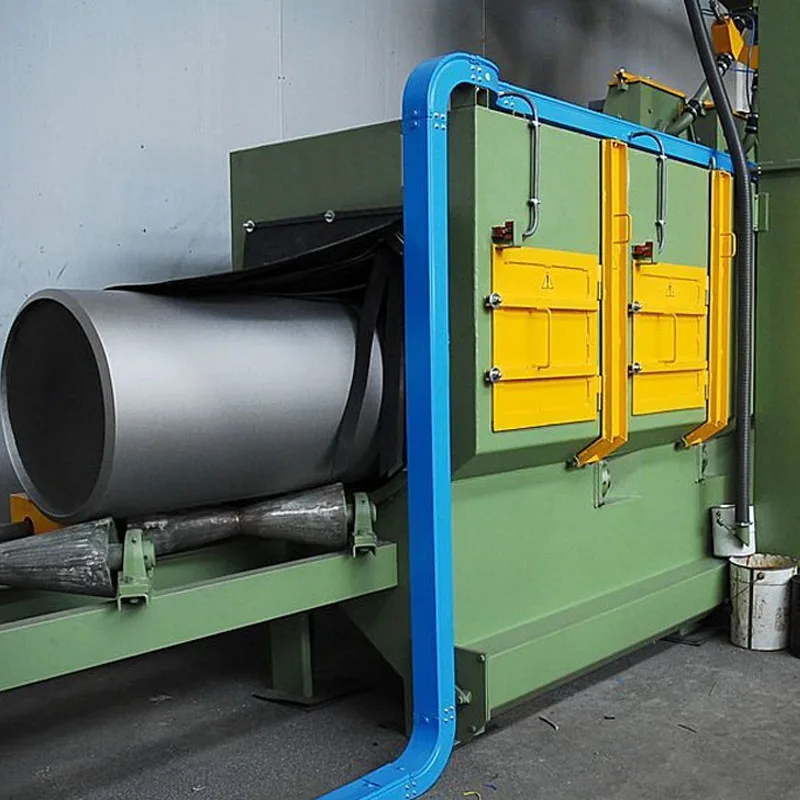

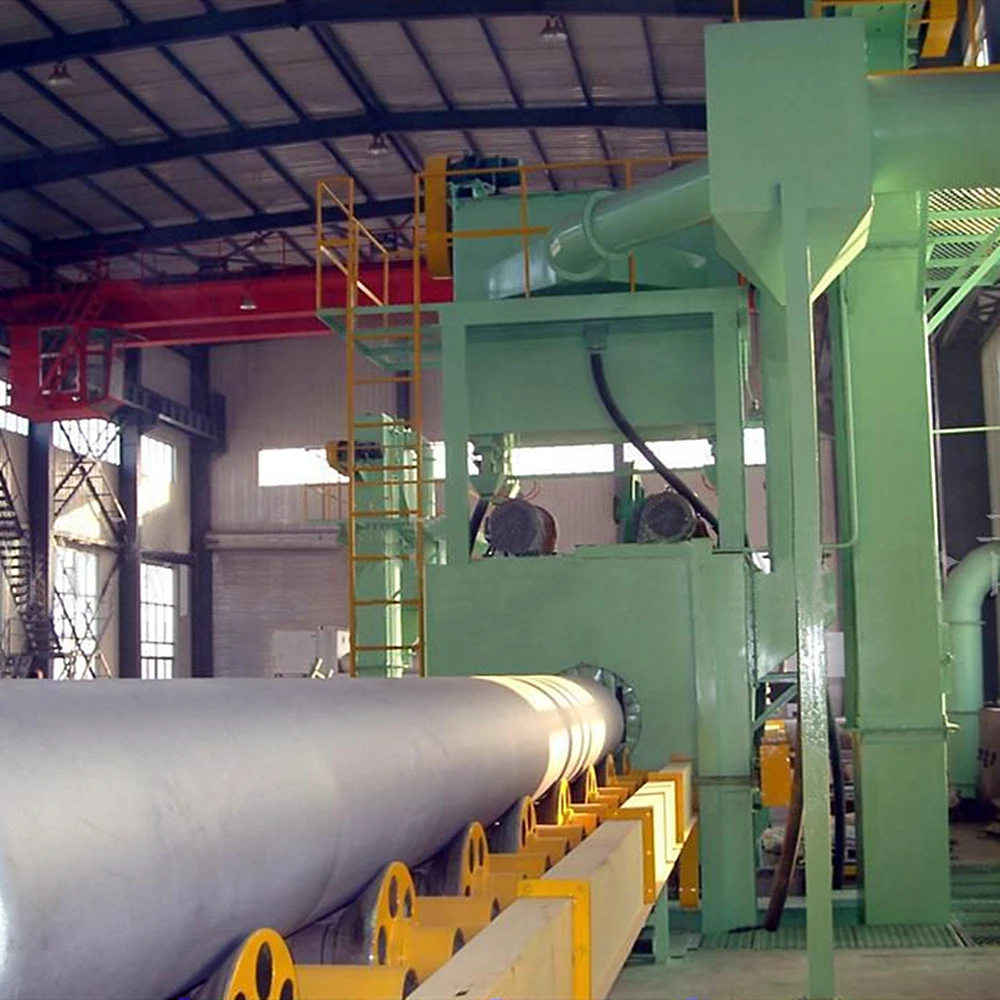

QG Series Steel pipe/tube Inner And Outer Wall Special Shot Blasting Machine

QG series steel pipe inner and outer wall shot blasting machine for surface treatment , wiping up the oxide coating , welding slag, appearing the metallic sheen , increasing the area of the surface , which is in favor of UV. It applies in the line of petroleum& chemical , steel , city centralized heating , centralized drainage etc.Steel Pipe Shot Blasting Machine/Steel Pipe Outer Wall Shot Blast Machines is a combination of clean-steel outer wall of cleaning machine, by blasting to clean the outer surface of the steel pipe, shot by throwing inside to clean surface, so that the surface oxide are rid off. It is used before welding or painting on its outer surface treatment of the pipes.








Technical Parameter


Type
Cleaning size(mm)
Cleaning speed(m/min)
Purposes
QGW100
φ50-300
2-10
Outer wall of shot blasting machine
QGW720
φ159-720
2-6
Outer wall of shot blasting machine
QGW1200
φ219-1016
1-6
Outer wall of shot blasting machine
QGW1500
φ325-1600
1-6
Outer wall of shot blasting machine
QGW2800
φ1016-2800
1-2
Outer wall of shot blasting machine
QGN100
φ50-300
1-4
lnner wall of shot blasting machine
QGN700
φ325-720
1-2
lnner wall of shot blasting machine
QGN1000
φ720-1016
1-4
lnner wall of shot blasting machine
QGN1500
φ1016-1500
1-4
lnner wall of shot blasting machine


Product Features


Conveyor system
Long service life
manual or automatic control
● Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.
● Conveyor system is driven by motors with inverter. Rollers can be controlled manually and automatically.

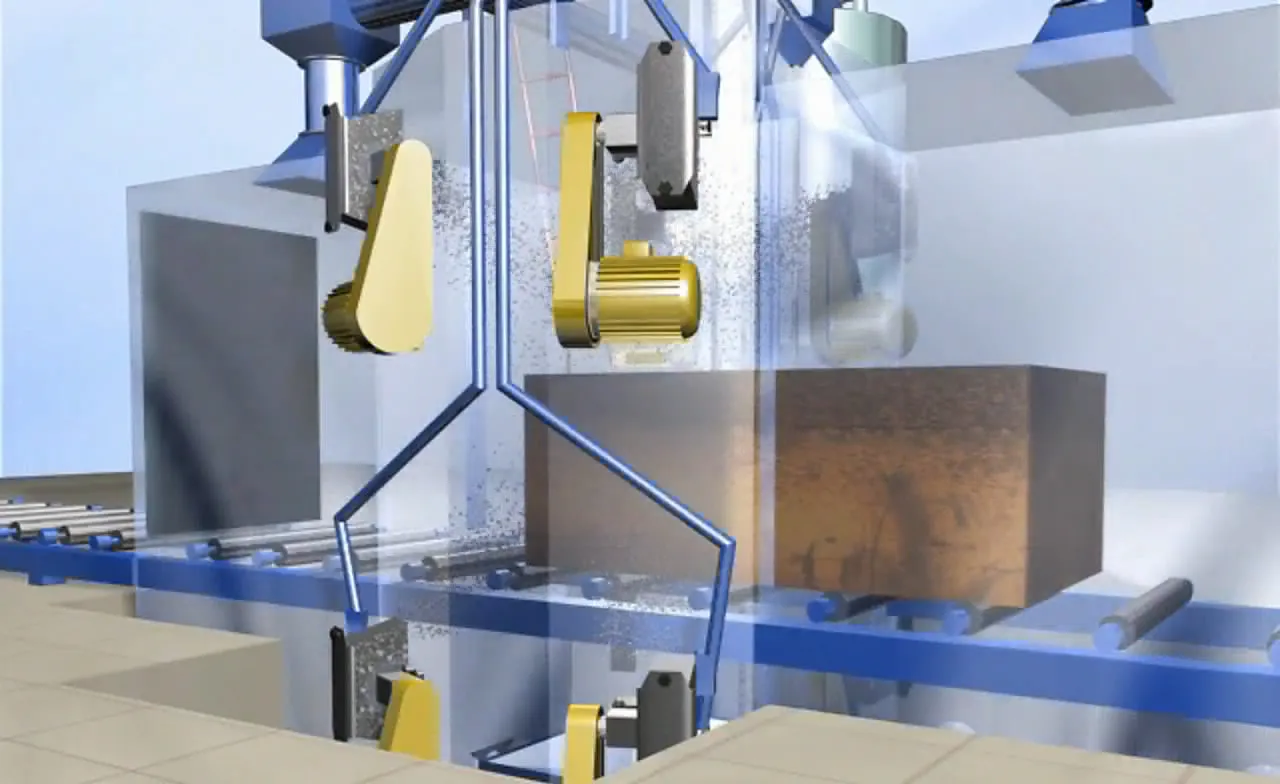

Blasting chamber

high wear resistant performance easy to replace

In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, easy tear open outfit replacement.




Dust removal system

High dust removal effect
low pollution

The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower 80 g/m3. The fan power is 30 kw, ventilation quantity is 26000 m3/h.

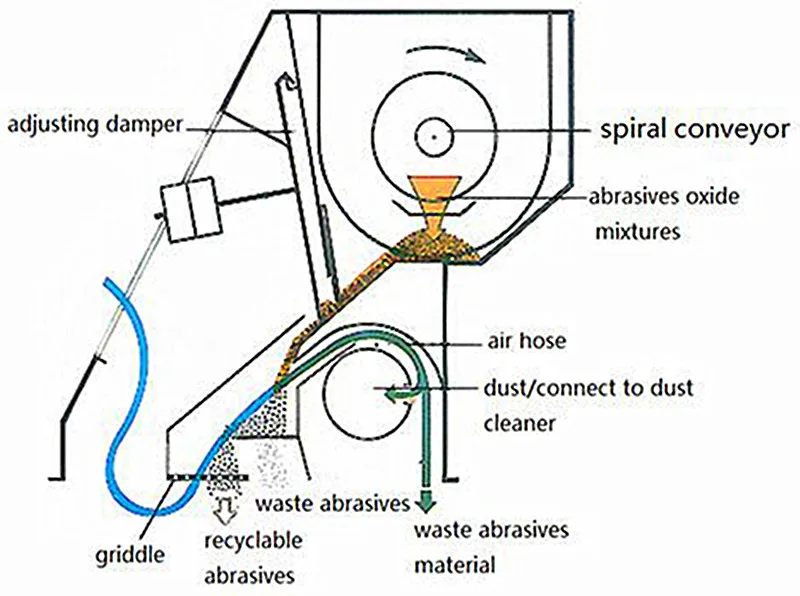

Separator

This machine uses most advanced full screen curtain air selection separator which includes selecting area, rotary screen drum, conveying screw, overfall sensor, abrasive stock bin and abrasive controlling valve. The abrasives mixture is conveyed into the separator screw via the elevator. Then the abrasive/sand mixture is carried out of the separator by the inner screw of the screening drum. Separating efficiency can reach 99.5%.


Electric Control System

Model: Automatic ( manual type is available).

Control Unit: PLC.

Emergency Stop: on main control panel and rollers conveyors.

Power Indicator: available on control panel.

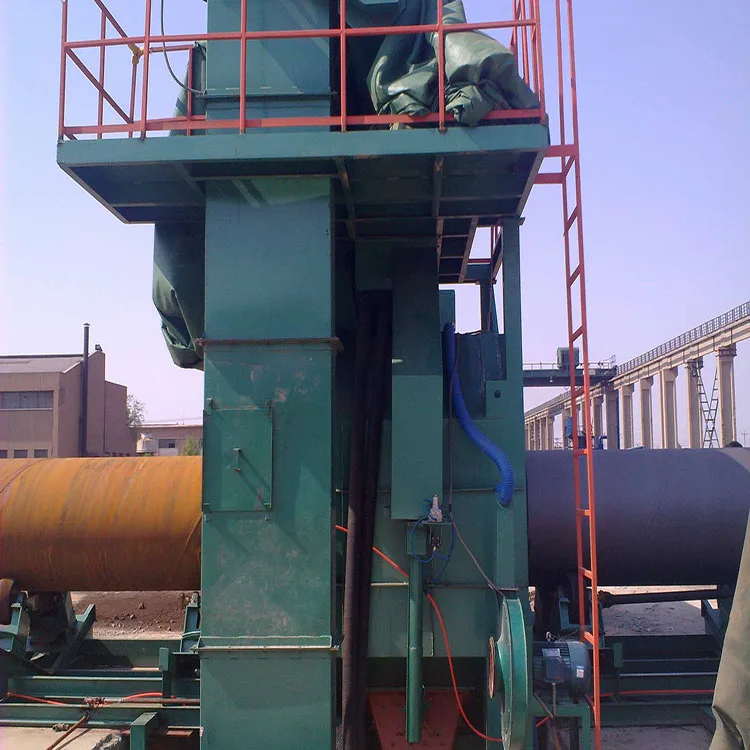

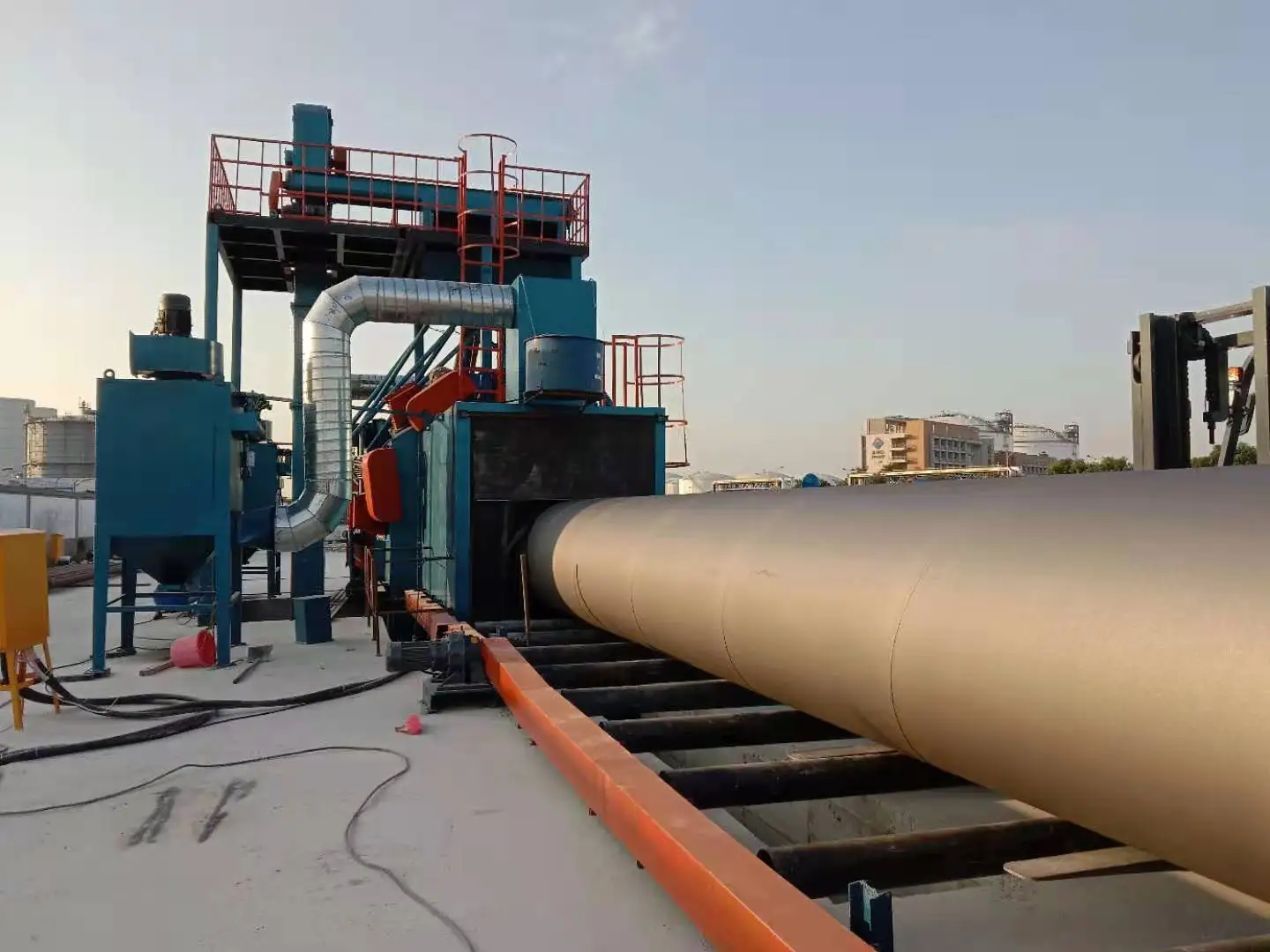

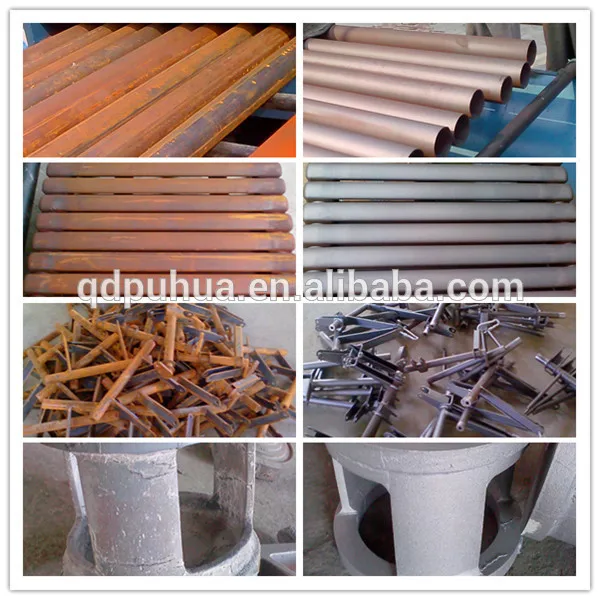

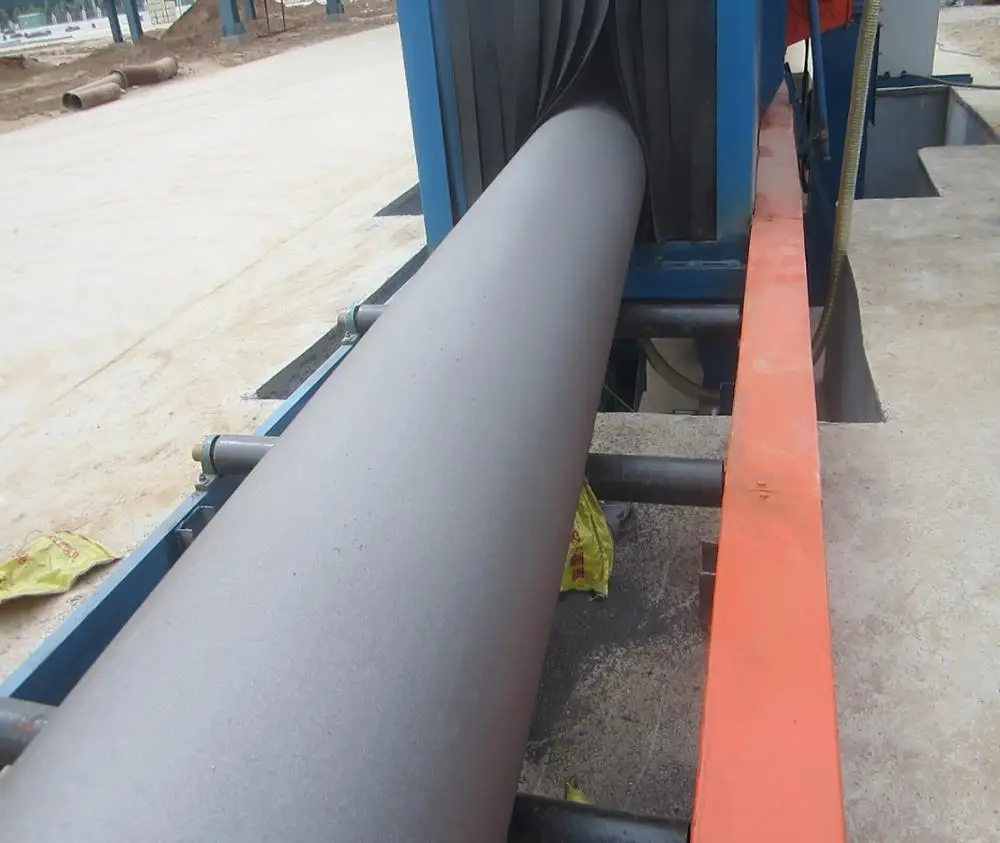

Product Application

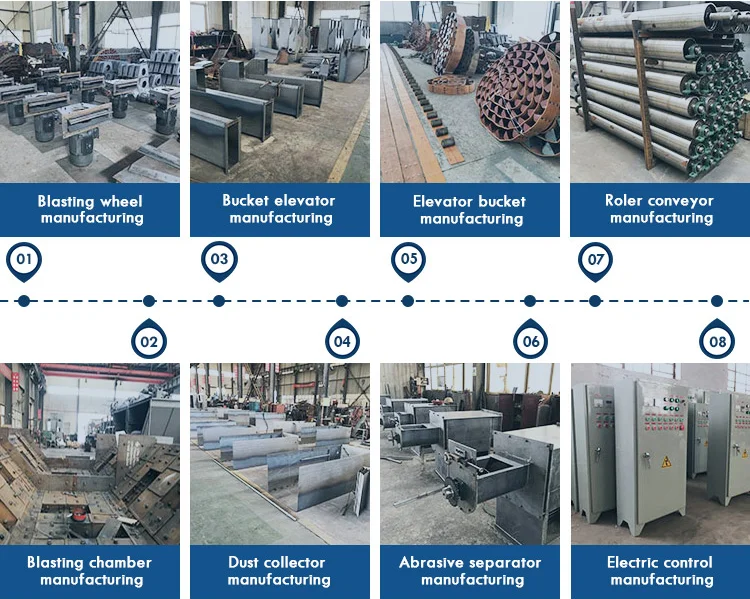

Workshop








Certifications

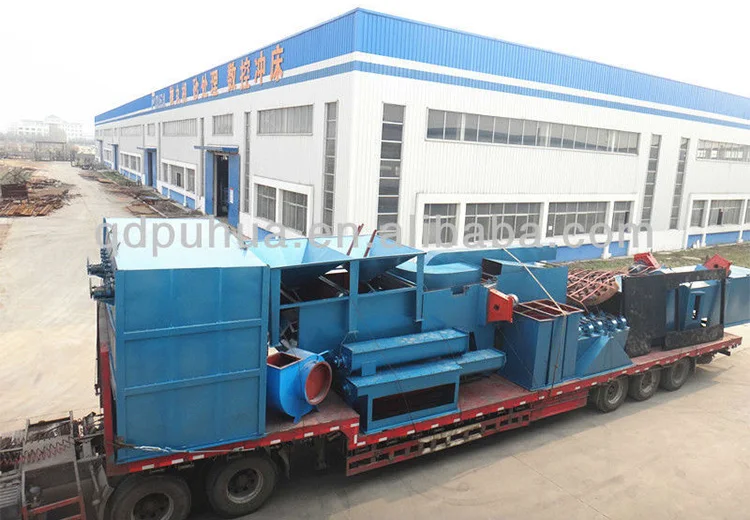

Product Packaging








Company Profile




Qingdao Puhua Heavy Industrial Group was established in 2006. It focus on design, research, development, manufacturing and export of CNC punching machine, sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.








FAQ


1. Production time:
20-40 days according to different type.

2. Installation and commissioning time:
10-15 days.

3. Installation and commissioning issue:
We will send 1-2 technicians to help with machine installation and commissioning, customer pays for their tickets, hotel and diet.

4. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.

5. Payment term:
30% as prepayment, balance 70% before delivery or L/C at sight.

6. We supply full english documents:
including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
