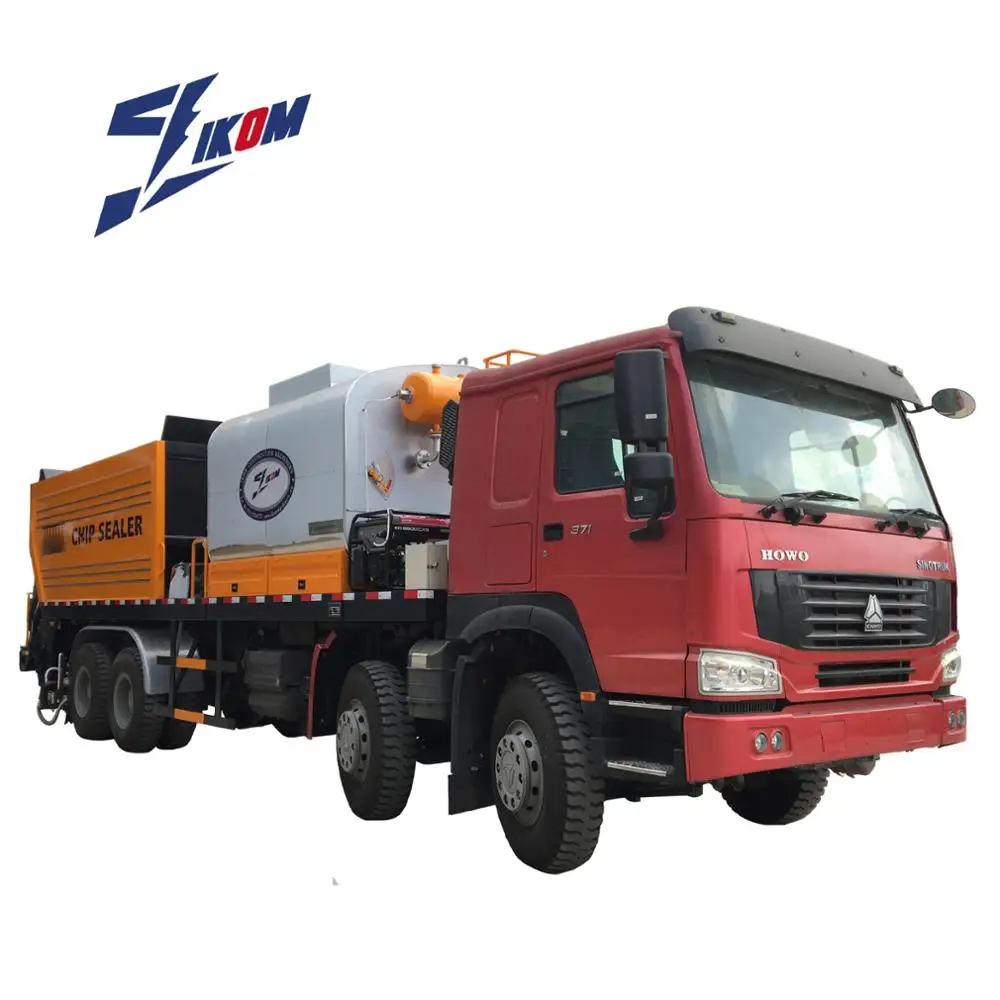

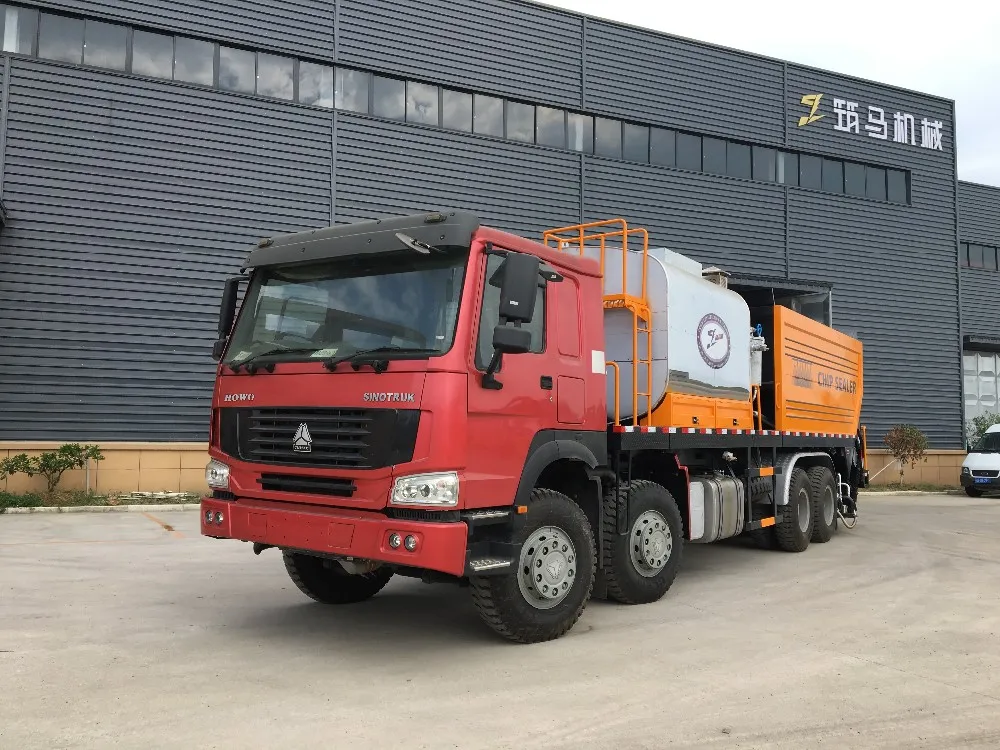

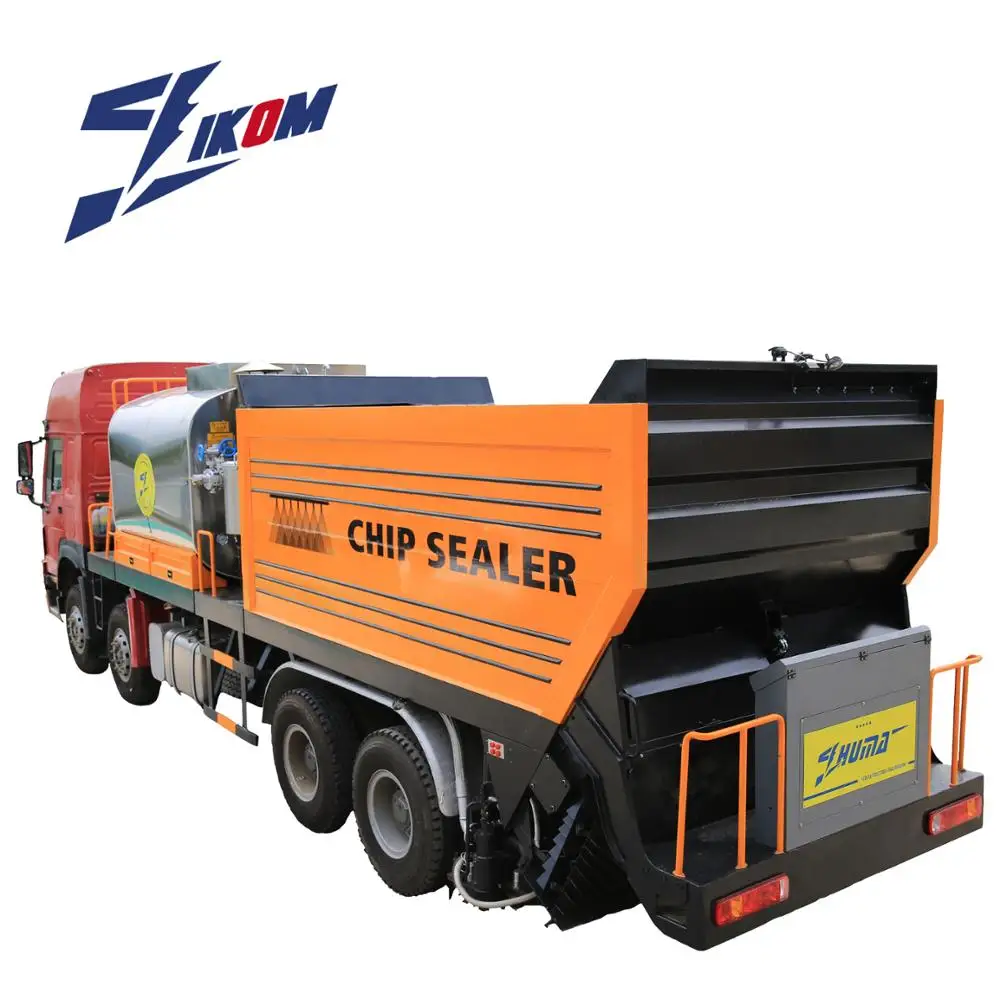

IKOM ZQZ5310TFC road synchronous secmair construction equipment asphalt chip sealer for sale
- Category: >>>
- Supplier: Hangzhou Ikom Machinery Co. Ltd.Hangzhou Ltd.
Share on (60774205367):
Product Overview
Description
Product Description
Mass parameter | ||||||
Kerb Weight(kg) | 21200 | Total Weight（kg） | 31000 | |||
Rated loading Weight(kg) | 9670 | Dimension(mm) | 12000×2500×3730 | |||
Chassis Parameter | ||||||
Chassis Model | Z1317ZM4661V | Tyre model | 12.00-20 | |||
Wheelbase (mm) | 1800+4600+1350 | Tread (mm) | 2022/1830 | |||
Engine parameter | ||||||
Engine model | WD615.87 | Manufacturer | China Heavy Duty Truck Group Co., Ltd. | |||
Max.Power(kw) | 213 | Max. Torque(N.m) | 1300/1600 | |||
Fuel | Diesel | Displacement(ml) | 9726 | |||
Spray specification | ||||||
Tank Capacity(m³) | 8000 | Chipping capacity(m³) | 12 | |||
Hydraulic pump model | CBQL-E563 | Spray width | 3800mm | |||
Hydraulic motoe | L2F63W2P2（LIYUAN） | Spray Value | 0.5-3.0（Kg） | |||
Controller | ZM-3D | Insulation Thickness | 50mm | |||
Generator(Converter) | YT6800E(YITENG) | Nozzles | 28 | |||
Asphalt pump | GRY40-25-160 | Burner | G20（Riello） | |||
