С модулем декодера SD MMC USB MP3

MODEL:JQ-D031A

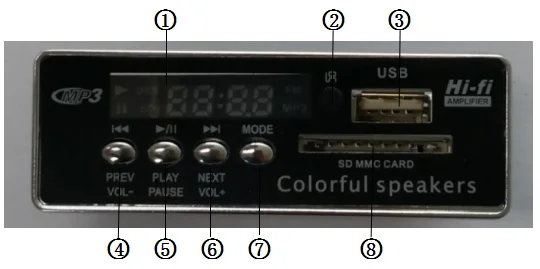

1. LED: Digital Screen Display,Red Display

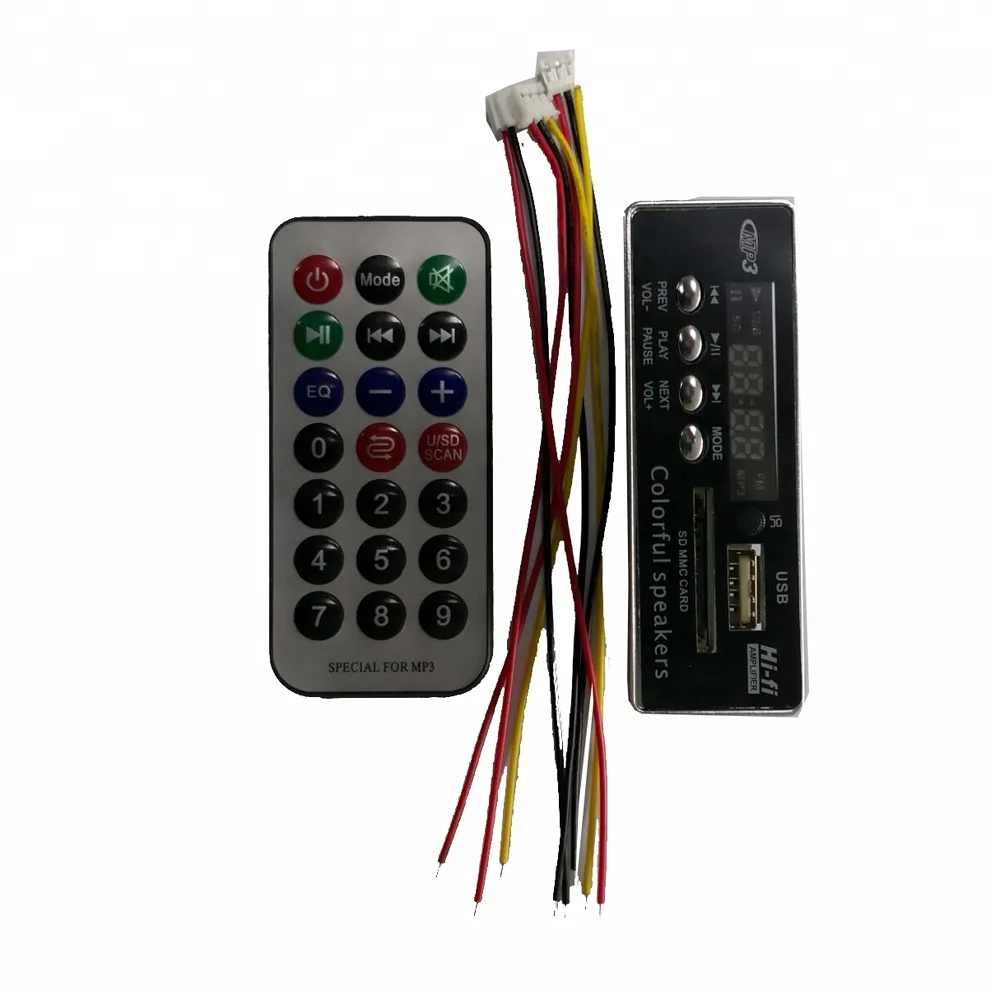

2. Infrared Receiving Module

3. USB: Connect U Disk (Maximum 32GB)

4. PREV/VOL-:Short Press LAST, Long Press VOL-

5. PLAY/PAUSE:Short Press PLAY/PAUSE; Long Press FM

6. NEXT/VOL+:Short Press NEXT, Long Press VOL+

7. MODE: USB/SD/FM/AUX Switch

8. SD:Connect SD Card (Maximum 32GB)

Bluetooth IC: JR Solution

Format: MP3/WMA

FM Frequency: 87.5—107.5 MHZ

Function:Support MP3/USB/SD/LINE IN/FM/IR Remote Control

Voltage: DC 5V and DC 12V Optional

Front Panel Size: 84 * 29 MM

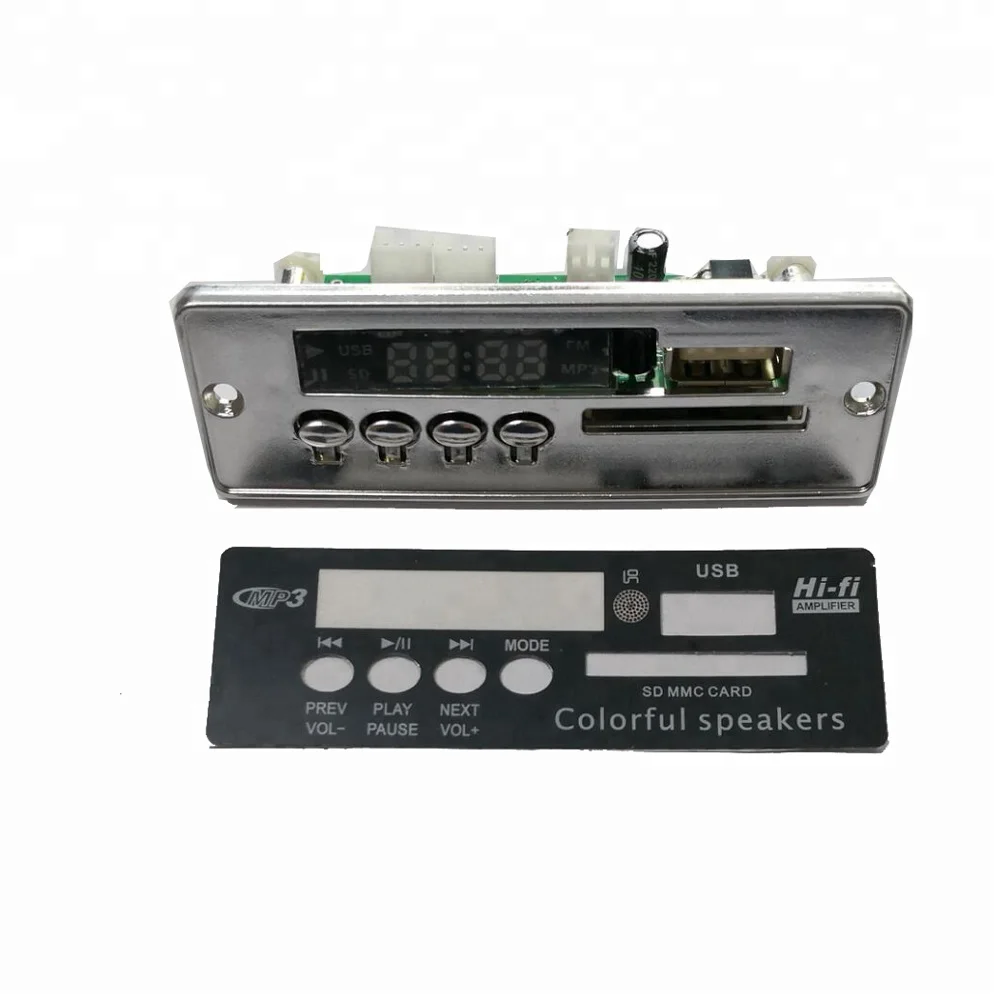

There are screw holes on both sides of the panel, and then PVC lens is attached to the surface. the depth of the panel is 32MM
