Egg carton mold factory for machine making egg trays
US $300.00-$1000

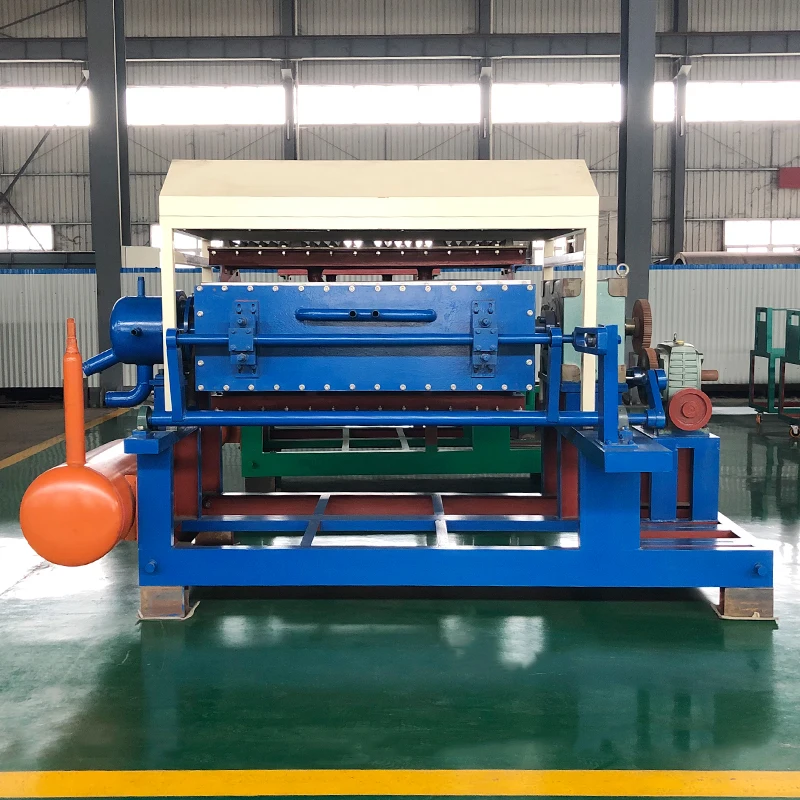

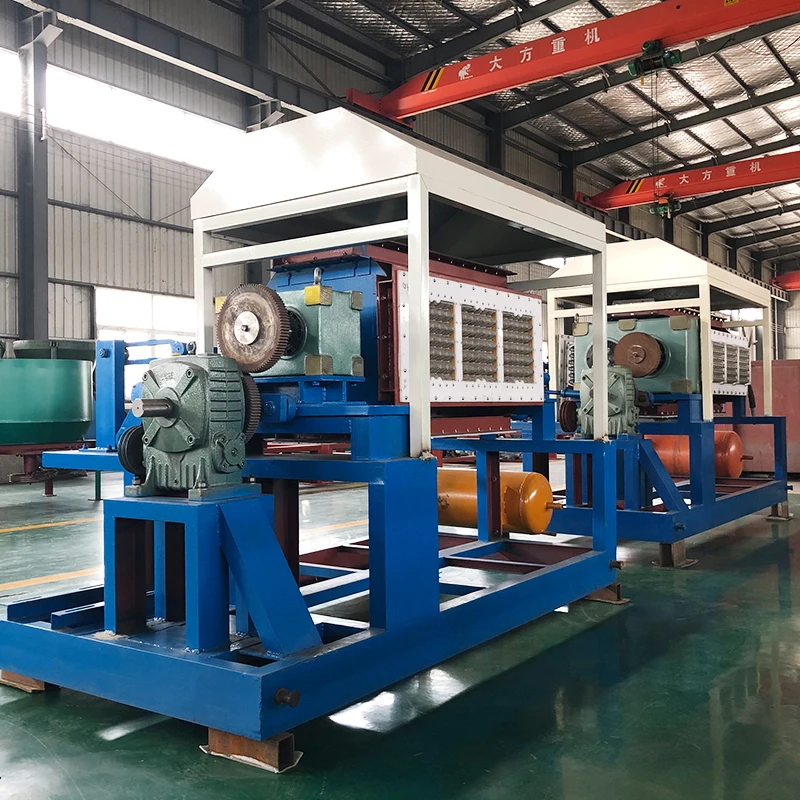

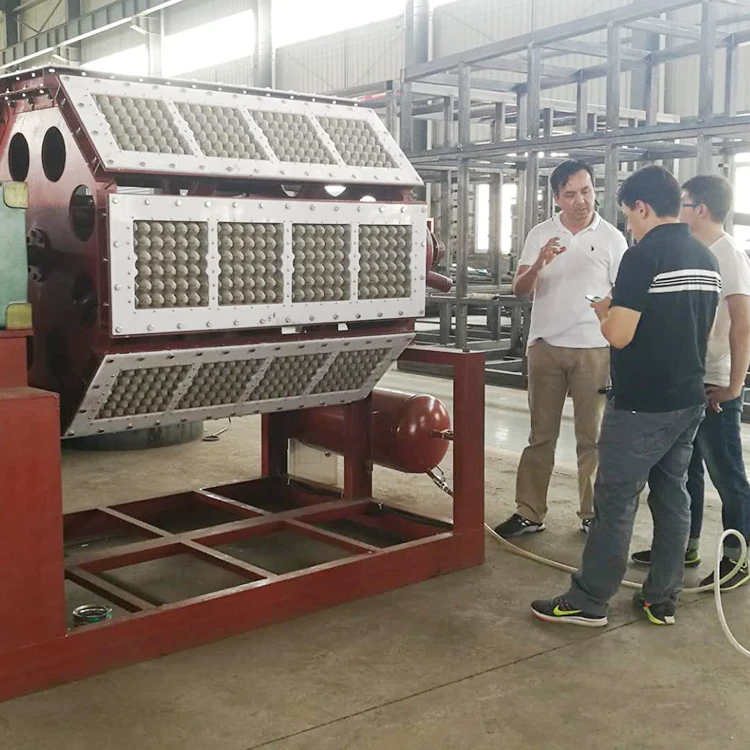

Henan Fuyuan Factory Price Small Scale Paper Egg Tray Making Forming Machine
- Category: Paper Production Machinery >>>
- Supplier: Henan Fuyuan Machinery Manufacturing Co. Ltd.
Share on (60774927020):
Product Overview
Description

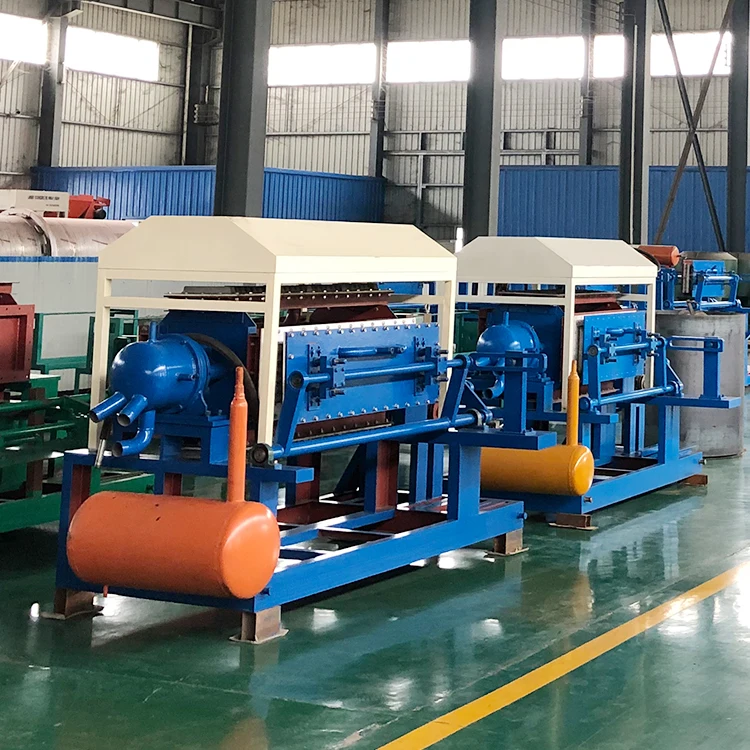

Henan Fuyuan Brand Paper Egg Tray Pulp Making Machine Automatic Egg Tray Making Machine

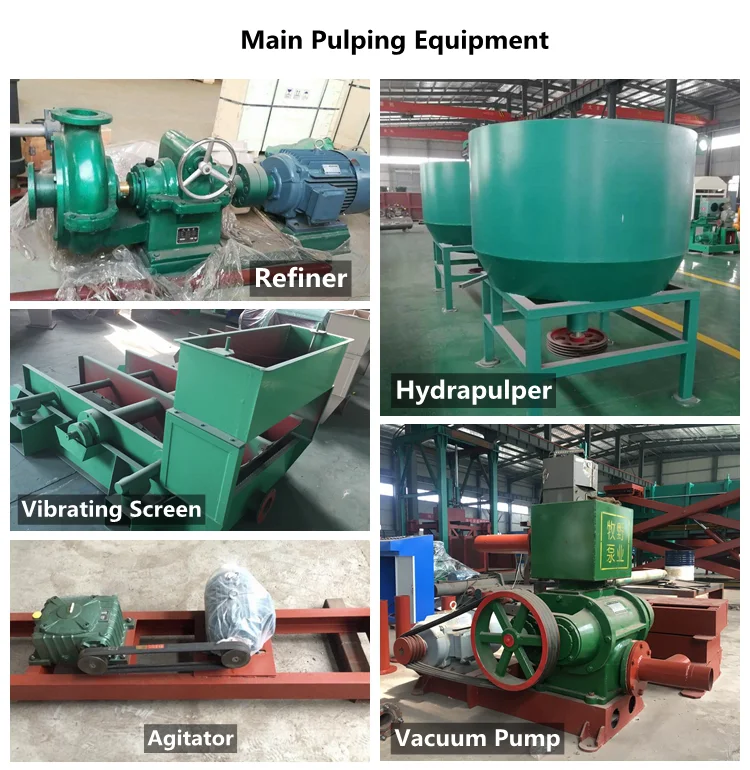

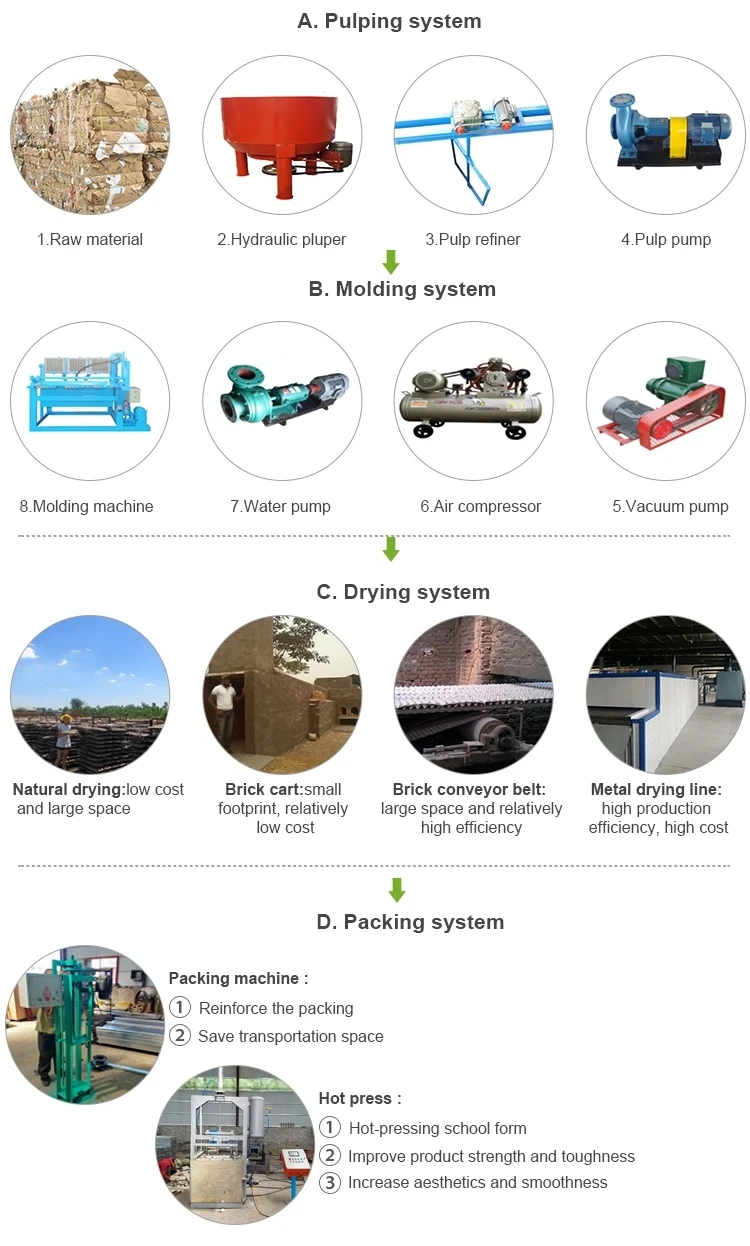

The automatic egg tray machine is used to produce paper egg tray. The main working process of paper egg tray machine is composed of pulping system, forming system and drying system. Paper tray making machine is mixing the waste paper and water. When it reaches the certain concentration, the egg tray pulp can be conveyed to forming machine. The whole production line include pulp making system, moulding system, drying system and packaging system.
And it is also a waste recycling machine, the raw material use general waste paper, like old book, old newspaper ,abandoned carton and so on .Egg carton trays is very environmentally friendly and Safety,it is in line with the needs of the development of modern society .High yield and high return.
And it is also a waste recycling machine, the raw material use general waste paper, like old book, old newspaper ,abandoned carton and so on .Egg carton trays is very environmentally friendly and Safety,it is in line with the needs of the development of modern society .High yield and high return.

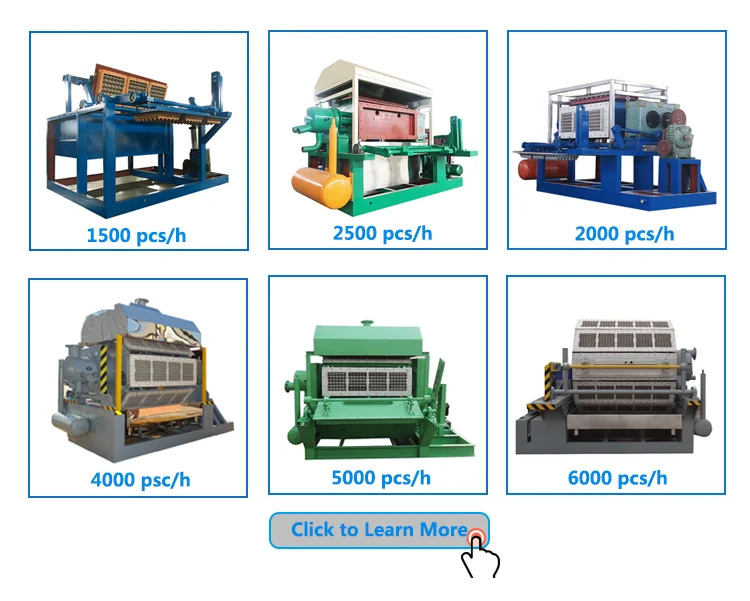

Machine Model | FY-3*1 | FY-4*1 | FY-3*4 | FY-4*4 | FY-4*8 | FY-5*8 | FY-5*12 |
Production Speed (pcs/h) | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 | 6000 |
Total Power | 32KW | 45KW | 58KW | 78KW | 80KW | 85KW | 90KW |
Paper Consumption (kg/h) | 120 | 160 | 200 | 280 | 320 | 400 | 480 |
Water Consumption (kg/h) | 300 | 380 | 450 | 560 | 650 | 750 | 900 |
Workshop Area (sq.m.) | 45 | 80 | 80 | 100 | 100 | 140 | 180 |
Drying Area (sq.m.) | No need | 216 | 216 | 216 | 216 | 238 | 260 |
Product advantage
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get.
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.
5. Engineers available to service machinery overseas.

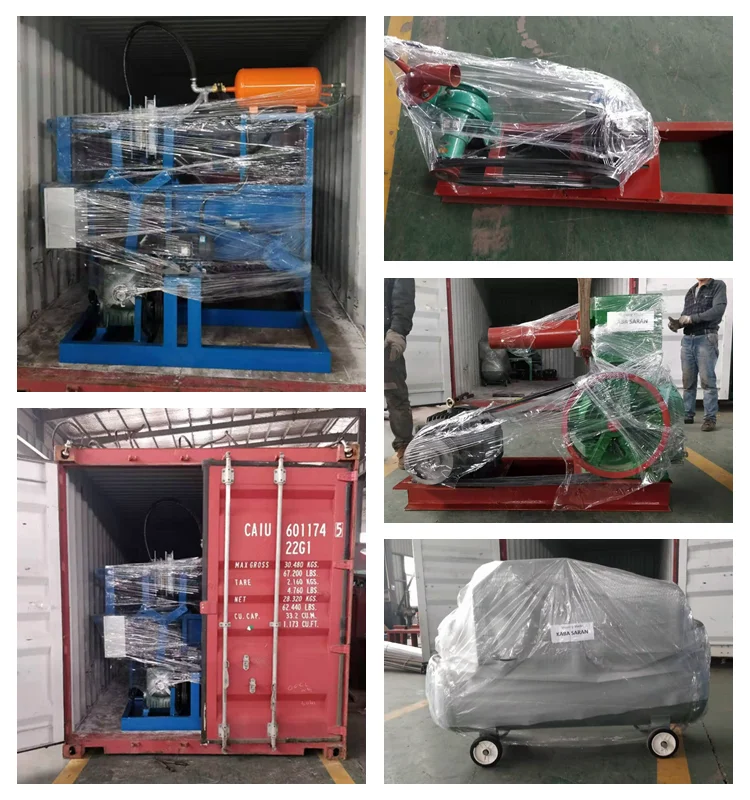

Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipment
1.Sea transportation is from Qingdao port or other ports.
2.The delivery time is decided by your needed machines or machine parts. But it also follows your needs.

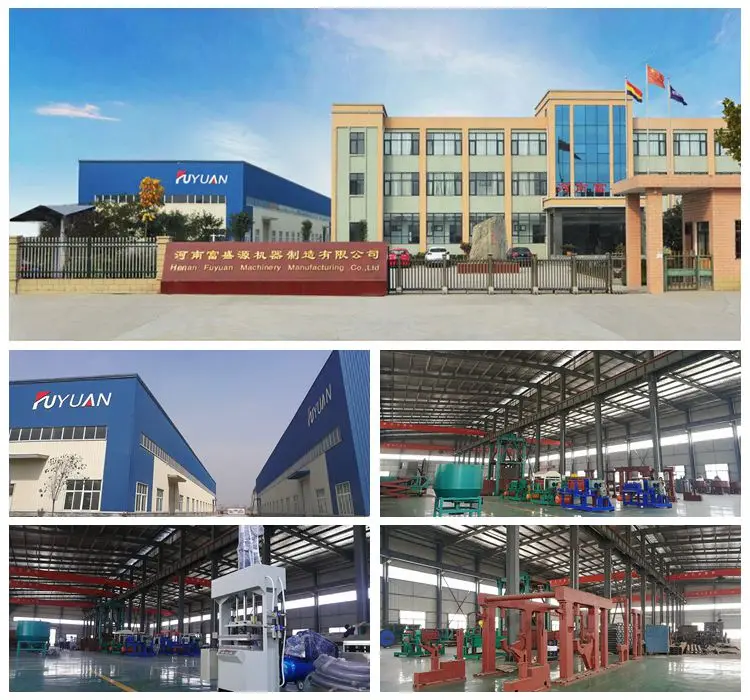

Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City, Henan Province.Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: Egg Tray Machine,Facial Tissue Machine,Napkin Paper Machine,Toilet Paper Rewinding Machine, and other Paper Processing Machinery. After 36 years of development, our company has developed into a large enterprise integrating scientific research, production and trading,our factory covers an area more than 33,000 square meters, construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making project and paper egg tray making production line,welcome the friends to visit us over the world.
FAQ
1.Q:How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
2.Q:What time and what shipped ways you will send out orders ?
A:Usually we will send out your orders about 15 days after your payment .and usually we will send your order by the sea transportation.And each machine's delivery date is different ,usually is 10-30 working days .
3.Q: If i don't know how to install the machines after i bought it ? Can you install the machines in my country ?
A: Yes, we have our own specialized engineers who can install the machine for the customers in abroad.
4.Q: Do your company accept Alibaba Trade Assurance?
A: yes, of course. (1)We will draft order accoring buyer requirements. (2)Negotiate terms with the supplier and confirm order. (3)Make payment to the bank account designated by Alibaba.com.
5.Q:Which kind of product can this machine make?

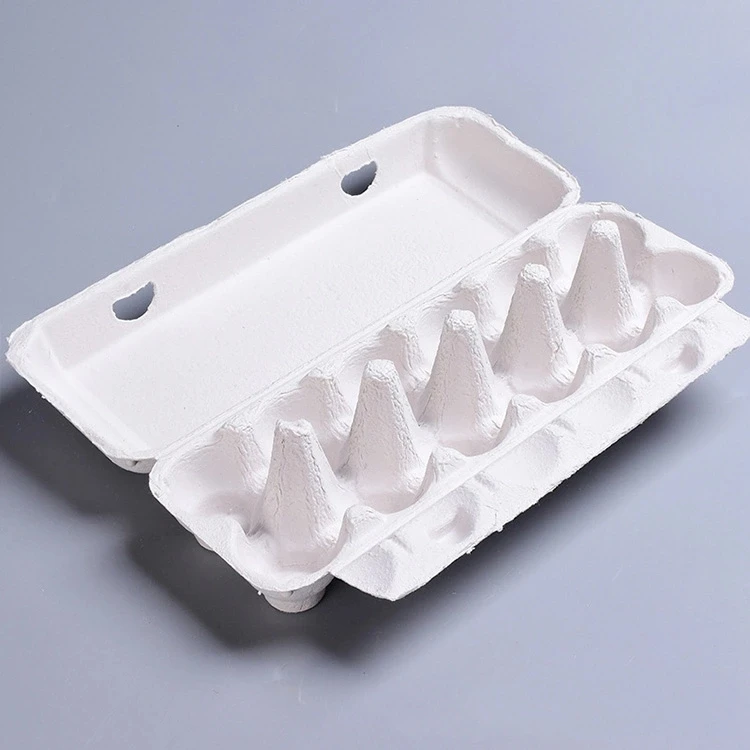

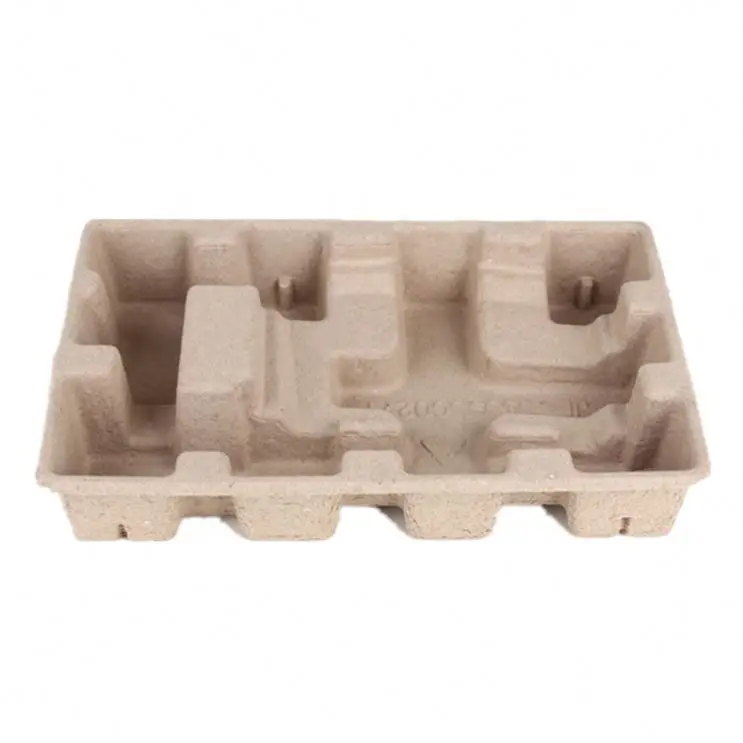

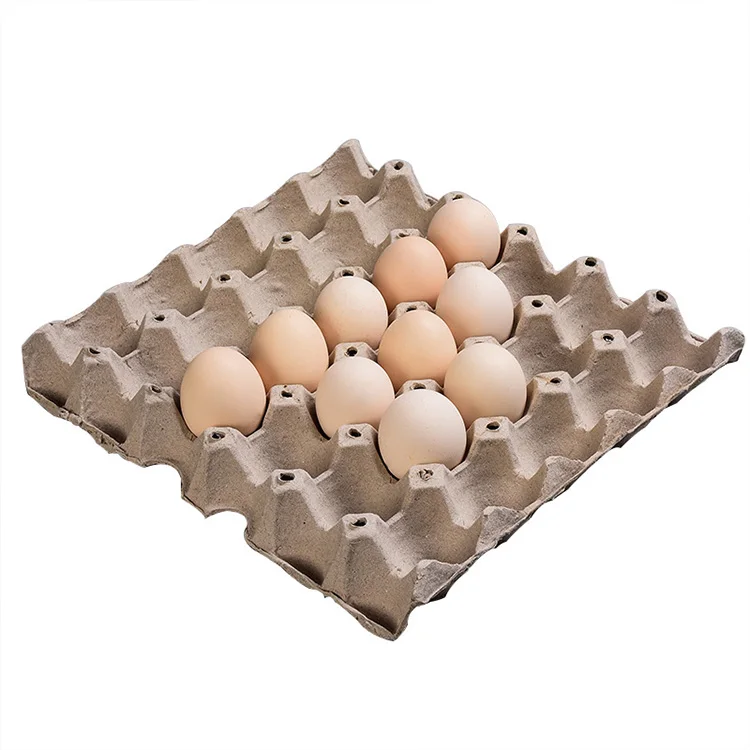

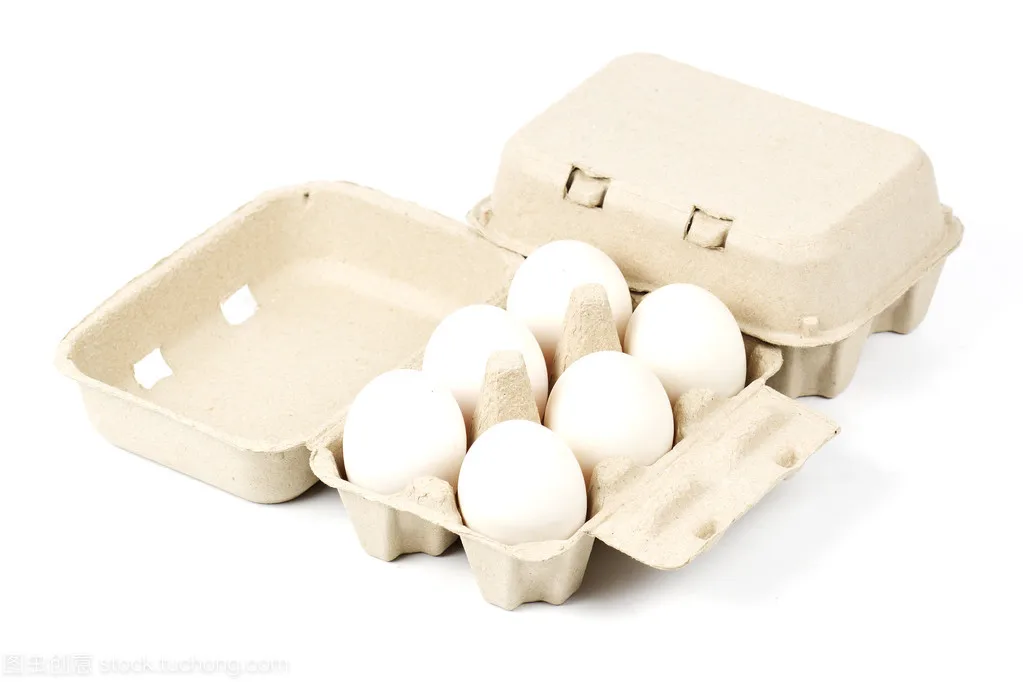

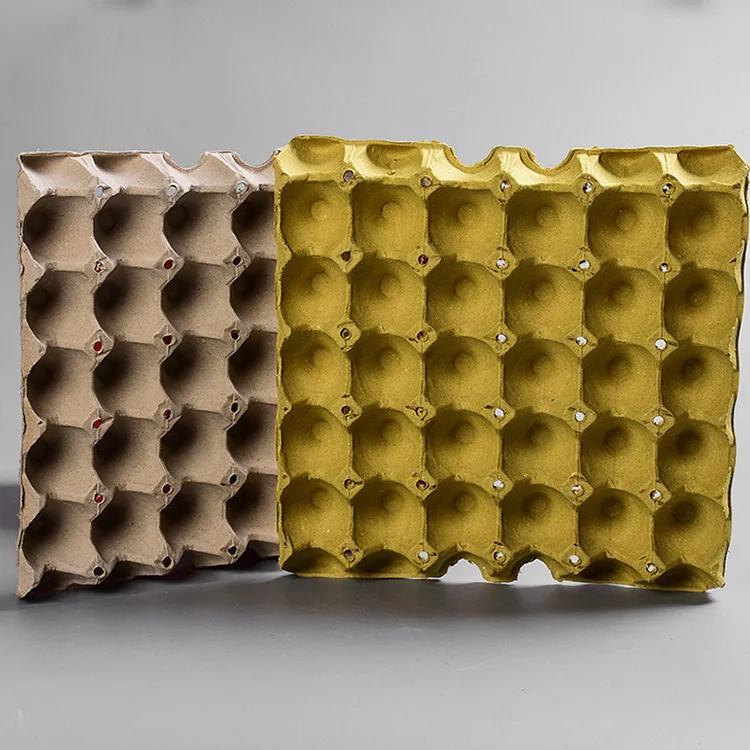

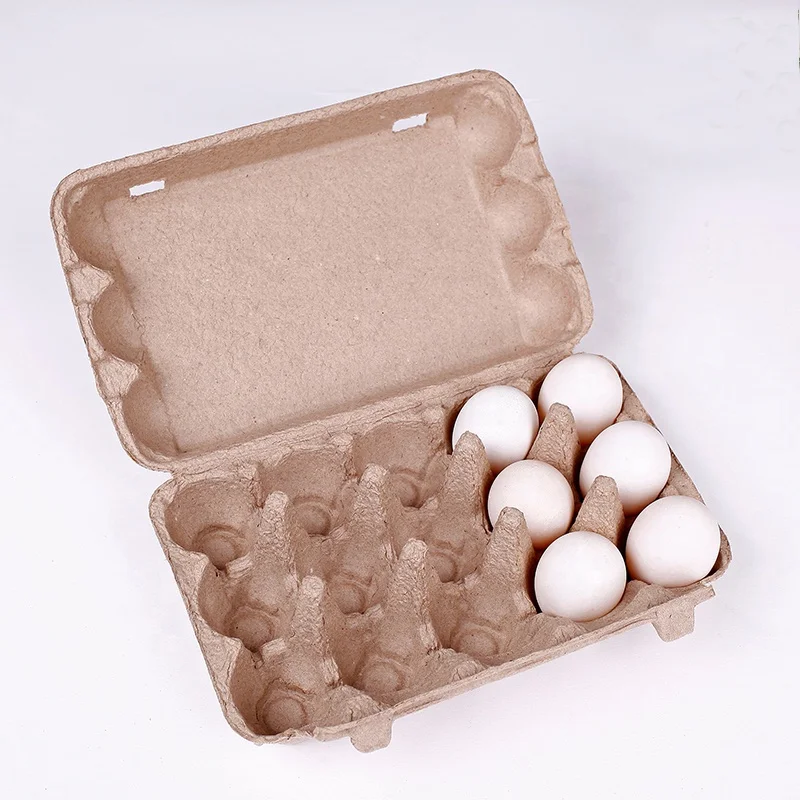

A:The machine can product the egg trays egg box, egg carton,fruit tray and wine tray and so on. If you want to produce other paper industrial packages, we can customize the mould per your requirement.
A:The machine can product the egg trays egg box, egg carton,fruit tray and wine tray and so on. If you want to produce other paper industrial packages, we can customize the mould per your requirement.
6.Q:What voltage the machine can work normally ?
A:The machines can adapt the voltage 220v/380v.
