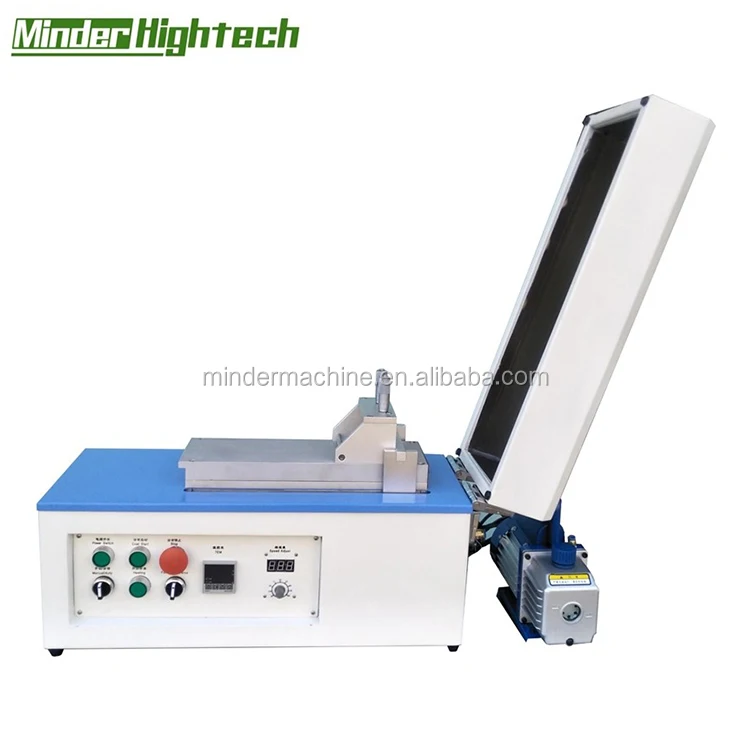

Desktop Lab Vacuum Film Coating Machine For Lithium Battery Electrode Coating

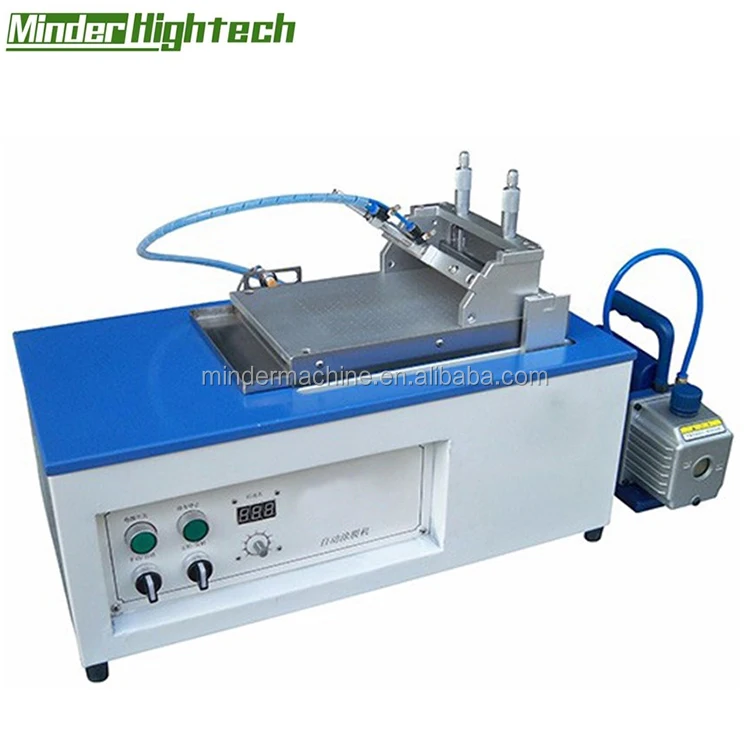

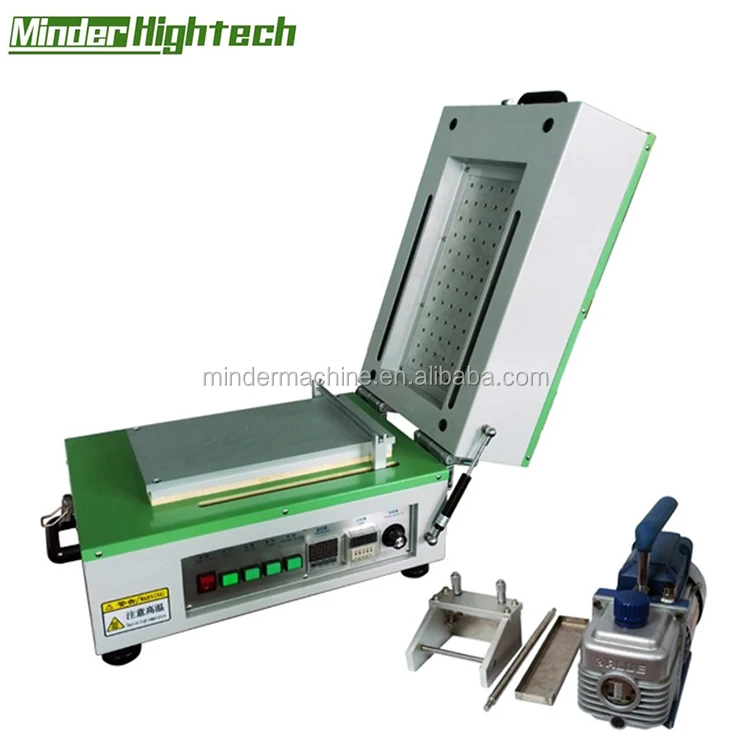

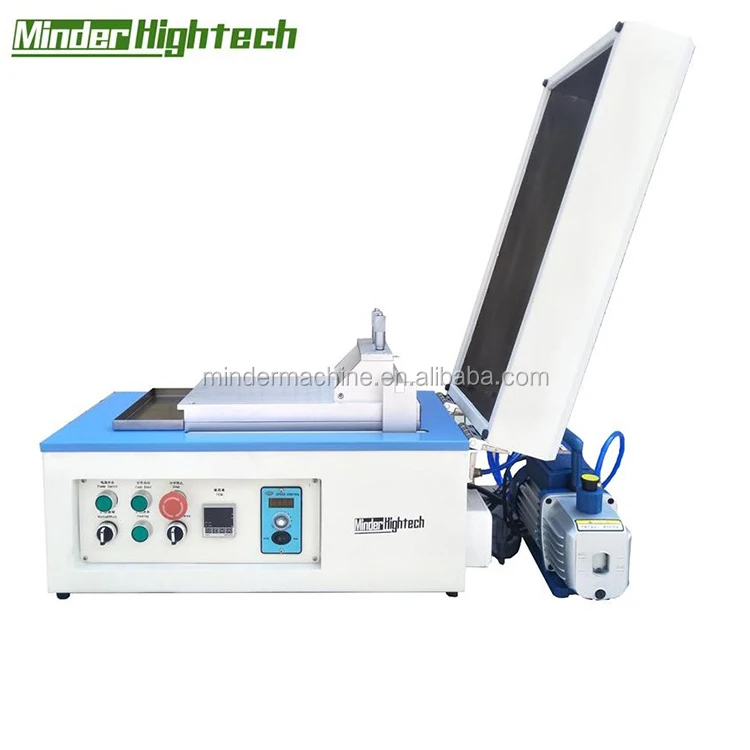

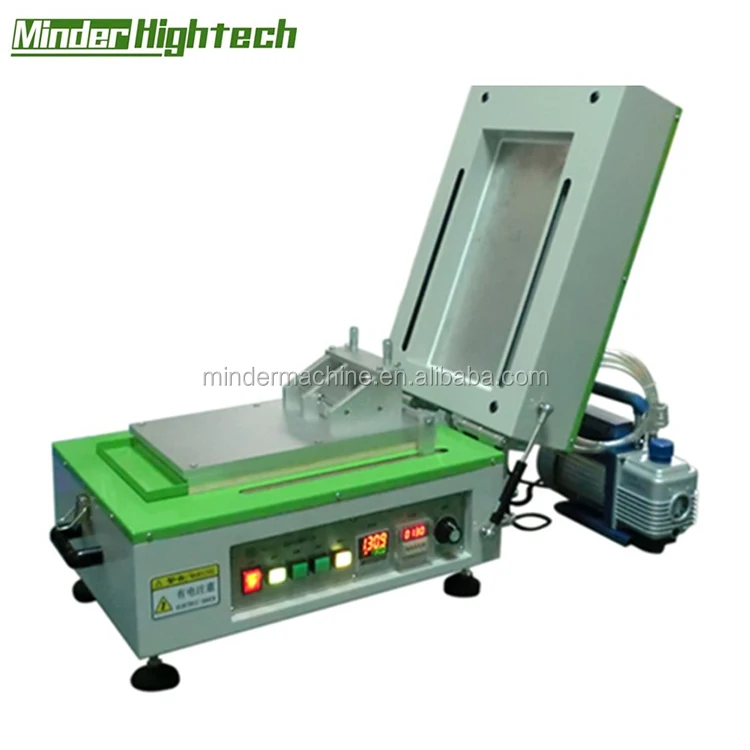

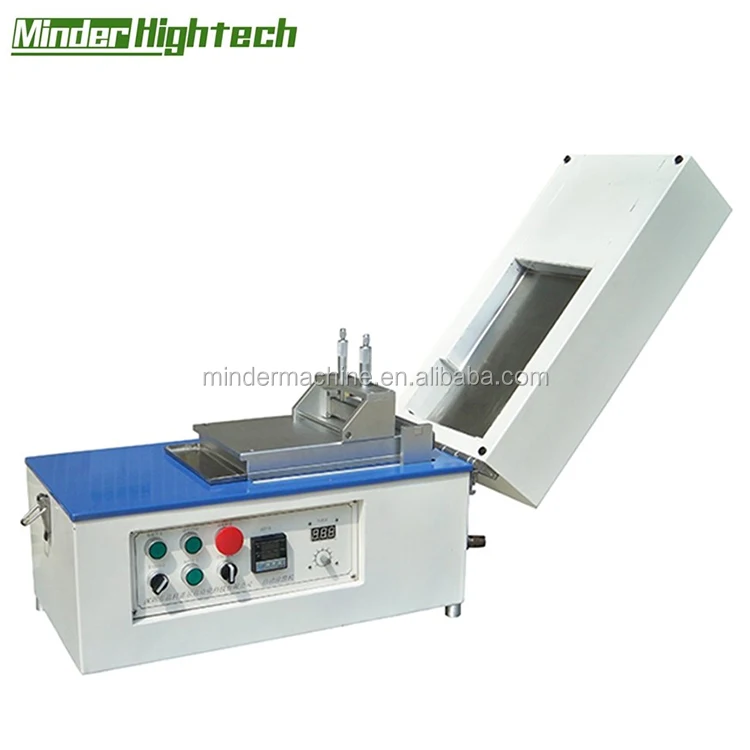

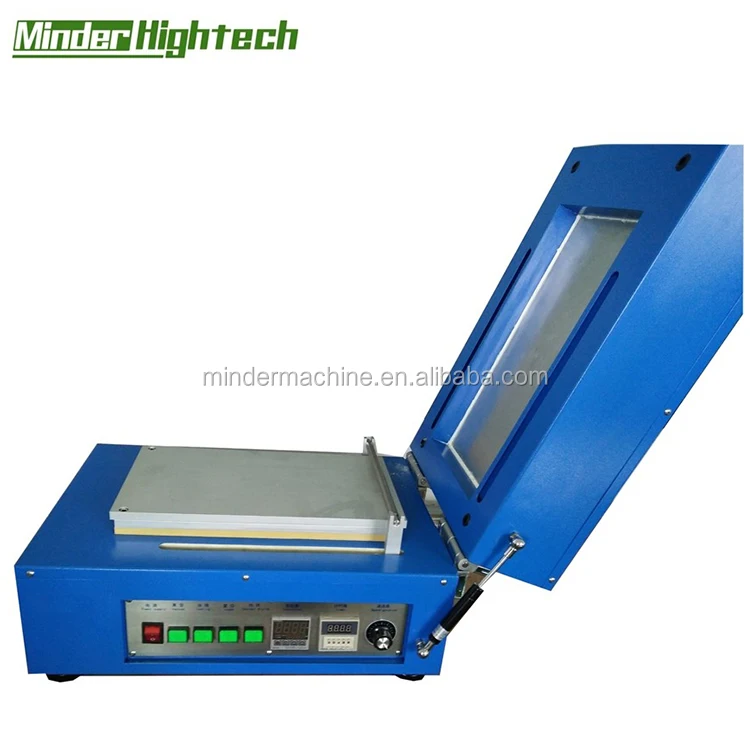

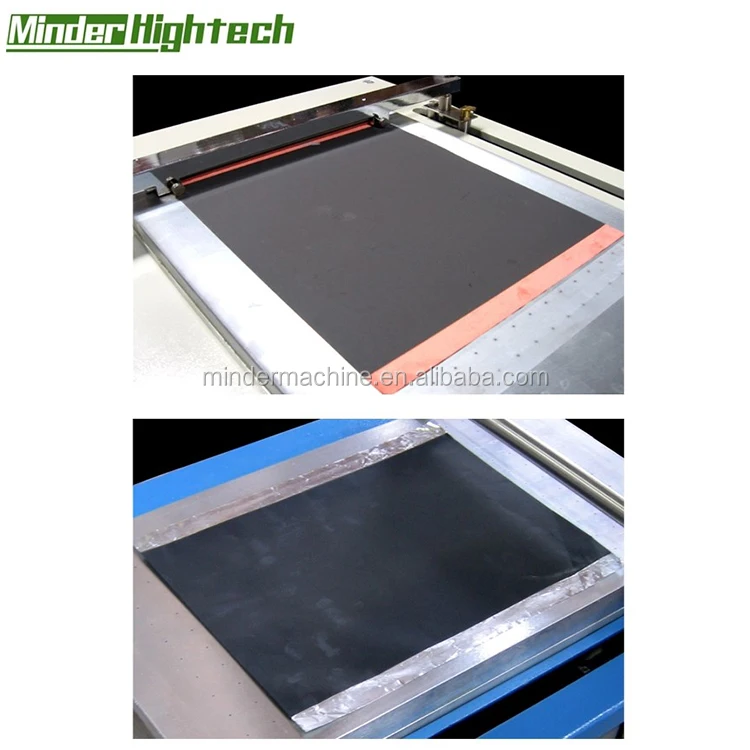

MD-TMJ200 is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 100 mm width adjustable micrometer applicator (doctor-blade) and an oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.
Features
1. Pushing speeds can be varied between 0 and 100 mm/sec to establish the most suitable application conditions for all coating material.
2. Aluminum alloy flat vacuum plate with built in vacuum pump and allow you put on or release substrate quickly.
3. Built-in pushing bar for using micrometer adjustable applicator or frame film applicator.
4. Adjustable position switch allow you set up a stroke from 10 - 250 mm.
5. One 150 mm width micrometer adjustable film applicator is included, accuracy 0.01mm.
6. Heating cover is built in with digital temperature controller for drying film within 200℃within +/-1℃.
Specification
Model | MD-TMJ200 |
Voltage | AC220V/50Hz |
Power | 650W |
Coating Speed | 0~120mm/s is adjusted |
Maximum Stroke Length | 200mm is adjusted, can be customized |
Platform | 1. Aluminum alloy flat vacuum chuck 2. Vacuum chuck dimensions: 410mm(L) x 200mm(W) x 30mm(H) |
Maximum Stroke Width | 250mm, can be customized |
Thickness Adjustment Range | 0.01-3.5mm |

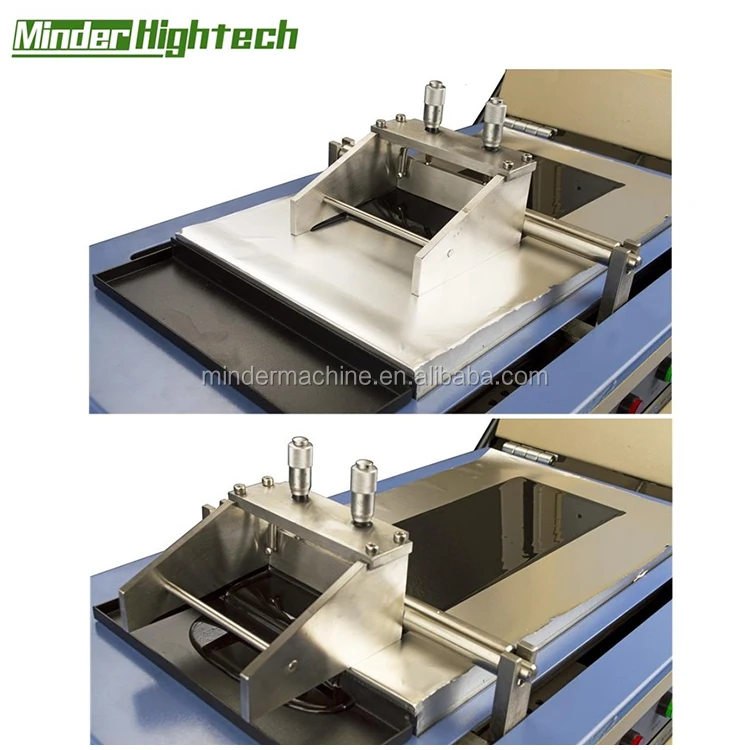

Film Applicator | 1. One 150 mm width micrometer adjustable film applicator is included, with adjustable thickness from 0.01mm~5mm 2. Traverse pusher is included for pushing the doctor blade to ensure constant speed coating |
Heating Dry System | RT-200°C, Digital temperature controller |
Temperature Control Accuracy | ±1°C |
Vacuum Board Material | Aluminum alloy |
Vacuum Board Size | L365mm×W200mm×H30mm |
Whole Device Size | L500mm×W310mm×H330mm |
Vacuum Pump | Vacuum pump is included |
Weight | 50kg |
Warranty | One year limited manufacture warranty with lifetime support |
Accessory | 1. One oil-less vacuum pump is included for immediate use 2. One 150mm width micrometer adjustable film applicator is included |
Please Click on the Picture to See More Types

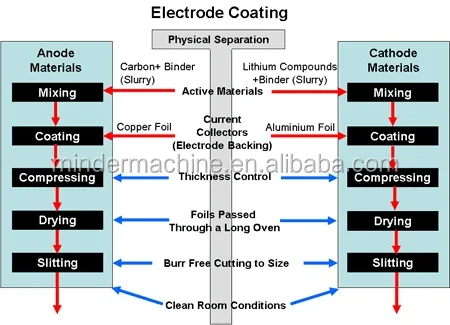

Battery Manufacturing Process
Packaging & Shipping
1 Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according to your country requirements.
Our Services
1 We supply a full set of materials for lithium battery, including polymer battery, mobile phone battery, EV battery and so on.
2 We supply a full set of equipment for lithium battery lab research, pilot scale research, production line
3 We supply a full set of technology support for battery design, research and producing.
