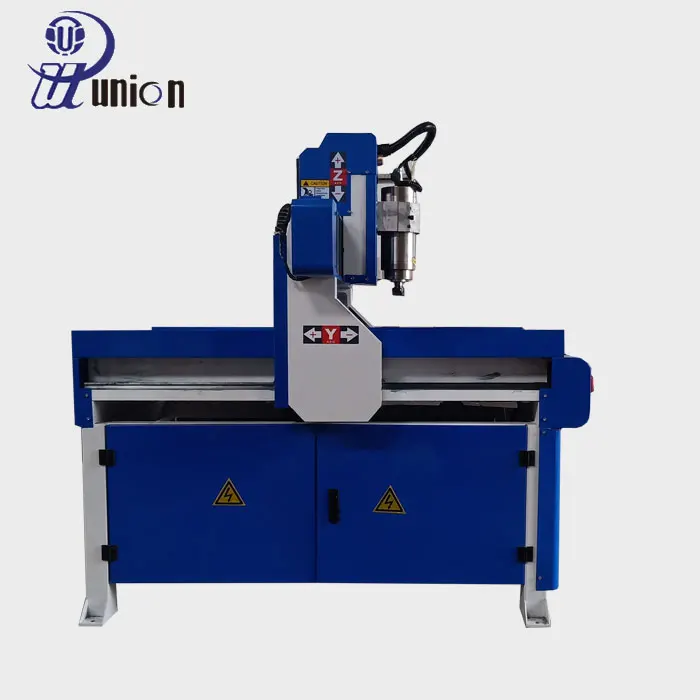

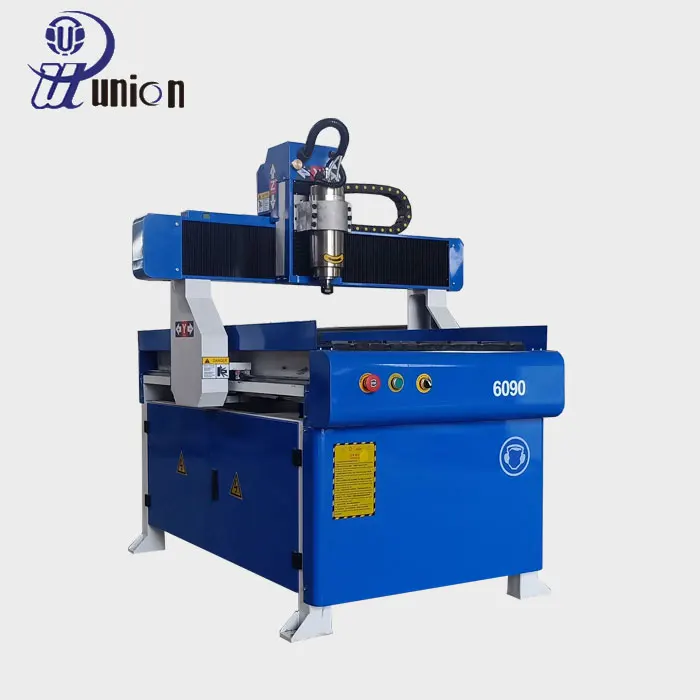

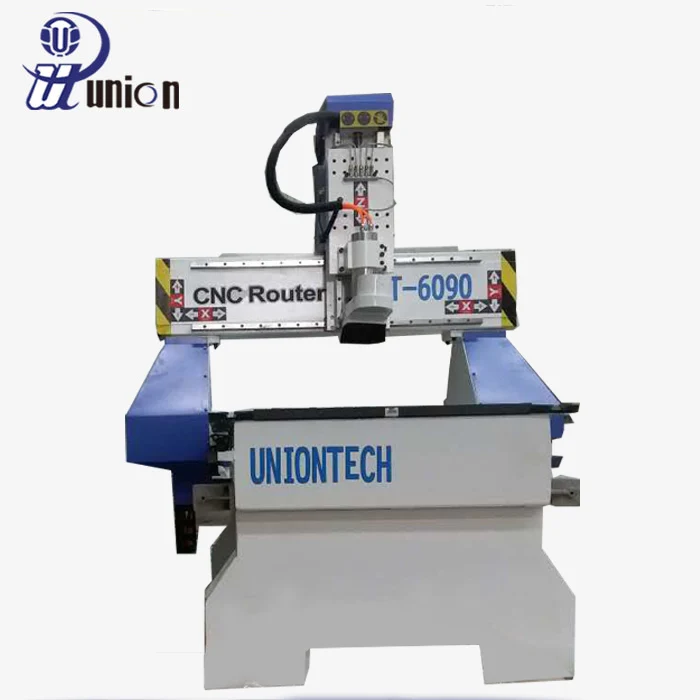

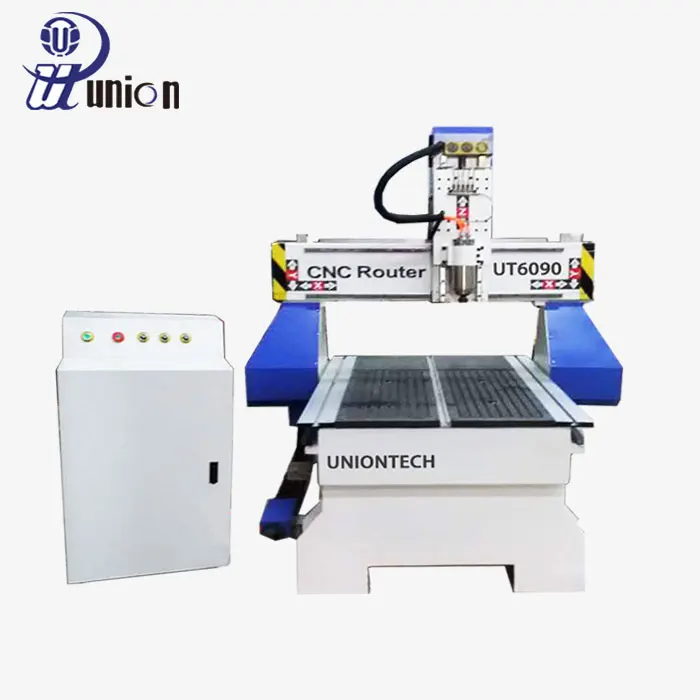

6060 6090 4 axis cnc router, cnc milling machine for wood, aluminum, copper

Product Overview

Description

 Features:

1. Taiwan TBI ball screw, make the precision higher,

2. Imported Mach3 control system, connected with computer, easy to operate,

3. Imported HIWIN guide rails, make the machine working more smooth and higher precision.

4. Chinese best 1500w water cooling spindle with 24000RPM

 Parameters:

Description	Parameters
X,Y,Z Working Area	600*900*300mm
Table Surface	T-slot Table with PVC
Frame	Cast iron Structure
X, Y, Z Structure	20# HIWIN linear guide,
Transmission	TBI Ball Screw
Max. Power Consumption	(Without Spindle)2.5kw~3kw
Spindle Power	2.2kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor
Working Voltage	AC380V/50-60Hz,3PH (Option: 220V/1phase)
Command Language	G Code
Operating System	Mach3 control system
Computer Interface	USB
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)

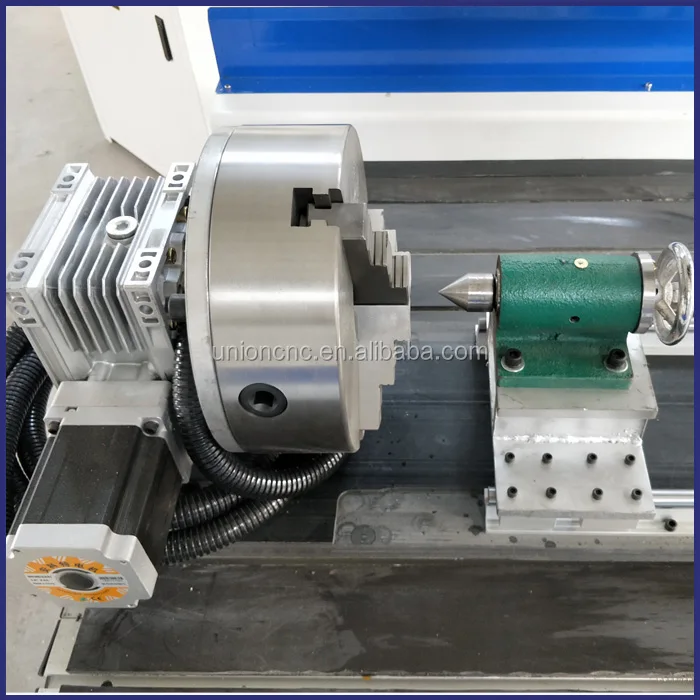

4th rotary devide	200mm diameter, 900mm length
Optional parts	Japanese YASKAWA servo motor, Italy HSD air cooling spindle









 Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

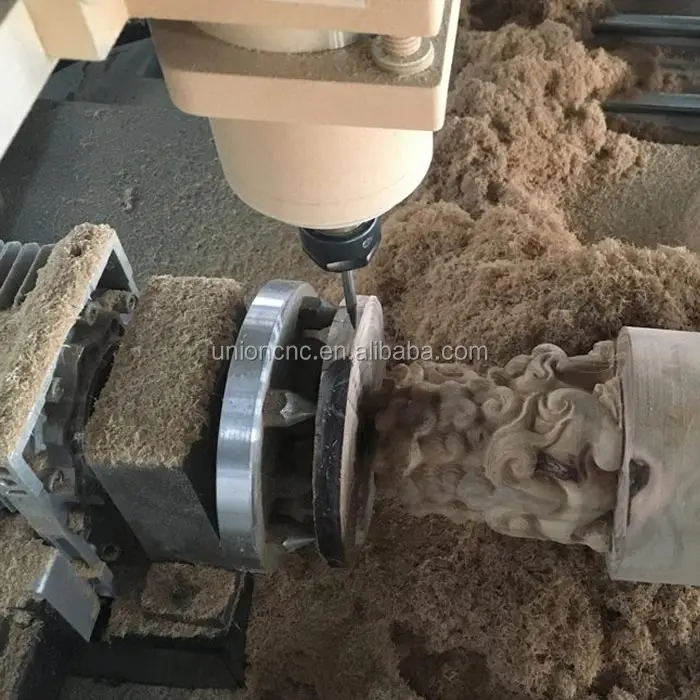

4. relief sculpture, 3D engraving & Cylinder object engraving.
