XK-450 EPDM NR SBR rubber open mixing mill with bearing bush
US $3000-$50000
TPR Laboratory Furniture Rubber Raw Material Machine Two Roll Mill
- Category: Rubber Two-Roll Mills >>>
- Supplier: Guangdong Lina Industrial Co. Ltd.
Share on (60775367924):
Product Overview
Description
Basic Info
Safety Devices:The Roller adopts 360 degrees emergency and reverse brakeing device.

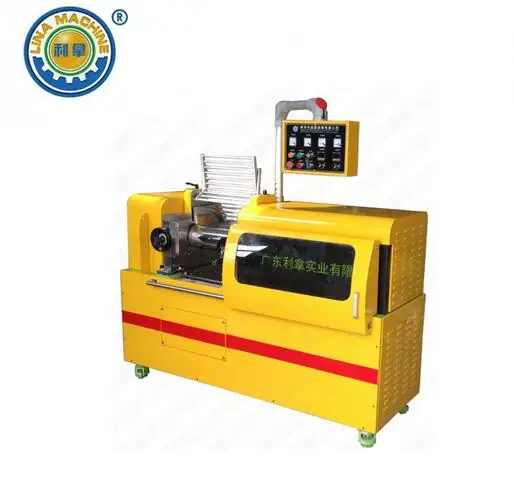

TPR Laboratory Furniture Rubber Raw Material Machine Two Roll Mill
Lab rubber Sheet Making Machine for Medical Siliconeis broadly used in plastic and new materials industry.The automatic type will save the labor and decrease the cost. The main parts of LINA Rubber Open Mill are imported from Germany, Japan and Taiwan. The design of LINA Two Roll Open Mill takes the lead in China's rubber and plastic machinery industry. High precision and high safety are LINA's Rubber Two Roll Milling Machine's main advantages. Besides, user friendly, higher safety, higher control precision, higher durability and excellent temperature control are LINA Rubber Open Mill's advantages that make LINA outstanding in the industry. Moreover, in the market of China's Factory Production Open Mills, about 47% domestic science and research institution and universities are using LINA Small Type Two Roll mills. Lab TEST Two Roll Mill, Small Size Two Roll Open Mill, Lab Rubber Open Mixing Mill, Lab Plastic Open Mixing Mill, Lab Two Roll Open Mill
Specifications of TPR Laboratory Furniture Rubber Raw Material Machine
| Item | Specification | Remarks |
| Type | XK-120-4 | |
| Roller Diameter | 120 mm | |
| Roller Width | 350 mm | |
| Linear Velocity of Front Roller | 18r/min | |
| Speed Ratio of Rollers (Front/Rear) | 1:1.24 | |
| Maximum Roller Distance | 5 mm | |
| Production Yield | 0.5-1.5 KG per time | Electric/oil/steam heating and circulating water cooling. |
| Motor Powder | 3.75/5.5 KW | |
| Weight | About 800 KG | |
| Dimensions | About 1650*600*1150 |
Characteristics of TPR Laboratory Furniture Raw Material Two Roll Mill
1. User friendly
2. Higher safety
3. Higher precision
4. Higher durability
5. Excellent temperature control

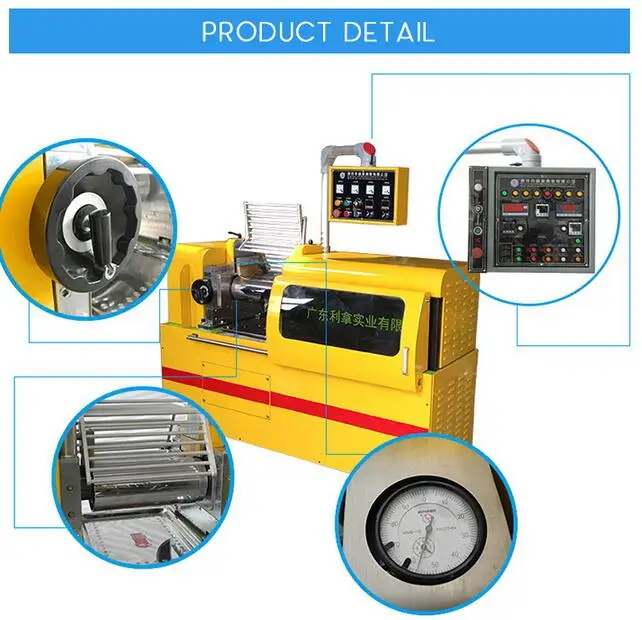

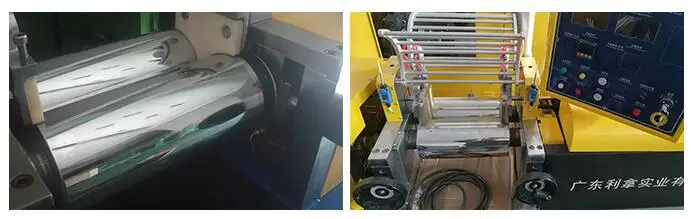

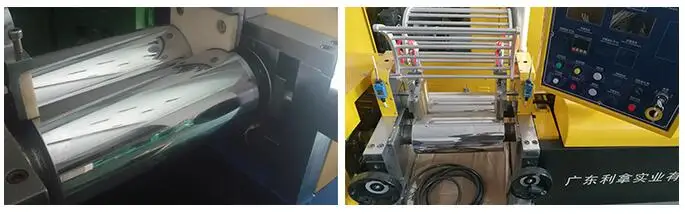

Details of Lab rubber Sheet Making Machine
LINA New Safety System Of TPR Laboratory Furniture Rubber Two Roll Mill
1. Infrared Sensor: A infrared sensor device for braking is installed to keep the operator's body and the running Two Roll Open Mill in a safe distance. Many unexpected accidents on the Open Milling Machine are caused by causal and incorrect operations, this infrared sensor is designed to rule the operator's basic actions and protect the user from the roof of the danger.
2. 360 Degrees Emergency Braking Button: Based on human engineering, this safety device is designed to protect the user when an emergency happened. When touching the button, the rollers will stop immediately and reverse 1/4 round to maximize the protection.
3. Knee-Hitting Safety Device: According to human engineering, this device is installed to brake the rollers when an unexpected emergency occurred.
4. Hand-Pressing Safety Device: This is the basic safety device installed on all types of Rubber and Plastic Two Roll Mill. Once press the button, the rollers will stop immediately and reverse about 1/4 round.
5. Safety Cover: This safety cover is installed on the top of the rolls, to ensure the user's safety when adding other solid, powder or liquid additives into the mixing materials.
Intelligent control panel and PLC control system
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
