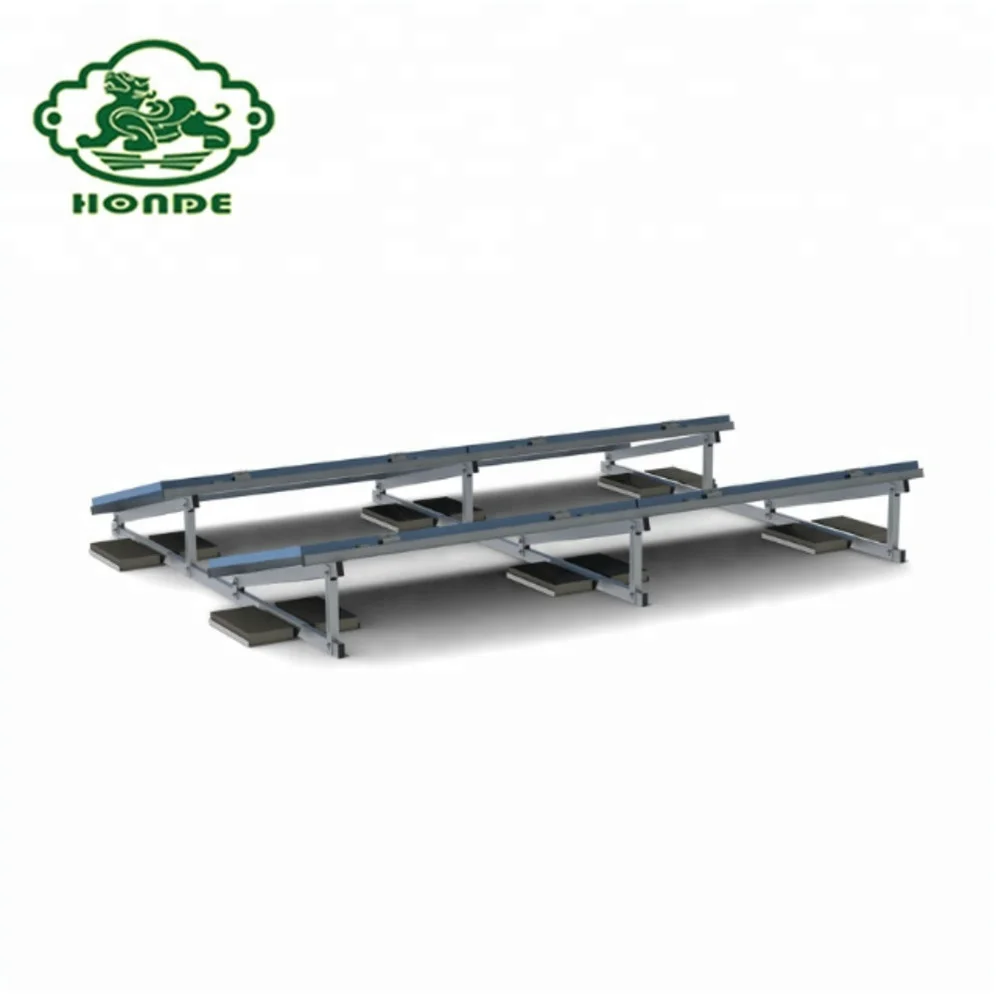

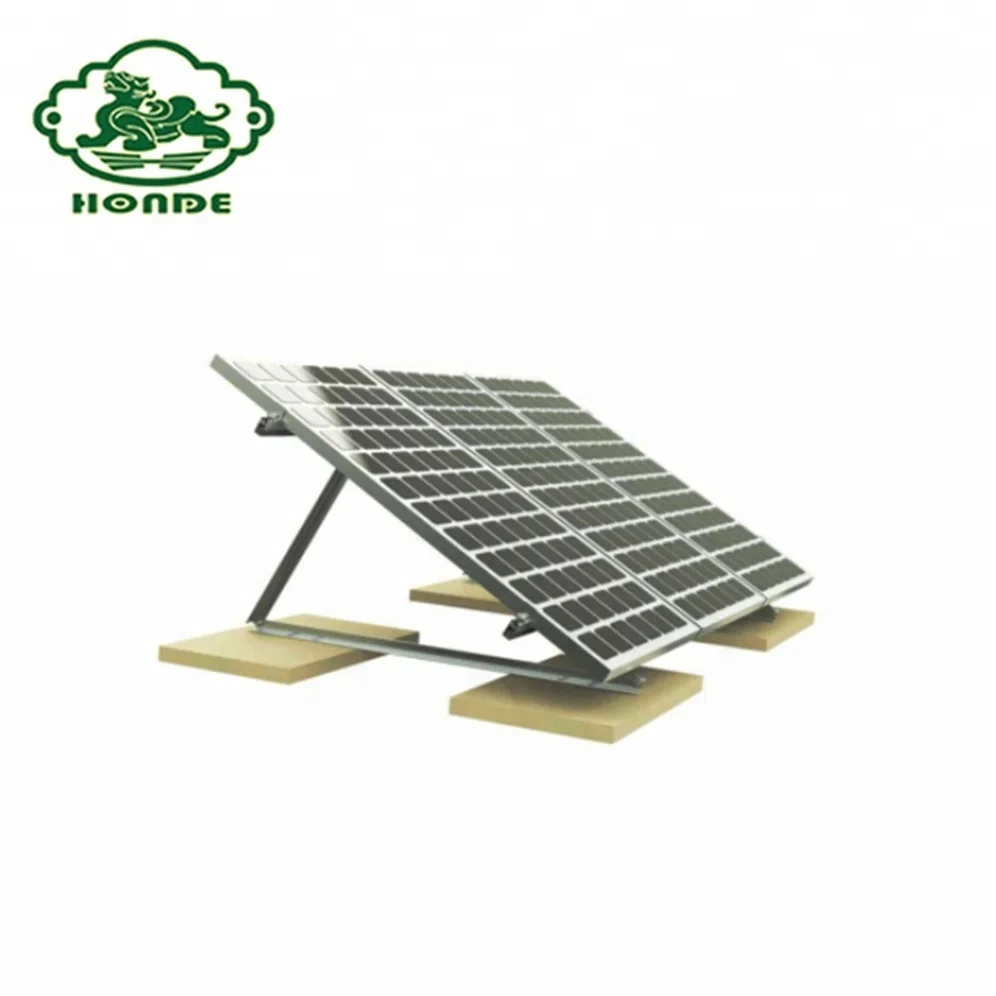

Concrete Base Solar Panel Roof Mounting Brackets System

Share on (60775567499):


Price:

Quantity:


Product Overview

Description


solar panel roof mounting brackets
Flat Roof Solar Panel Stand Mounting Bracket

Introduction

  • HD Flat Roof Racking system is developed to mount the module tilt a certain angle on a flat roof or ground.
  • You can have the fixed or adjustable angle solution as 10-15deg, 15-30deg and 30-60deg according to your exact requirement.
  • HD series product have the innovated aluminum rail, D-module, clamps and legs which can be pre-assembled to make the installation easy and quick for saving your labor cost and time.
  • Besides, the customized length of rail will not require onsite weld and cut, keeping the appearance entirety, structural strength and anti-corrosive performance.

Product Shows

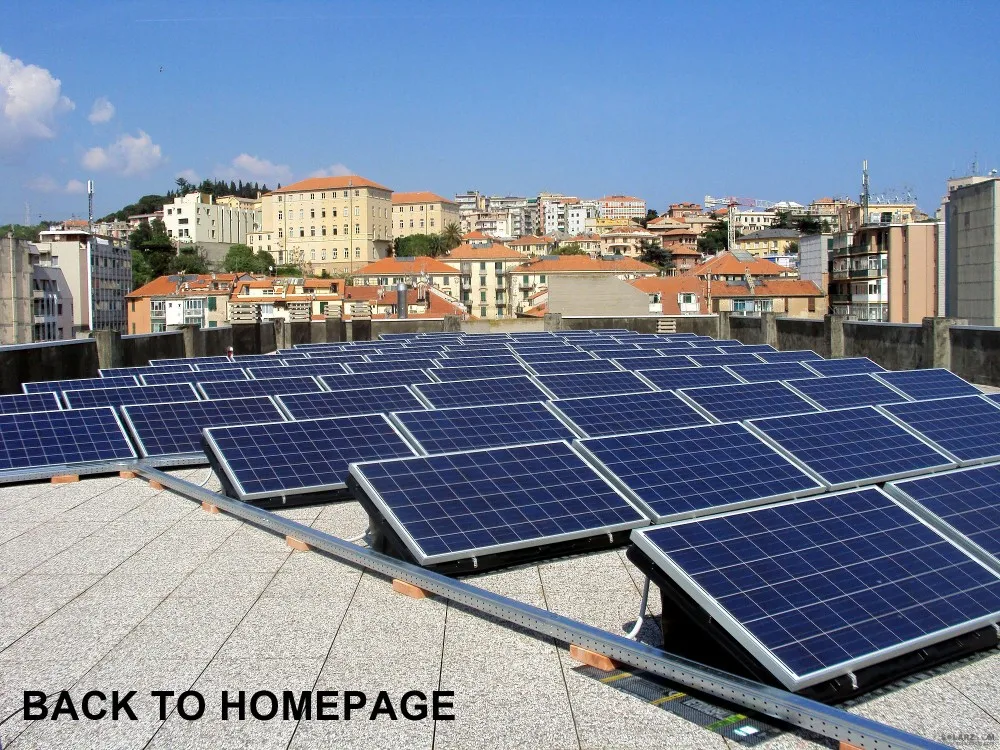

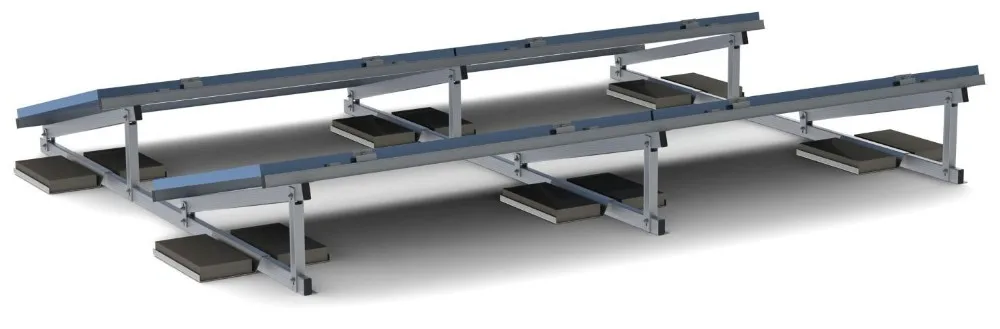

 solar panel roof mounting brackets

solar panel roof mounting brackets

Product Details

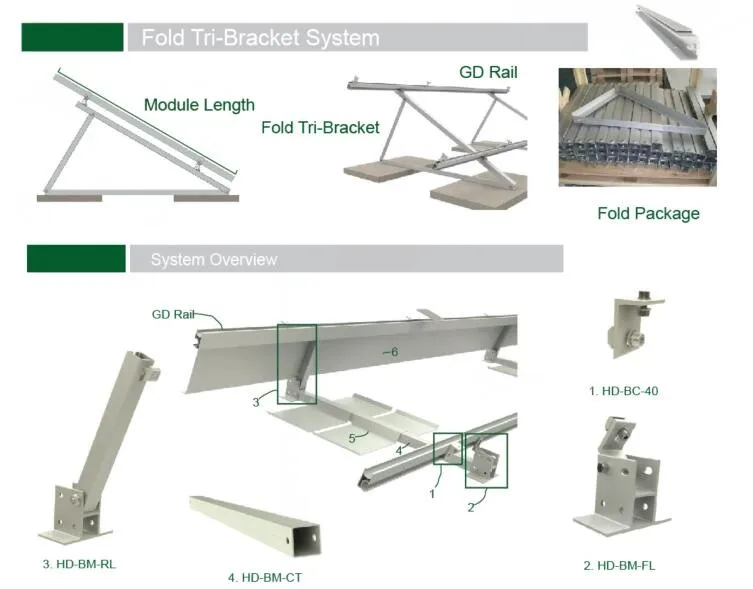

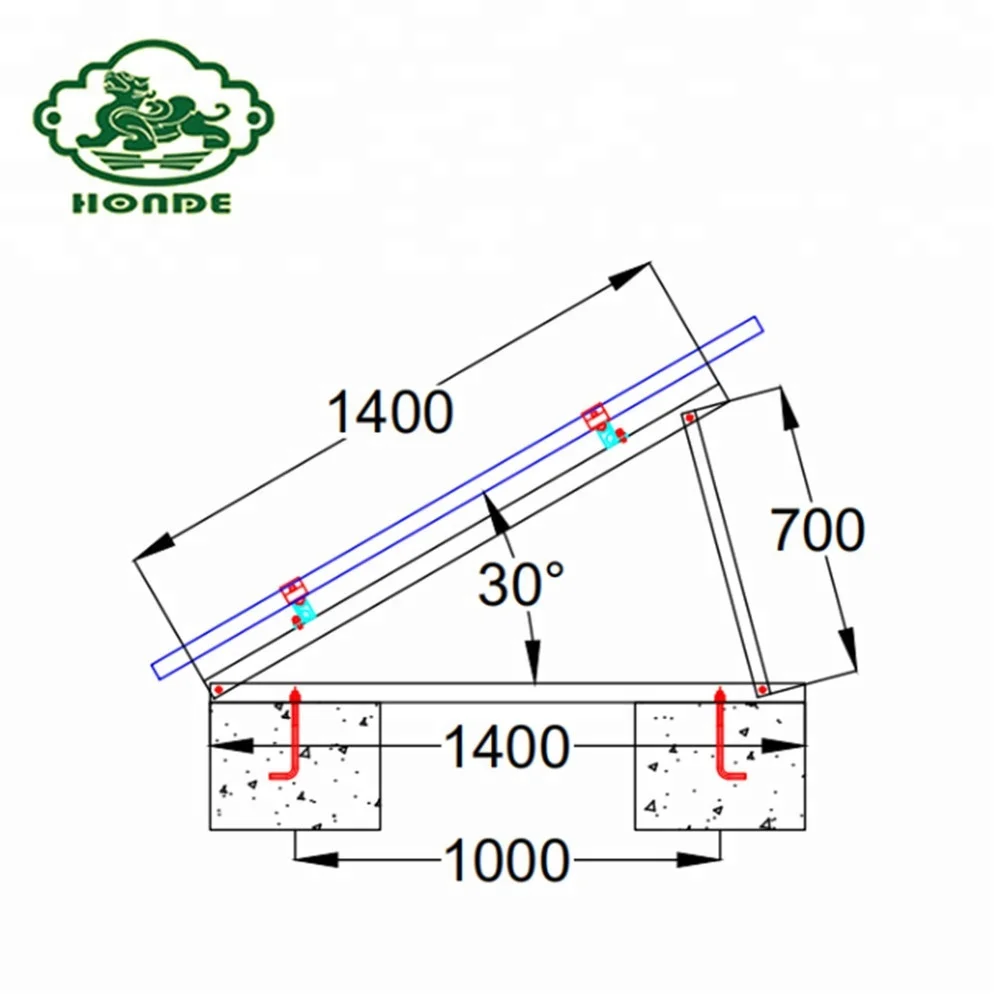

 solar panel roof mounting brackets

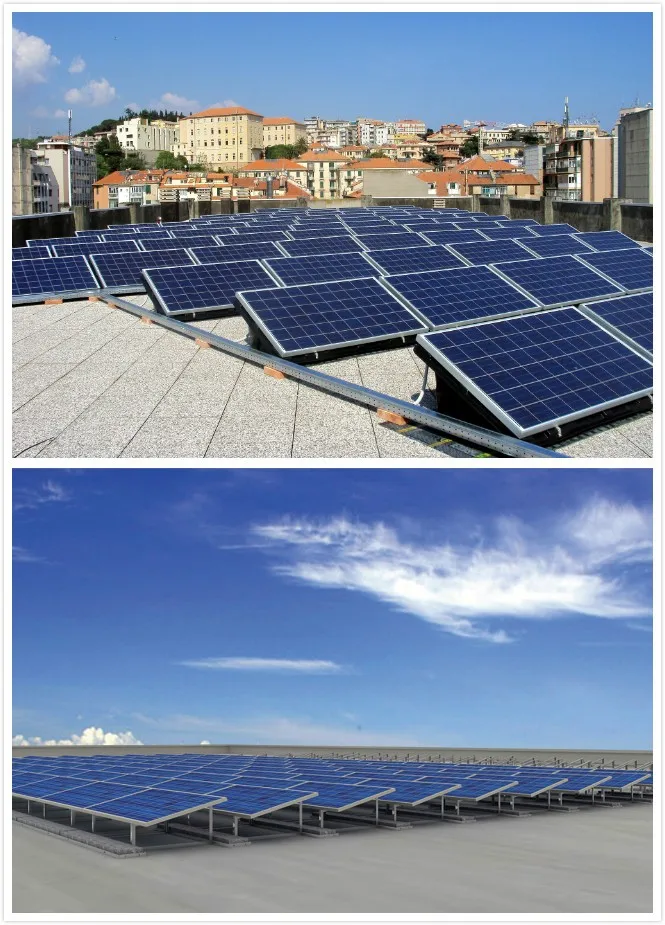

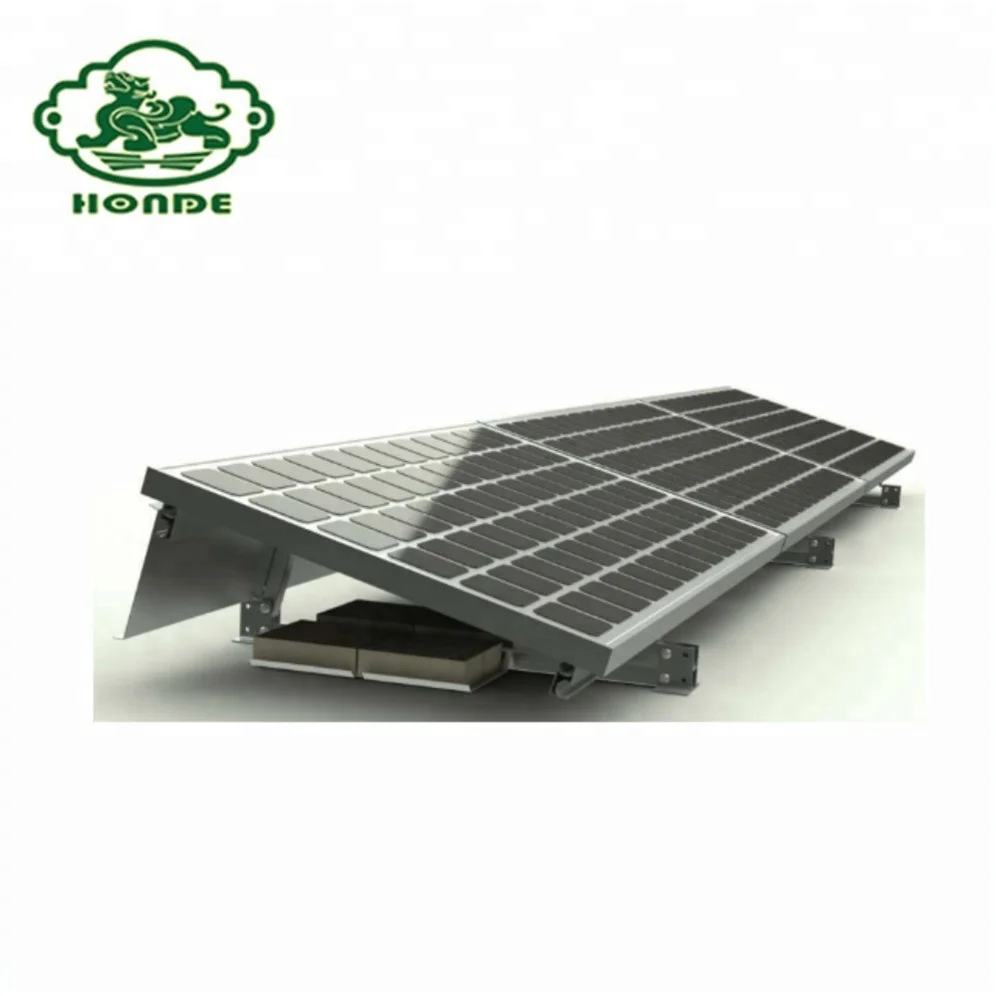

solar panel roof mounting brackets

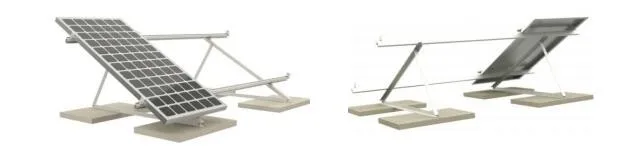

 solar panel roof mounting brackets

Specification

Model

Various

Type

Flat Roof Solar Panel Mounting Bracket

Installation site

Open filed

Module width

Any

Installation angle

Low profile roof or open filed

Tilt Angle

10deg ~ 60deg

Wind load

< 60m/s

Snow load

 up to  1.4KN/m²

Standards

AS/NZS 1170 & DIN 1055 & Other

Fixed Type

Concrete Base or Expansion Screw

Anti-corrosive

Anodized

Module Orientation

Vertical or horizontal

Material

 Aluminum alloy

Duration

More than 20 years

Warranty

10 years and 25 years service life

Factory

We are Factory

Main market

All around the world



Benefits

Easy installation

D-module can be put into GD Rail from any position. so the parts can be pre-assemblyed on factory to save your install time on site.

Flexibility and Compatible

GD Rail and its accessories can be installed with the most solar panels on the difference condition.

Safety and Reliability

The racking systems can stand up to the extreme weather complied with the AS/NZS 1170 and other international structure load standards by skilled engineers. The main support components have also been tested to guarantee its structure and load-carrying capacity.



Application

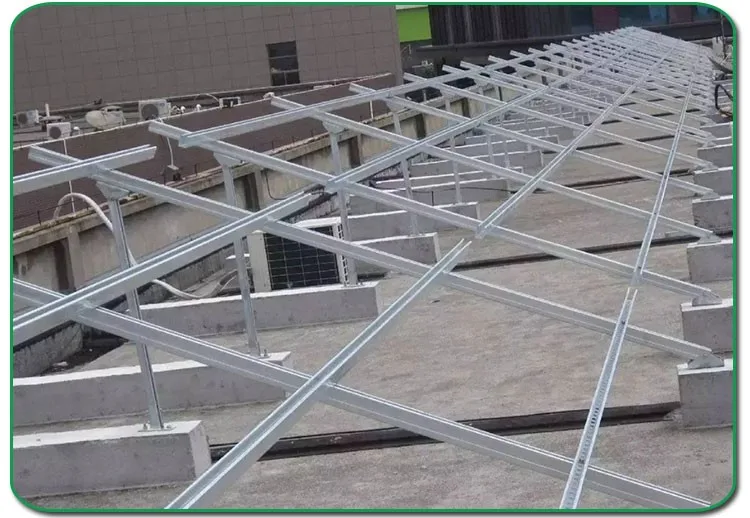

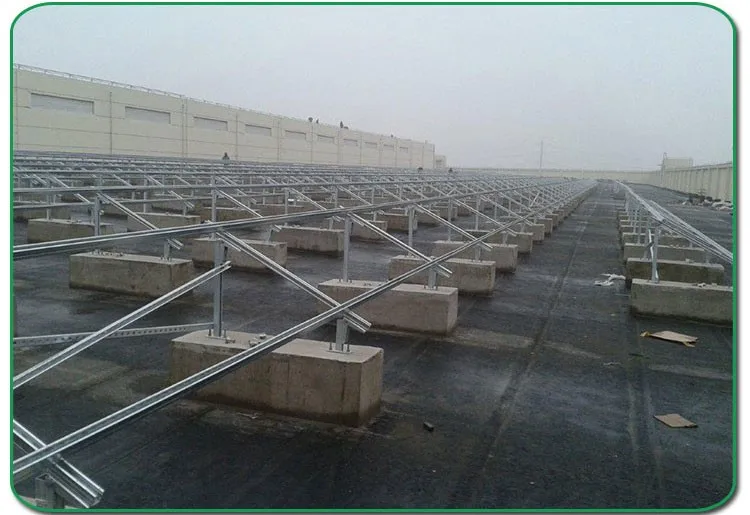

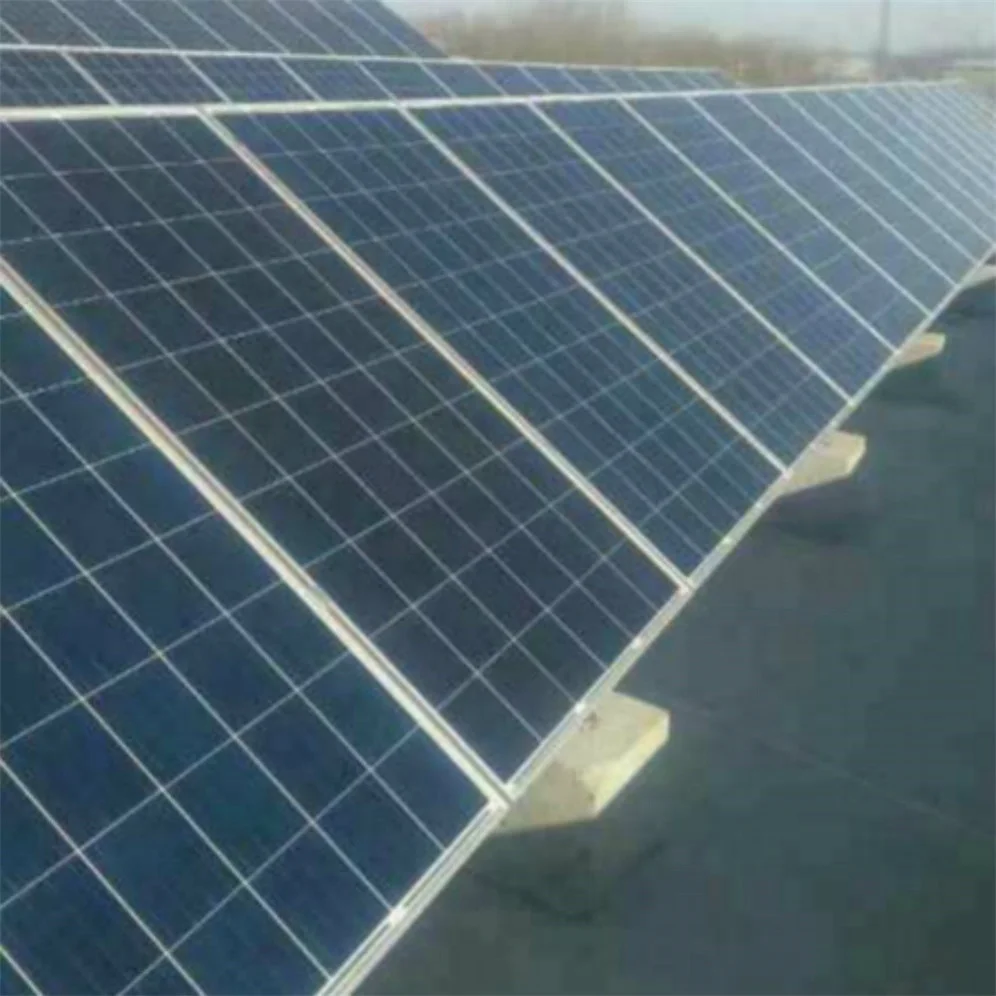

solar panel roof mounting brackets
