CIMC 40ft container chassis skeletal trailer
- Category: Trailers >>>
- Supplier: Qingdao Cimc Special Vehicles Co. Ltd.
Share on (60775870472):
Product Overview
Description

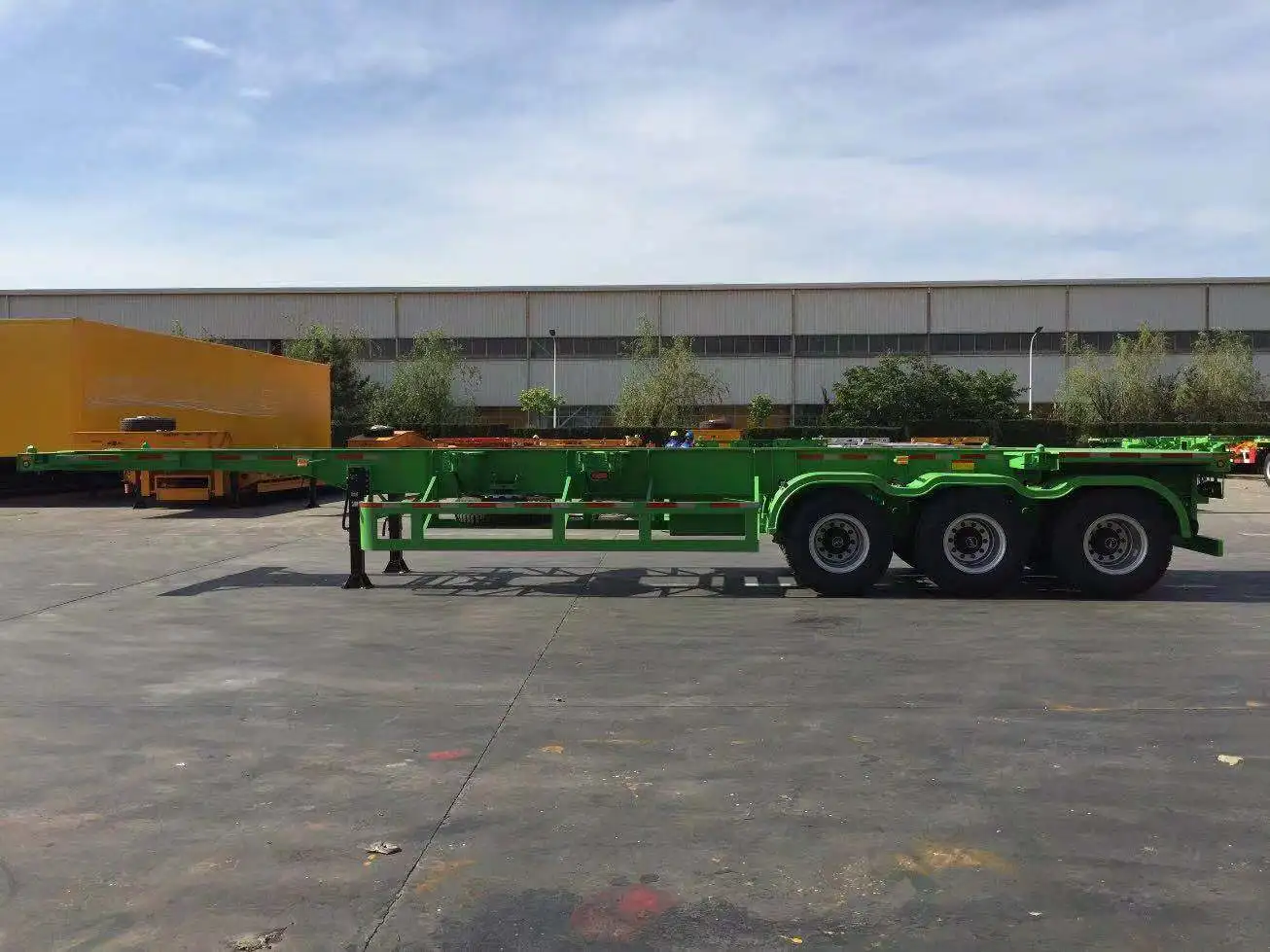

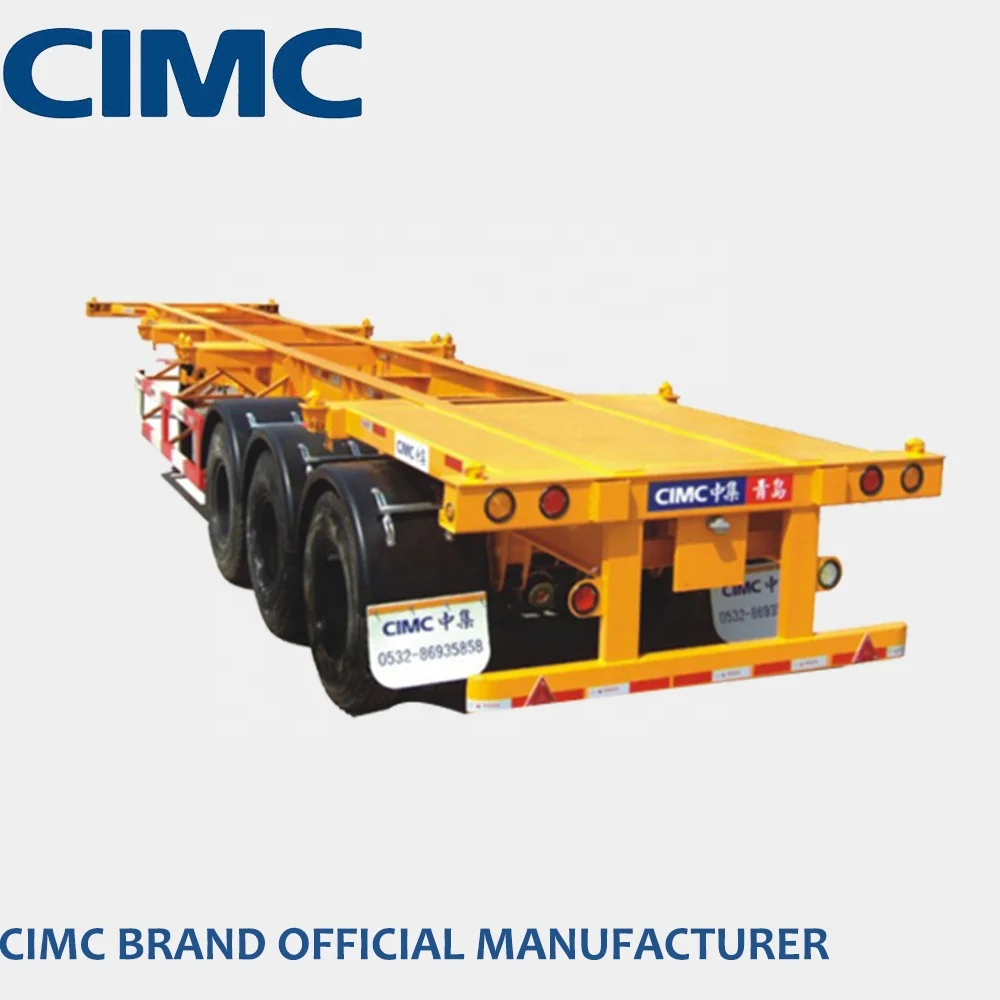

40ft Container Chassis skeletal trailer
Specifications:
1) Dimensions and weight:
a) Nominal dimensions (L x W x H): 12,489 x 2,480 x 1,460mm
b) King pin height: 1,220mm
c) King pin setting: 760mm from rear face of front bolster
d) Max. payload: 35,000kg
e) Tare weight: 3,000kg±2%
2) Running system:
a) Suspension system: leaf spring or airbag suspension.
b) Axle: various axles like BPW, York, Fuwa, with various bearings
c) Tire: various brands of bias tyres or radial tires
d) King pin: forged steel, 2" or 3.5", welded or bolt-in
e) Landing gear: 28T, 30T
3) Chassis:
a) Provides twist locks and corner locks
b) Main beam: high-tensile steel
c) Surface preparation: shot blast all steel surfaces to achieve SA2.5 or SP-10
d) Painting: zinc-rich primer and modified urethane topcoat as customers' choices
4) Brake system:
a) Double line air brake system with single air tank, standard connectors on front bolster
b) Optional anti-lock brake system
5) Electrical system: standard electrical equipment.
40ft Skeletal Container Chassis Details:
|
ETER |
Dimension |
L*W*H: 12489X2480X1460(MM) |
|
Axle space |
7200mm+1300mm+1300mm |
|
|
Tare weight |
7000KGS |
|
|
Payload |
60000KGS |
|
|
G.V.W.R. |
67000KGS |
|
|
OEM |
Landing gear |
Two speed manual operation type with sand shoe |
|
Kingpin |
2"Bolted type Jost Brand |
|
|
Brake system |
Dual line pneumatic brake system. |
|
|
Main beam |
16/ 6/ 18 |
|
|
Brake chamber |
Type 30/30 spring brake chamber |
|
|
Suspension |
Spring suspension |
|
|
Axle |
FUWA axle, 13 ton capacity/set,3pcs |
|
|
Tire |
11R22.5-18PR,12UNITS |
|
|
Rim |
8.25*22.5 ,12 UNITS |
|
|
Tool box |
1(1m) |
|
|
Spare tire carrier |
2 |
|
|
Twist locks |
12 units |
|
|
OTHERS |
Painting |
As customer's request |

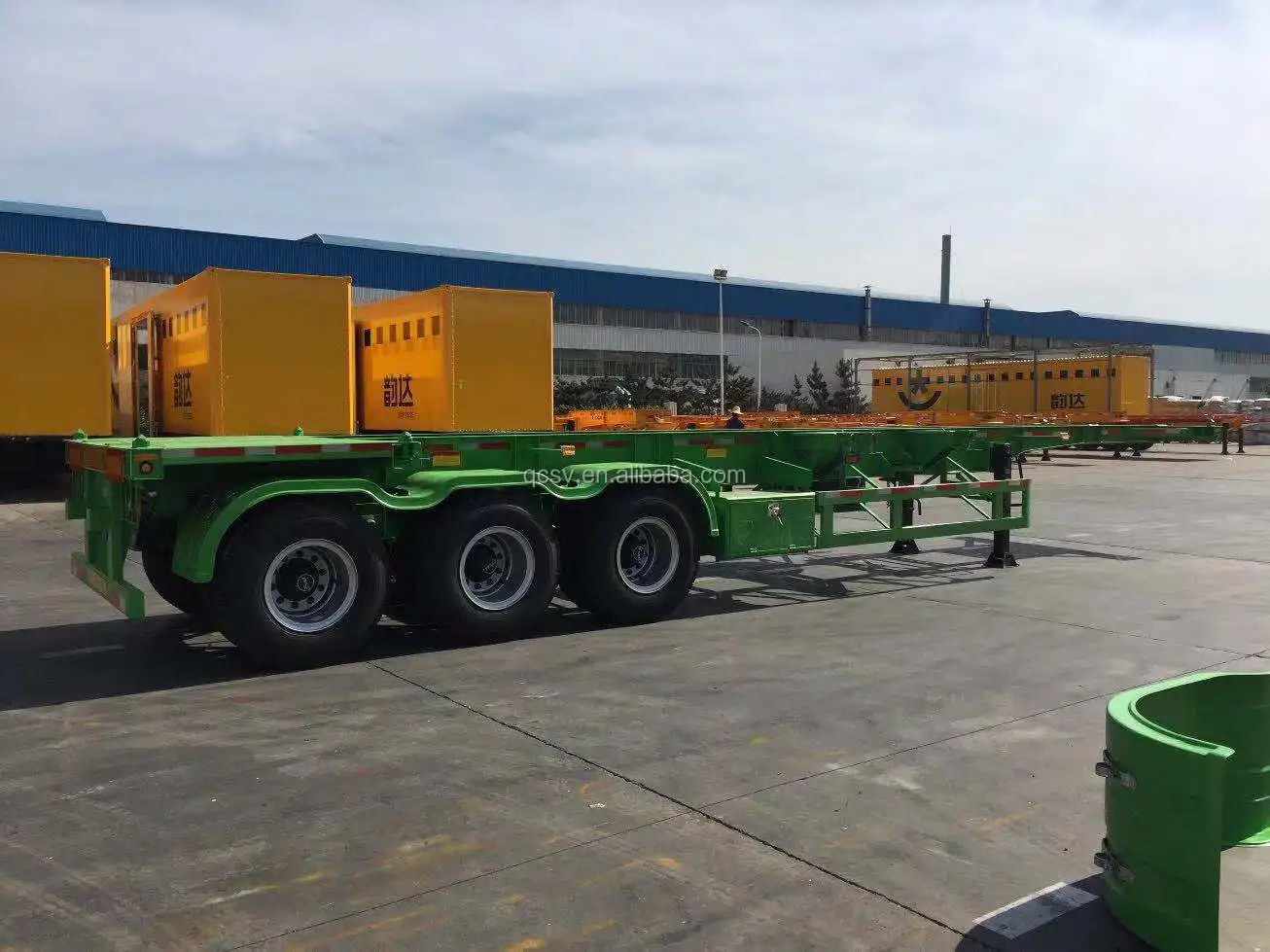

More photos for your reference:

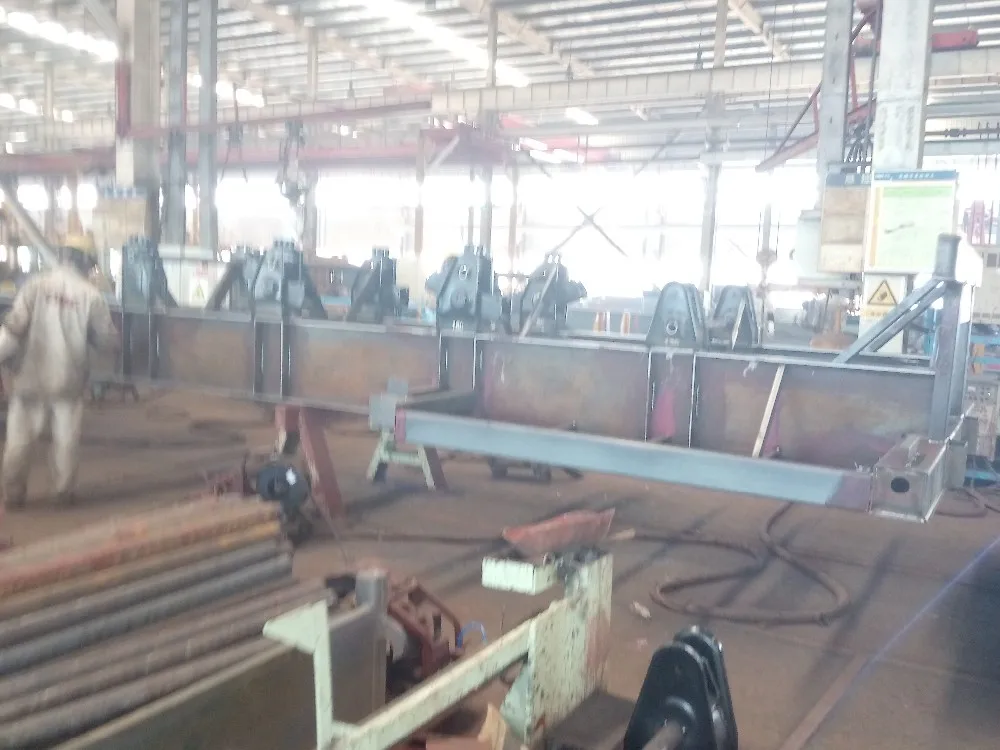

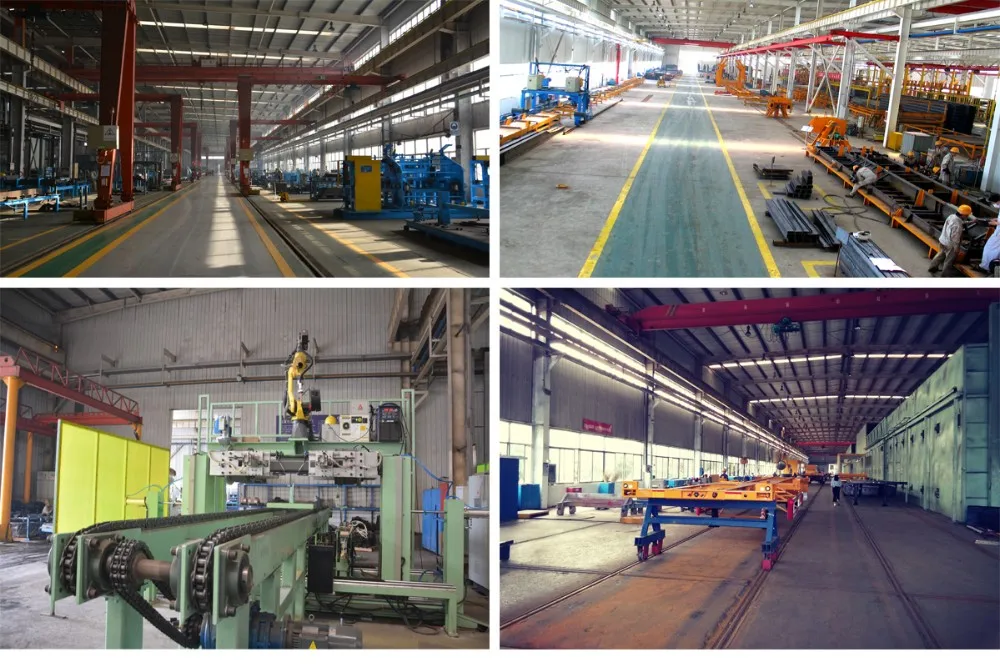

40ft Skeletal Container Chassis Production
40' Skeletal Container Chassis Parts in Stock:
40' Skeletal Container Chassis Packing and Loading:
About CIMC:
1.We are the CIMC Brand Trailer Original Manufacturer.
2.We are the whole subsidary of CIMC Group, the largest semi trailer and container manufacturer in the world.
3.CIMC have a history of 35 years.
4.Our products include: Flatbed trailer, Skeletal Trailer, Tipper Trailer, Side wall fence trailer, low bed trailer, swap body.
5. More details for Qingdao CIMC
.CIMC Qingdao Vehicle Base is located at Qingdao. which is the subsidary of CIMC Group, the largest trailer and container manufacturer in the world. Covering an area of over 20 hectares and close to Qingdao Port,
with a total investment of 115 million RMB and 62.88 million RMB as registered capital, Qingdao CIMC Special Vehicles Co., Ltd is equipped with the manufacturing capacity of 5000 special vehicles per year.
FAQ
1. Could you supply samples?
Normally samples for test could be supplied upon requested. and our MOQ is 1pc, to save sea freight charges, we suggest 2pcs in one container
2. How long for the lead time?
We have 6 production line, could produce trailers 30pcs/ day. and normally it will take 30 days
And also we have professional shippment deparment could find cheapest sea freight charges partner, so we could also help to reduce you cost and also arrange you a earliest delivery.
3. Do you have any reward for old clients?
CIMC have a mature clients rewading system. We offer discount to old clients could place repeated orders regularly.
What's more, we could also supply old clients some free brake parts (brake shoe, brake lings, brake drums, brake chambers etc) for part of our after sale service with each order.
4. Do you have any after sale service?
Yes, we have professional after sales department, and if you have installation or other problem, we can send our engineer to deal with them, and if needed, we will send our engineer at site to solve it.
Shall you have any interesting in our products, welcome contact us as follows:
